For Sale by B & B Oilfield Services
Description

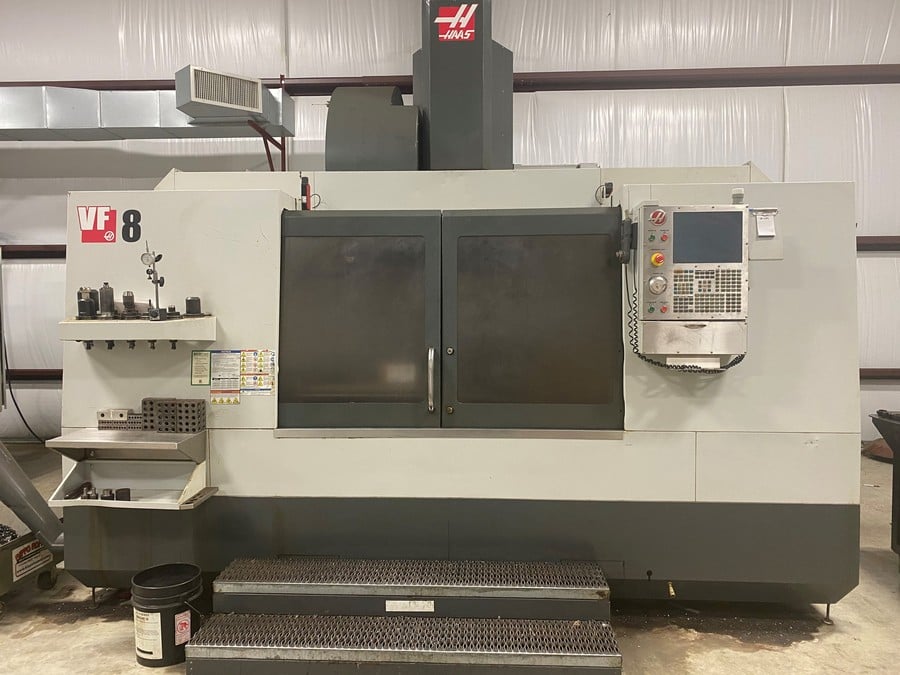

HAAS VF-8/50
Travels
X Axis 64.0 in
Y Axis 40.0 in
Z Axis 30.0 in
Spindle Nose to Table (~ max) 35.0 in
Spindle Nose to Table (~ min) 5.0 in
Spindle
Max Rating 30.0 hp
Max Speed 7500 rpm
Max Torque 340 ft-lbf @ 700 rpm
Drive System 2-Speed Gearbox
Taper CT 50
Bearing Lubrication Air / Oil Injection
Cooling Liquid Cooled
Table
Length 64.0 in
Width 36.0 in
Number of Std T-Slots 7
Max Weight on Table (evenly distributed) 4000 lb
Tool Changer
Type SMTC
Capacity 30+1
Max Tool Diameter (full) 4.0 in
Max Tool Diameter (adjacent empty) 10.0 in
Max Tool Length (from gage line) 16 in
Max Tool Weight 30 lb
Options
Renishaw CMM Probe
300 PSI High Pressure Coolant
15” Dia HAAS 4th Axis
Misc CAT 50 Tool Holders
Chip Auger
Dimensions
195”x 120” x 131”
Weight: 29000 Lbs
Inquire Further with B & B Oilfield Services!
