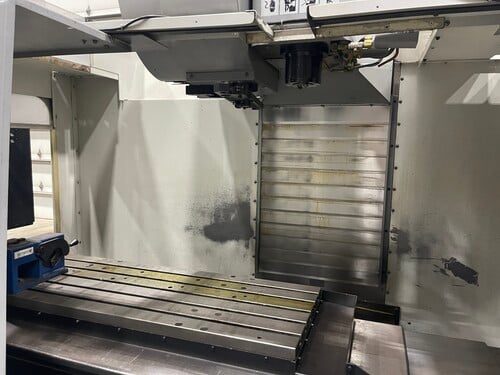

Haas #VF-3, CNC vertical machining center, 40" X, 20" Y, 25" Z, 10000 RPM, Cat 40, 28 automatic tool changer, thru spindle coolant, linear scales, 2003

Description

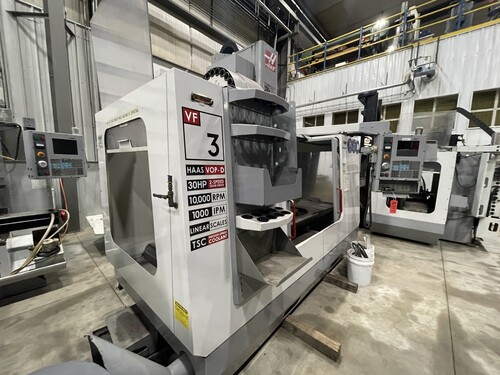

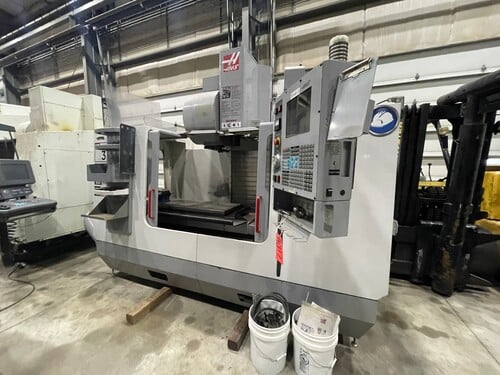

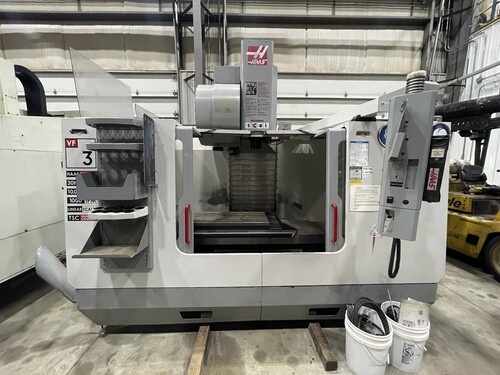

Haas VF-3 Machining Center – 2003

Asset# 16917
S/N: 32286

Machine Specifications

Travel:

• X-Axis Travel: 40 inches (1016 mm)

• Y-Axis Travel: 20 inches (508 mm)

• Z-Axis Travel: 25 inches (635 mm)

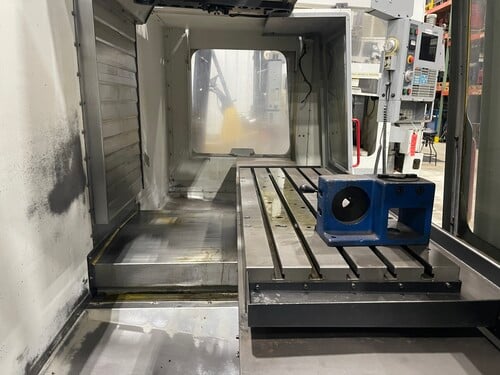

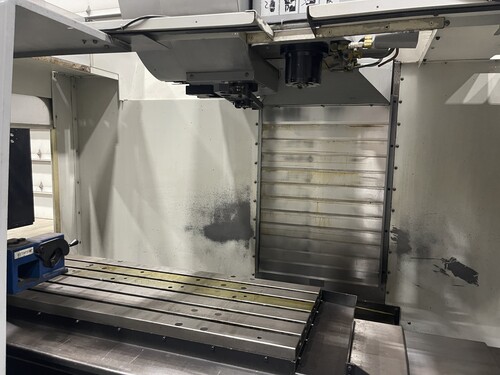

Table:

• Table Size: 48 inches x 18 inches (1219 mm x 457 mm)

• Max Table Load: 3,500 lbs (1588 kg)

Spindle:

• Spindle Speed: 10,000 RPM

• Spindle Taper: CAT 40

• Spindle Power: 30 hp vector drive (peak)

Feedrates:

• Max Cutting Feedrate: 500 ipm (12.7 m/min)

• Rapid Traverse (X, Y, Z): 1,000 ipm (25.4 m/min)

Tool Changer:

• Tool Capacity: 20-tool carousel (standard)

• Tool-to-Tool Time: ~2.8 seconds

• Max Tool Diameter: 3.5 in (5 in with adjacent tool pocket empty)

• Max Tool Length: 11 in

• Max Tool Weight: 12 lbs

Dimensions/Weight:

• Machine Weight: ~12,500 lbs (5,670 kg)

• Footprint (approx.): 102″ x 102″ (2.6m x 2.6m) without chip auger or enclosure extensions

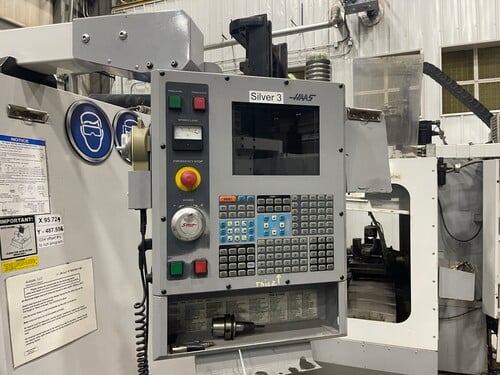

Control:

• Controller: Haas CNC Control (classic Haas control)
  Machine is equipped with a 30 HP motor, 10,000 RPM Spindle, Thru the Spindle Coolant, and Linear Scales.
