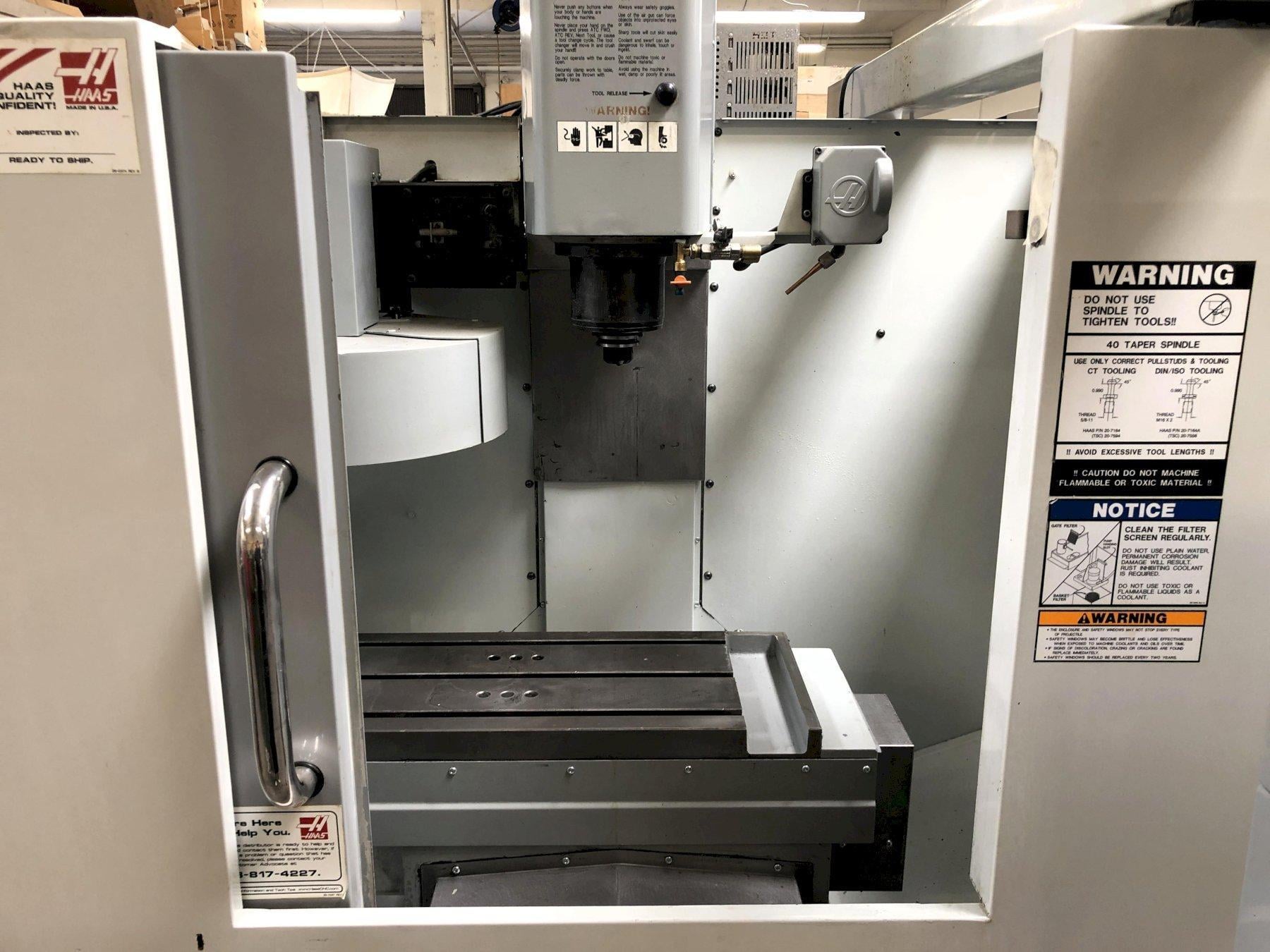

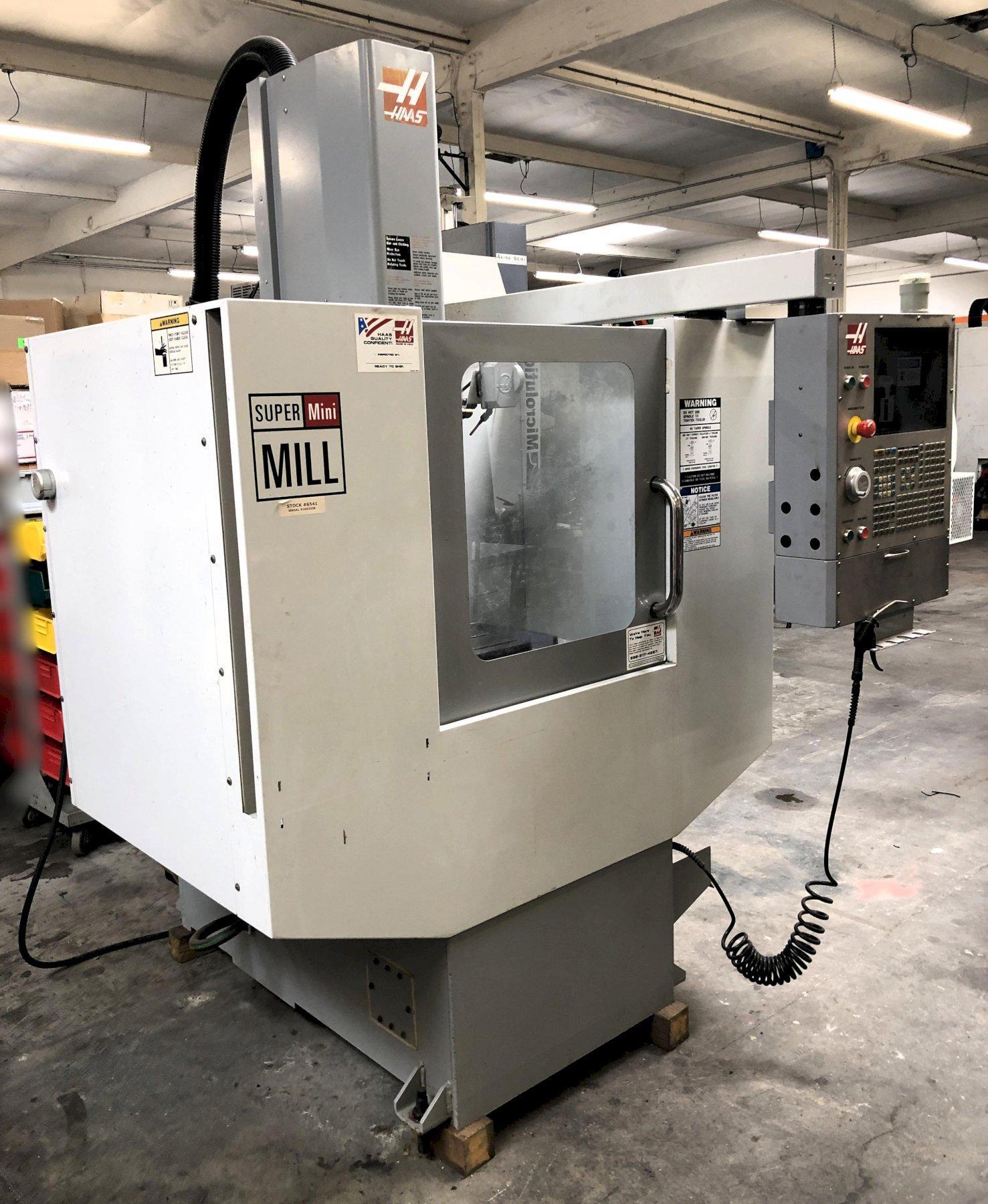

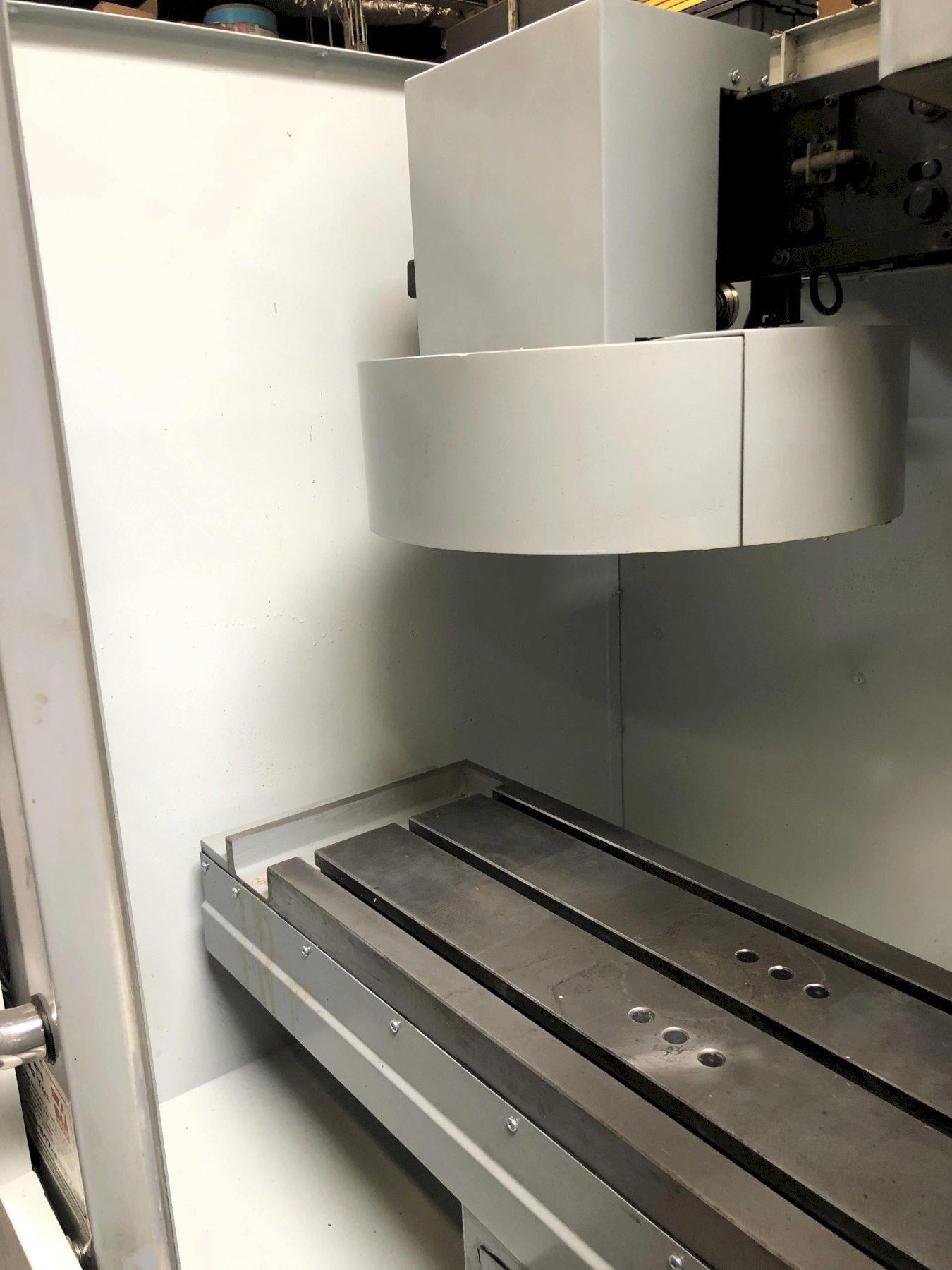

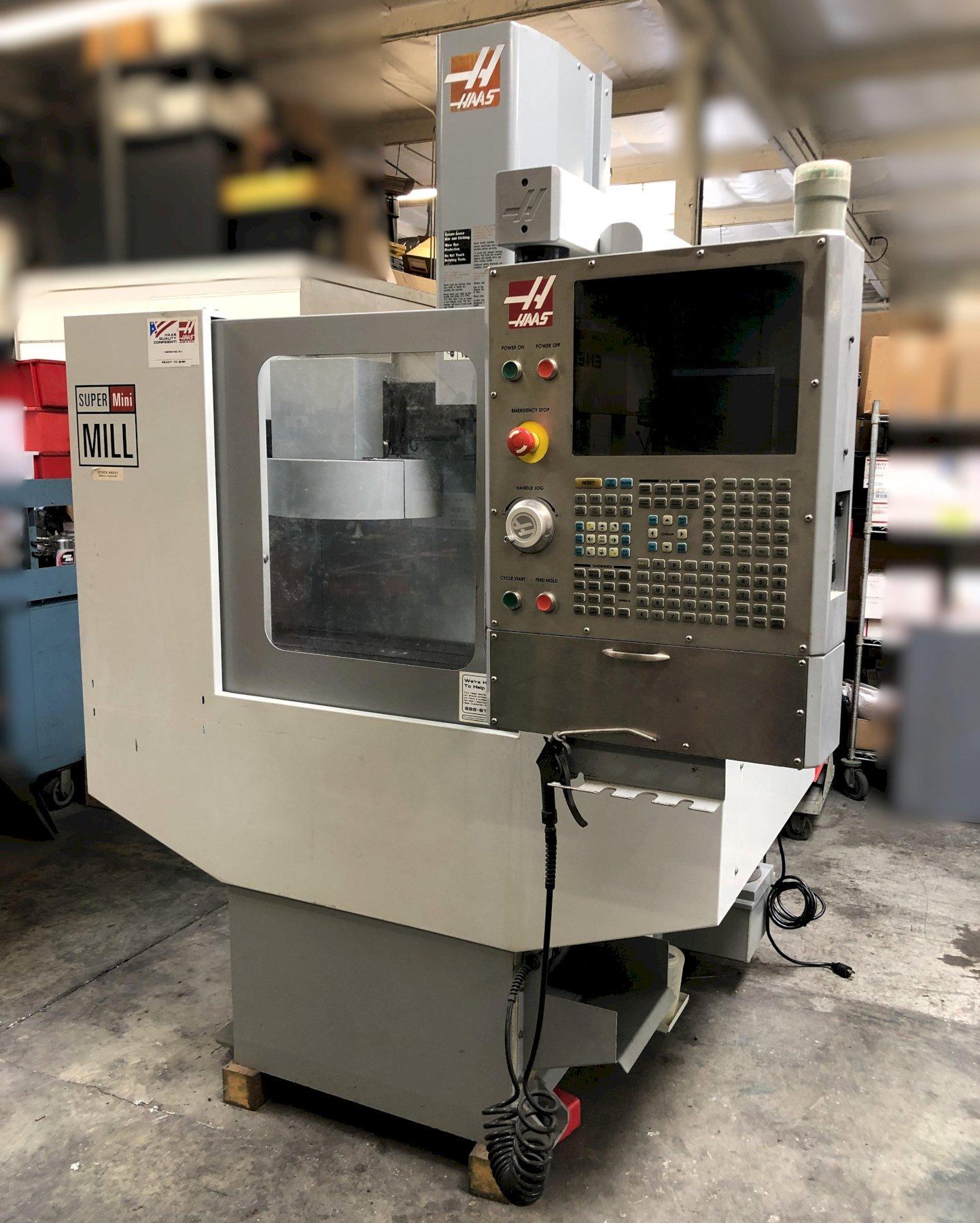

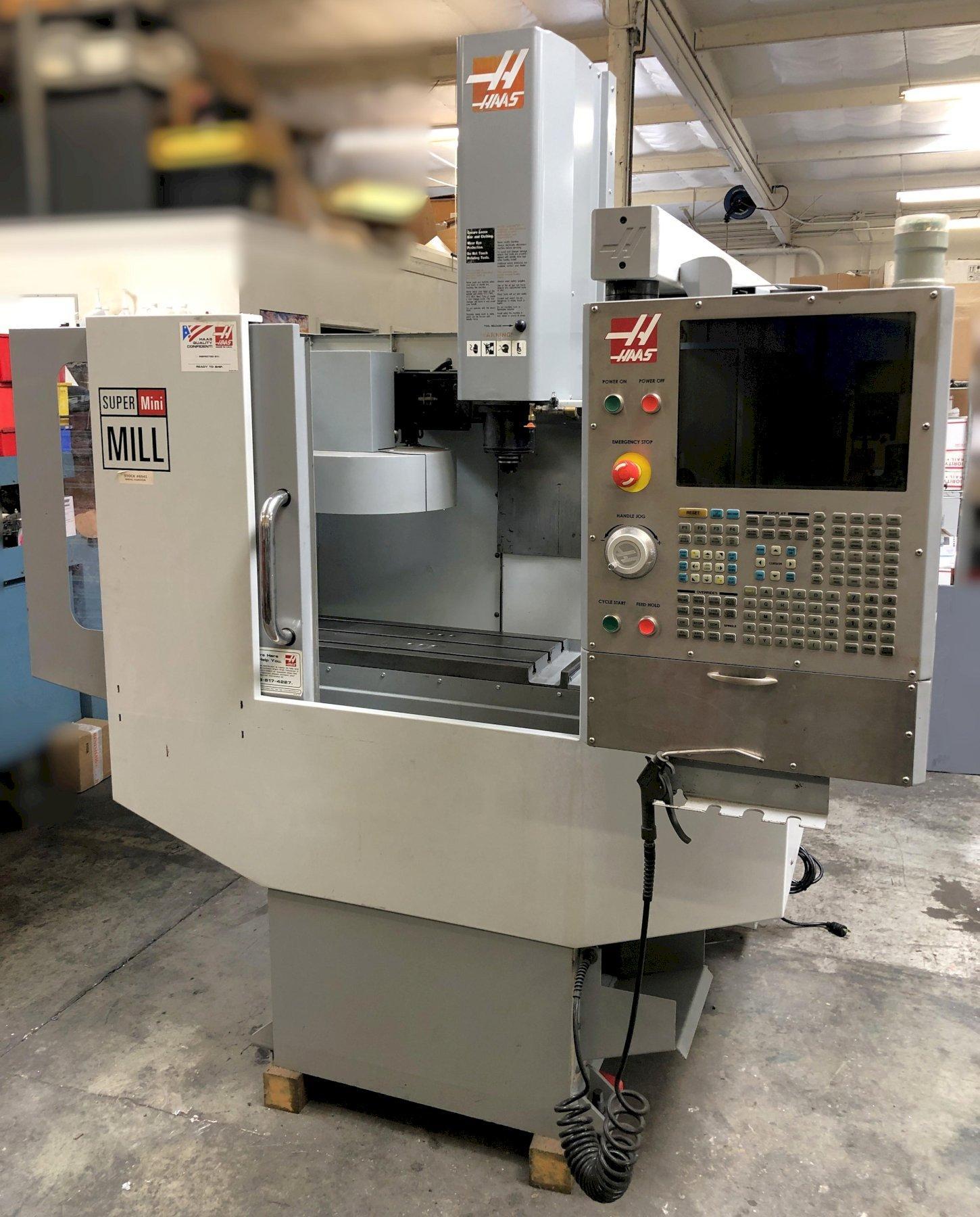

Haas #Super-Mini-Mill, CNC vertical machining center, 10 automatic tool changer, 16" X, 12" Y, 10" Z, 10000 RPM, #40, 15 HP, 2006

Specifications:
X-Axis Travel
16.0 inches
Y-Axis Travel
12.0 inches
Z-Axis Travel
10.0 inches
Spindle Nose to Table (~MAX)
14.0 in
Spindle Nose to Table (~MIN)
4.0 in
Spindle Max Rating
15.0 HP
Spindle Max. Speed
10,000 RPM
Spindle Max Torque
17.0 ft-lbf @ 4,600 RPM

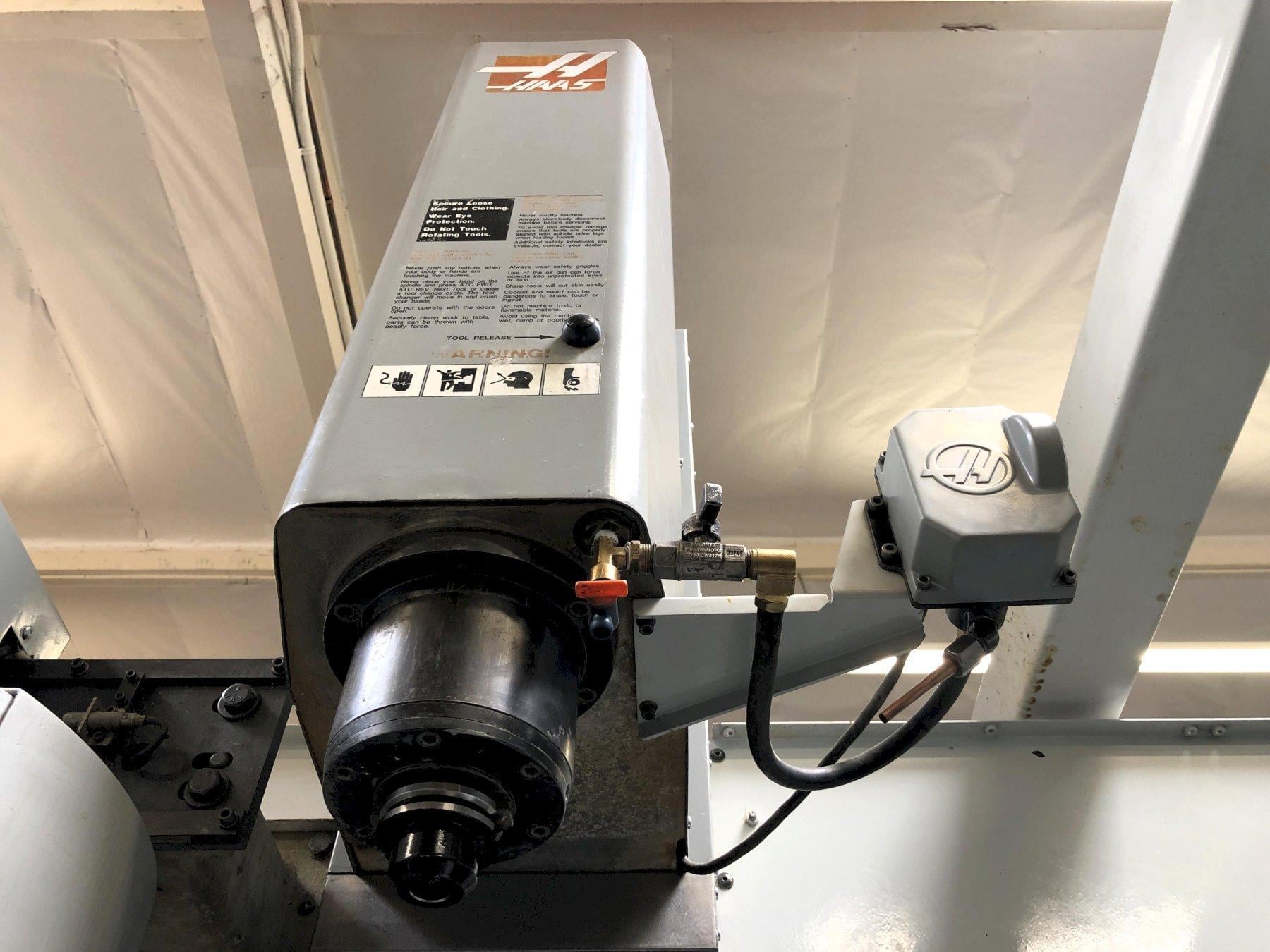

Spindle Drive System
Direct Speed, Belt Drive
Spindle Taper
CT or BT 40
Spindle Bearing Lubrication
Air / Oil Injection
Spindle Cooling
Air Cooled

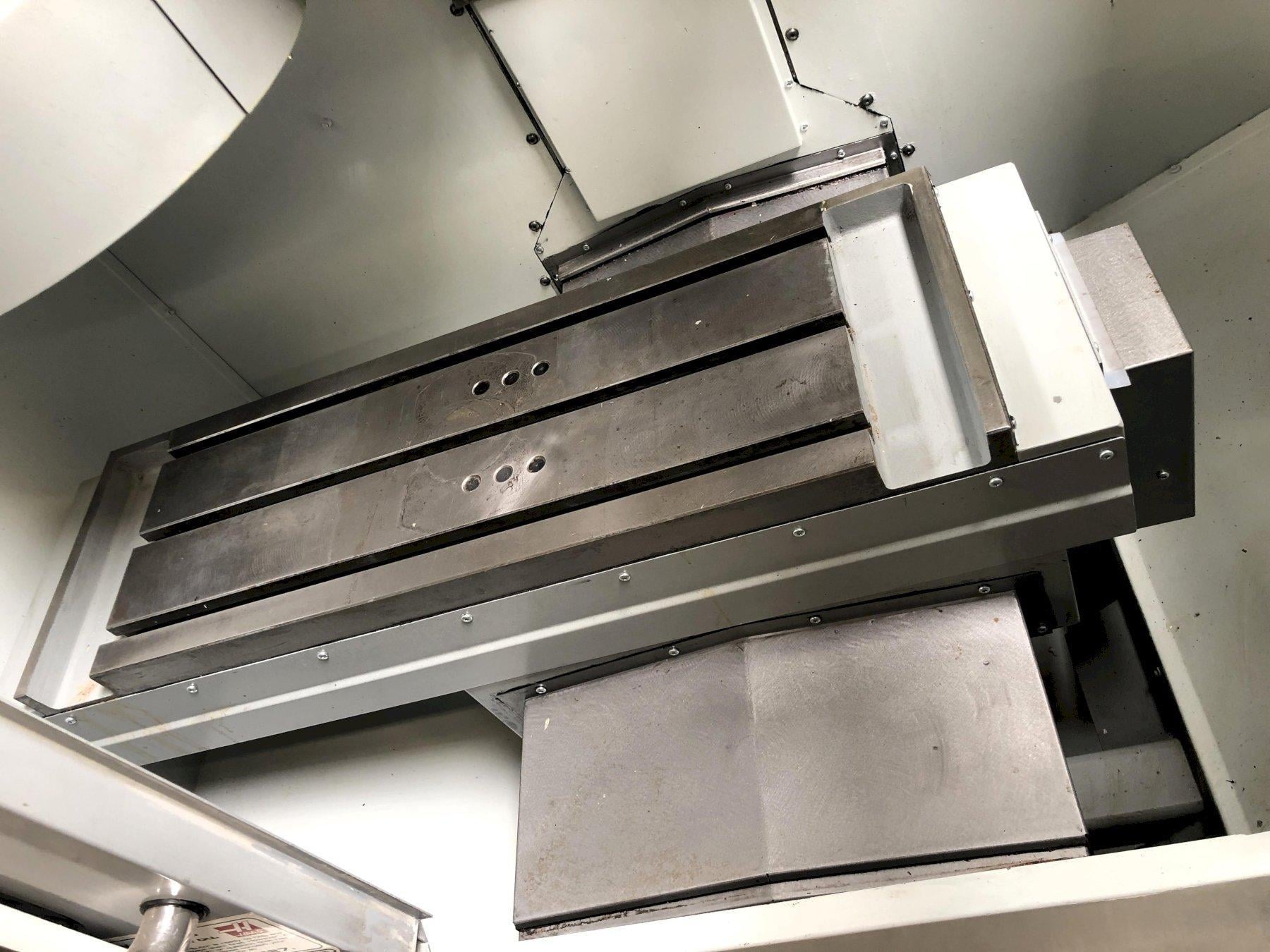

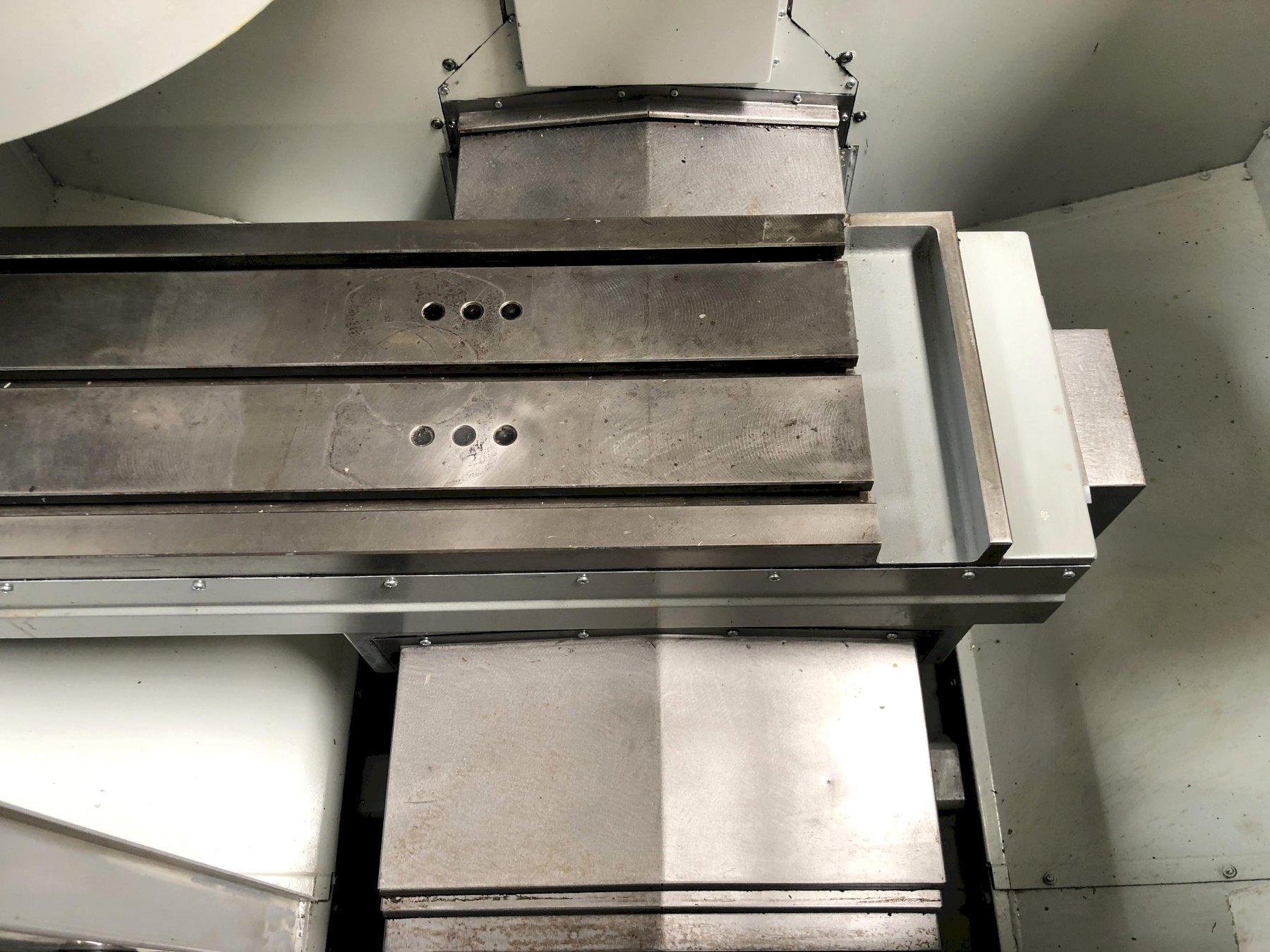

Table Size
Length: 36.0 in, Length (Work Area): 28.75 in. x Width: 12.0 in.
T-Slot Width
0.626 in. to 0.630 in
T-Slot Center Distance
4.33 in
Number of Std T-Slots
3
Max Weight on Table (Evenly Distributed)
500 pounds
Max Cutting
833 IPM
Feedrates: Rapids on X-Axis
1,200 IPM
Feedrates: Rapids on Y-Axis
1,200 IPM
Feedrates: Rapids on Z-Axis
1,200 IPM
Axis Motor Max Thrust X
2,000 IBF
Axis Motor Max Thrust Y
2,000 IBF
Axis Motor Max Thrust Z
2,000 IBF

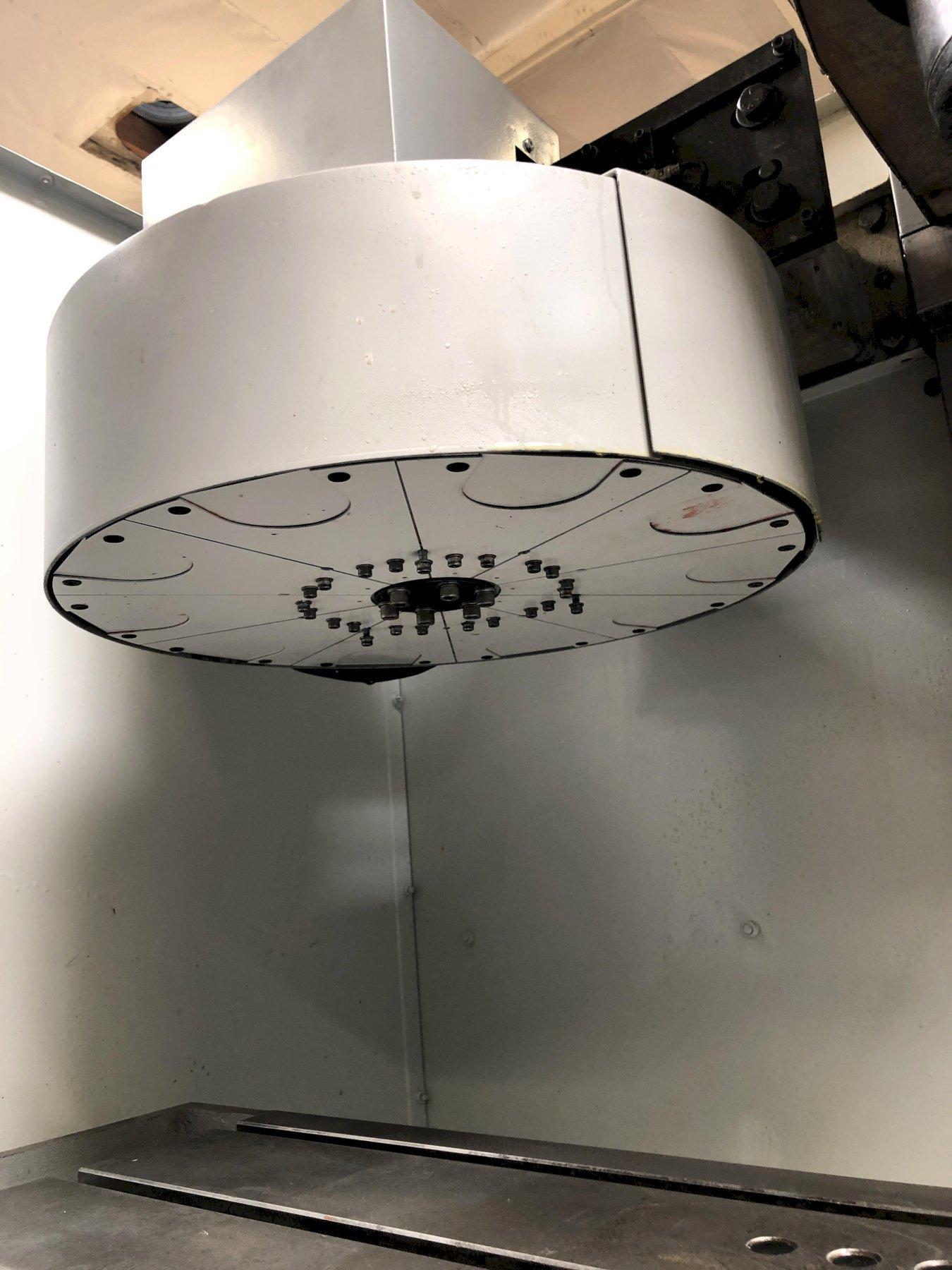

Tool Changer Type
Carousel
Tool Changer Capacity
10
Max Tool Diameter (Full)
3.5 in
Max Tool Weight
12 lbs
Tool-to-Tool (AVG)
4.2 s
Chip-to-Chip (AVG)
5.0 s
Coolant Capacity
40 gal
Air Requirements
4 scfm @ 100 PSI
Inline Air Hose
3/8 in
Coupler (Air)
3/8 in
Air Pressure Min
80 PSI
Spindle Speed
10,000 RPM
Drive System
Direct Speed, Belt Drive
Spindle Power
15.0 HP
Input AC Voltage (3 Phase) - Low
220 VAC
Full Load Amps (3 Phase) - Low
40 A
Input AC Voltage (3 Phase) - High*
440 VAC
Full Load Amps (3 Phase) - High*
20 A
Dimensions (Shipping Pallet)
90 in. x 64 in. x 100 in.
Weight
4000 pounds
