For Sale by Southern Fabricating Mchy Sales
Description

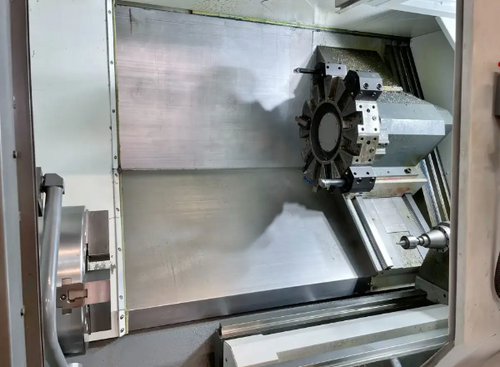

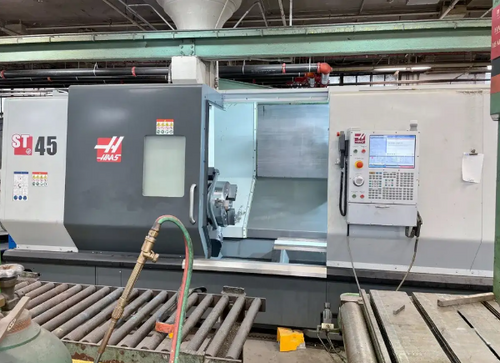

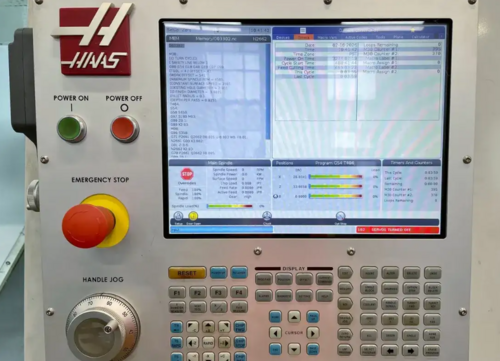

34.5” X 17” CNC Lathe with 18” 3 - Jaw Samchully Chuck, Manual Tailstock (hydraulic Quill), Tool Presetter, Chip Conveyor, Visual Part Programming System, Media Display M - Code, Rigid Tapping, USB Port, Ethernet, Wifi Connection and Haas Connect (Remote Monitoring).
GENERAL SPECIFICATIONS
Max Swing: 34.5”
Max Cutting Diameter: 25.5”
Max Cutting Length: 44”
X - Axis: 17”
Z - Axis: 44”
Chuck Size: 18”
Bar Capacity: 6.5”
Spindle Bore: 7”
Spindle Nose: A2-11
Spindle Motor: 40 HP
Spindle Speed: 1,400 RPM
Rapid Traverse Rate X - Axis: 710” / Min
Rapid Traverse Rate Z - Axis: 710” / Min
Turret Positions: 12
Turret Type: Bolt - On
Dimensions: 230” X 100” X 90”
Weight: 28,000 Lbs
INCLUDES: 18” 3 - Jaw Samchully Chuck, Manual Tailstock (hydraulic Quill), Tool Presetter, Chip Conveyor, Visual Part Programming System, Media Display M - Code, Rigid Tapping, USB Port, Ethernet, Wifi Connection and Haas Connect (Remote Monitoring).
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
