For Sale by Lion Machinery LLC
Surplus Record Dealer Since 2026
Location: Chicago, IL
Contact Andy Leon
Phone Number: 630...> Show Phone Number 630-349-5153
Let the seller know you found their listing on Surplus Record!
Description

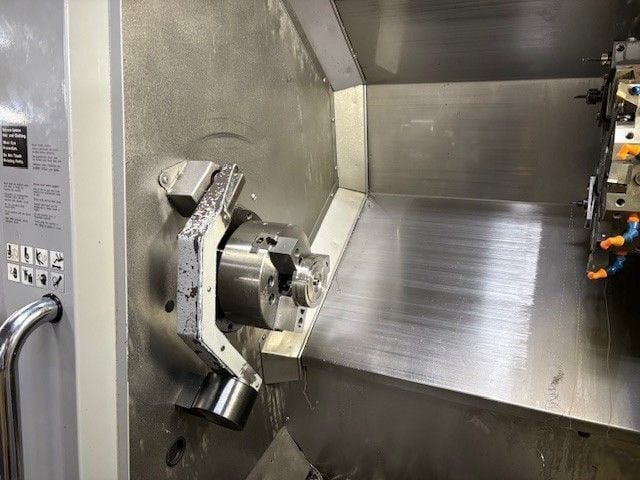

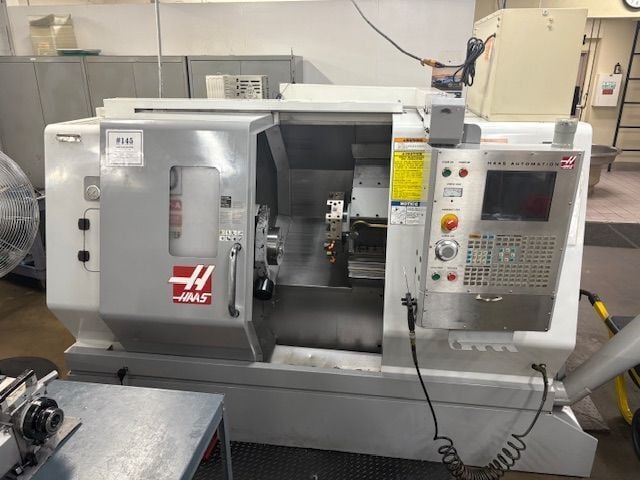

HAAS SL-20 CNC Lathe, 2005, used. Features: 23" swing, 24" machining length, 8" chuck size, 2" bar capacity, 20 HP, 4000 RPM max speed, 10.3" turning diameter. Tailstock not included. Ideal for precision machining tasks.
Max Turning Diameter: 10.3"
Max Turning Length: 20.0"
Swing Over Front Apron: 31.75"
Swing Over Cross Slide: 20.00"
X-Axis Travel: 9.0"
Z-Axis Travel: 20.0"
Max Spindle Speed: 3,400 RPM
Spindle Nose: A2-6
Bar Capacity: 2"
Spindle Bore: 2.312"
Spindle Motor: 20 HP
Spindle Torque: ~150 ft-lbs at 600 RPM
Chuck Size: 8"
Chuck Type: 3-Jaw Hydraulic

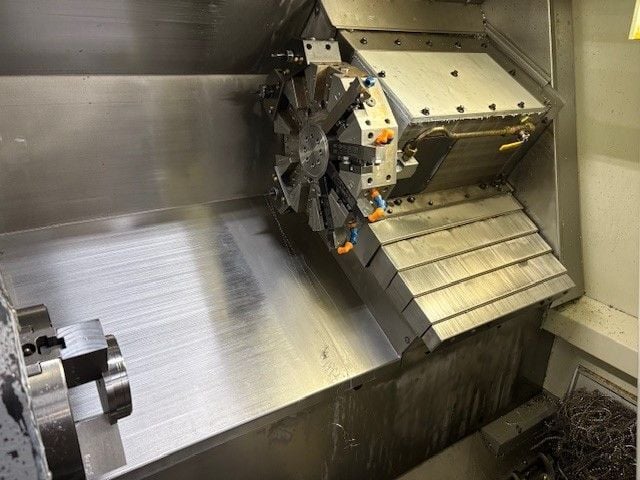

Turret Stations: 10-Station Bolt-On Turret
Max Cutting Feed: 500 IPM
Electrical: 360-480V, 3-Phase
Approximate Machine Dimensions: 112" x 64" x 73"
Approximate Machine Weight: 7,500lbs
Max Turning Diameter: 10.3"
Max Turning Length: 20.0"
Swing Over Front Apron: 31.75"
Swing Over Cross Slide: 20.00"
X-Axis Travel: 9.0"
Z-Axis Travel: 20.0"
Max Spindle Speed: 3,400 RPM
Spindle Nose: A2-6
Bar Capacity: 2"
Spindle Bore: 2.312"
Spindle Motor: 20 HP
Spindle Torque: ~150 ft-lbs at 600 RPM
Chuck Size: 8"
Chuck Type: 3-Jaw Hydraulic
Turret Stations: 10-Station Bolt-On Turret
Max Cutting Feed: 500 IPM
Electrical: 360-480V, 3-Phase
Approximate Machine Dimensions: 112" x 64" x 73"
Approximate Machine Weight: 7,500lbs
Get Your Price from Lion Machinery LLC!
