For Sale by KD Machinery
Surplus Record Dealer Since 2026
Location: Scottsdale, AZ
Contact Sales Dept.
Phone Number: 480...> Show Phone Number 480-565-7310
Let the seller know you found their listing on Surplus Record!
Description

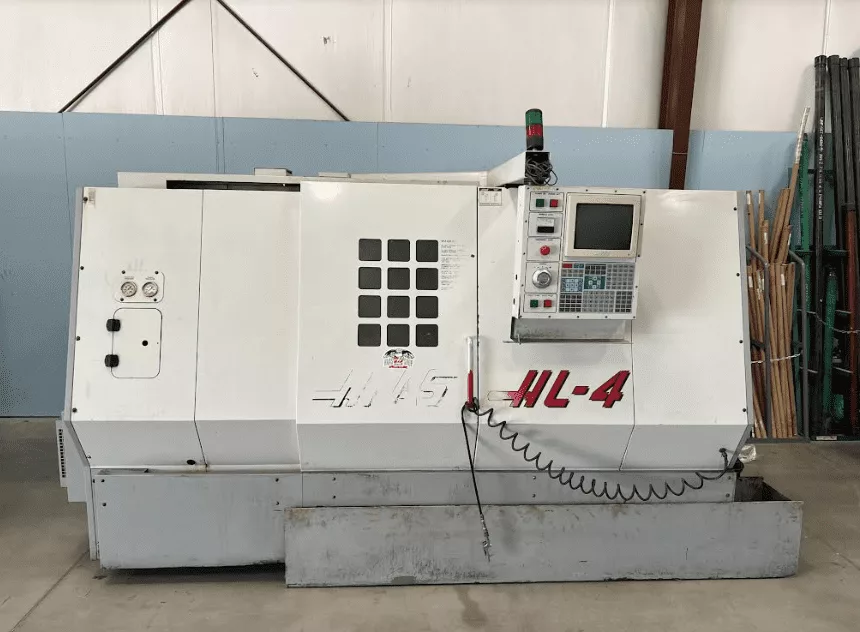

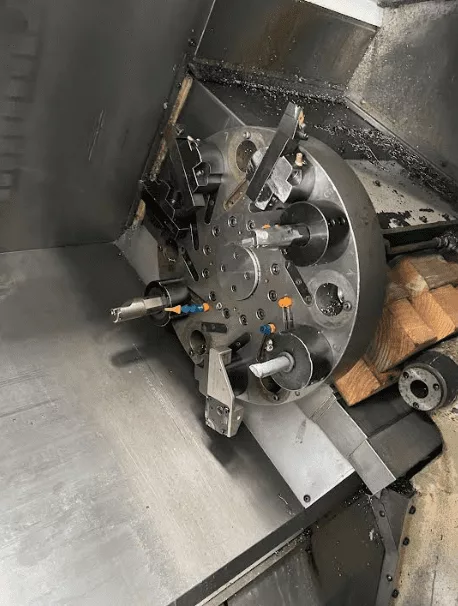

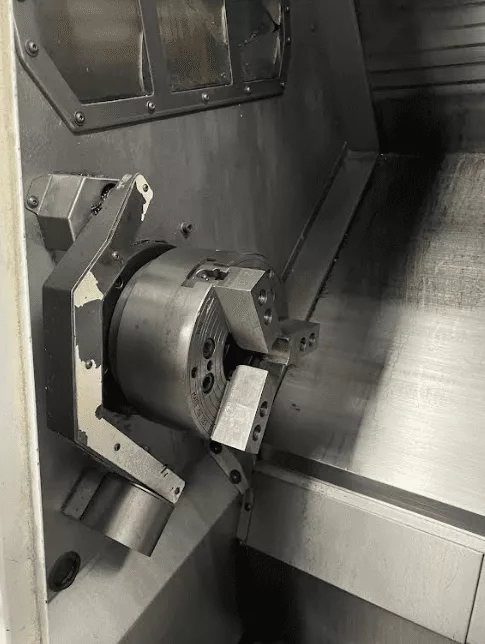

Used Haas HL-4 (1998) CNC Lathe for Sale. This machine runs a Haas CNC control with a 10″ chuck, 2.5″ bar capacity and a 14.5″ turning diameter, with 34″ distance between centers. Spindle speed is rated to 3,400 RPM, and the 12 station turret is supported by a tailstock for longer work. Approximate machine dimensions are 135″L x 68″W x 76″H, so plan floor space and rigging accordingly. The lathe can be seen under power for an inspection, and we welcome buyers to bring their own inspector. See more comparable equipment in our used CNC lathes listings or browse additional Haas machines.
| Chuck Size | 10" |
|---|---|
| Bar Capacity | 2.5" |
| Turning Diameter | 14.5" |
| Spindle Speed | 3,400 RPM |
| Control | Haas CNC |
| Distance Between Centers | 34" |
| Turret | 12 Station |
| Approx Machine Dimensions | 135L x 68W x 76H |
Get Your Price from KD Machinery!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

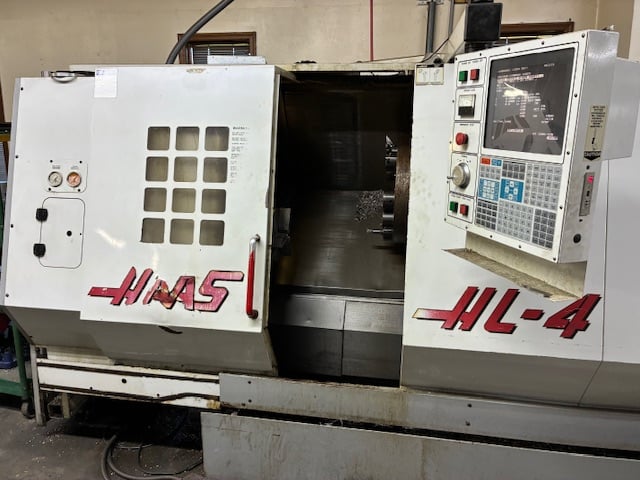

Haas #HL-4, CNC Lathe, 24" swing, 39" machining length, 10" chuck, 3" bar, 14" turning diameter, 30 HP, 3400 RPM, tailstock, 1998
