Description

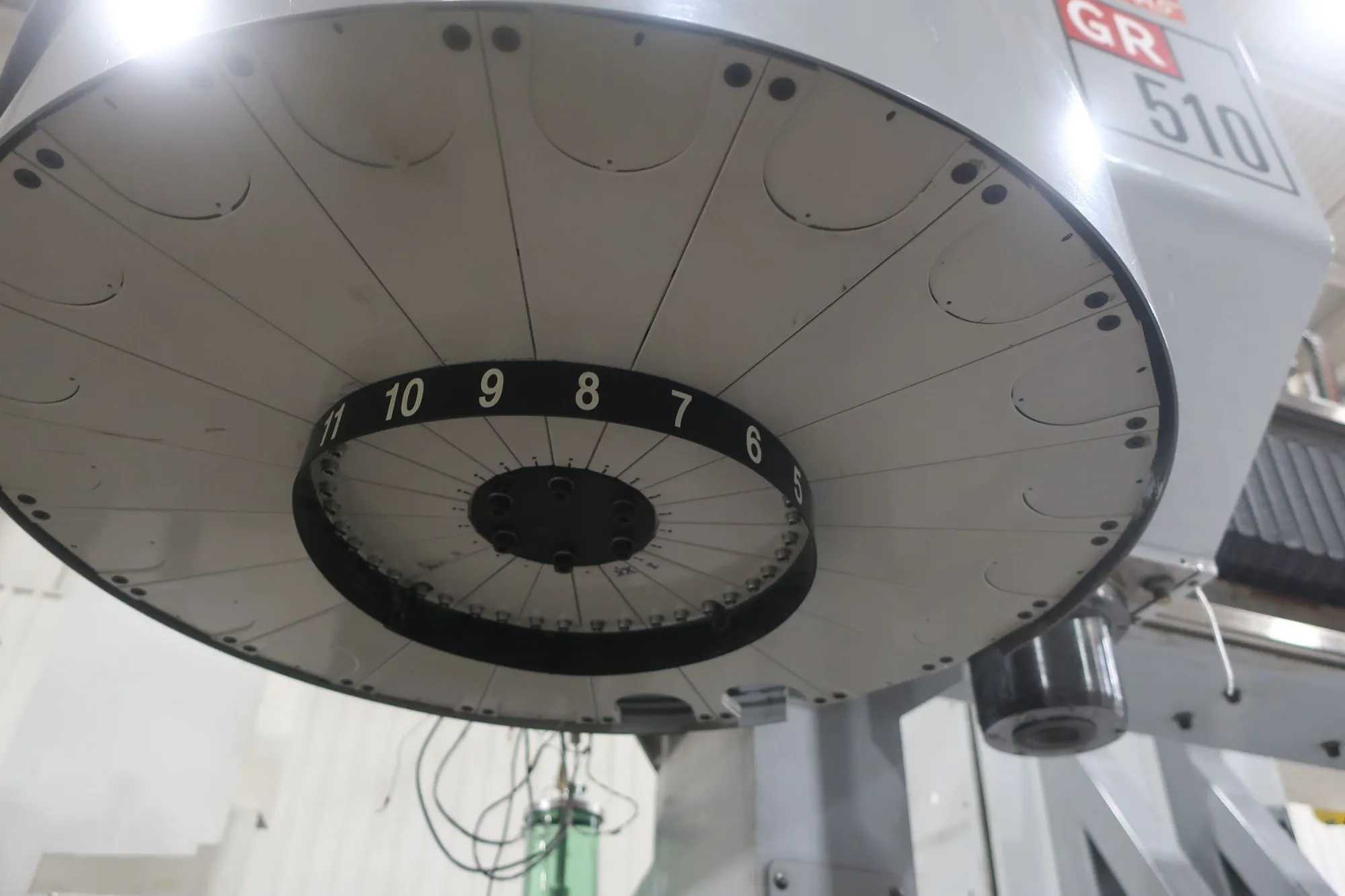

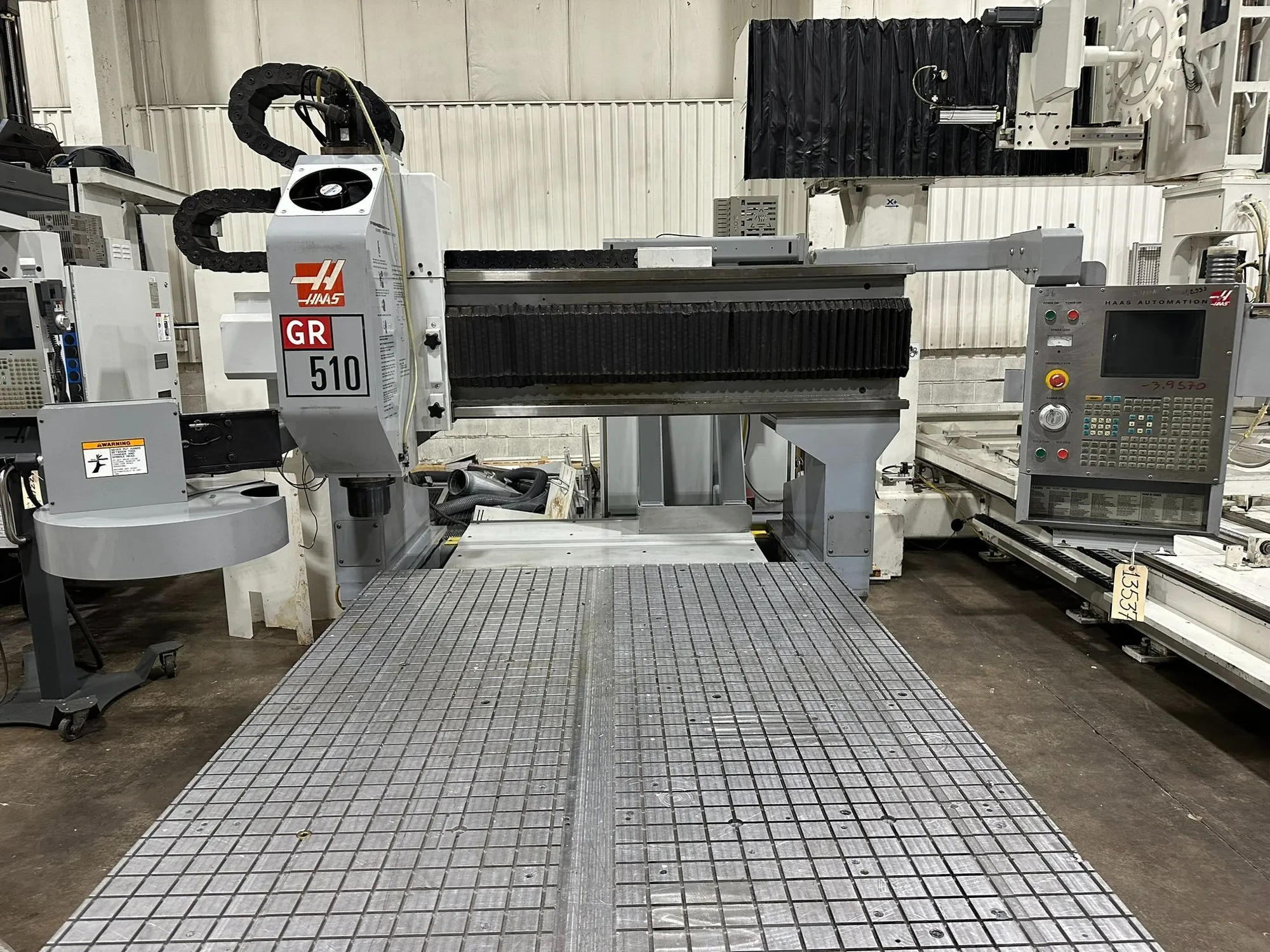

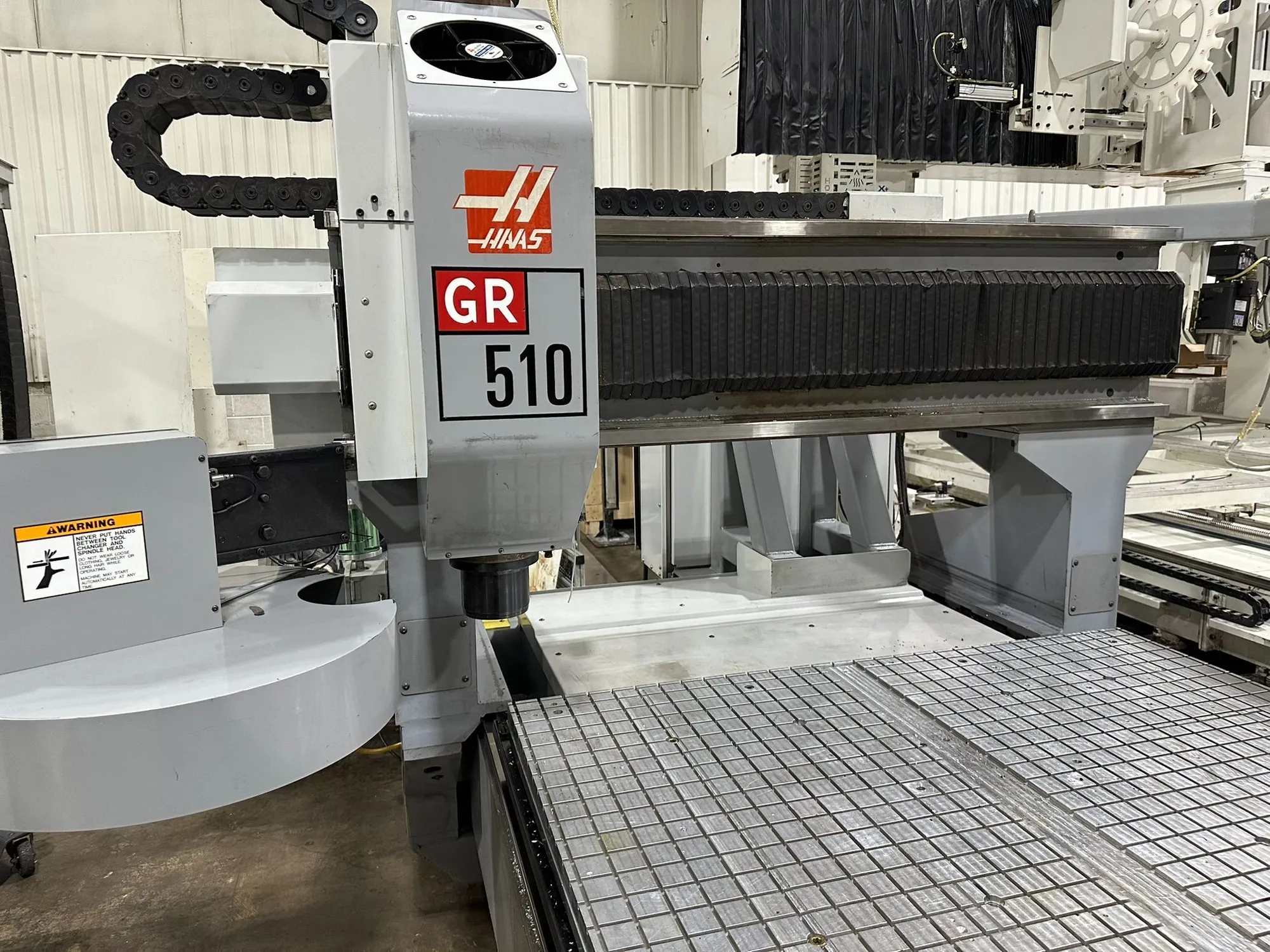

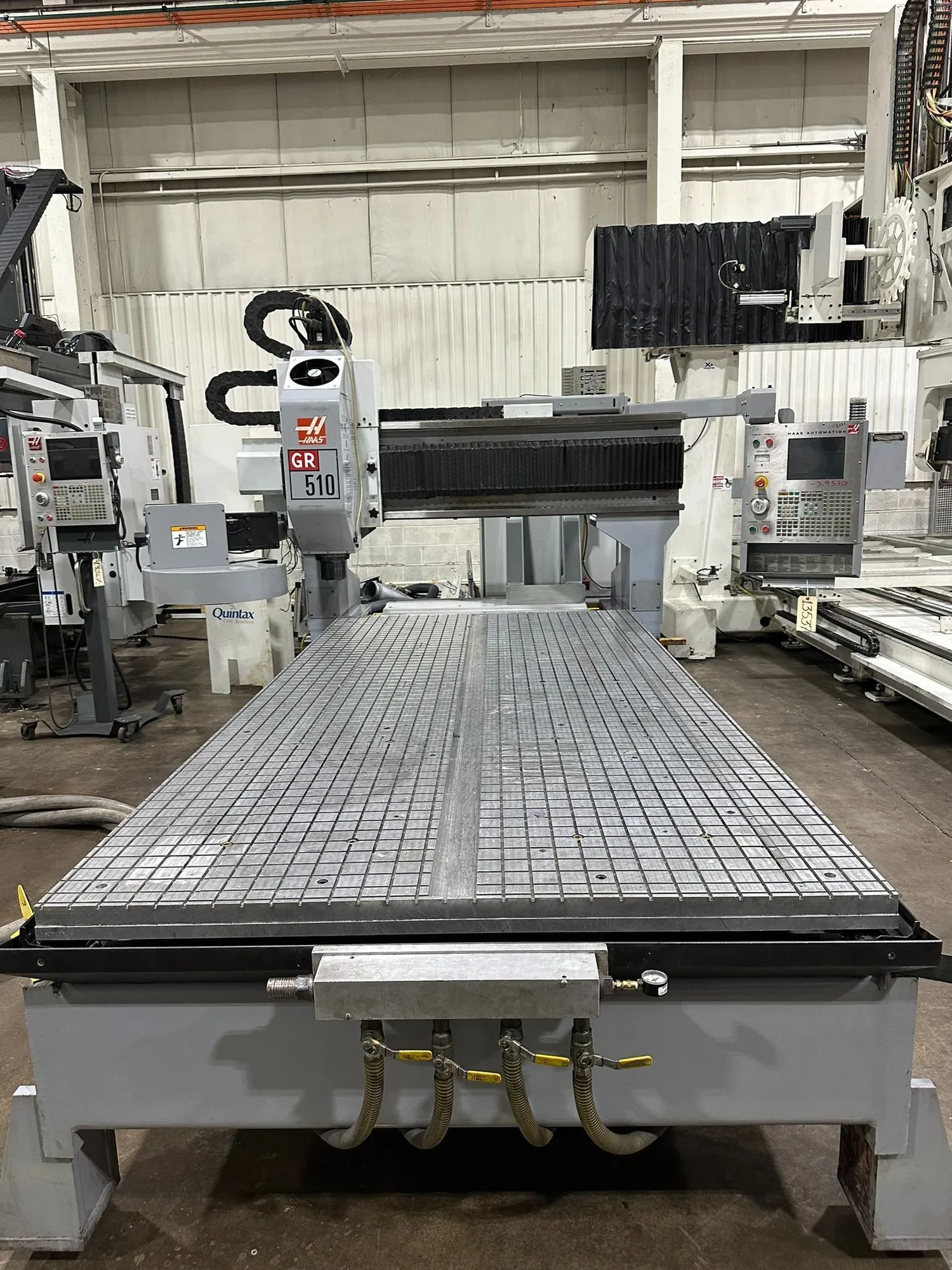

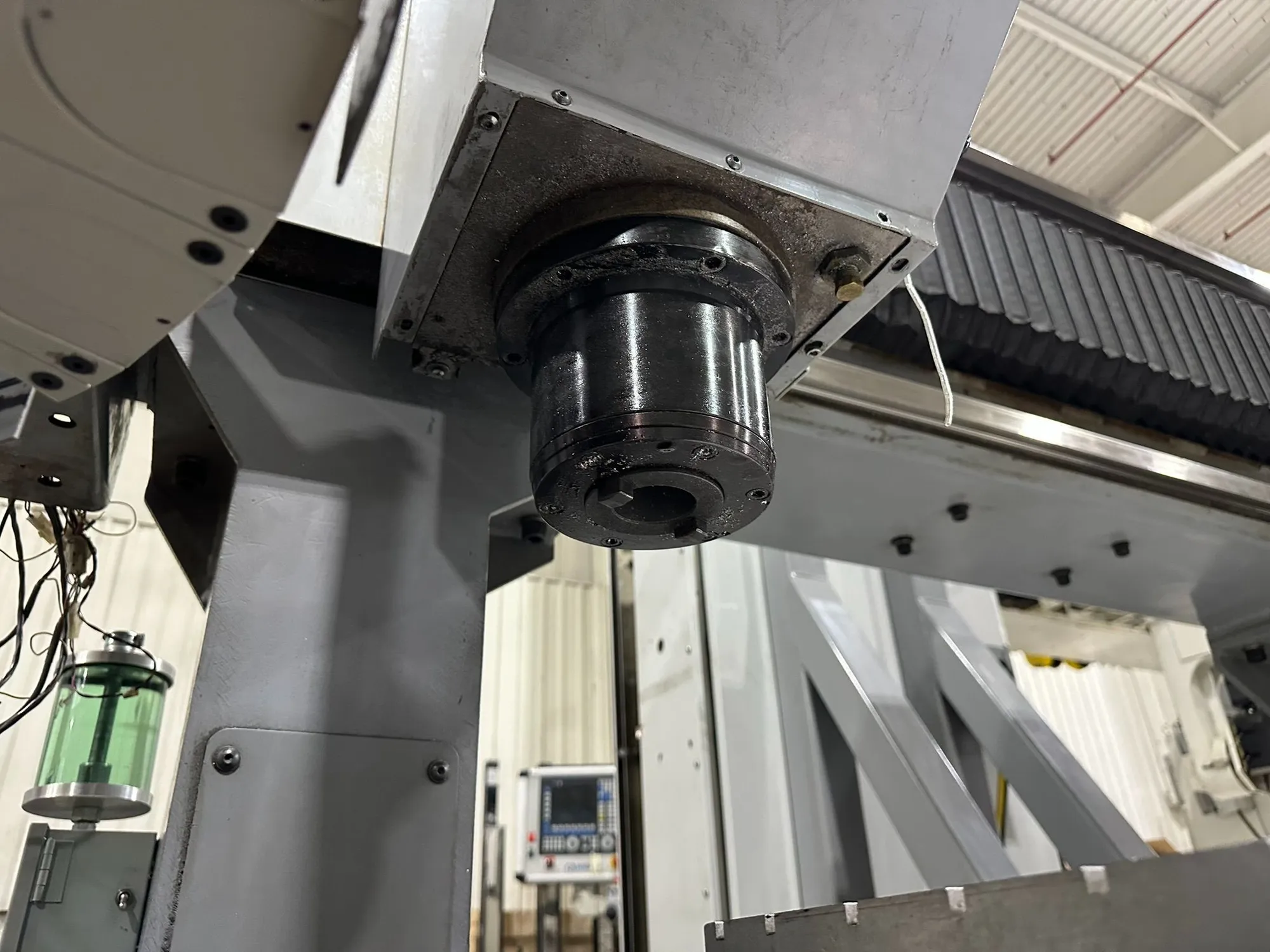

THE HAAS GR510 IS A 3-AXIS CNC ROUTER DESIGNED FOR LARGE-FORMAT MACHINING, FEATURING A TABLE SIZE OF 122 INCHES BY 53 INCHES WITH A MAXIMUM LOAD CAPACITY OF 6000 LBS. THE MACHINE OFFERS AXIS TRAVELS OF 121 INCHES IN X, 61 INCHES IN Y, AND 11 INCHES IN Z, WITH A SPINDLE NOSE TO TABLE RANGE OF 2.5 TO 13.5 INCHES. IT IS EQUIPPED WITH A CT40 SPINDLE TAPER, A 15 HP SPINDLE MOTOR, AND A MAXIMUM SPINDLE SPEED OF 10,000 RPM. THE UNIT INCLUDES A 20-POSITION AUTOMATIC TOOL CHANGER AND OPERATES WITH A DIRECT BELT DRIVE SYSTEM. RAPID TRAVERSE RATES REACH UP TO 800 IPM IN X, 2100 IPM IN Y, AND 1100 IPM IN Z, WITH MAXIMUM CUTTING SPEEDS UP TO 800 IPM. ADDITIONAL SPECIFICATIONS INCLUDE A COOLANT CAPACITY OF 95 GALLONS AND AIR REQUIREMENTS OF 4 SCFM AT 100 PSI.
