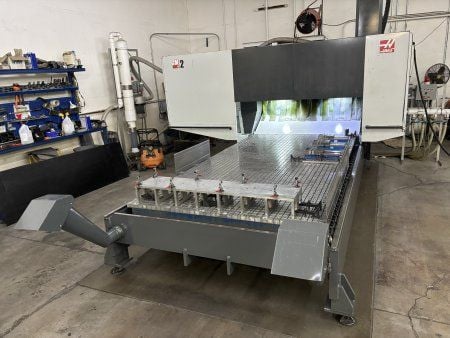

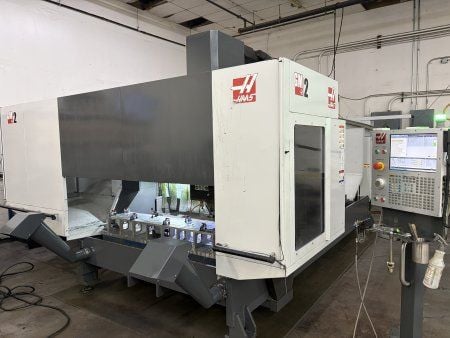

Haas GM-2 Heavy Duty 3-Axis CNC Gantry Mill with Vacuum Table, Vac-U-Lock, 2020

Specifications
Model: Haas GM-2 Heavy Duty 3-Axis CNC Gantry Mill

Travels
X-Axis: 145”
Y-Axis: 87.5”
Z Axis: 22”
Spindle Nose to Table ~ max.: 26”
Spindle Nose to Table ~ min.: 4”

Spindle
Taper Size: 40
Spindle Speed: 15,000 RPM
Spindle Power: 30 HP

Table
Length: 144”
Width: 72”
Between Columns: 75”
Max. Weight on Table: 6,000 lbs.

Tool Changer
ATC: SMTC Capacity 30+1 Side Mount
Max Tool Diameter: 2.5”
Max Tool Weight: 12.0 lb

Feedrates
Max. Cutting: 472 ipm
Rapids on X: 472 ipm
Rapids on Y: 1889 ipm
Rapids on Z: 1181 ipm

General
Coolant Capacity: 95 gal
Air Required: 100 psi, 4 scfm
Power: 220v/3-Phase

Dimensions
Overall Dimensions: 226” x 143” x 109” High
Weight: 20,420 lbs

Options Included
Standard Program Memory, 1 GB
Aluminum Table
Chip Auger
Early Power-Failure Detection Module
Ethernet Interface
HaasConnect: Remote Monitoring
HaasDrop
Second Home Position
Media Display M-Code; M130
Remote Jog Handle with Touchscreen Display
Rigid Tapping
30+1 Side-Mount
WiFi Connection for the Haas Control
Visual Part Programming System
User-Definable Macros
Spindle Orientation
Coordinate Rotation and Scaling
CT-Style Tool Changer Grippers
15,000-rpm Spindle
Through-Spindle Coolant
4^th-Axis Drive and Wiring
Wireless Intuitive Probing System
Automatic Air Gun
CNC Control Cabinet Cooler
Gantry Router Coolant System
Minimum Quantity Lubrication
Through-Tool Air Blast
8 Spare M Functions
High-Speed Machining
M-Code/MFIN Cable Assembly

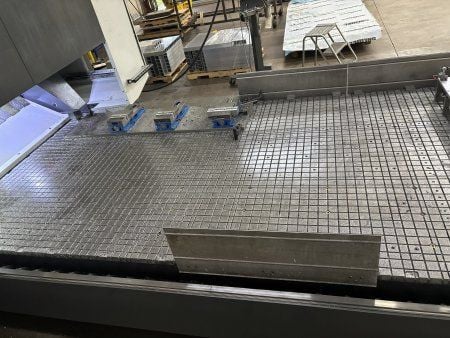

Vacuum Table, Vac-U-Lok: 4-Zone, with Vacuum Pump
