Description

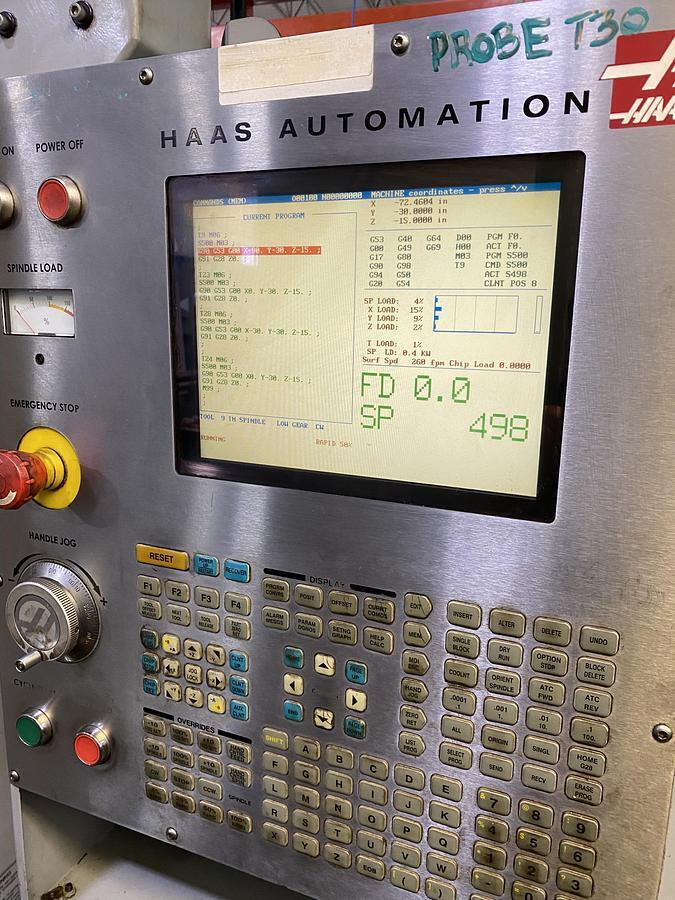

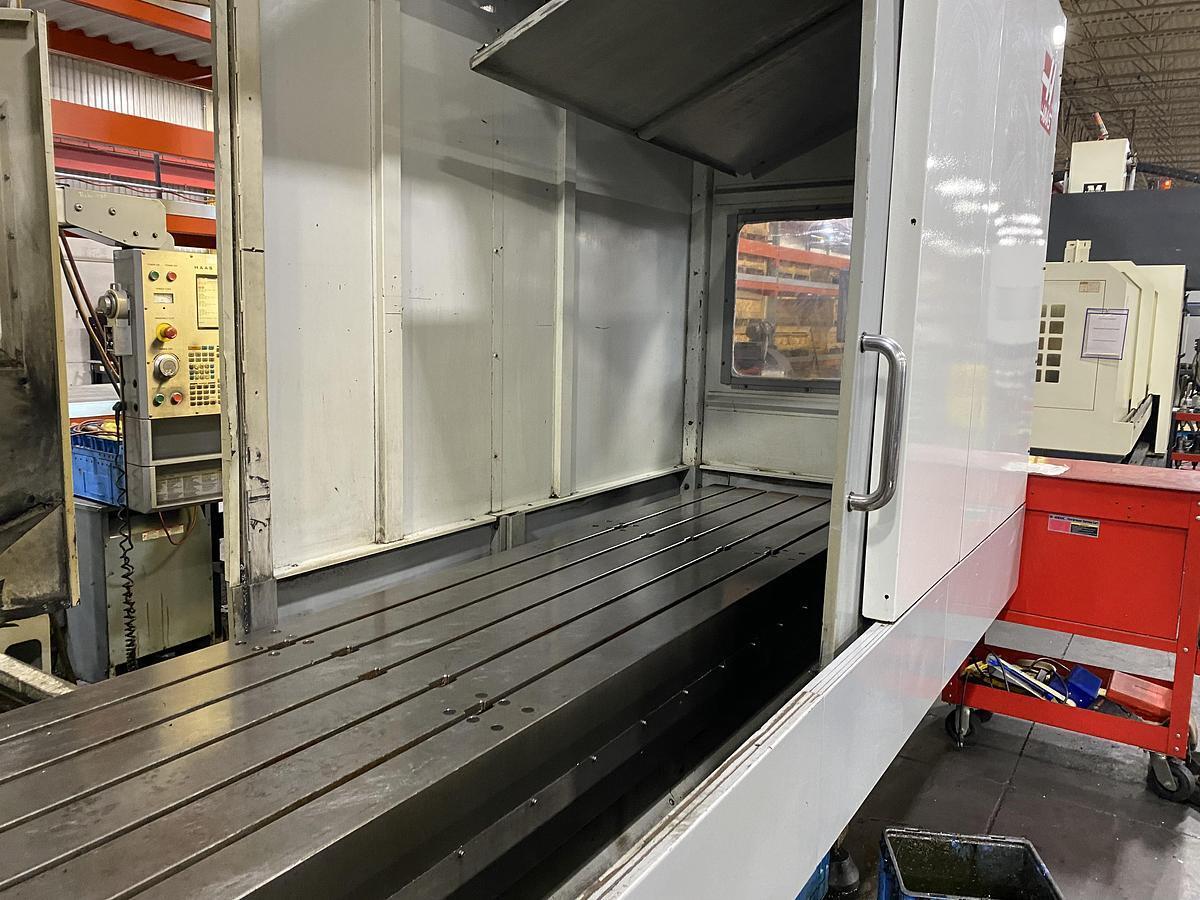

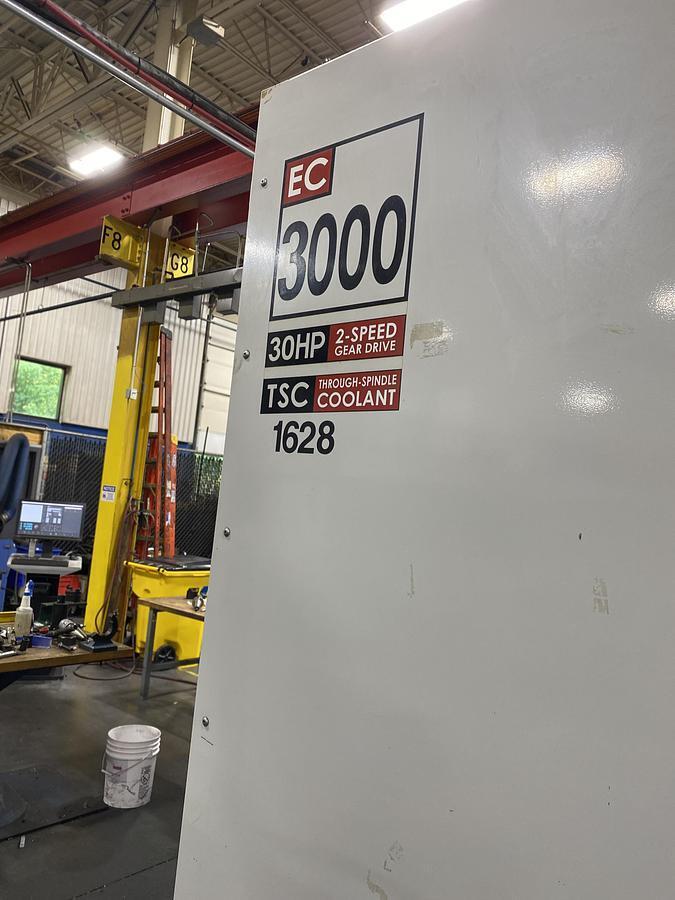

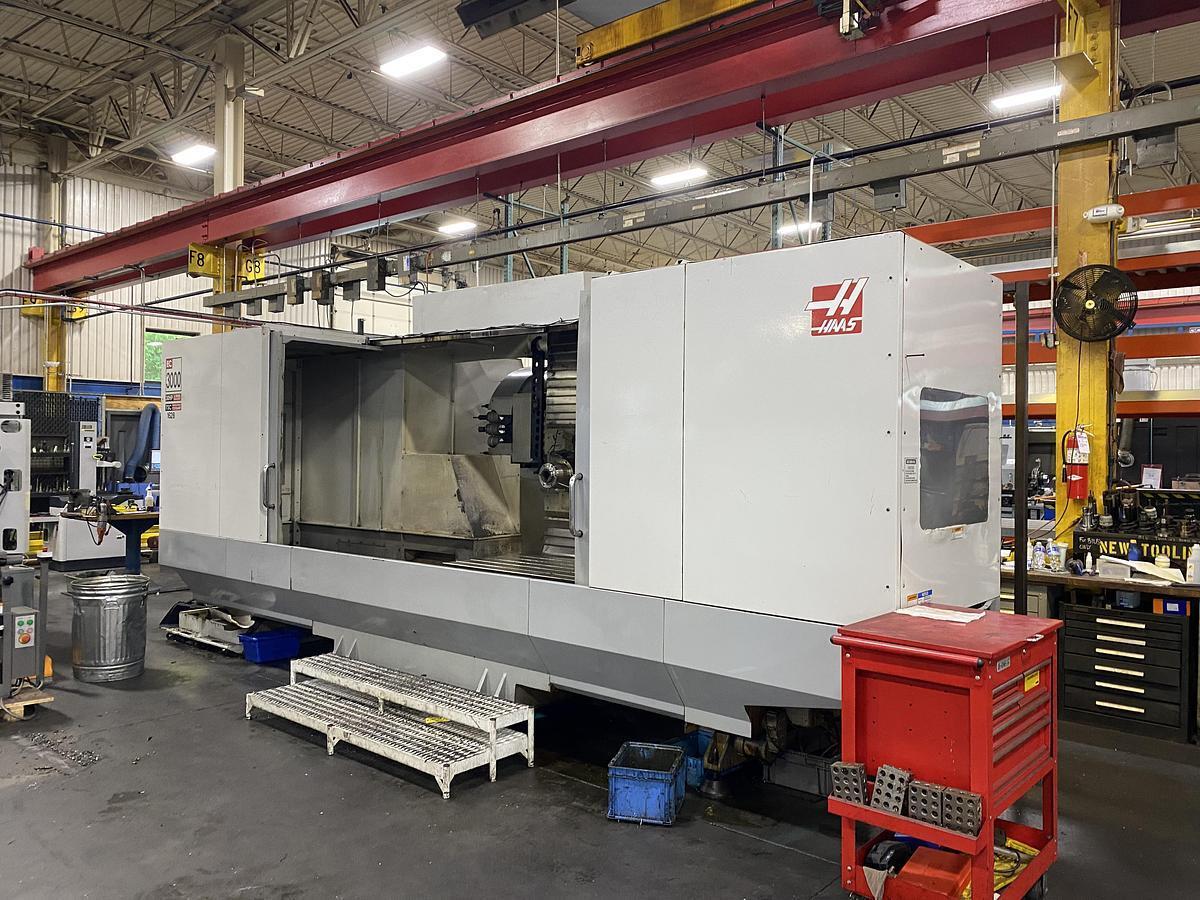

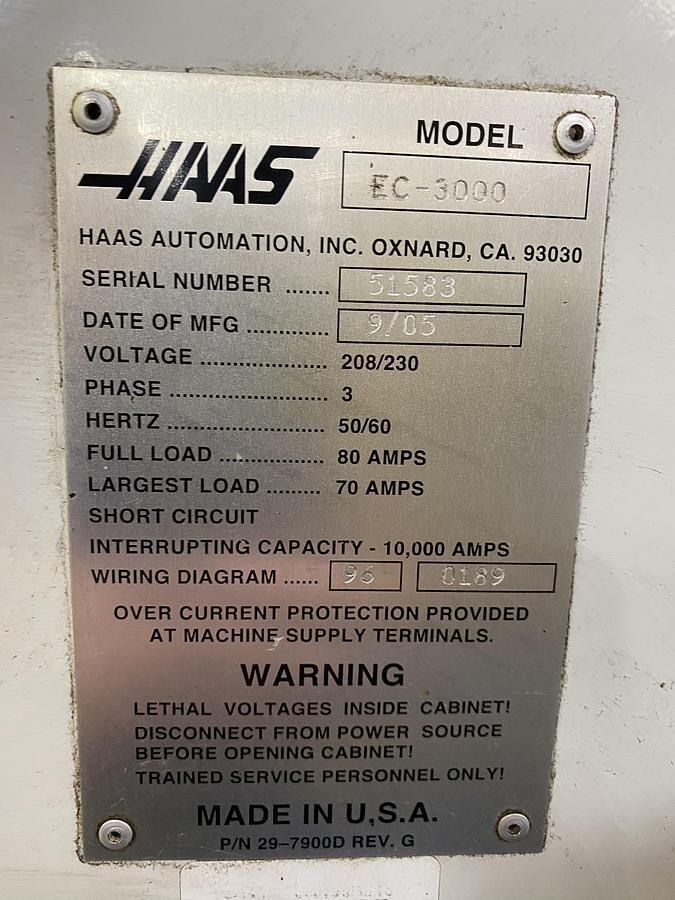

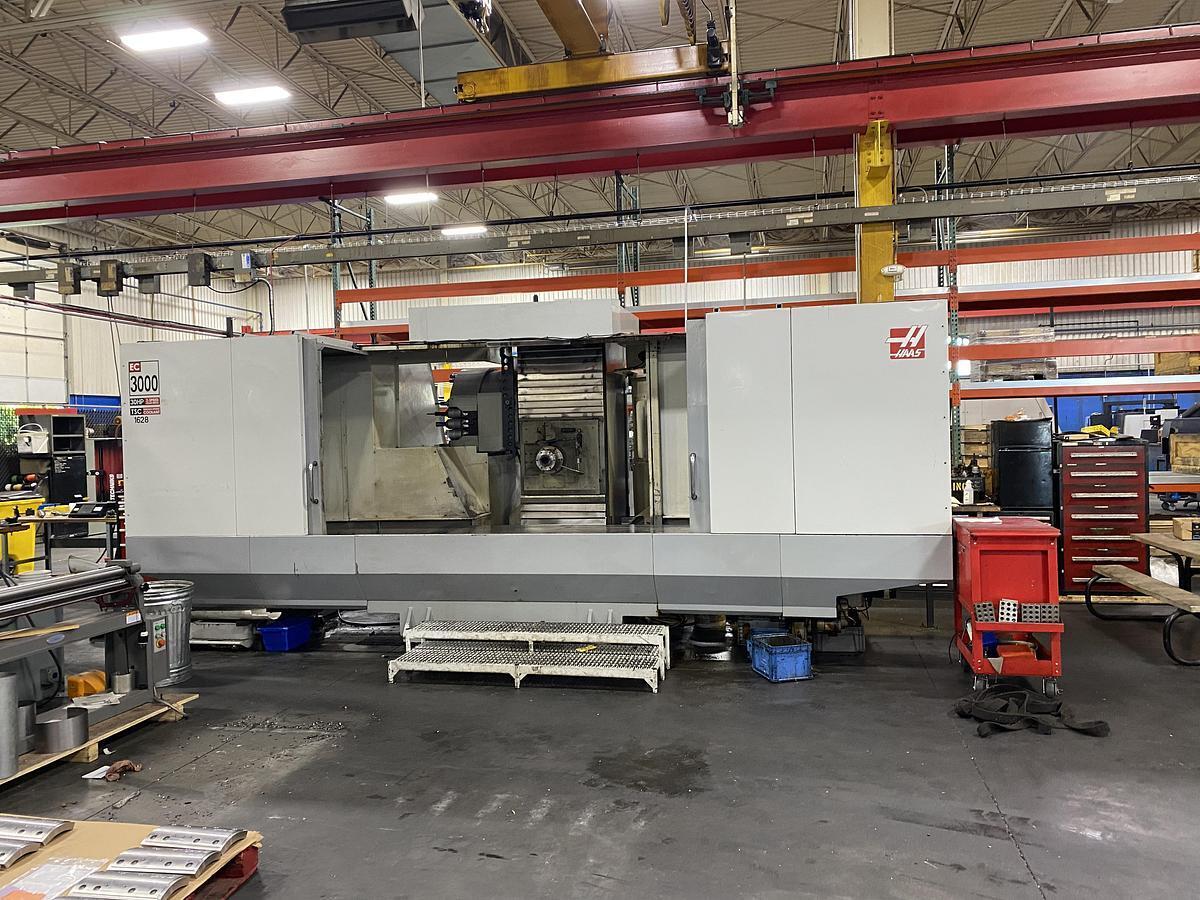

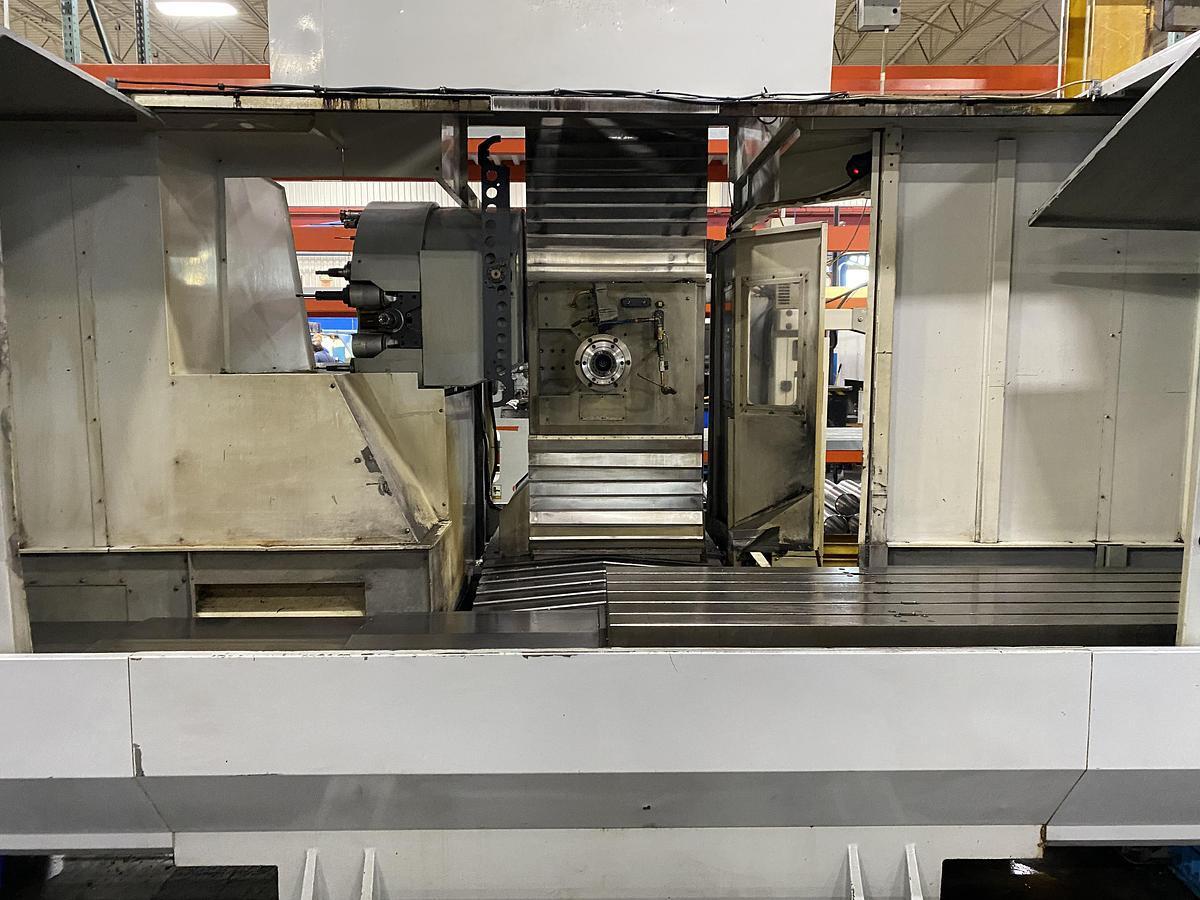

EC-3000 HAAS CNC Horizontal Machining Center, 30-position automatic tool changer - 30 HP 2-speed gear drive, thru-spindle coolant, 120" x 28" table, max load 10000 lbs. X/Y/Z travel: 120"/40"/32". Spindle speeds up to 6000 RPM EC-3000 HAAS 3-AXIS CNC HORIZONTAL MACHINING CENTER New 2005, Serial No 51585, Model EC-3000, EQUIPPED WITH: Haas CNC Control 30-Position Side-Mounted Automatic Tool Changer 30 HP 2-Speed Geared Head Drive System Thru-Spindle Coolant System CATALOG SPECIFICATIONS: Table Dimensions, L x W 120" x 28" Table Load Capacity, Maximum 10000 LBS X-Axis Longitudinal Travel 120" Y-Axis Head Vertical Travel 40" Z-Axis Table Cross Travel 32" Spindle Taper #50 Tool Diameter Full, Maximum 4" Tool Diameter Adjacent Empty, Maximum 10" Spindle Speeds, Range 0 to 6000 RPM Cutting Feedrate Range 360 IPM Rapid Traverse Rate 540 IPM Motor Horsepower 30 HP Overall Dimensions, W x D 266" x 143" Overall Height 119" Weight Approximately 40000 LBS F.O.B. OUR WAREHOUSE
