Grove Gear Worm Gear Reducer HMQ213-1

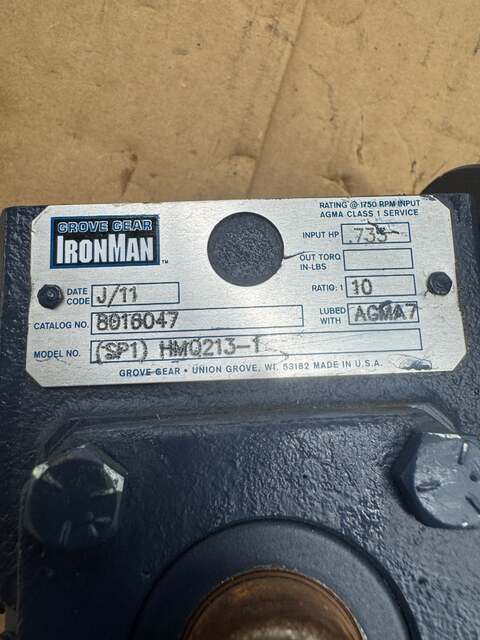

The Grove Gear IronMan HMQ213-1 is a right-angle single-reduction worm gear reducer manufactured in Union Grove, Wisconsin. The nameplate confirms a 10:1 ratio, 0.735 input HP, and an AGMA Class 1 service rating at 1750 RPM input. Lubrication specification is AGMA 7 gear oil. The catalog number on the nameplate plate is 8016047, and the date code reads J/11.

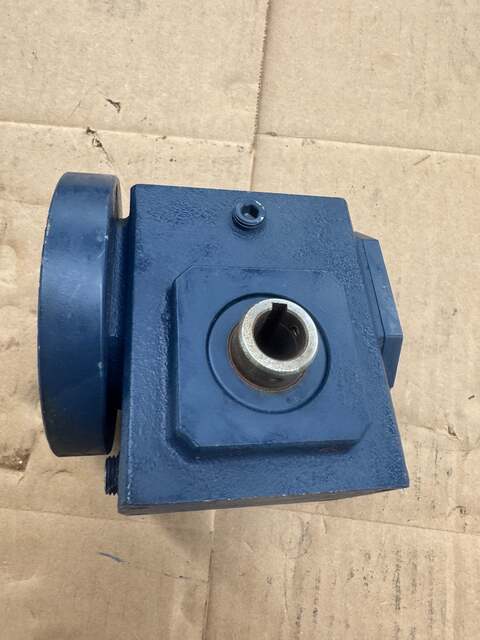

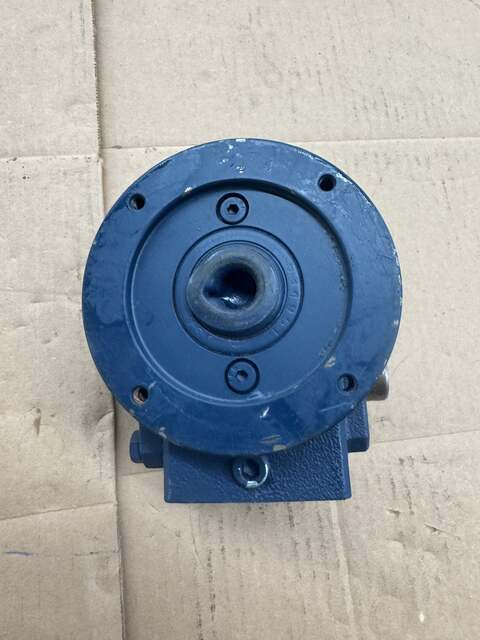

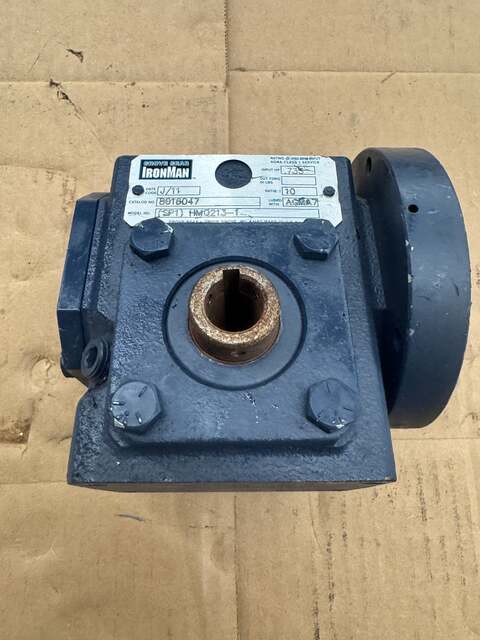

The HMQ213 belongs to the legacy IronMan 200 Series product line, featuring a cast iron housing, keyed hollow output bore, and a C-face input flange for direct motor attachment. The output shaft bore is visible on the side face with a keyway present. The unit is of right-angle configuration with worm-over-wheel geometry, consistent with the 200 Series design standard for this size class.

At a 10:1 ratio and 1750 RPM input, the output shaft turns at 175 RPM. This size and ratio combination is common in conveyor drives, packaging machinery, food processing equipment, and general industrial speed reduction applications requiring compact footprint and moderate torque output. Grove Gear IronMan reducers are interchangeable with many industry-standard mounting dimensions, making this unit compatible with a range of motor and machinery configurations. Made in the USA.

Stock # 0326-866
