Description
General Info
Stock #: 120250067
Location: Decatur, GA

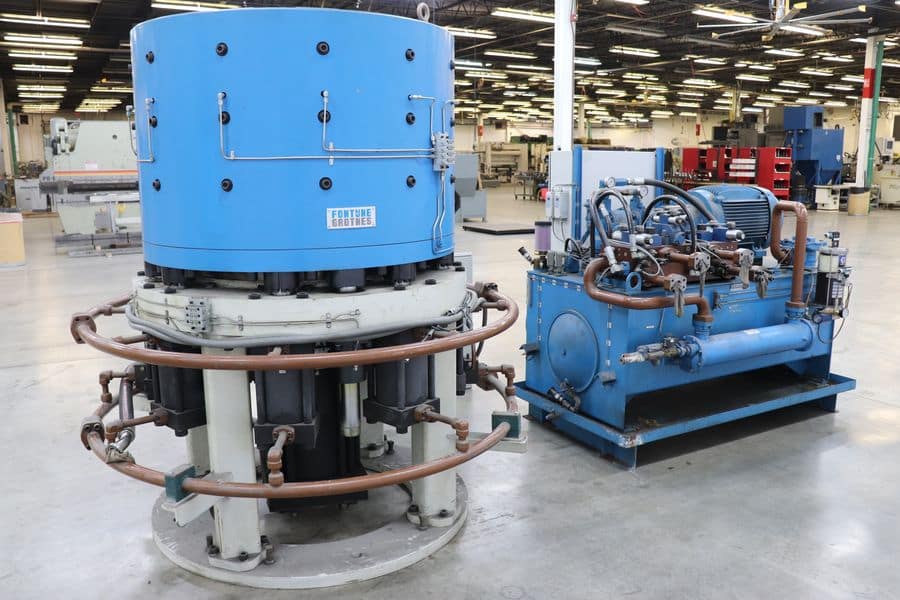

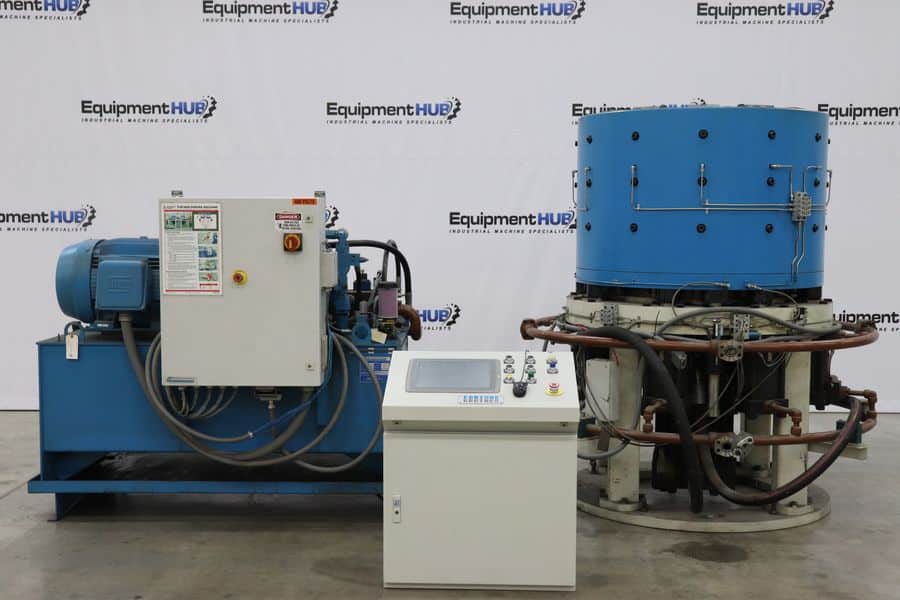

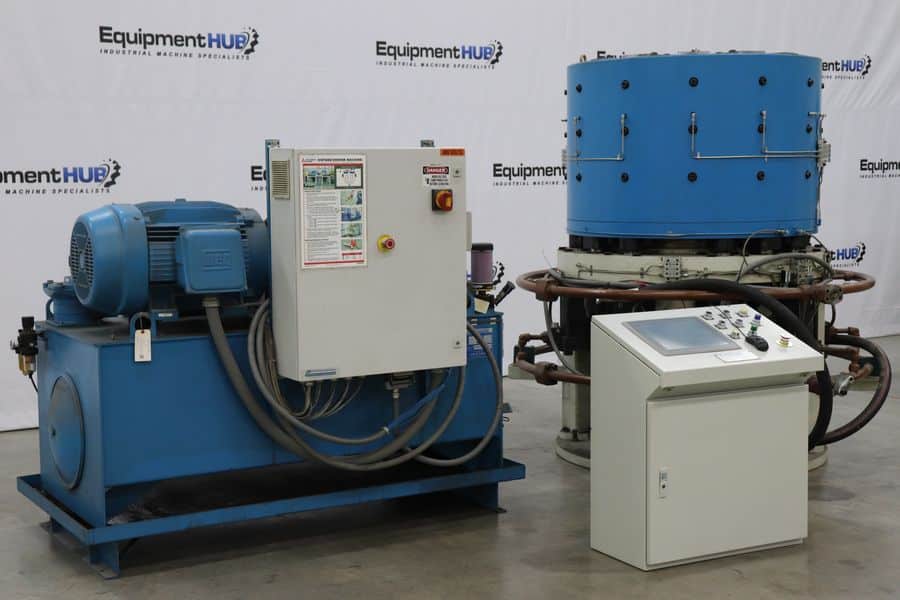

Brand: Grotnes
Model: 14-HE-300-12
Year: 2011
Approx. Shipping Weight: 27,000 lbs.
Approx. Shipping Dimensions: 20' L x 8' W x 7' H
Specifications
Shrinker Cylinders: 8
Expander Type: Pull
Bore: 8" Each
Pull Area: 43.196 Square Inches Each
Return Area: 50.265 Square Inches Each
Shrinker Head Retracted Jaws Diameter: 31.875"
Nominal Jaws Shrunk Diameter: 30"
Min. Jaws Shrunk Diameter: 29.875"
Height of Jaws: 20"
Nominal Diametrical Travel: 1.875"

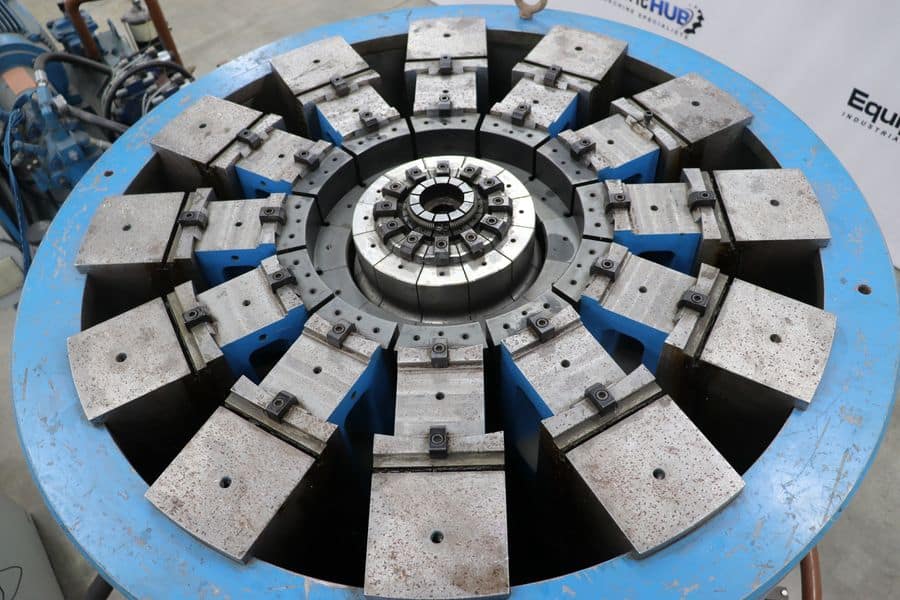

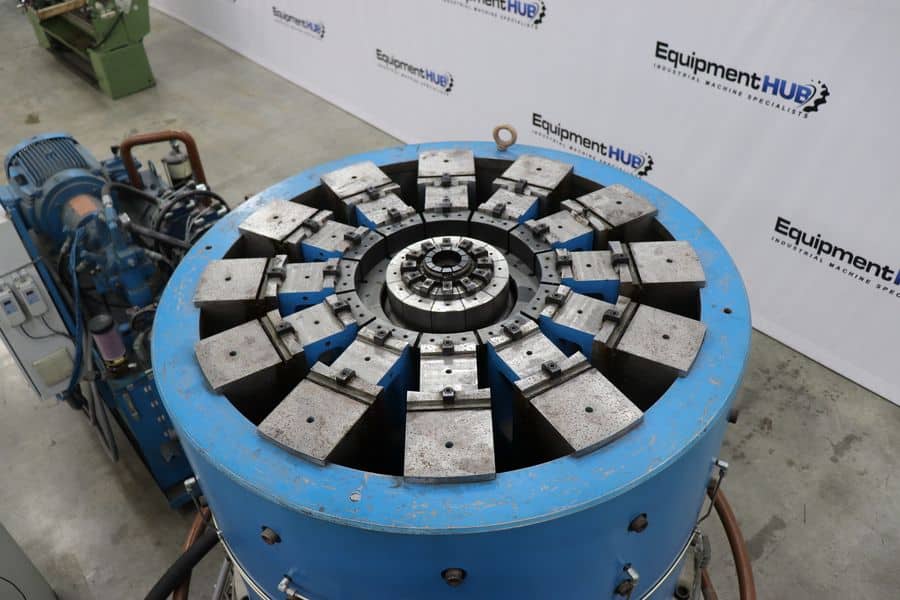

Number of Jaws: 12
Cone Angle: 8 Degrees (Tan=0.145)
Table Diameter: 38.5"

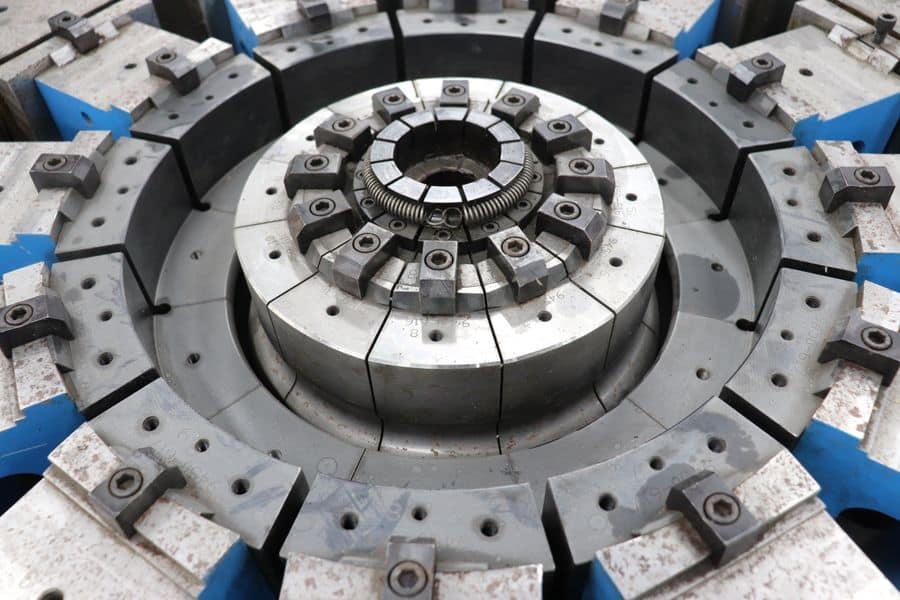

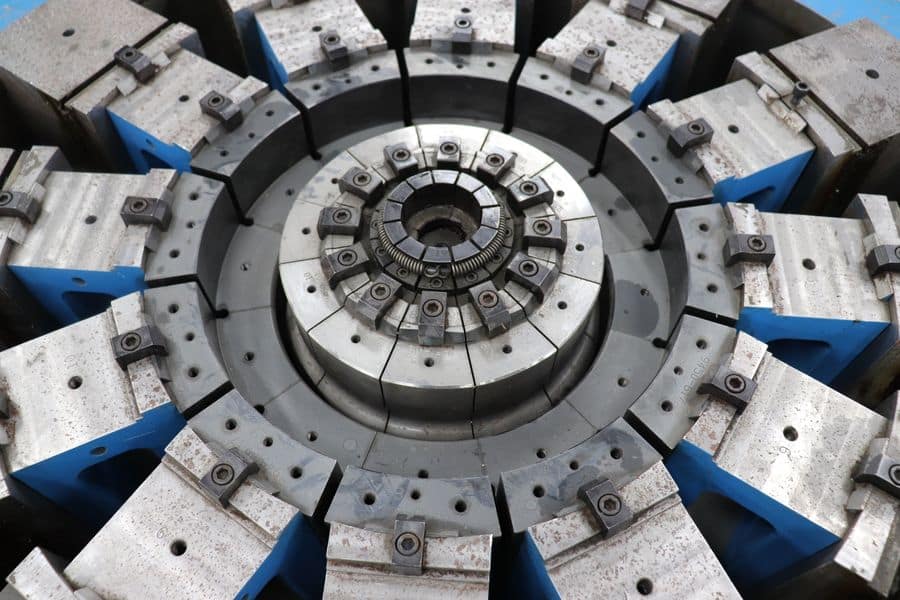

Jaw Returned By: Compression Springs
Lubrication System: Graco Centralized
Lubrication Type: Permalube Red #35
Material Yield Strength: 55,000 PSI
Maximum Cross Sectional Area in Which Tangential Stress will Be Produced: 10.580 Square Inches

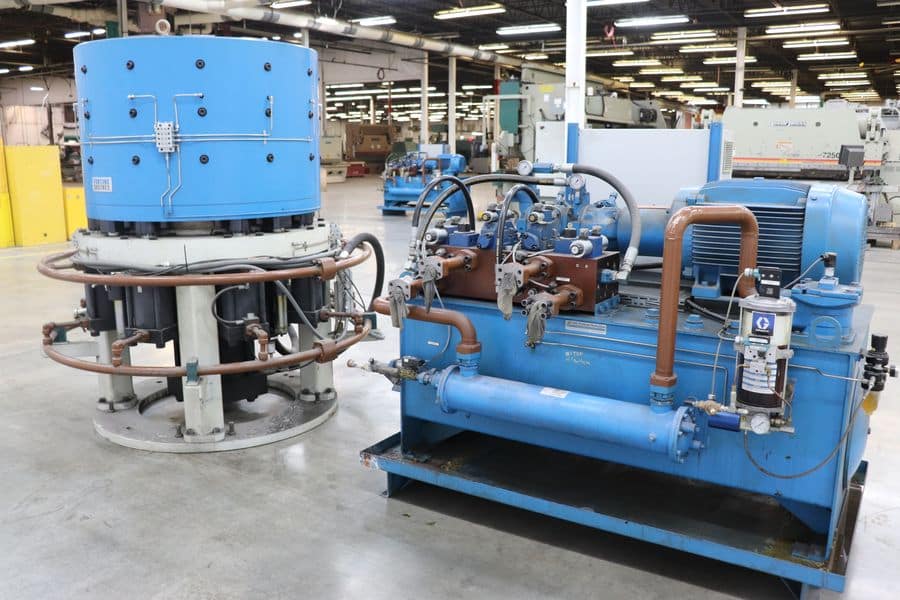

Hydraulic Power Unit: 60HP @ 1800 RPM
Max Operating Pressure: 3,600 PSI
Equipped With

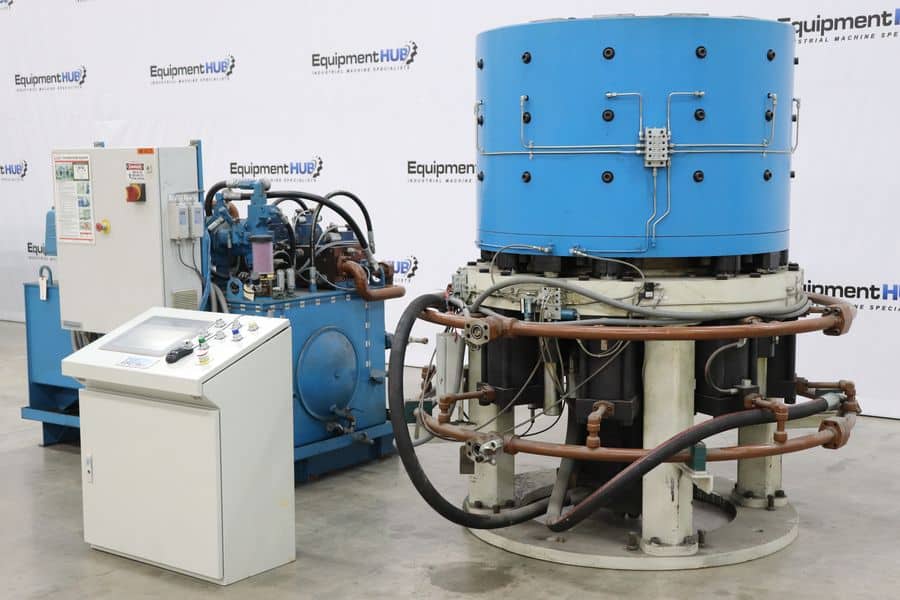

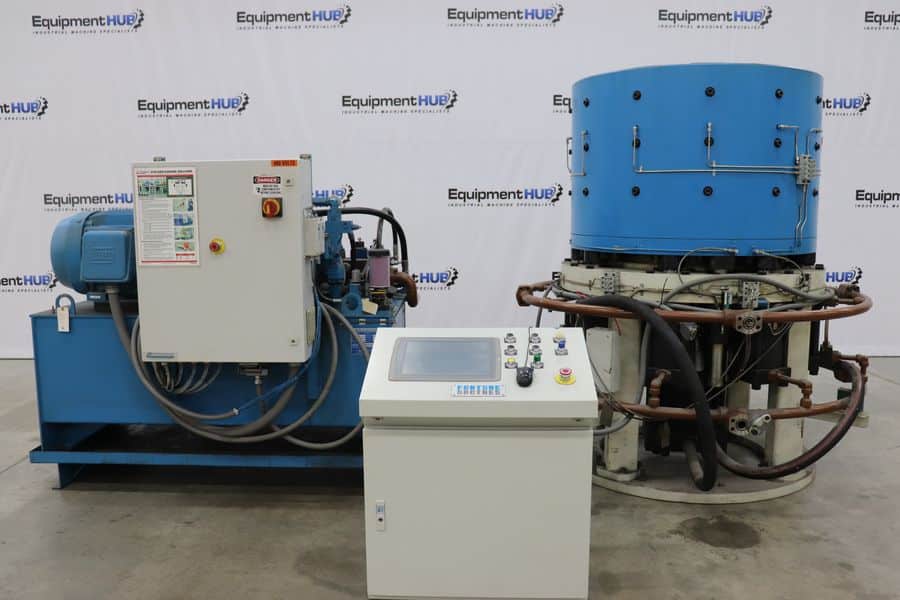

Touch Screen Pedestal Control, 200 Gallon Hydraulic Tank, Digital Copy of Manuals
Additional Info
Can be inspected upon request
Stock #: 120250067
Location: Decatur, GA
Brand: Grotnes
Model: 14-HE-300-12
Year: 2011
Approx. Shipping Weight: 27,000 lbs.
Approx. Shipping Dimensions: 20' L x 8' W x 7' H
Specifications
Shrinker Cylinders: 8
Expander Type: Pull
Bore: 8" Each
Pull Area: 43.196 Square Inches Each
Return Area: 50.265 Square Inches Each
Shrinker Head Retracted Jaws Diameter: 31.875"
Nominal Jaws Shrunk Diameter: 30"
Min. Jaws Shrunk Diameter: 29.875"
Height of Jaws: 20"
Nominal Diametrical Travel: 1.875"
Number of Jaws: 12
Cone Angle: 8 Degrees (Tan=0.145)
Table Diameter: 38.5"
Jaw Returned By: Compression Springs
Lubrication System: Graco Centralized
Lubrication Type: Permalube Red #35
Material Yield Strength: 55,000 PSI
Maximum Cross Sectional Area in Which Tangential Stress will Be Produced: 10.580 Square Inches
Hydraulic Power Unit: 60HP @ 1800 RPM
Max Operating Pressure: 3,600 PSI
Equipped With
Touch Screen Pedestal Control, 200 Gallon Hydraulic Tank, Digital Copy of Manuals
Additional Info
Can be inspected upon request
