Description

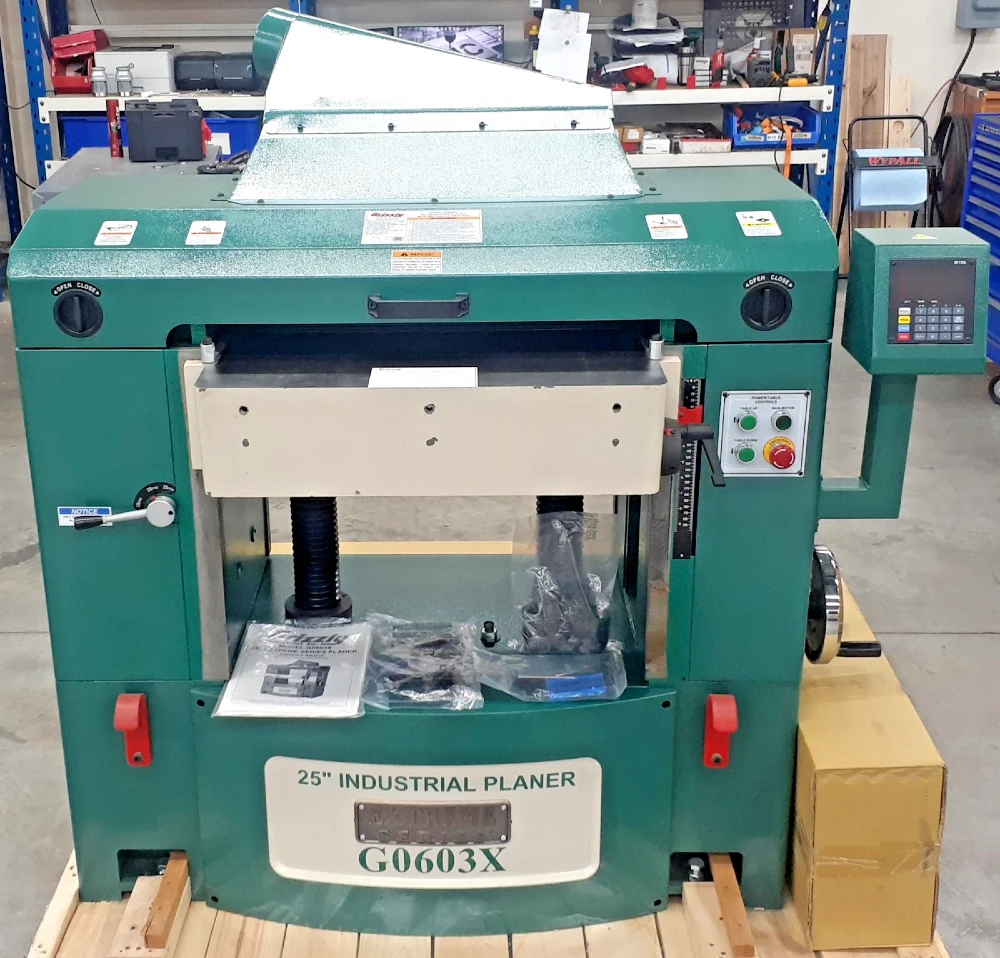

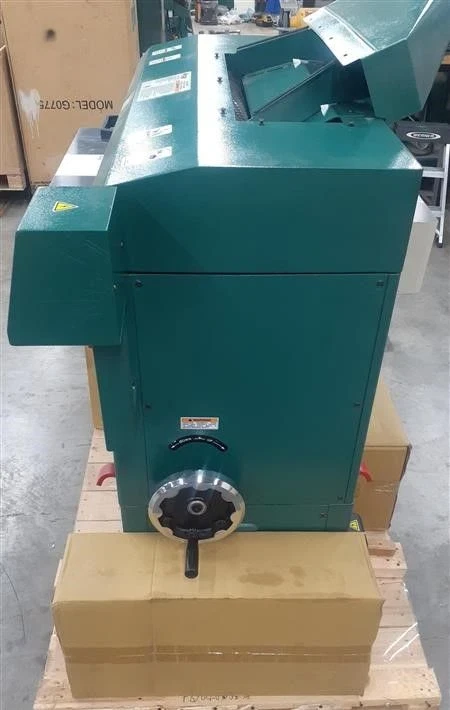

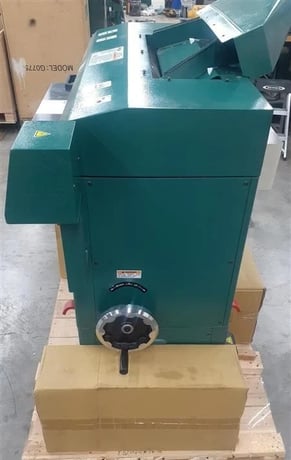

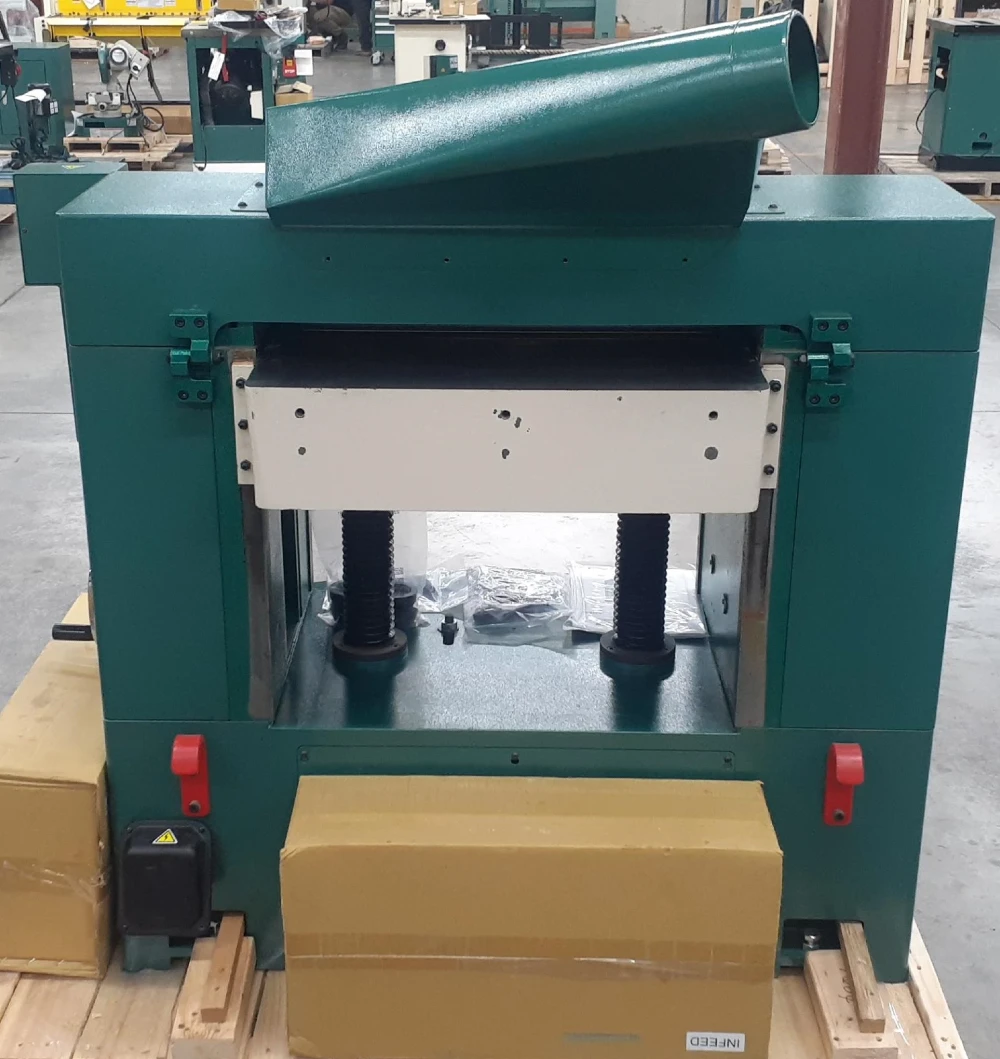

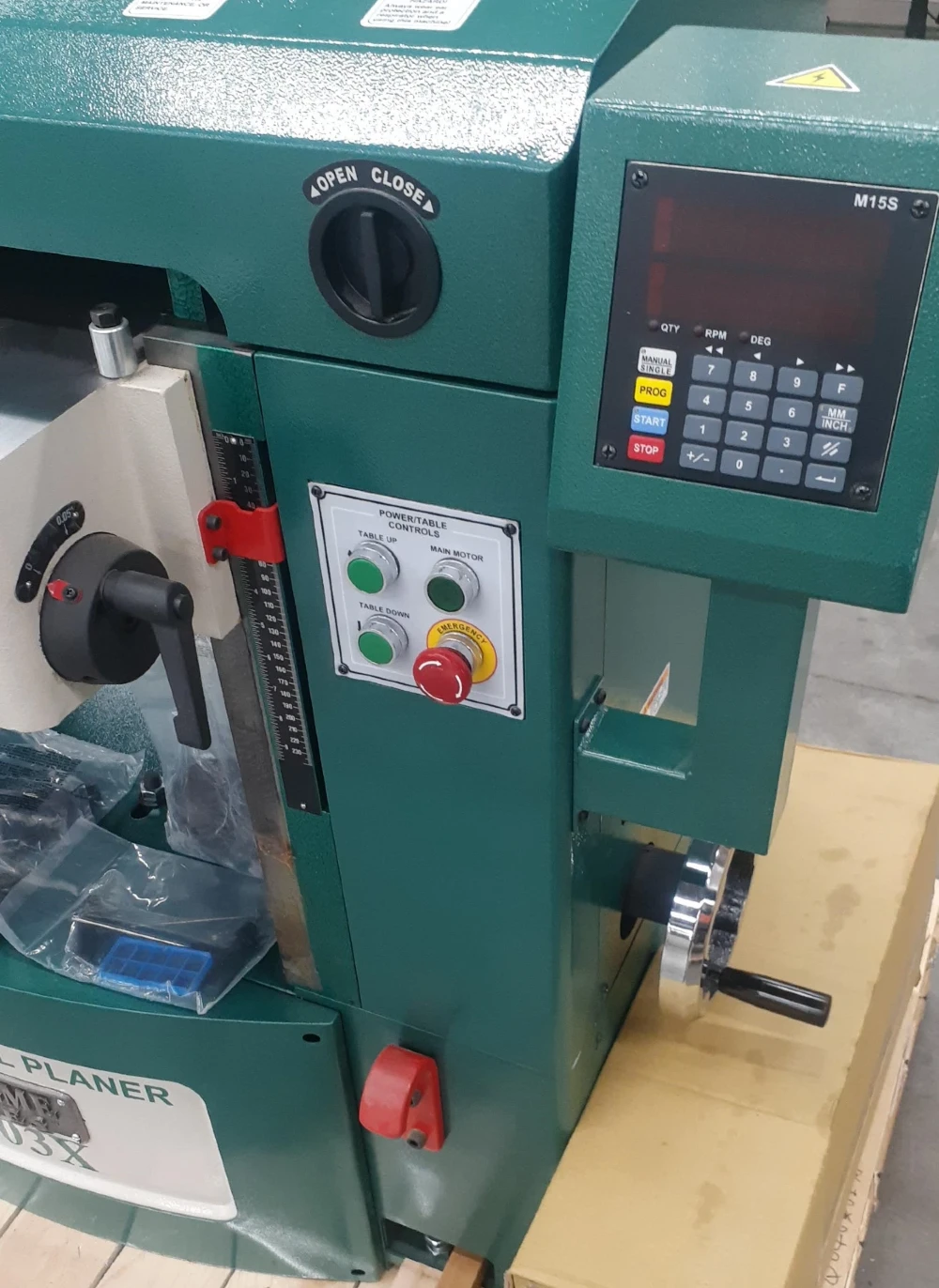

Condition: Demo unit with a cosmetic dent on the outer, lower cabinet only. All internal systems are showroom grade — cutterhead, inserts, feed rollers, gearbox, motor, elevation system, and tables are mechanically flawless.
Machine was used only for functional testing, then professionally detailed to flawless, showroom condition.
Electrical: Dual‑voltage 220V/440V motor.
Currently configured for 440V with the I‑24 conversion kit installed.
Can be rewired back to 220V in minutes.
Pricing:
New price: $12,950 + $600 freight + tax (≈$14,500 total).
Our price: $10,995 including tax.
Customer pickup; forklift loading provided at no charge.
Included:
I‑24 / 440V conversion kit installed
Infeed & outfeed tables (boxed)
All original hardware
Cosmetic cabinet damage only

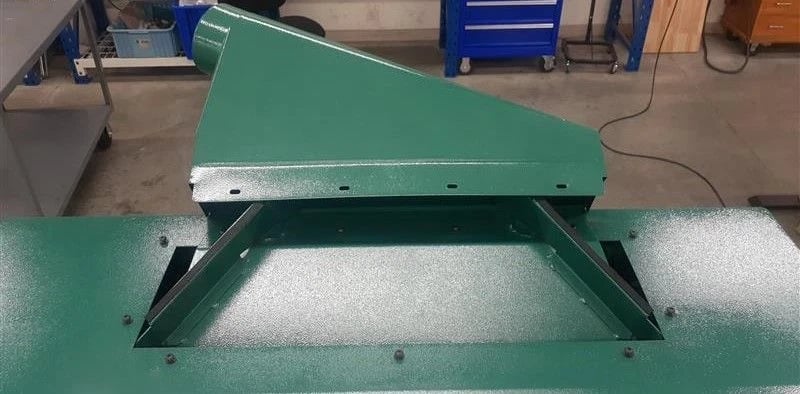

Missing dust cover (P0603X001)
9.8 run amps

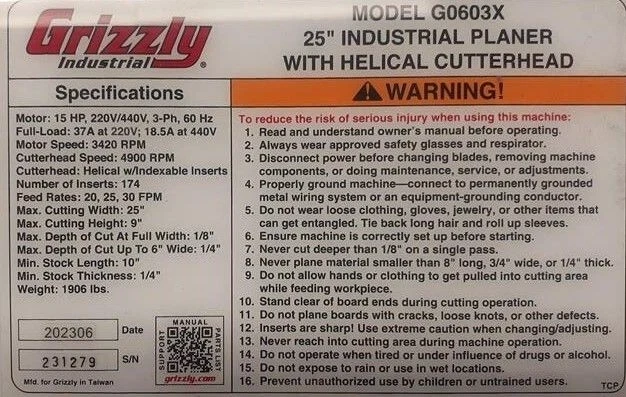

Technical Specifications:
Main motor: 15 HP, 440V (prewired), 3‑phase
Table elevation motor: 1/2 HP, 3‑phase
Minimum circuit size: 30A @ 440V
Maximum stock width: 25”
Maximum stock thickness: 9”
Minimum stock thickness: 1/4”
Minimum stock length: 10”
Maximum depth of cut (full width): 1/8”
Max depth of cut (≤6” width): 1/4”
Cutterhead diameter: 3‑1/2”

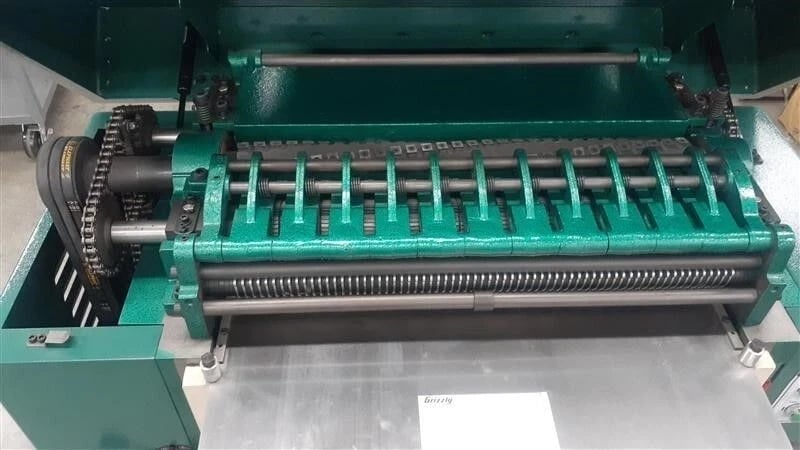

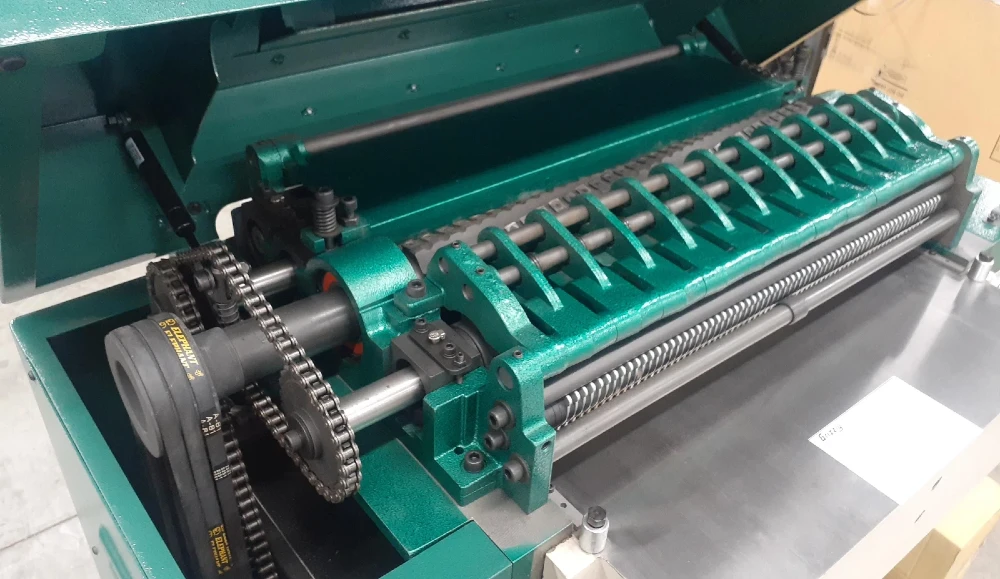

Cutterhead: 6‑row helical with 174 indexable carbide inserts
Insert size: 15 × 15 × 2.5 mm
Feed rates: 20, 25, 30 FPM
Table size w/extensions: 25‑1/8” W × 69‑5/8” L
Table movement: 9”
Overall dimensions: 54‑1/2” W × 57” D × 54‑1/2” H
Approx. shipping weight: 2057 lbs
Location & Contact
10 Blade Pro Machinery — Fontana, CA
Pickup location: 11179 Banana Ave, Fontana, CA 92337
