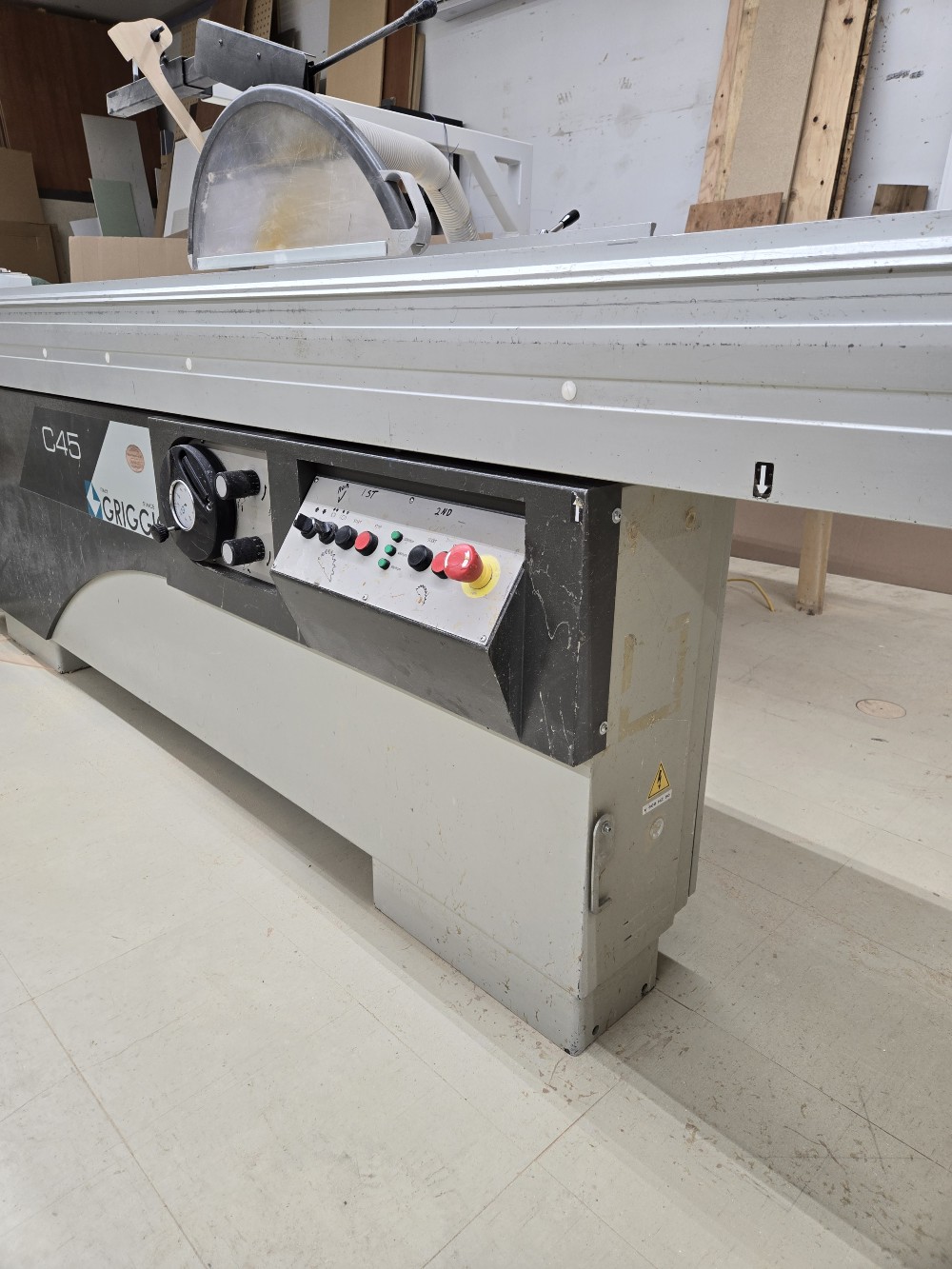

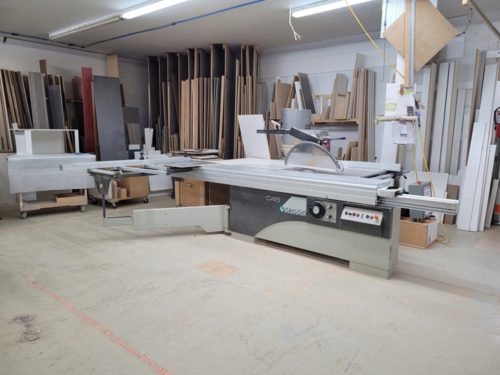

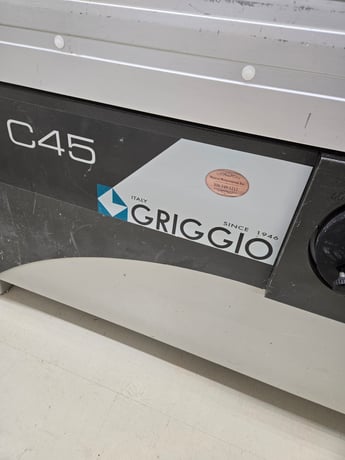

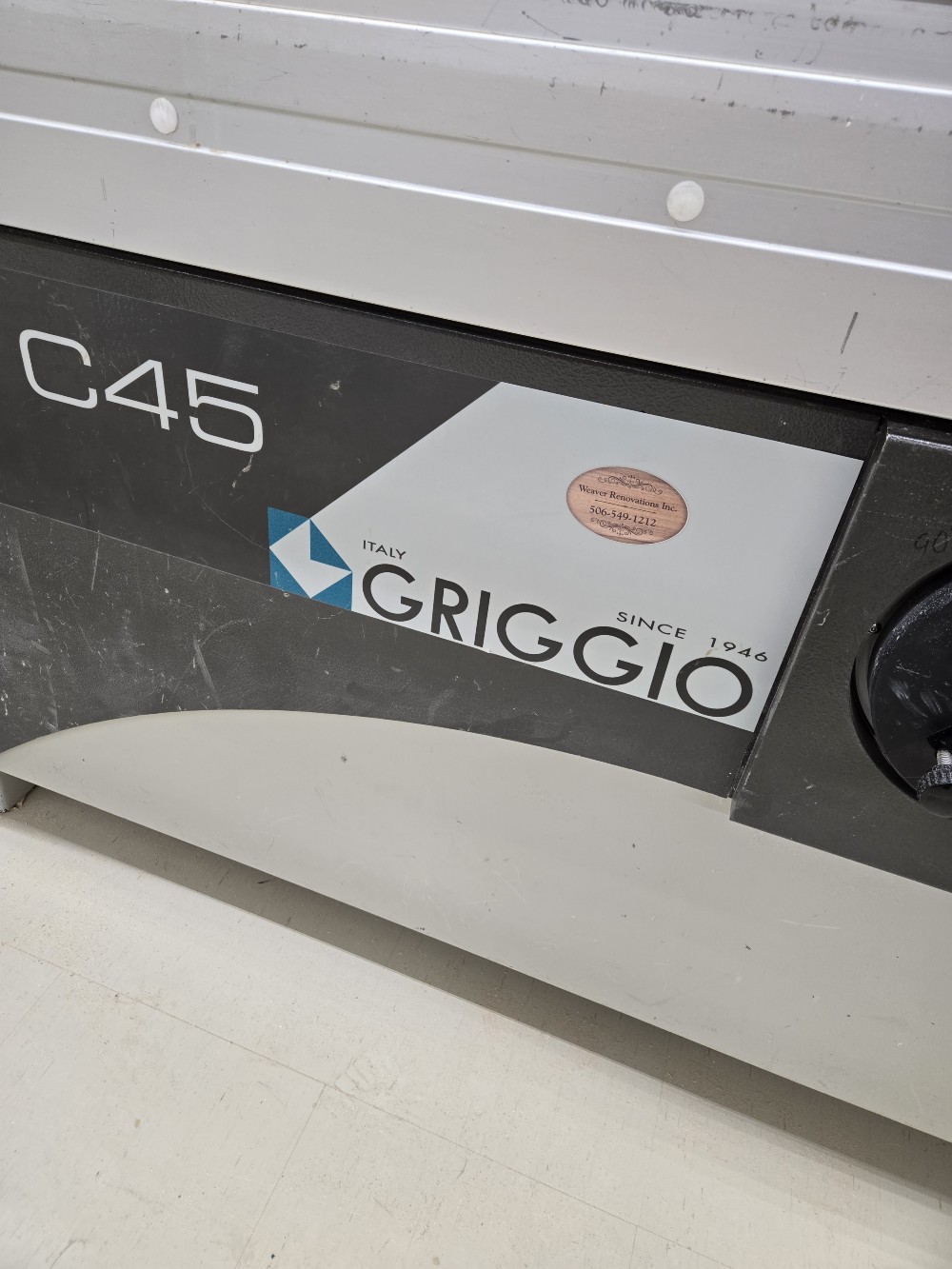

Griggio #C45, Sliding Table Panel Saw, 2007

* Used in good condition **** $10,000 Canadian funds - tax included ****

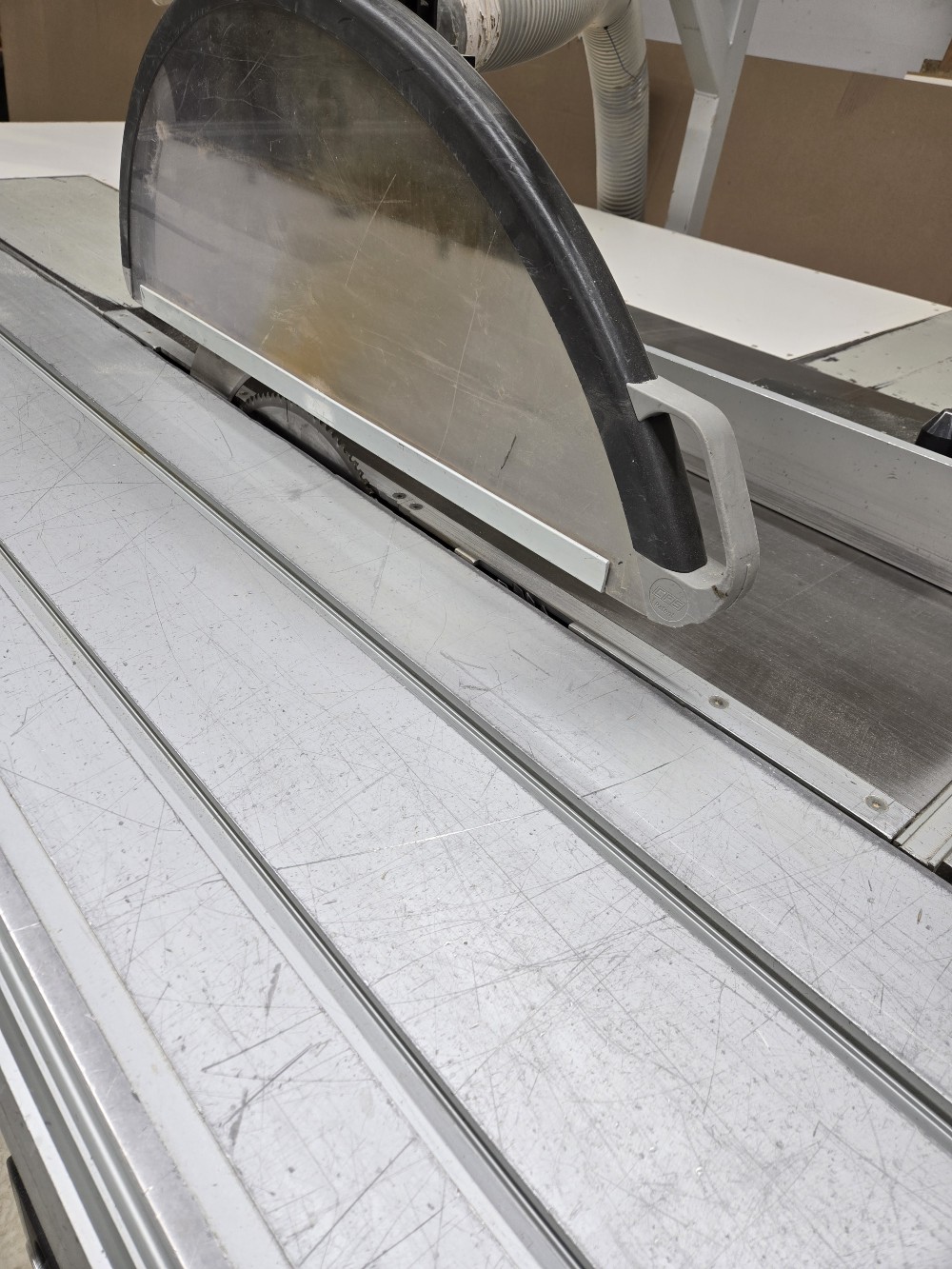

* Motorized rise and fall of main blade, manual tilting of main blade, cast iron saw carriage with cast iron supports for tilting, parallogram blade guard
* Anodized aluminum saw carriage with double offset sliding on precision ground steel bars. 135 mm distance between steel bars to give good support and maintain accuracy, 8 special scrappers (4 on each side) for accurate cleaning for the guides.
* Rip fence with micrometric adjustments, mounted on 50 mm diameter steel bar
* 1250 mm (49'') cut width of saw to rip fence
* Aluminum mitre fence + 30 degrees to - 45 degrees mounted on sliding blade

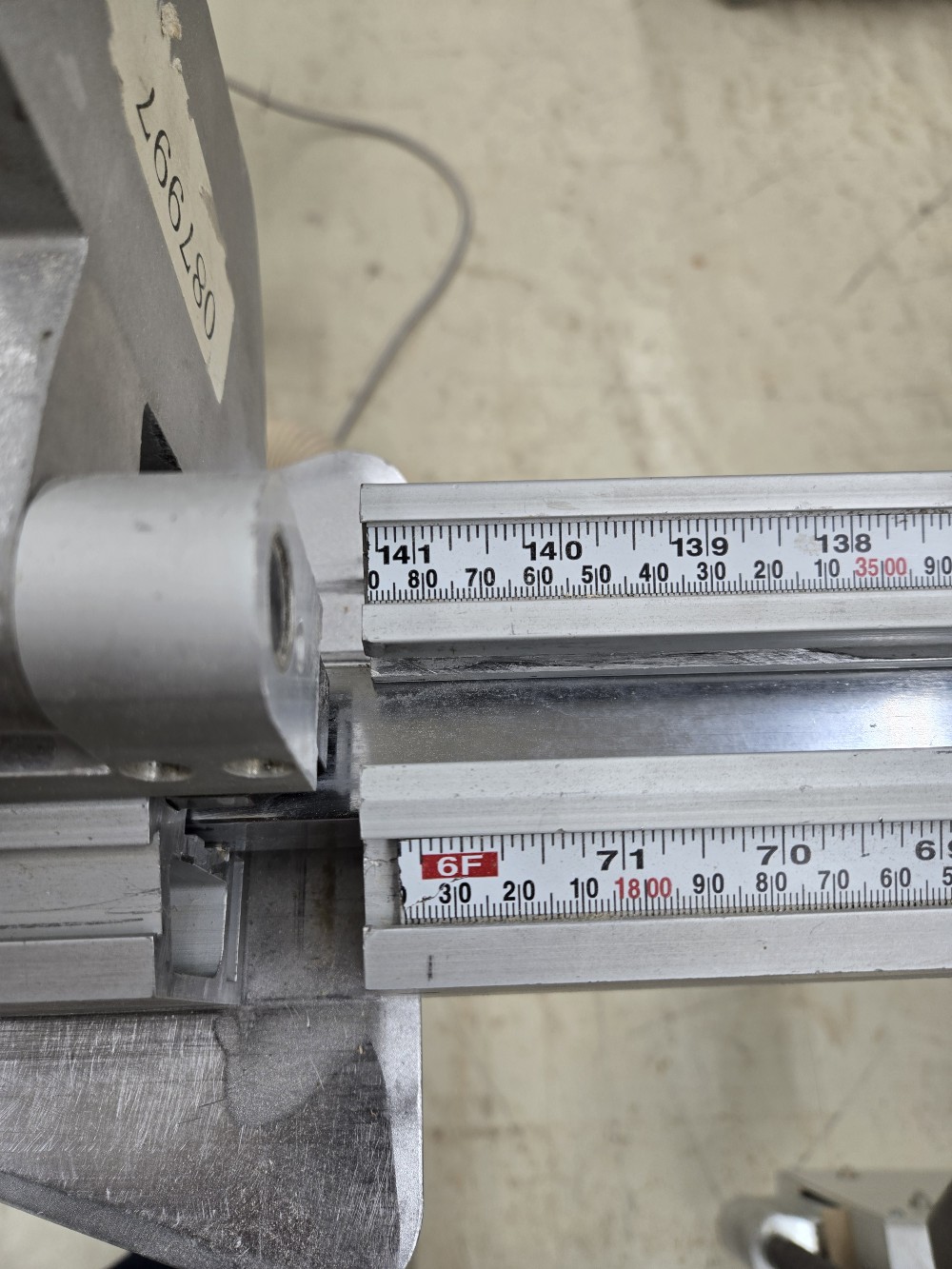

* Dual scales - imperial and metric for rip and cross fence
* Scoring unit with separate motor
* Three speed saw blade rotation
* riving knife - 2.8 mm wide
* Score blade - shim type @ 125mm x 20
* Main blade - 350 mm x 30 x 84 teeth - c/w Pin holes
* Eccentric clamp
* 3 phase, 600 volts,

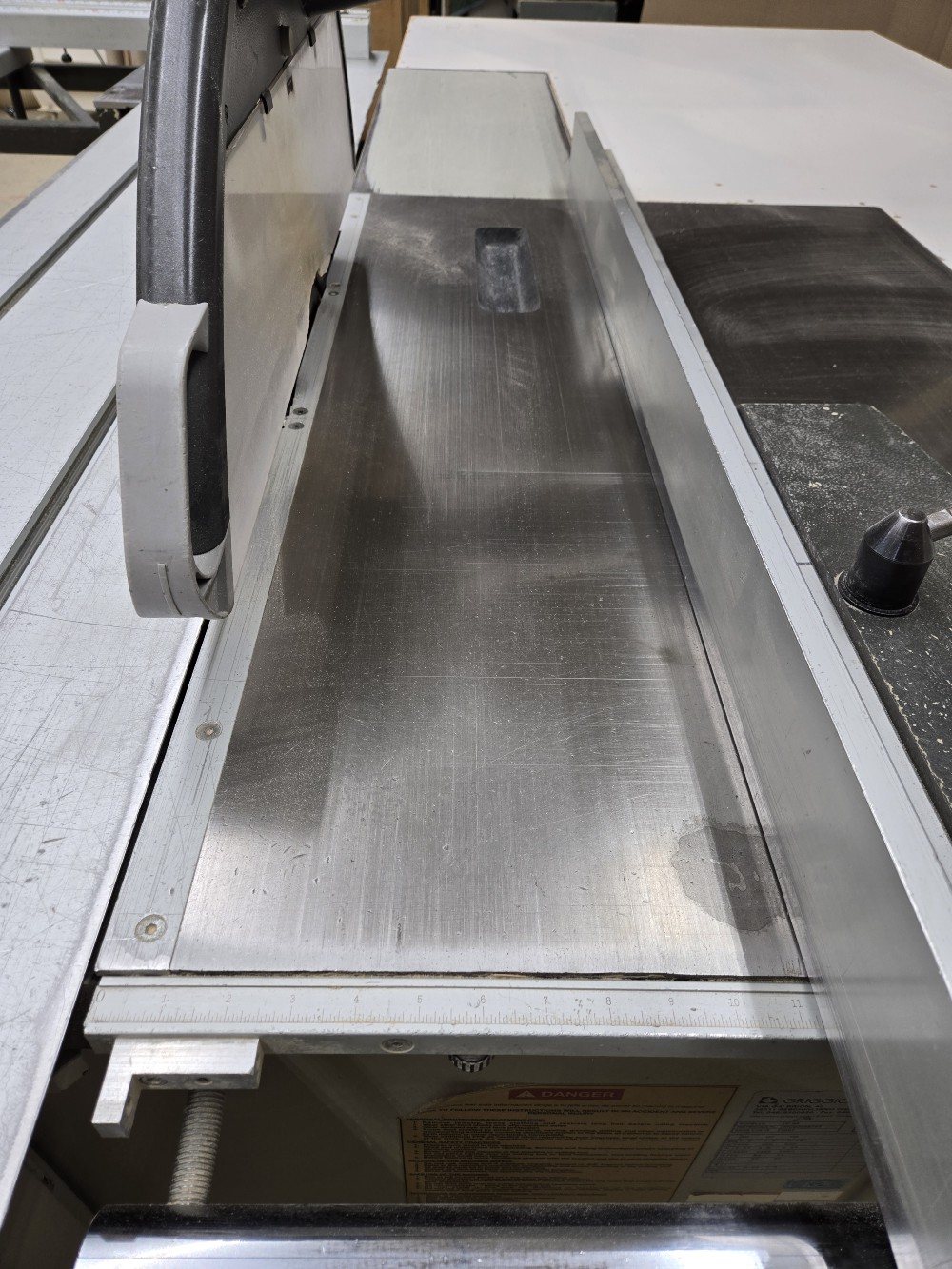

* Sliding blade : 385 mm wide x 3200 mm long (15 '' x 126'')
* Cross cut: 6290 mm (248.64 inches)
* Blade speeds : 3200 / 4000 / 6000 RPM
* Max. Diameter of main blade: 400 mm (15.75'')
* Cut height with 400 mm blades: 130 mm @ 90 degrees
* Cut height with 400 mm blades: 90 mm @ 45 degrees
* DADO capacity: up to 20 mm wide (16 + 20 mm spacers)
* Two dust hoods: 100 and 200 mm diameter
* Total Amperage: 30.8

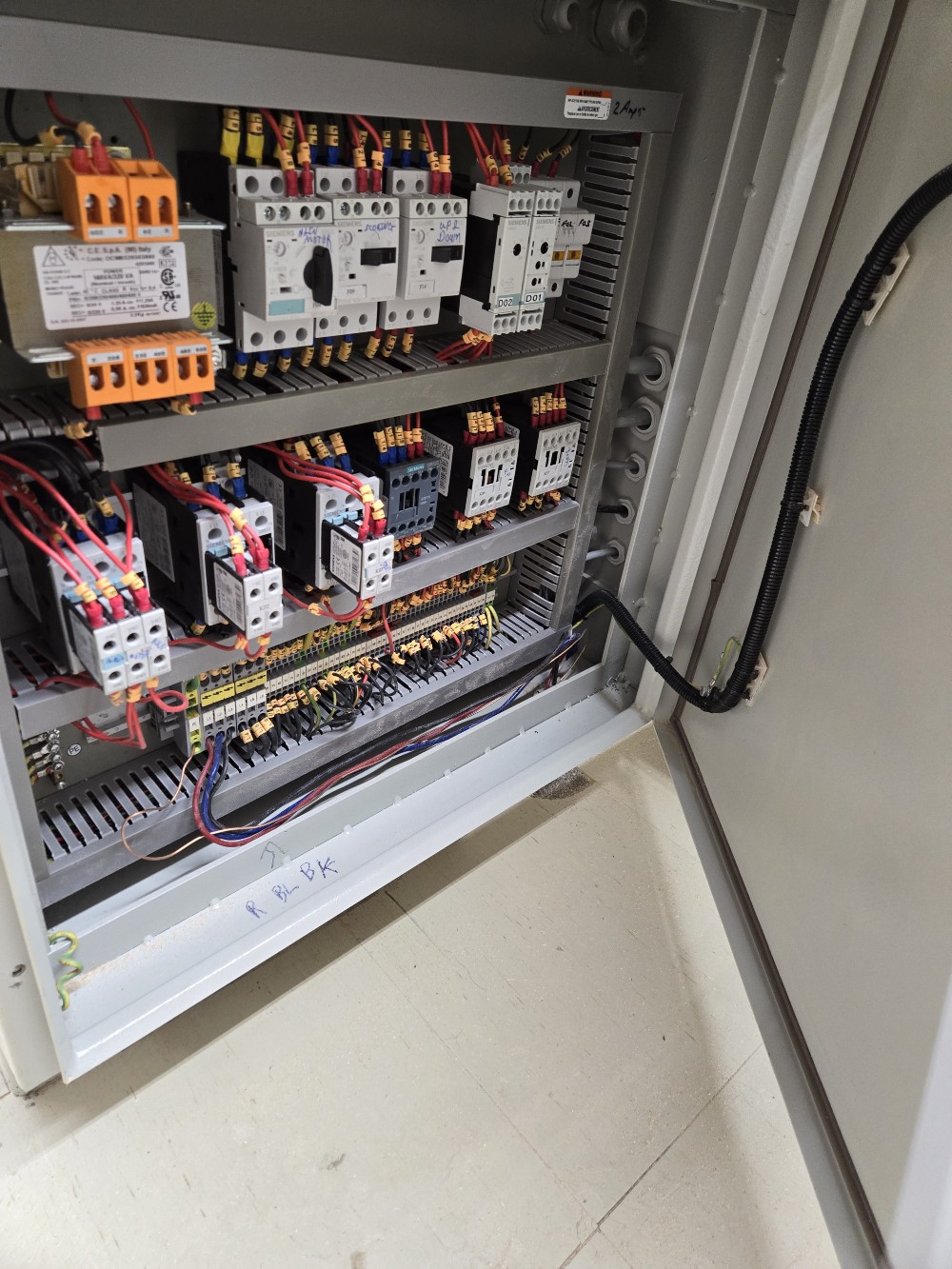

* Electrics: 230/3/60 CSA components
* Main motor 9 HP, Scoring motor 1 HP, Blade raise motor 1/4 HP
* Weight approx. : 950 kg
