Grecon #Turbo-S-1000, vertical & horizontal finger jointer press, 2010

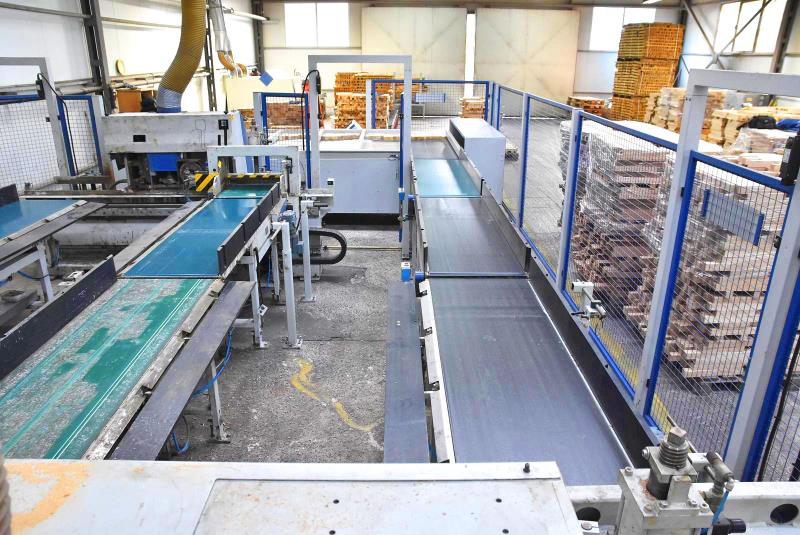

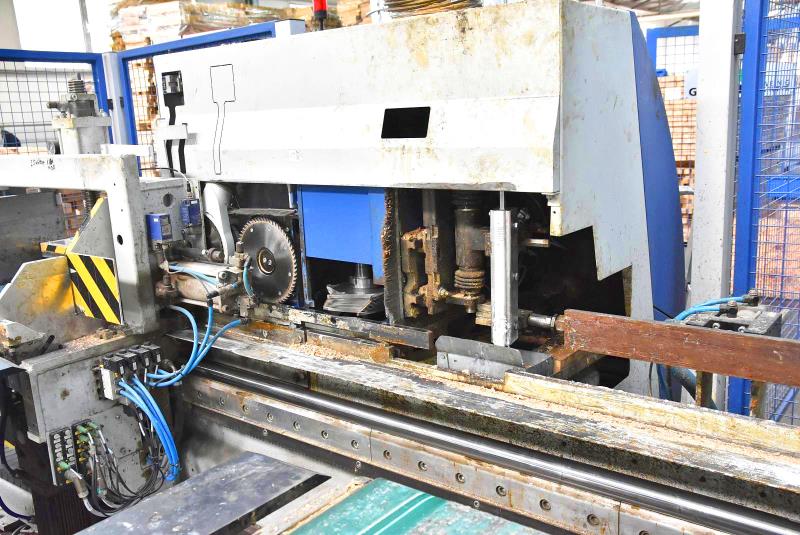

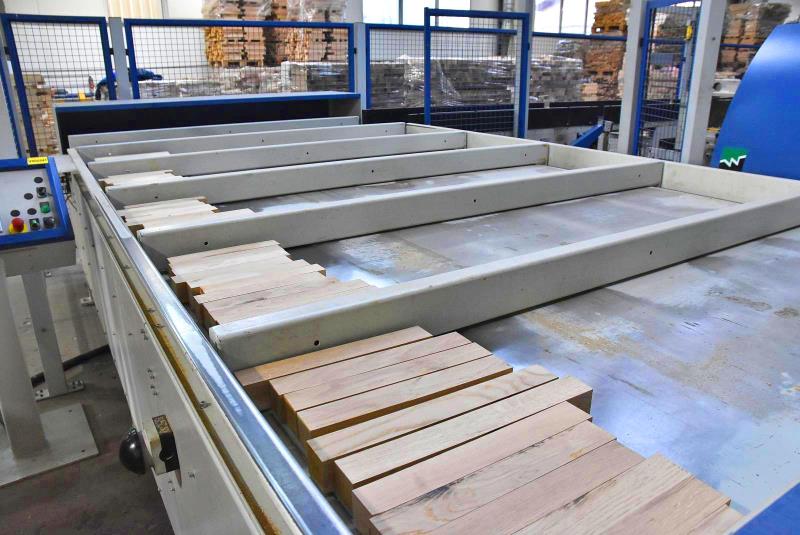

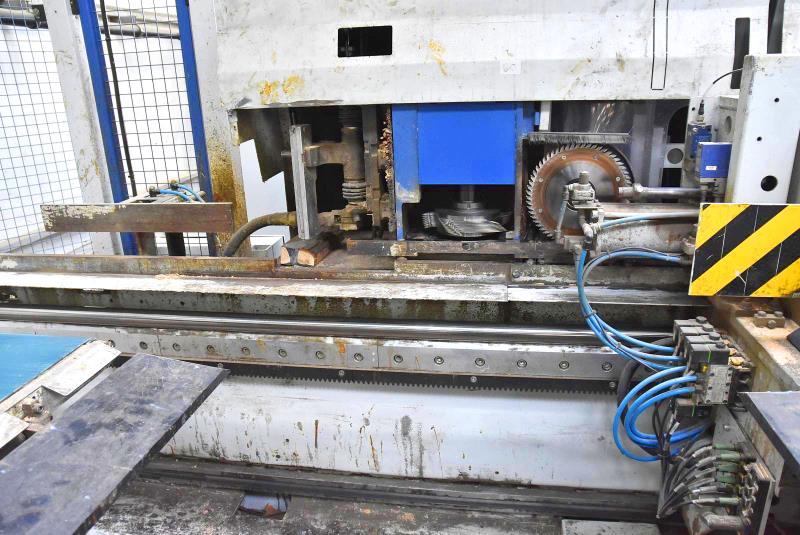

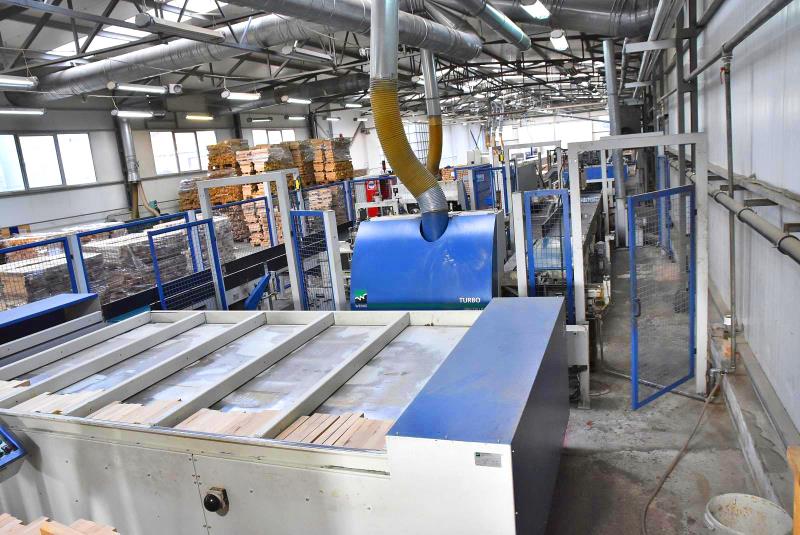

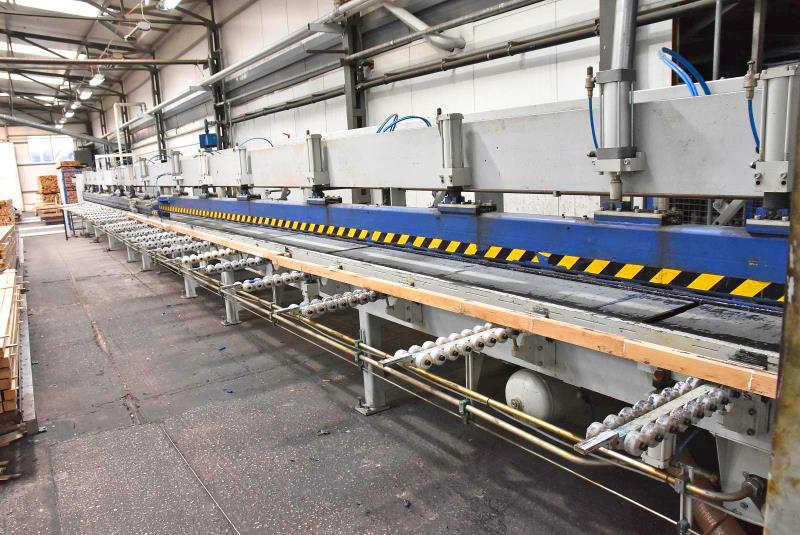

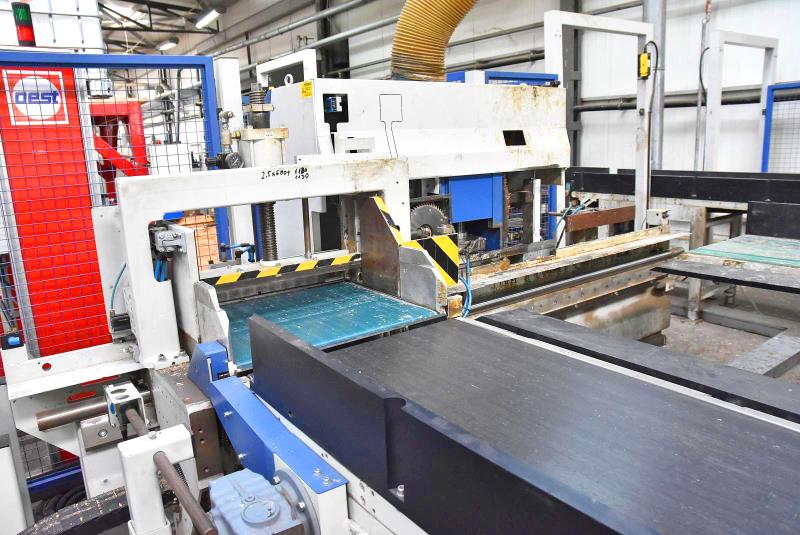

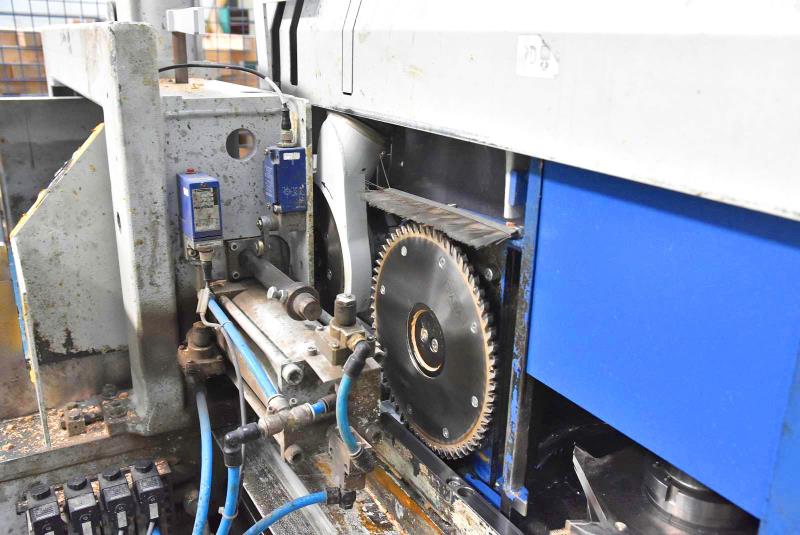

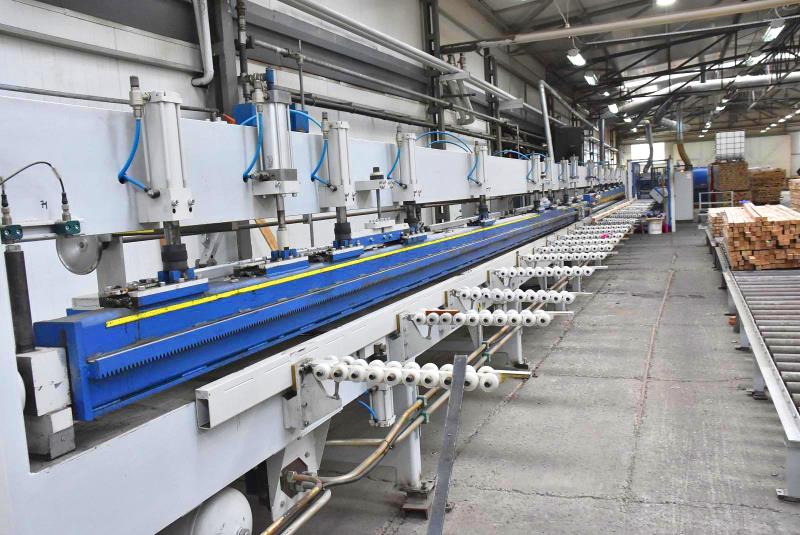

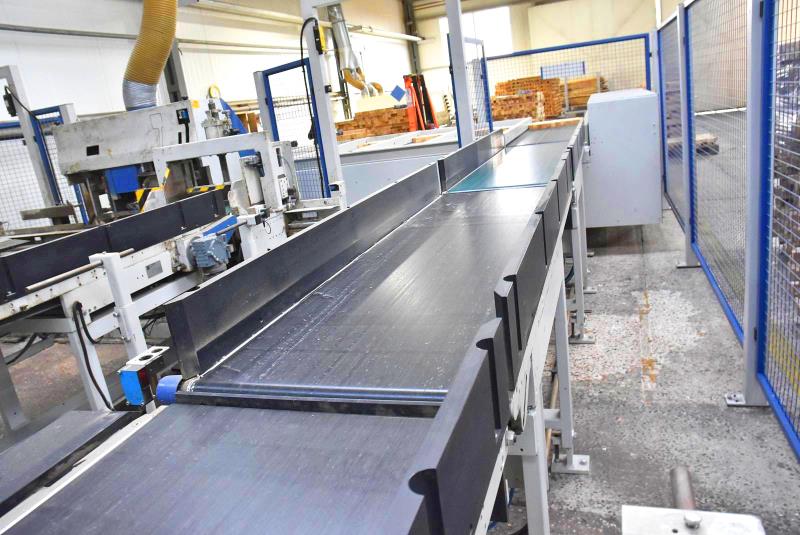

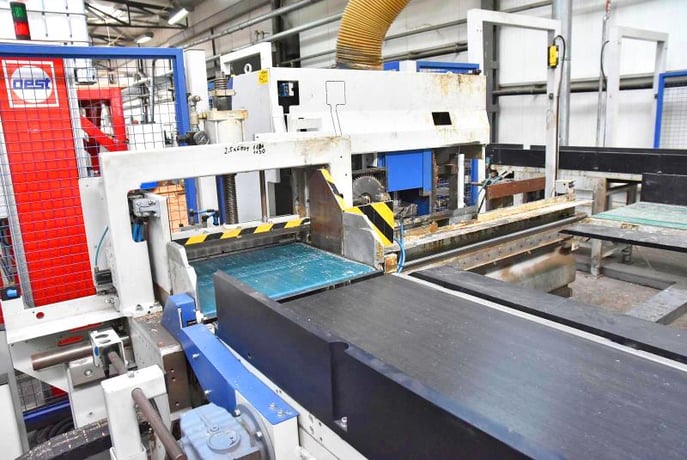

GRECON TURBO S 1000 Finger Jointer and PressAutomatic packaging system finger jointing line incl. 12t press system. For multiple lengths.A flexible finger jointing line which is used for processing timber packages and manufacturing horizontal as well as vertical finger joints. The individual pieces of wood are combined into packages and an entire package is milled in one cycle. The milling units are fixed, and the table moves past the hogger and milling units.Features: -- Glue Application System OEST ECOPUR; -- Vertical and horizontal finger joint including (2) scoring units to avoid splintering; -- (2) Milling units; -- Fully automatic conveyor/separator.Capacity: -- Timber width max. 225 mm (8.86"), min. 30 mm (1.18"). -- Timber thickness max. 80 mm (3.15"), min. 20 mm (0.79"). -- Timber entry length 150 mm - 1.000 mm (5.91" - 39.37") -- Timber exit length 3.000 - 6.100 mm (118.11" - 240.16") -- Pressing length 16.400 mm -- Capacity vertical jointing (30 x 90 x 400 mm) - 57 m/min (187 FPM) -- Capacity horizontal jointing (20 x 50 x 350 mm) - 29 m/min (95 FPM) -- Timber cross section at finger length 10/11 mm (softwood) - 100 cm (120 cm) -- Timber cross section at finger length 10/11 mm (hardwood) - 80 cm (96 cm)Specifications: -- 2-channel press, max. pressure 12.000 kg (26.455 lbs.); -- Package width 600 mm (23.62"); -- (2) scoring units to avoid splintering; -- Drive of hogger/scoring unit 11.5 kW (15 HP); -- Drive of shaper unit 37 kW (50 HP); -- Shaper height 225 mm (8.86"); -- Servo-controlled shaper table; -- Separate control cabinet for machine operation. -- OEST ECOPUR:The Oest Ecopur is a newly developed dosing and spreading technology for single component PUR adhesive, which is increasingly used in glulam production. The adhesive is processed directly from the packing drum in the absence of air. These complete spreading installations for surface gluing ensure a precise and loss-free spreading of adhesive. Flexible installation and reliable container monitoring are guaranteed with one material supply system. -- Space requirement:L x W x H 43 x 7 x 2,1 meters (141' x 22' x 6')Actual model is: GRECON TURBO S 1000 Finger Jointer and PressNote: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
