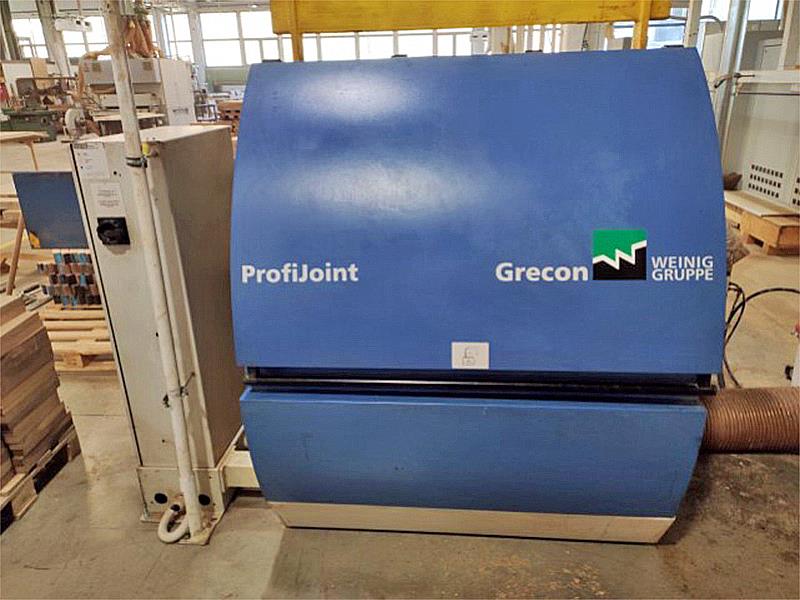

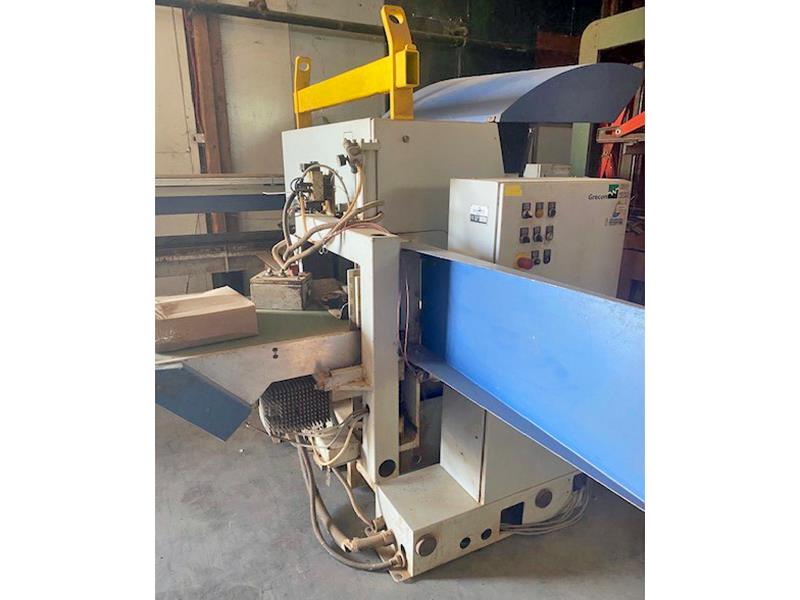

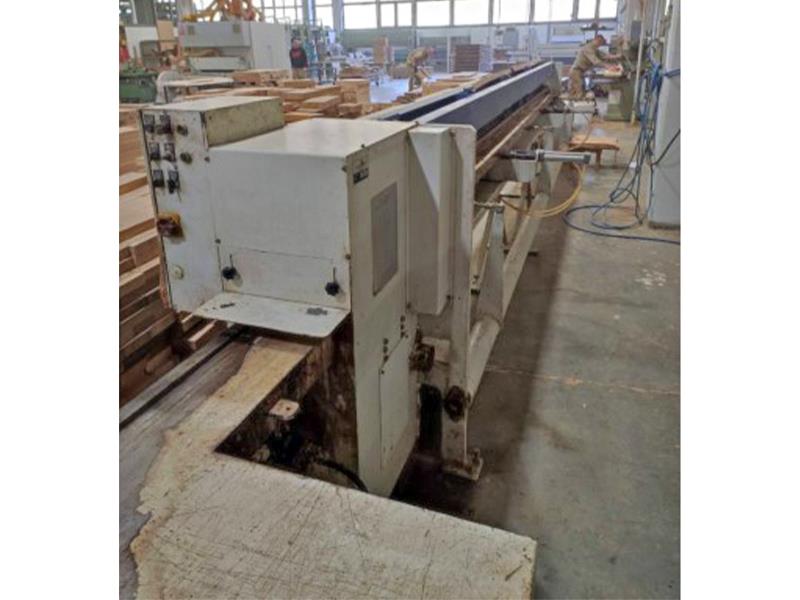

Grecon / Dimter / Weinig Profijoint #PJ-10/6100-CE, finger jointer, 15" diameter blade, 2008

Estimated monthly payment valid upon approved credit.

Request Formal Quote

GRECON-DIMTER PROFIJOINT PJ 10/6100-CE Finger Jointing System;For Vertical and Horizontal finger joints in a wide variety of patterns; -- Infeed timber length 150 mm -700 mm (6" - 27-1/2") max.; thickness 18 mm-50 mm (3/4" to 2") max.; timber width 40 mm-170 mm (1-1/2" to 6.7") maximum. Timber outfeed press length of 6100mm (20'). -- Finger joint shaper, single-shaper design, with 24" wide table and including transport belt in the clamping station.Equipped with: -- Fixed limit stop, adjustable to align the package; hogging unit with 15 HP belt drive, shaping. -- The guiding device of the shaper table consists of stable guide rollers; blocks are clamped by means of pressure controlled horizontal and vertical clamping device. -- Finger Joint Press with ejection to the side design to press the finger jointed lumber to a fixed final length; the feeding & pressing process is carried out at (1) working level; the infeed timber is pre-pressed by means of the press control. -- Complete with: 6 HP Hydraulic power pack; 8 ton max. thrust force; 3 HP saw motor and 15" dia. blade for cut to length finger jointed material.NOTE; Above specifications were from the manufacturer and thought to be accurate. As always please verify all information for yourself.Overall dimentions: 43' X 16.5' X 83" HighNote: Loading into container is not included in price
