6: Granville Bast Fiber Baling System (Granville Tobacco “Bacca” Baler)
- Original system cost $63,113 CAD
- Received NEW January 9, 2023, hours used since purchase = 0.
- Extended Warranty provided by Granville to Oct 23, 2025 (due to lack of use)
- Overall system weight for shipping 10,000 lbs

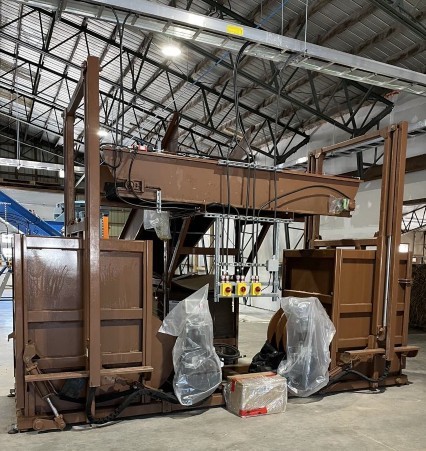

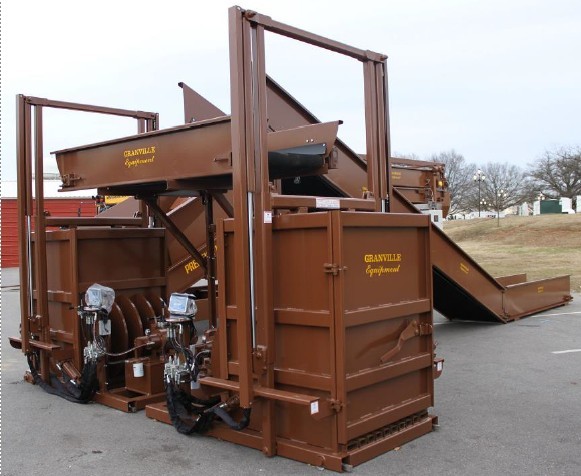

Integrated System consists of:

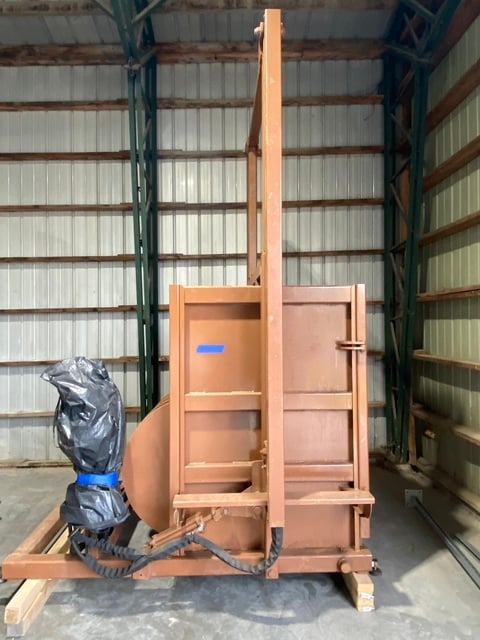

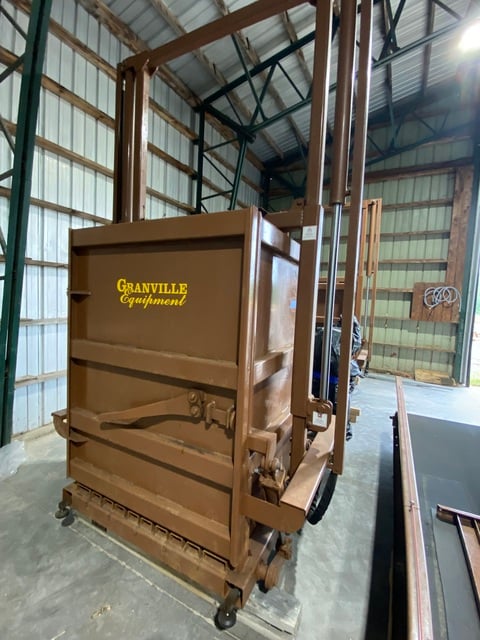

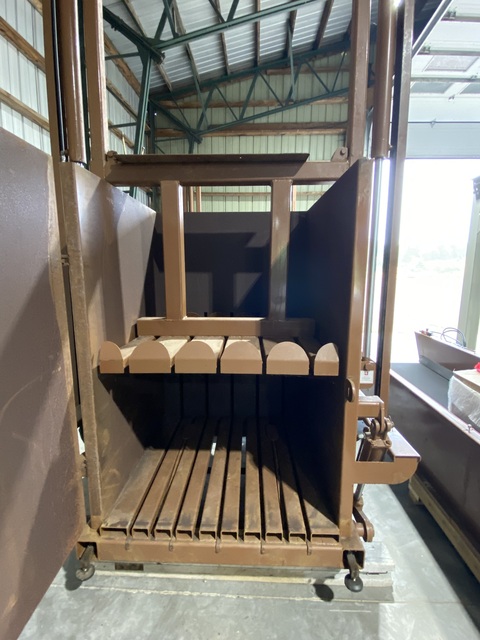

2 – TBB Tall Bacca Baler with 60” chamber
2 – Bacca Baler Scales
1 - PU Electric Power Unit for Hydraulics
1 – 22’ Incline Conveyor
1 – 11’ Cross Conveyor for TBB Cross System (reversible direction)

- Motor start switches and emergency stop pull cable systems installed around all conveyors
- Dies for cardboard stamping for the inserts placed in the bottom of the balers are available (see 6d. below)

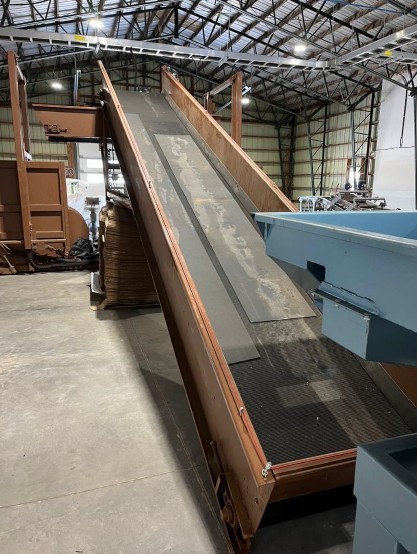

6a - (2nd photo) Granville Incline Conveyor Serial # 22INCLCONV23-01-1320
-Hours used since purchase = 0.
-1 HP (0.75 kW) Motor wired with 220V 1PH plug
-Start/FWD/REV functions in control panel
-Motor start switches wired to front of system by controls
-Emergency Stop Pull Cables installed around conveyor envelope
-264” L x 42” W x 21” H, weight 1500 lbs

6b. (3rd photo) Granville Horizontal Cross Conveyor No Serial # nameplate
-Hours used since purchase = 0.
-1 HP (0.75 kW) Motor wired with 220V 1PH plug
-Start/FWD/REV functions in control panel
-Motor start switches wired to front of system by controls
-Reversible conveyor direction to feed both baling chambers
-Emergency Stop Pull Cables installed around conveyor envelope
-132” L x 42” W x 18” H, weight 800 lbs incl bracing

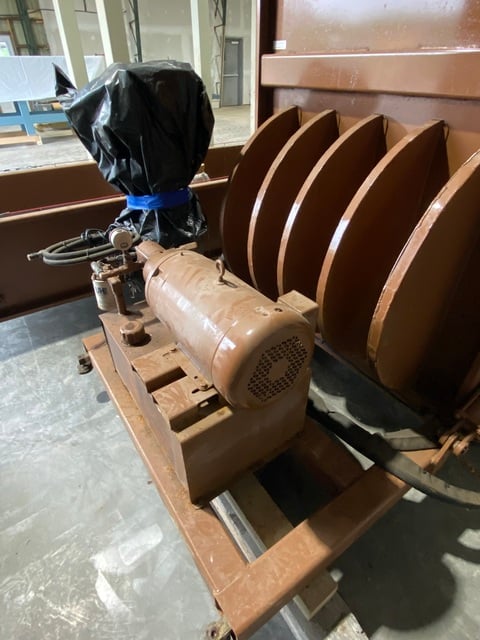

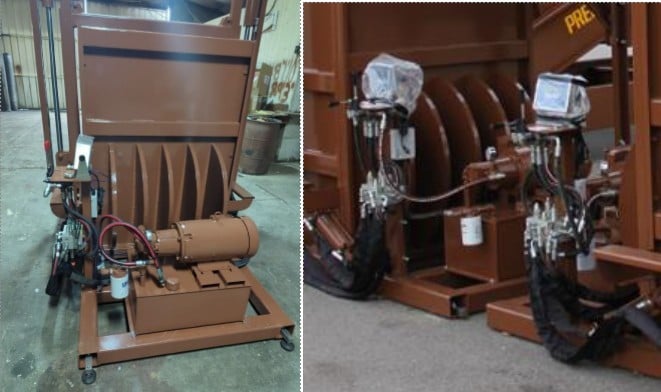

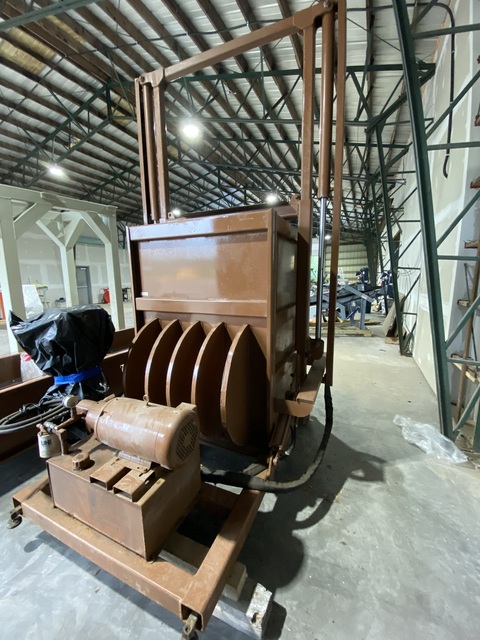

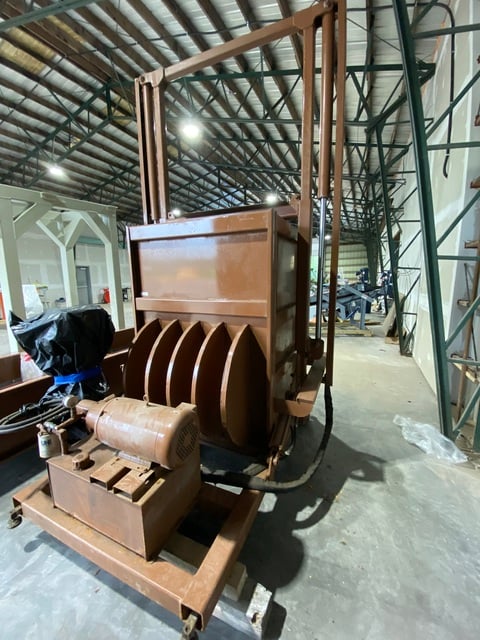

6c. (4th photo) Granville Balers (hydraulic power pack and control panel)
-Serial # TBBSPU575V23-01 (pump unit) & TBBSCL23-02
-Hours used since purchase = 0
-10HP (7.5 kW) motor 575V/3PH/60
-110V for Transcell TI500E-SS Scales (Qty 2)
-230V 1PH for Inverter Box - controlled power for conveyors comes from control cabinet pre-wired.
-FSPI provided wall mounted disconnect and motor starter required for hydraulic motor, wired directly into motor from wall.
-Motor start switches wired to front of system by controls.
-Emergency Stop Pull Cables installed around conveyor envelope.
-85” L x 73” W x 125” H, weight 3500 lbs and 4000 lbs (with hydraulic power pack) each

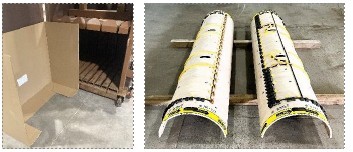

6d. (last photo) Cardboard Insert Die Tooling for the Granville Baler
The die for the cardboard inserts is available and could be used by any cardboard manufacturer. Selling Price $1000 CAD.
