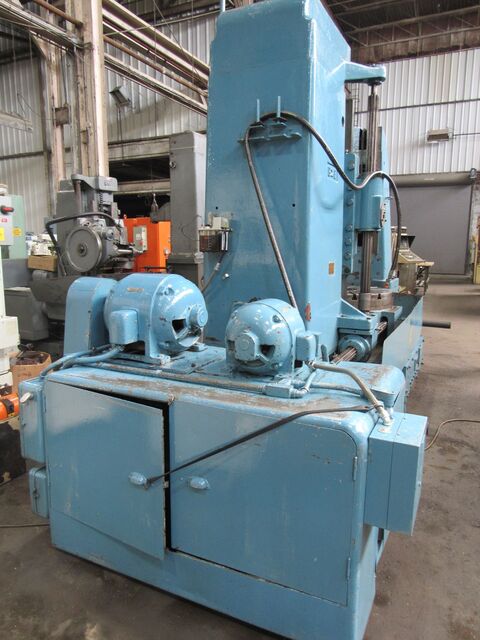

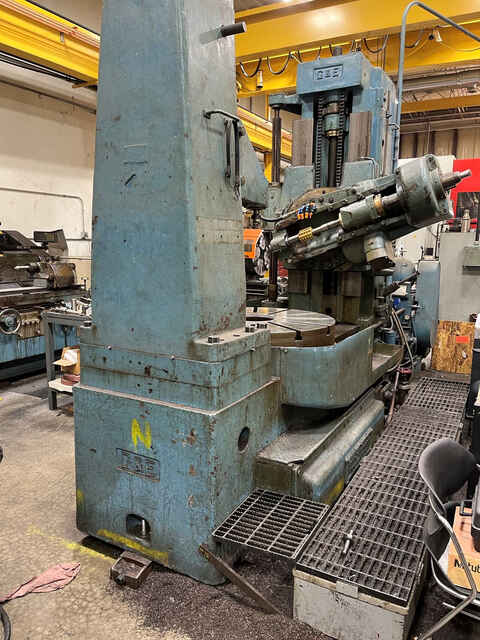

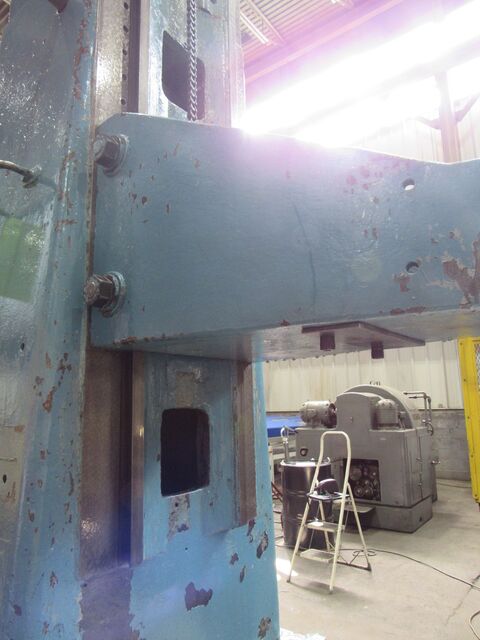

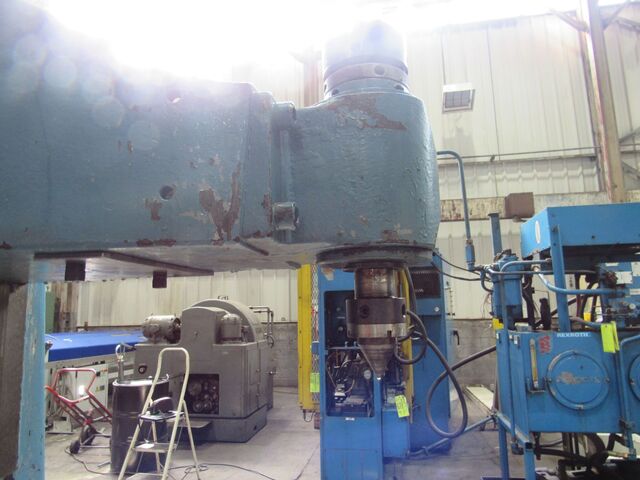

Gould & Eberhardt #72HWD, vertical gear hobber, 72" workpiece diameter, 10" diameter hob, 30" face capacity, 40" worktbl. diameter, 15 HP, 6-100 RPM, 1942

This used Gould & Eberhardt 72 gear hobber, made in 1942, boasts a max gear diameter capacity of 80" with a 72" size capacity. Equipped with heavy-duty worm drive hob head, tailstock, and more. Ideal for your spline hobbing needs.
GOULD & EBERHARDT 72 VERTICAL GEAR HOBBER
S/N 2714A10 YEAR: 1942
STANDARD SPECIFICATIONS
Max. DP in Steel……………………………………………1. DP
Face Capacity……………………………………………….30"
Max. Diameter Spur Gear w/ Support…………………….. 48"
Max. Diameter Spur Gear w/o Support…………………….80"
Max. Diameter Helical Gear w/o Sup (45 Degrees)………..78"
Min Centers Work & Hob Arbors…………………………..3"
Max. Diameter Hob…………………………………………10.75"

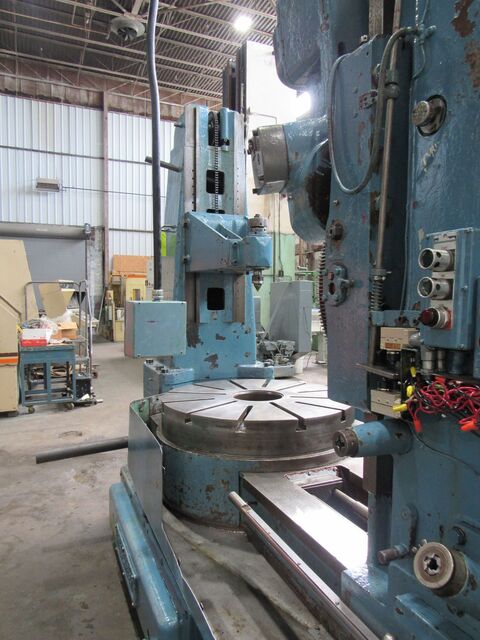

Diameter of Work Table…………………………………….40"
Diameter of Index Worm Gear……………………………...48"
Hob Speed Ranges…………………………………………..6 - 100 RPM
Feed Range………………………………………………… .03 - .200"
Main Motor…………………………………………………..15 HP
Approx. Dimensions…………………………………………207" L x 90" W
Approx. Weight……………………………………………...38,000 LBS
EQUIPPED WITH
Tailstock
Differential

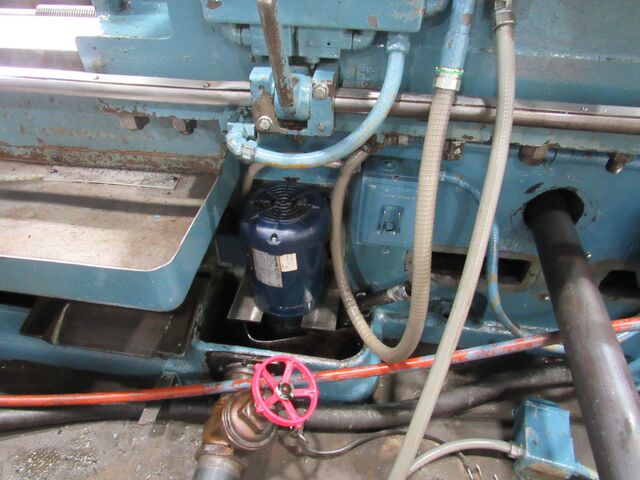

Coolant Pump
Hob Arbors
Change Gears
Specifications are deemed accurate, however, subject to verification or prior sale.
