For Sale by Gibbs Machinery Co
Surplus Record Dealer Since 1956
Location: Warren, MI
Contact Sales Dept.
Phone Number: 586...> Show Phone Number 586-755-5353
Let the seller know you found their listing on Surplus Record!
Description

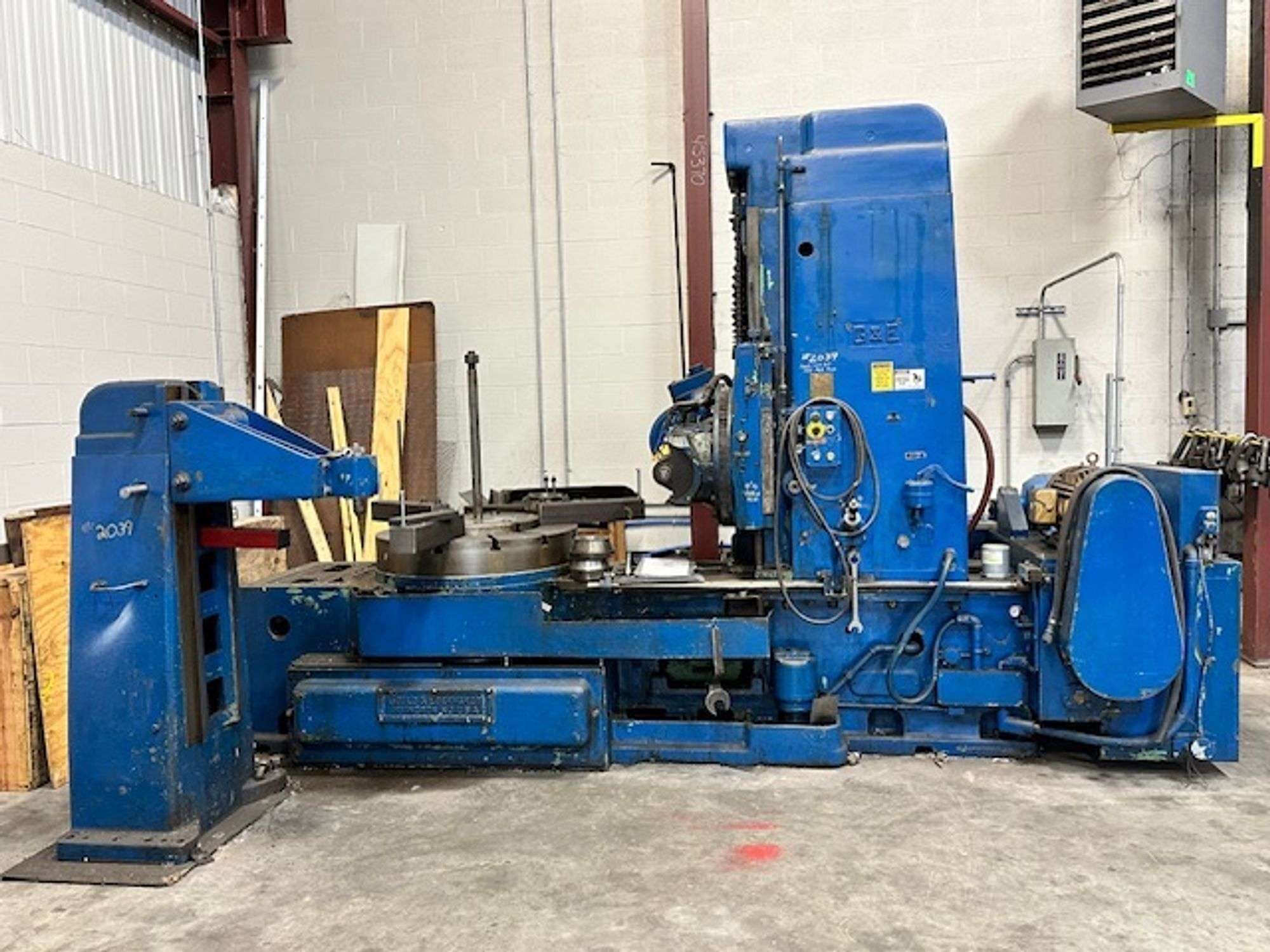

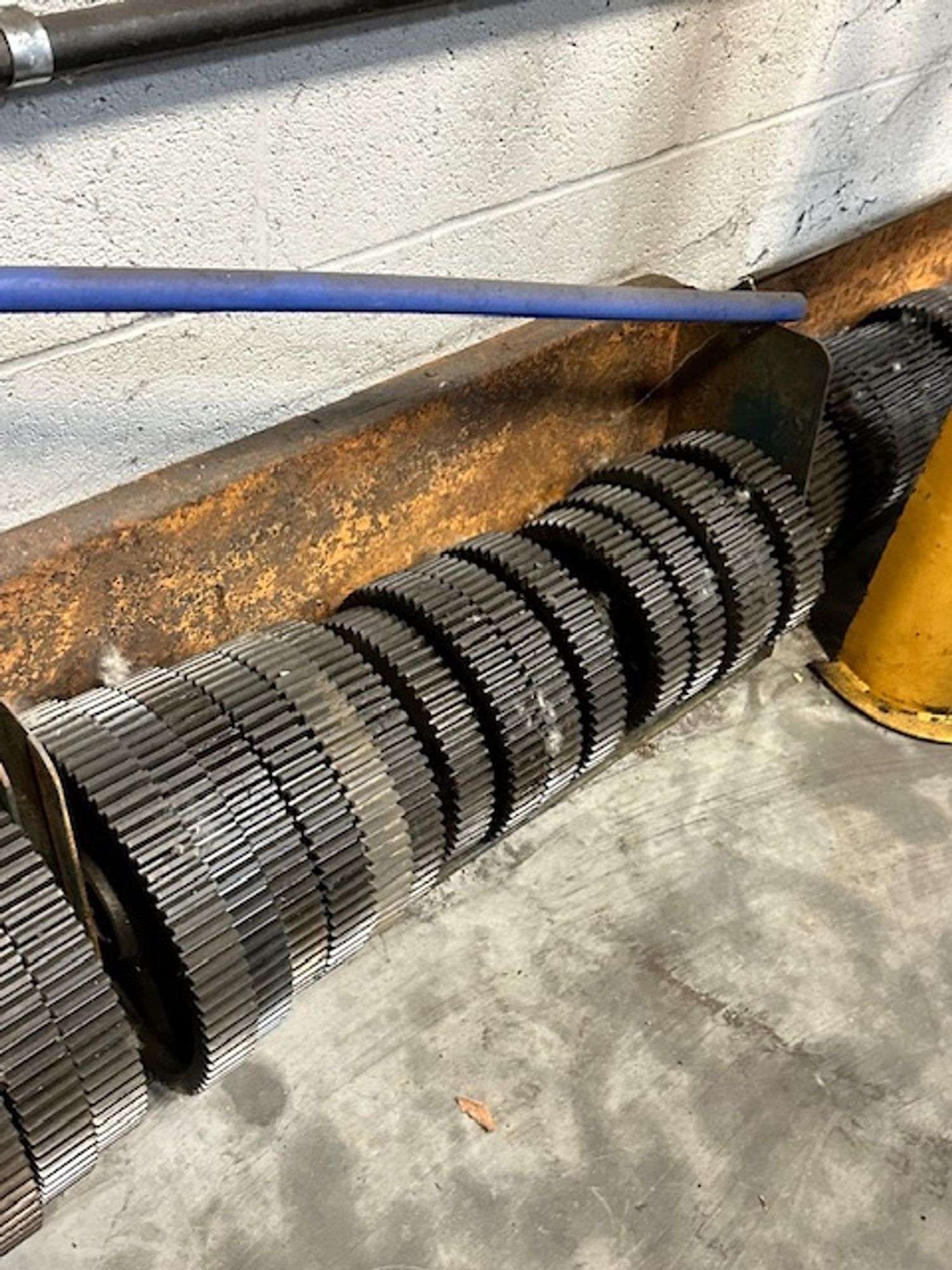

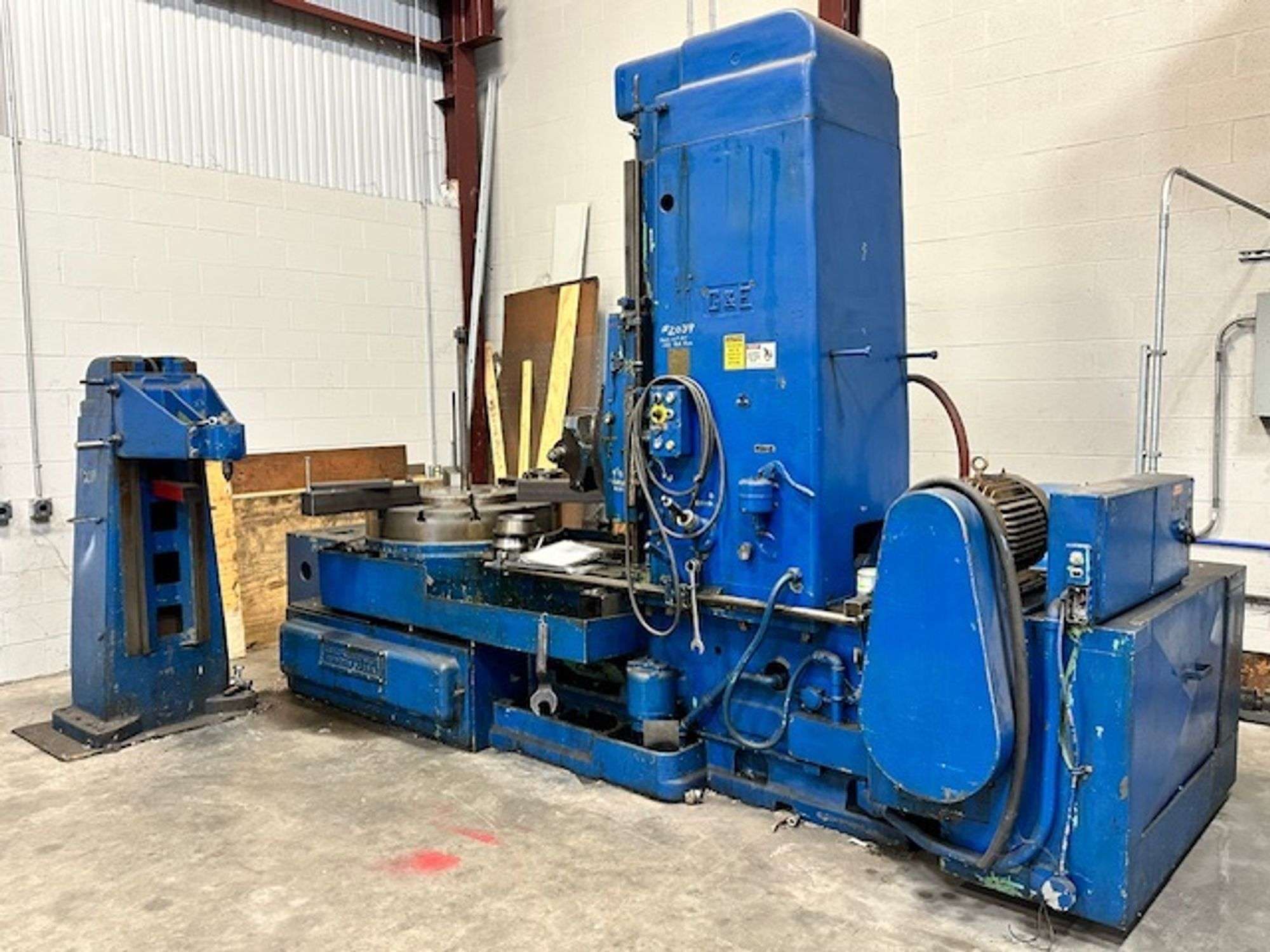

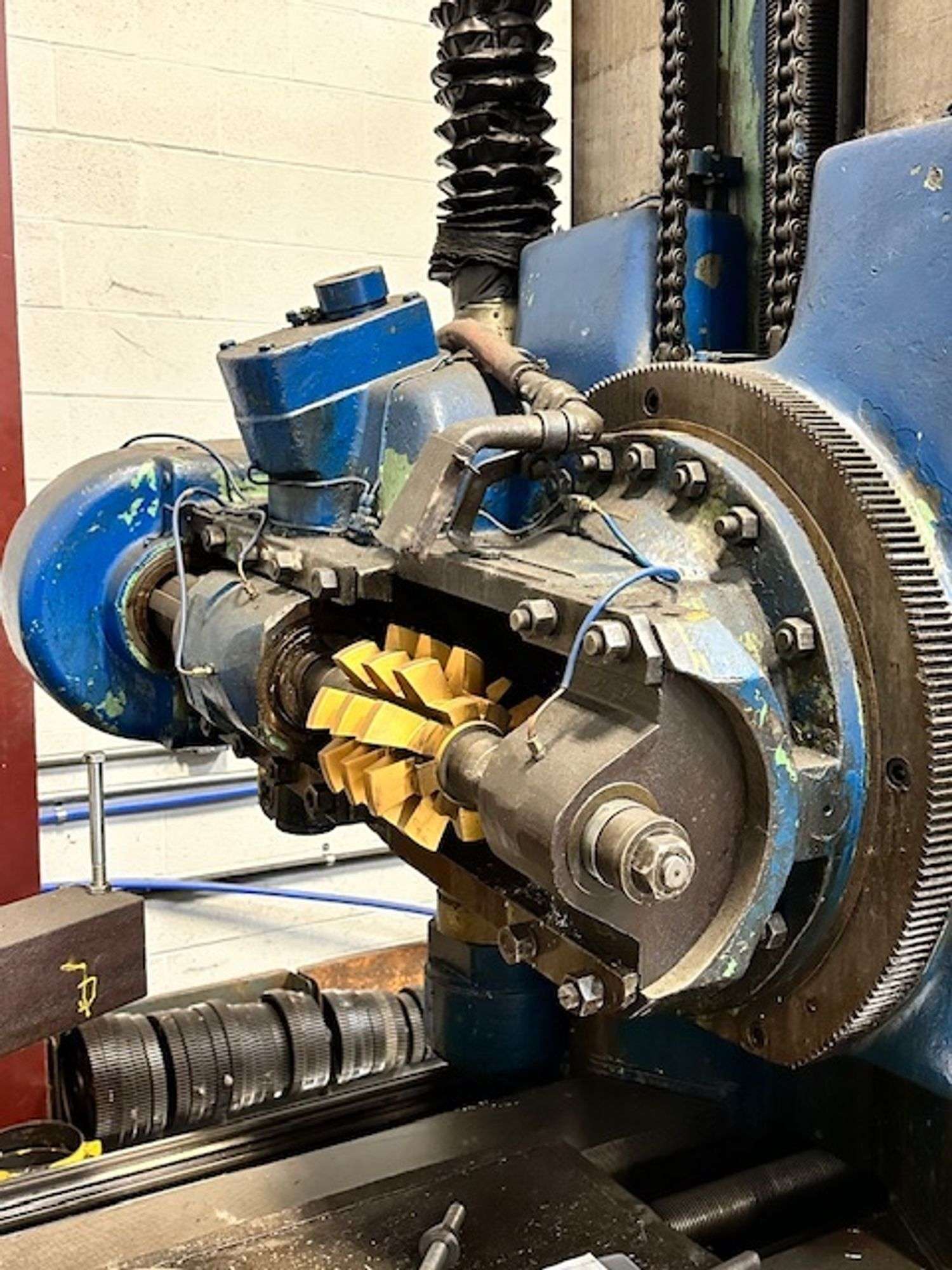

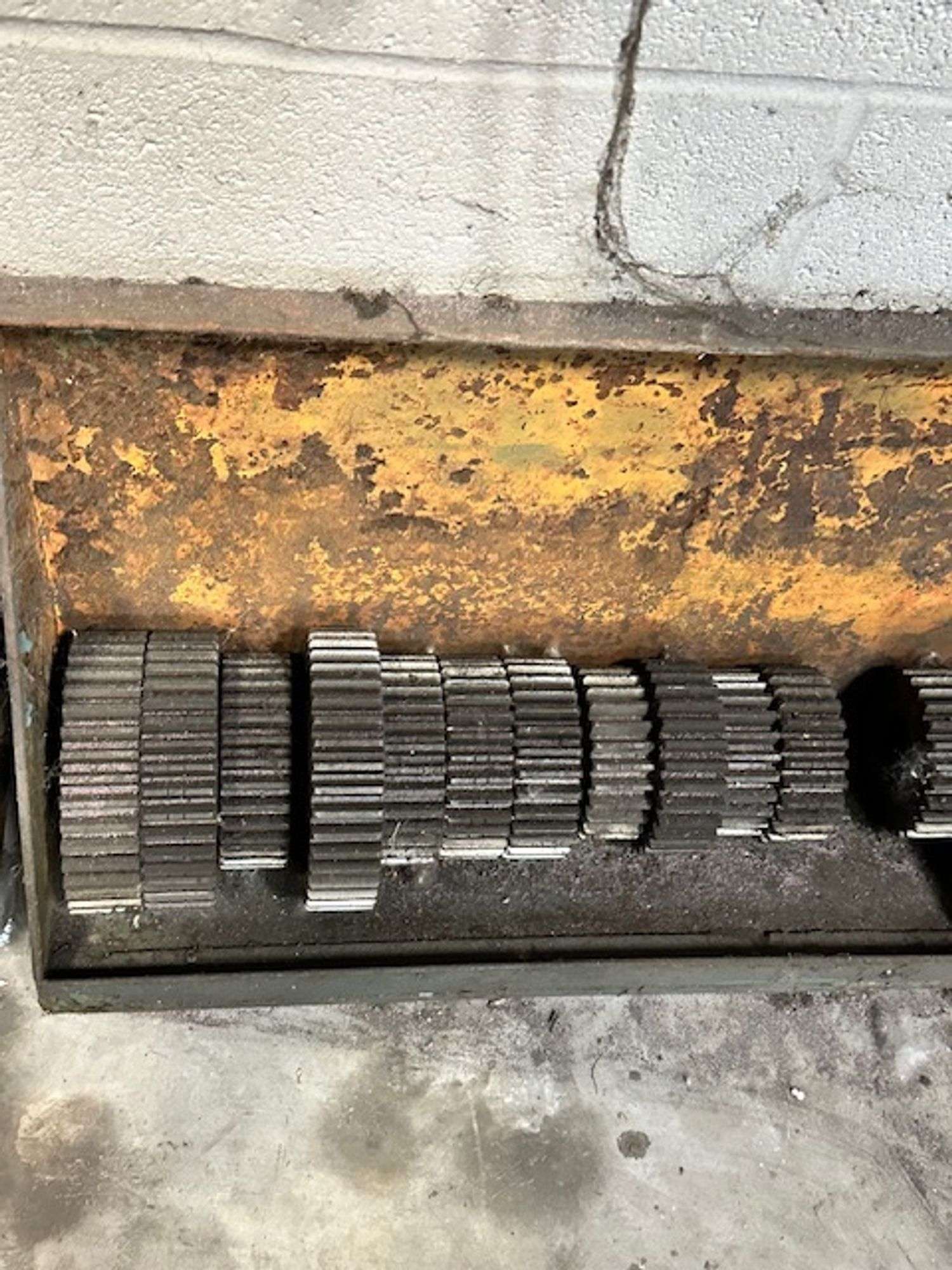

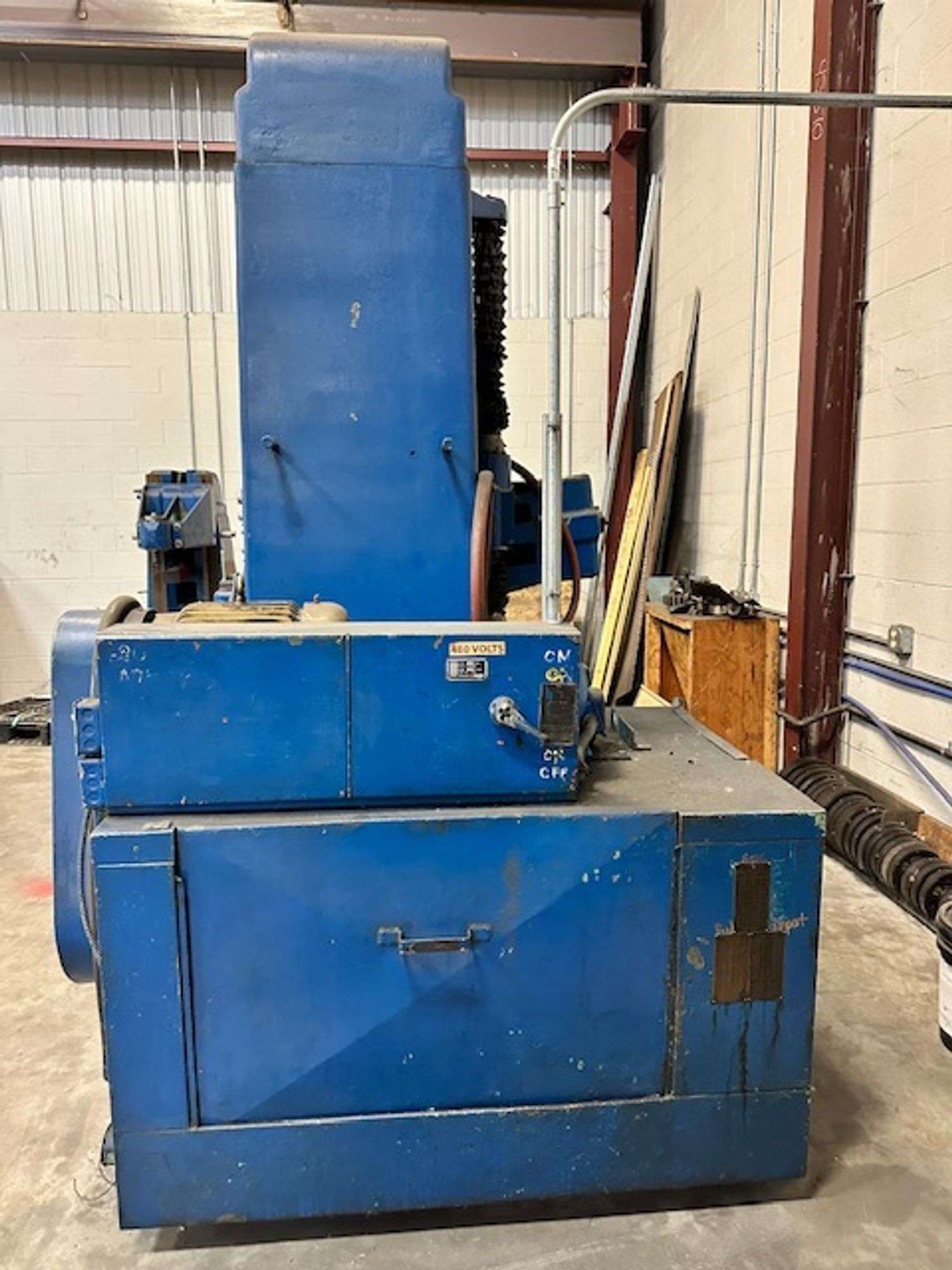

GOULD & EBERHARDT 72H vertical gear hobber, Max workpiece diameter 90", 10.75" hob diameter, 100 RPM speed, 40" table. Features include differential, infeed, change gears, hob arbor, 40" T-slotted table, coolant pump, lube. 38,000 lbs.
Specifications:
Maximum DP in Steel: 1.5 DP
Face Capacity Spur Pinions and Gears: 24"
Face Capacity 45 Degree Helical Gears: 18"
Maximum Diameter Spur Gear With Support: 48"
Maximum Diameter Spur Gear Without Support: 90"
Maximum Diameter Helical Gear w/o Sup (45 Degrees): 72"
Minimum Centers Work & Hob Arbors: 4"
Maximum Diameter Hob: 10.75"
Diameter of Work Table: 40"
Diameter of Index Worm Gear: 48"
Index Range Including Primes: 15 - 100
Index Range Excluding Primes: 100-400
Number of Hob Speeds: 14
Hob Speed Ranges: 6-100 RPM
Drive Pulley: 600 RPM
Number of Feeds: 12
Feed Range: .03 - .200"
Motor HP Requirements, Machine: 15 HP
Motor HP Requirements, Traverse: 5 HP
Motor HP Requirements, Coolant: 3/4 HP
Approximate Dimensions: 207" x 90" x 115"
Approximate Weight: 38,000#
Specifications:
Maximum DP in Steel: 1.5 DP
Face Capacity Spur Pinions and Gears: 24"
Face Capacity 45 Degree Helical Gears: 18"
Maximum Diameter Spur Gear With Support: 48"
Maximum Diameter Spur Gear Without Support: 90"
Maximum Diameter Helical Gear w/o Sup (45 Degrees): 72"
Minimum Centers Work & Hob Arbors: 4"
Maximum Diameter Hob: 10.75"
Diameter of Work Table: 40"
Diameter of Index Worm Gear: 48"
Index Range Including Primes: 15 - 100
Index Range Excluding Primes: 100-400
Number of Hob Speeds: 14
Hob Speed Ranges: 6-100 RPM
Drive Pulley: 600 RPM
Number of Feeds: 12
Feed Range: .03 - .200"
Motor HP Requirements, Machine: 15 HP
Motor HP Requirements, Traverse: 5 HP
Motor HP Requirements, Coolant: 3/4 HP
Approximate Dimensions: 207" x 90" x 115"
Approximate Weight: 38,000#
Get Your Price from Gibbs Machinery Co!
