Description

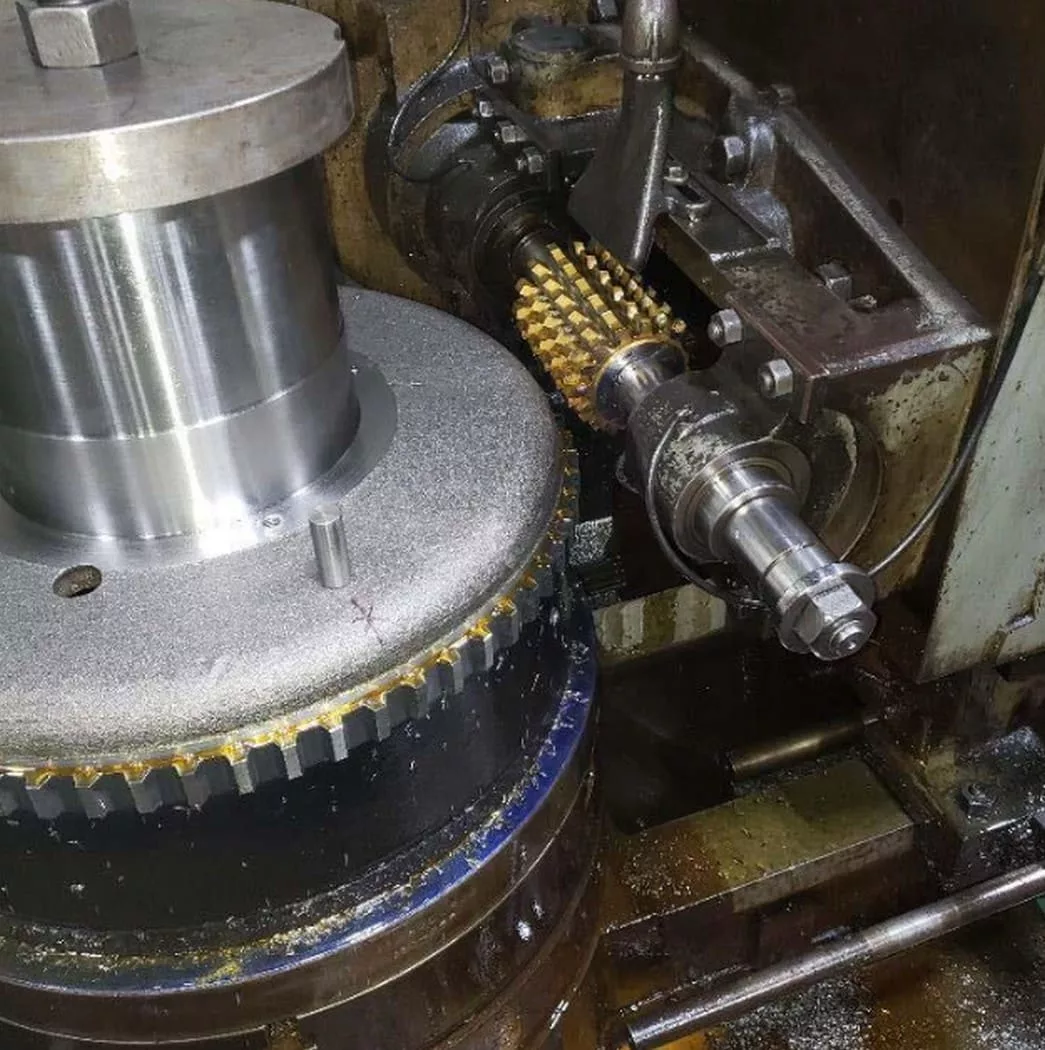

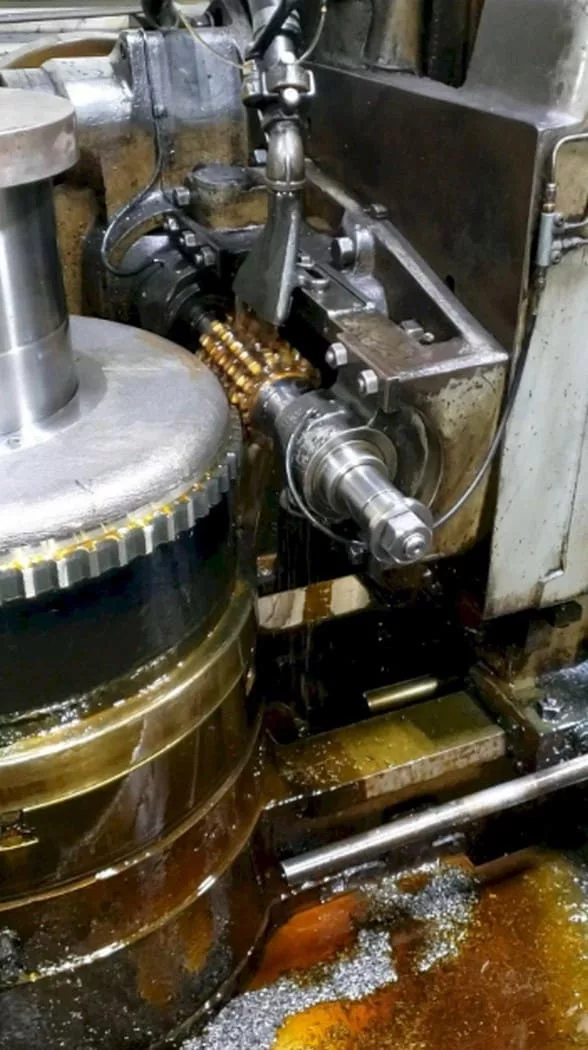

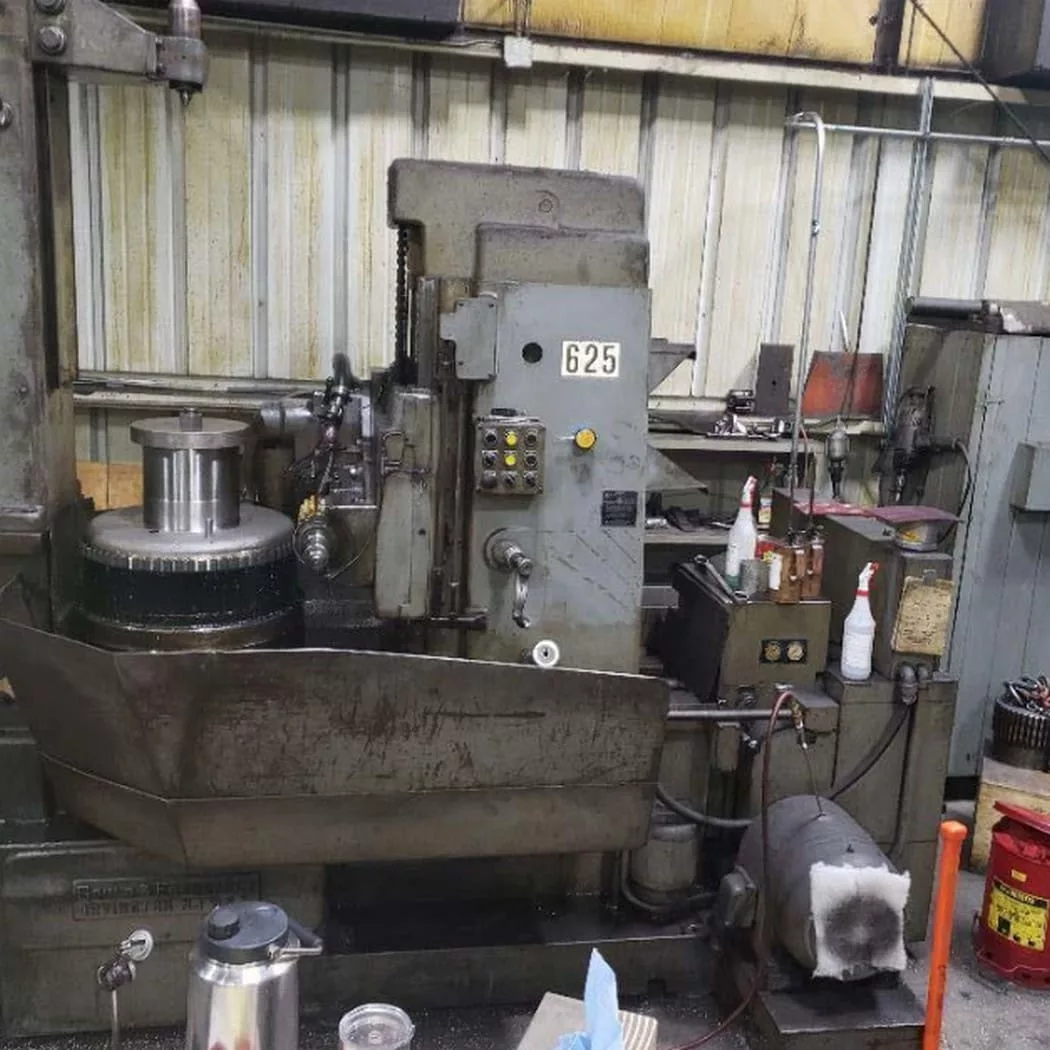

Used Gould & Eberhardt 36HS for Sale. This machine handles a maximum workpiece diameter of 36″ and a maximum diametric pitch of 2.5DP, with a maximum hob diameter of 6″. Axial travel is 15″ and the table diameter is 20″. Equipped with change gears, conventional control, single thread index, coolant system, and tailstock. It is available for inspection and can be seen running under power before purchase, so you can verify operation and condition for yourself. Additional used gear machinery is also available. Use Activate Pricing to view current pricing on this listing, or Request a Quote and one of our representatives will follow up with details and freight options. This machine is located in Michigan.
Gould & Eberhardt 36HS is an extremely rigid, heavy-duty vertical spur gear hobber designed to cut large-pitch gears with high torque and precision. It handles a maximum workpiece diameter of 36 inches, a maximum diametral pitch of 2.5 DP, and s a 20-inch table diameter with 15 inches of axial travel., Maximum ...more
Rated Pitch in Steel, Maximum 3 DP Face Capacity-Spur 15” Face Capacity-45° Helical Gear 12” Max. Diameter Spur Gear-w/o Support 36” Max. Diameter Spur Gear w/Support 24” Max Diameter 45° Helical Gear 36” Hob Diameter, Max 7” Work Table Diameter 24” Index Worm Gear ...more
, Gleason 6 Axis vertical CNC Gear hobber w/ Loading, Model GP 130, s/n will advise, new oct 1999, installed 2000, machine condition / very good, this machine is the shuttle style wrap around loader., this machine can be set up to run gears or shafts. machine can be, run in the auto load or manual load cycle ...more
GOULD & EBERHARDT Model 72H gear hobber available. Rebuilt in 2016, Capable of handling max gear diameter of 90.0 with a max diametral pitch of 1.5. Used condition but ready for your gear manufacturing needs., GOULD & EBERHARDT 72H VERTICAL GEAR HOBBER, S/N 2421A4 REBUILT: 2016, STANDARD, Maximum DP in ...more
