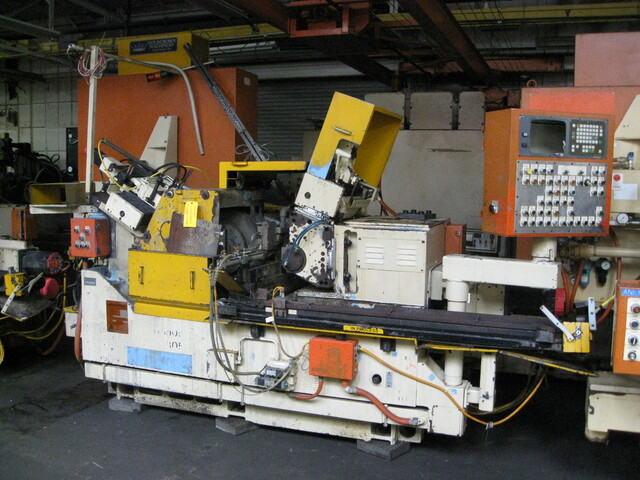

Gold Crown #GC-200, centerless grinder, 4.5" diameter work capacity, 24" x 10" x 12" grinding wheel, 30 HP, 1995

Goldcrown GC-200 Centerless Grinder, Non Twin Grip, 24" x 10" x 12" Grinding Wheel, 14" x 10" x 6" Reg Wheel
GOLD CROWN GC-200 CENTERLESS GRINDER
S/N GC25093-01 Year: 1995
STANDARD SPECIFICATIONS
Grinding wheel size……………………………………… 24” x 10” x 12”
Regulating wheel size……………………………………. 14” x 10” x 6”
Work O.D. range…………………………………………. 1/16” to 4 1/2
Grinding wheel drive……………………………………... 30 HP AC Motor
Spindle lubrication pump…………………………………. 1 HP AC Motor
Regulating wheel drive……………………………………. 187 in. lb AC Motor
Machine weight……………………………………………. 18,000 lbs.
Fanuc Servo dual slide in feed.
Fanuc O-M Controls.
Wheel diameter…………………………………………… 24”
Wheel width……………………………………………… 10”
Fanuc Servo Dual slide in feed lower (x axis) and upper (u axis).
Trabon lubrication.
Fanuc Servo motor regulating wheel transmission.
External hydraulic tank.
Grinding wheel dresser Fanuc 2 Axis.
Regulating wheel dresser hand diamond advance, DC right angle motorized on traverse.
Attached electrical.
Specifications are deemed accurate, however, subject to verification or prior sale.
