For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Andrew Valitt
973-49...> Show Seller's Phone Number 973-497-7600 Let the seller know you found their listing on Surplus Record!
Description

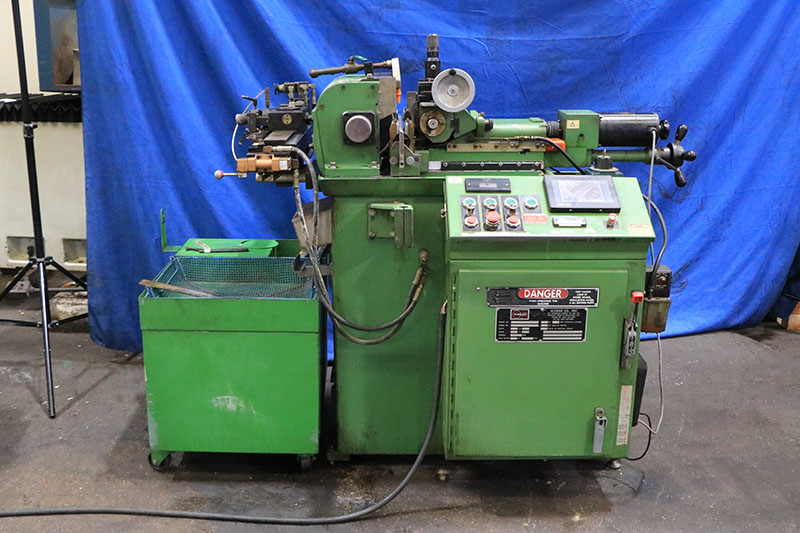

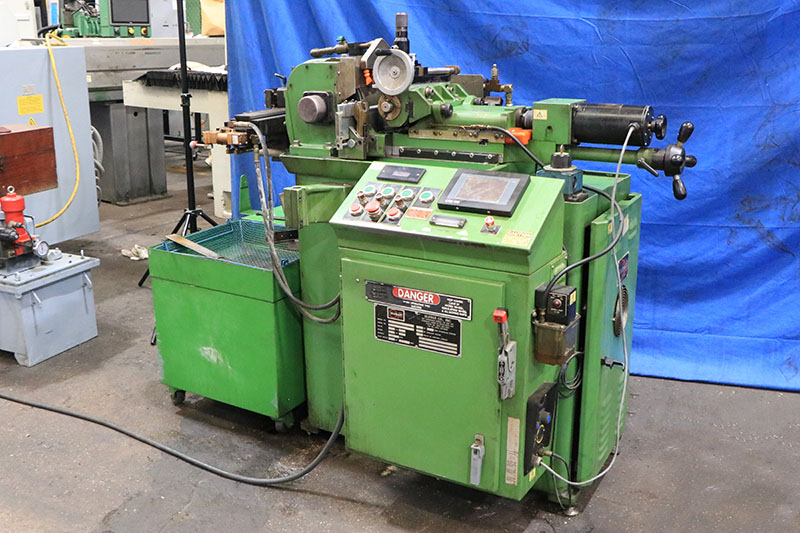

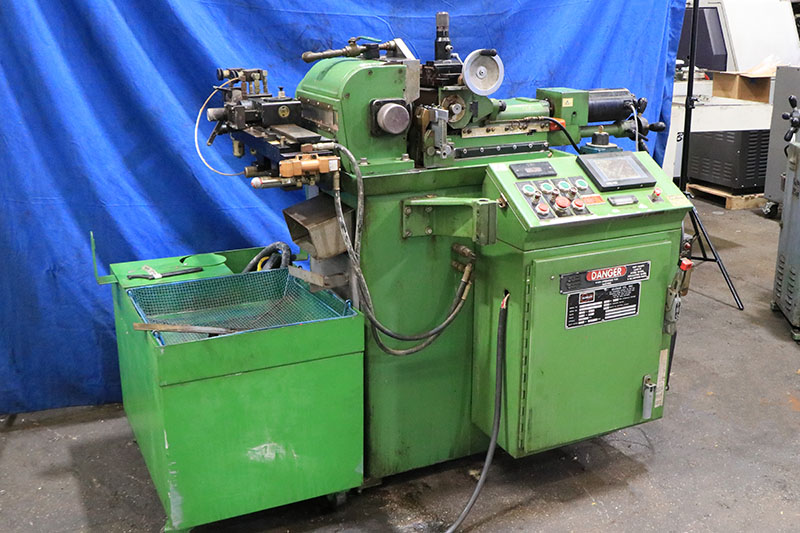

GLEBAR…"MADE IN USA" CENTERLESS GRINDER

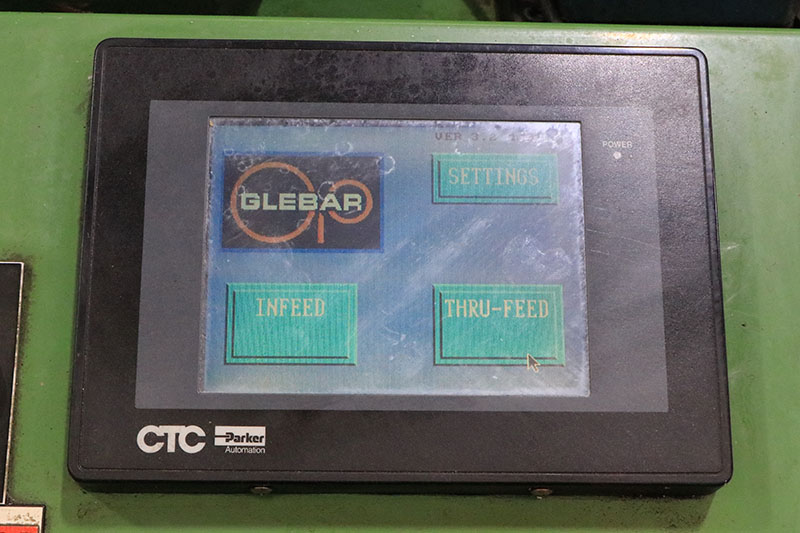

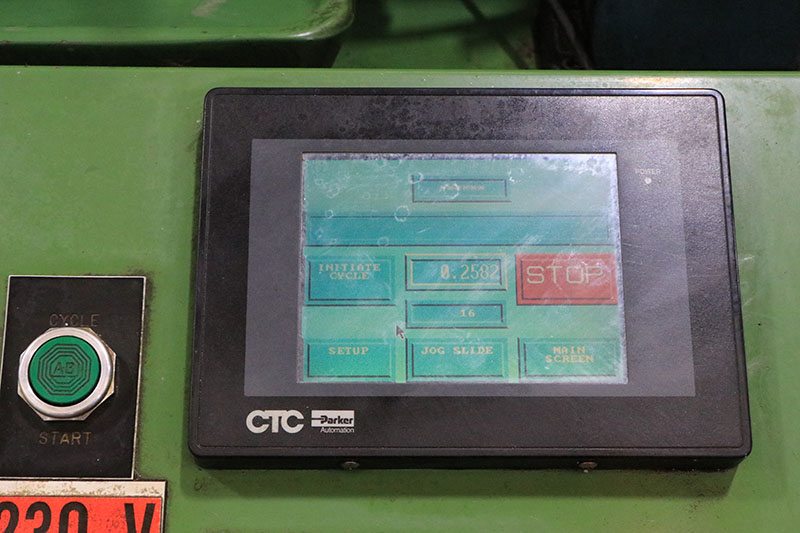

** PROGRAMMABLE BY TOUCHSCREEN CONTROL,
AUTO INFEED… THRUFEED **
MODEL: TF-9DHD… S/N: 01-1336… MFG:… 2001
SPECIFICATIONS
DIAMETER ACCURACY:… 0.00005"
ROUNDNESS:… 0.00005"
GRINDING DIAMETER:… MIN 0.002",… MAX 2.5"
GRINDING LENGTH:… INFEED 8"
THRUFEED - NO LIMIT
WORK WHEEL DIA.: 9"
WORK WHEEL LENGTH:… 8-5/8"
WORK WHEEL SPINDLE POWER:… 7.5HP
WORK WHEEL:… 2,400 RPM
REGULATING WHEEL DIAMETER:… 4"
REGULATING WHEEL:… 10 TO 400 RPM
HYDRAULIC MOTOR:… 2 H.P.
ELECTRICS: 230V,″ PH, 60 CYC
APPROX. MACHINE WEIGHT:… 2,085 LBS.
KEY FEATURES
INDUSTRIAL TOUCH SCREEN WORKSTATION,
NEMA 4 RATED
CLOSED LOOP CONTROL VIA LINEAR SCALE,
ON THE MOVABLE SLIDE
TOUCHSCREEN PC BASED
RUNNING INTERACT OS;
CLOSED LOOP POSITIONING
WITH GLASS SCALE TO 0.000050"
OPERATOR FRIENDLY CONTROL
INTERFACE TO MEASUREMENT INSTRUMENTS
AUTOMATIC SIZE COMPENSATION CAPABILITY
AUTOMATIC INFEED FOR FORMING SMALL SHAPED PARTS
SUPER PRECISION REGULATING HOUSING
BUILT IN INFEED AND THRUFEED CYCLES,
WITH PROGRAMMABLE INPUTS AND POSITIONING
LINK TO THE GLEBAR WEBSITE:
https://www.glebar.com/machines/tf-9d/
MACHINE FEATURES:
PRECISION 8- 5/8" WIDE SPINDLES ON BOTH REGULATING
& WORK WHEELS
INTERFACE TO FEEDING SYSTEM
COLOR TOUCH SCREEN
INDEPENDENT UPPER… LOWER SLIDES
PRODUCE MULTI-FORMED PARTS UP TO 8- 1/4" LONG
OR MULTIPLE PARTS PER CYCLE.
EQUIPPED WITH:
HYDRAULIC DRESSER FOR THE GRINDING WHEEL
REMOVABLE MANUAL DRESSER FOR THE REGULATING WHEEL
WORK REST
COOLANT SYSTEM, TANK WITH PUMP
CAST IRON CONSTRUCTION DESIGN
MACHINE IS PRESENTLY WIRED FOR″/60/220 VOLTS

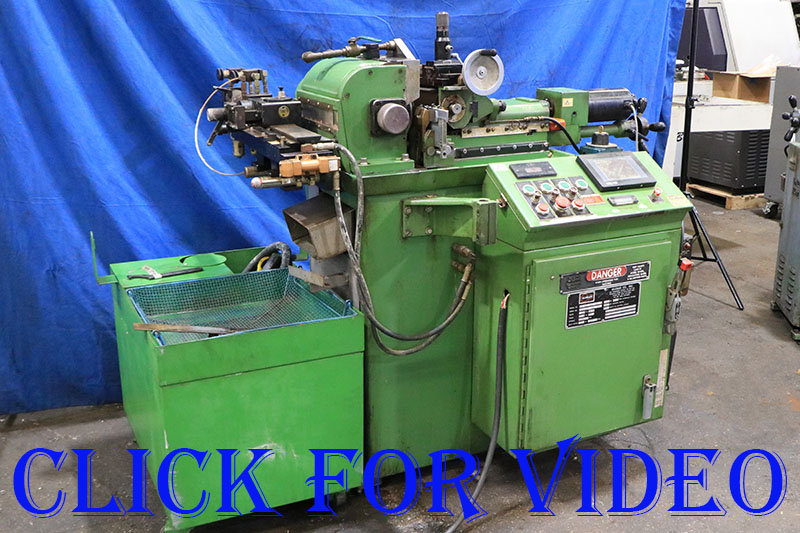

BELOW, PLEASE FIND LINK TO VIDEO OF MACHINE UNDER POWER
Link to video: https://youtu.be/gHOrk_jOJnM?si=EE2Kg6EF9Pw0pEd9
*** EXCELLENT CONDITION, ORIGINAL PAINT - WOW! ***
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
