Description
The Sprinter for Gears with Short Face Widths up to 100 mmThe 100S Gear Shaping Machine is ideally suited for small face widths, for shaping spur and helical gears, internal and external, and for crowned and tapered gears. With only 6 m2 the 100S is one of the most compact machines of its class.

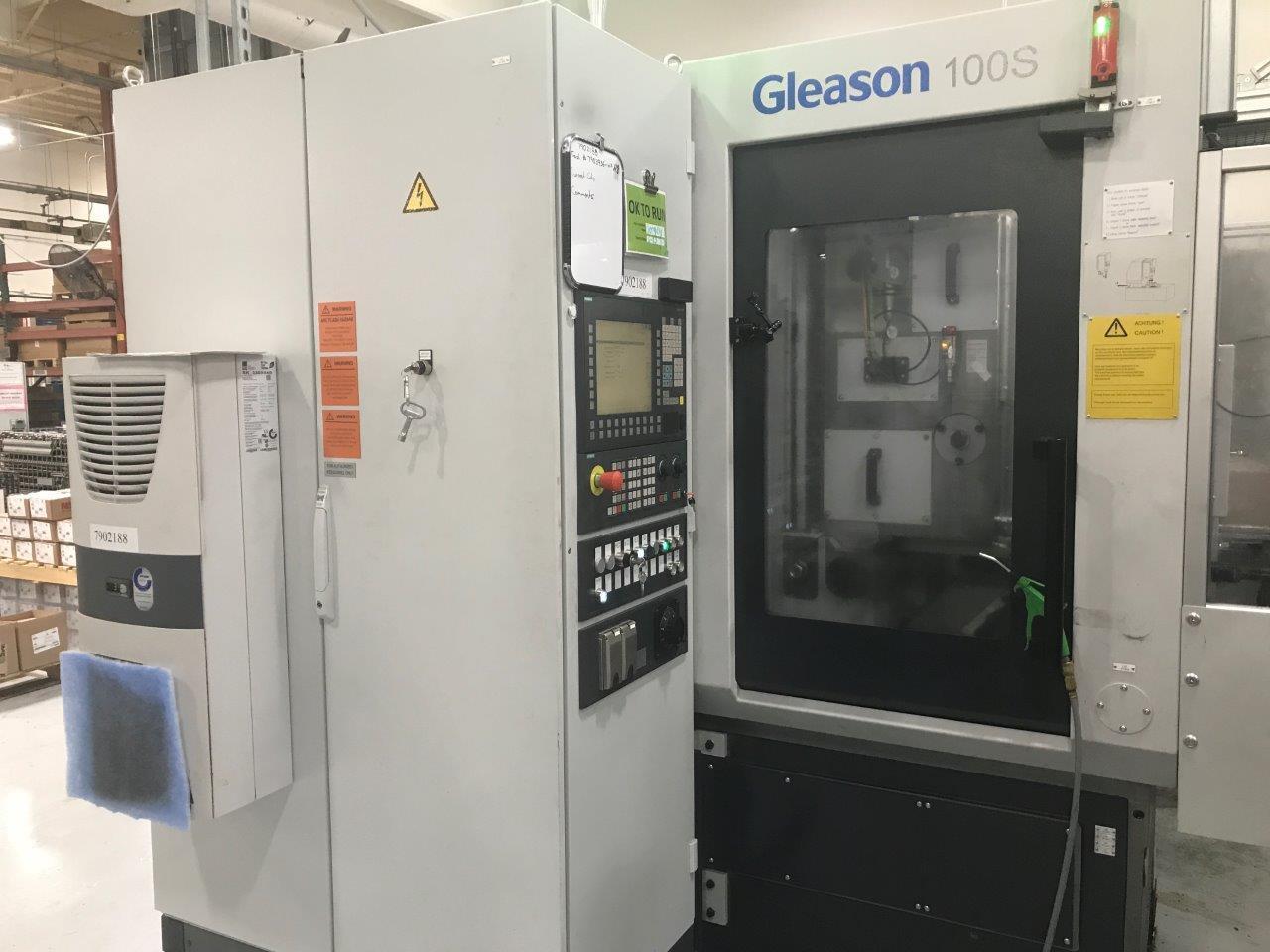

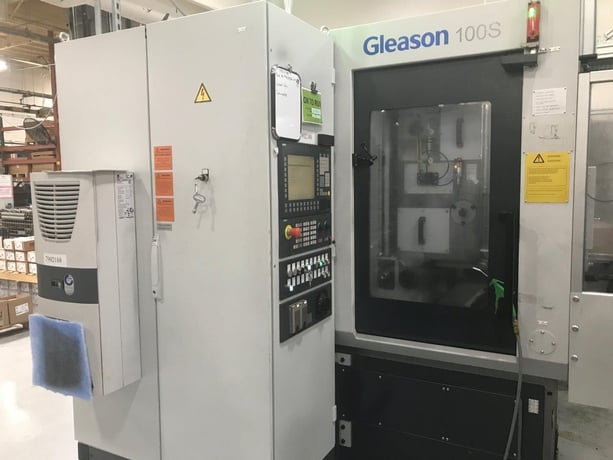

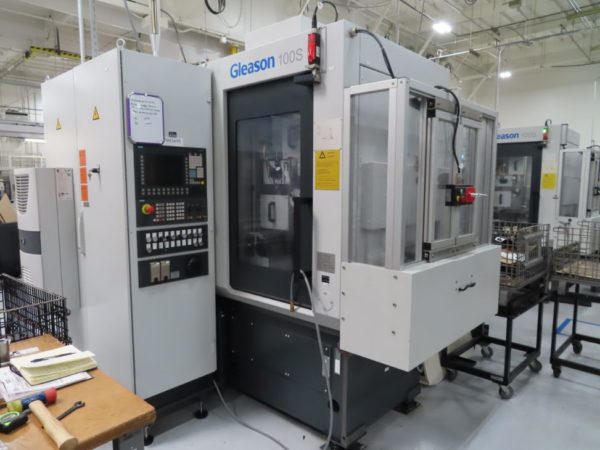

2018 GLEASON 100S
EQUIPPED WITH:

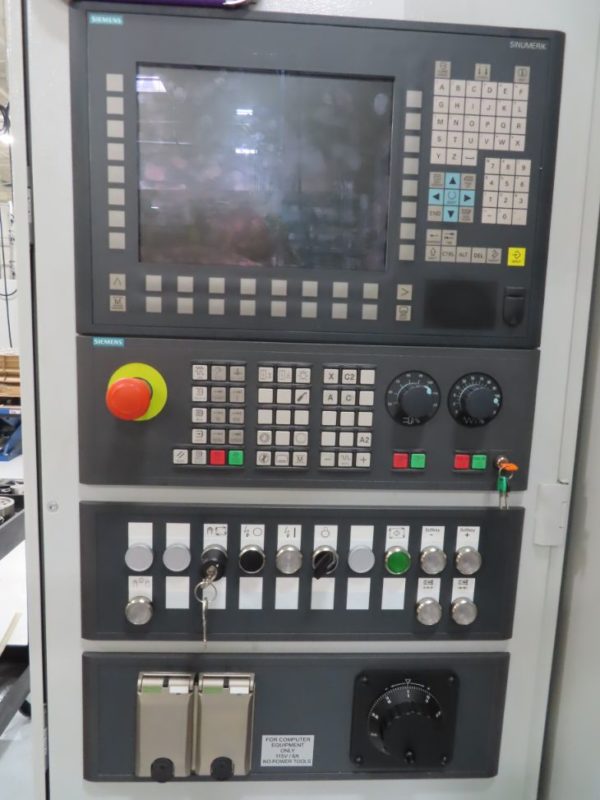

Siemens Sinumerik 840D SL Control

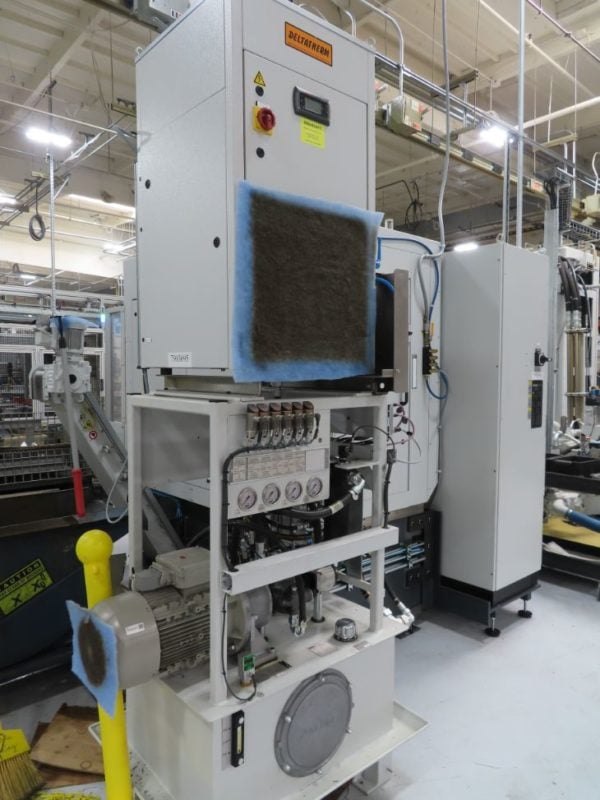

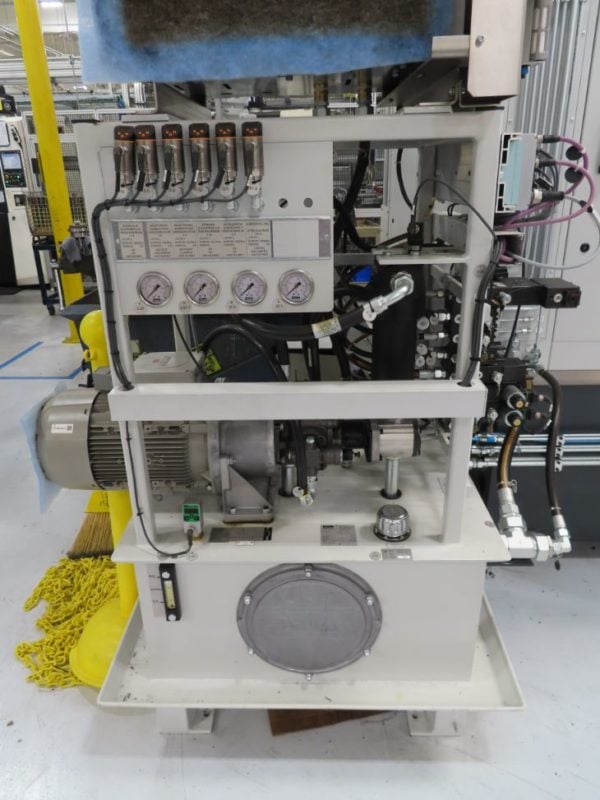

Hydraulic System

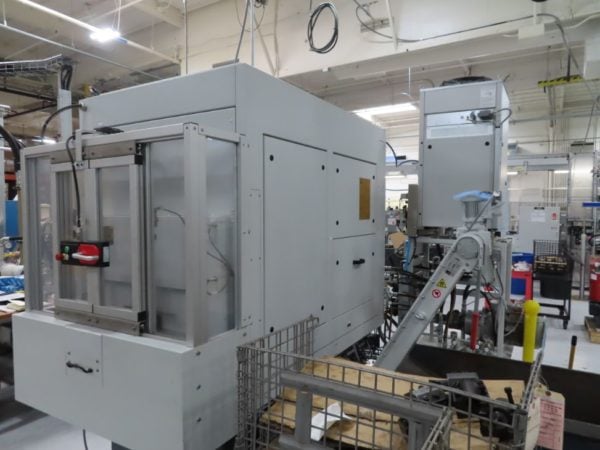

180 Degree Load System
HSK-63 Spindle
Auto Stroke Adjustment

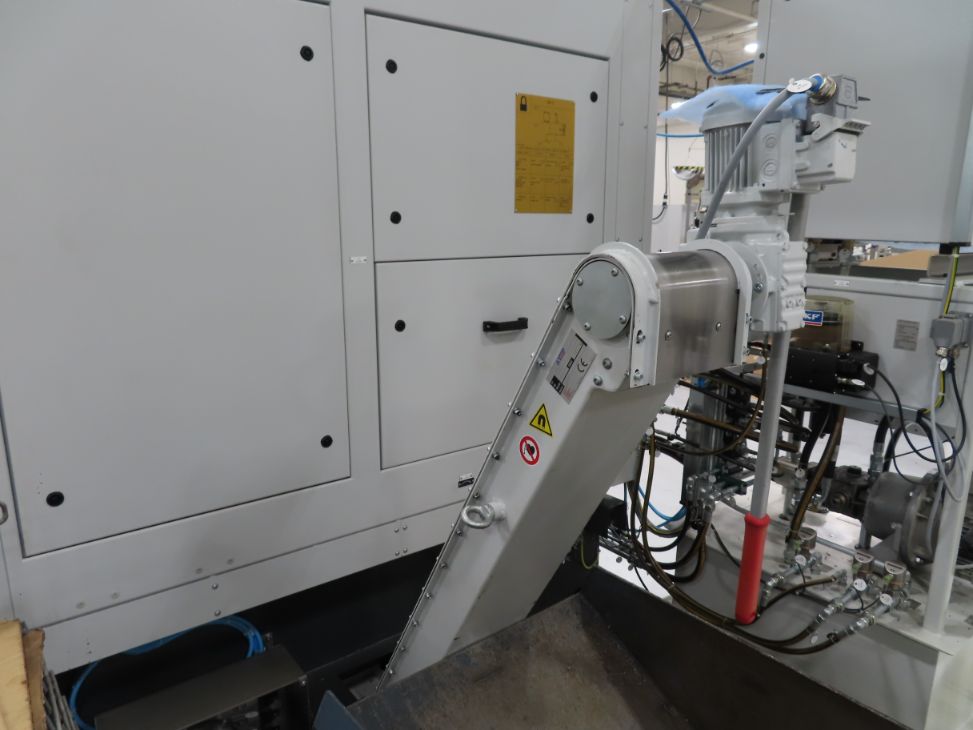

Chip Conveyor
Chip Basket
Flexlink Automation
Festo Pneumatics

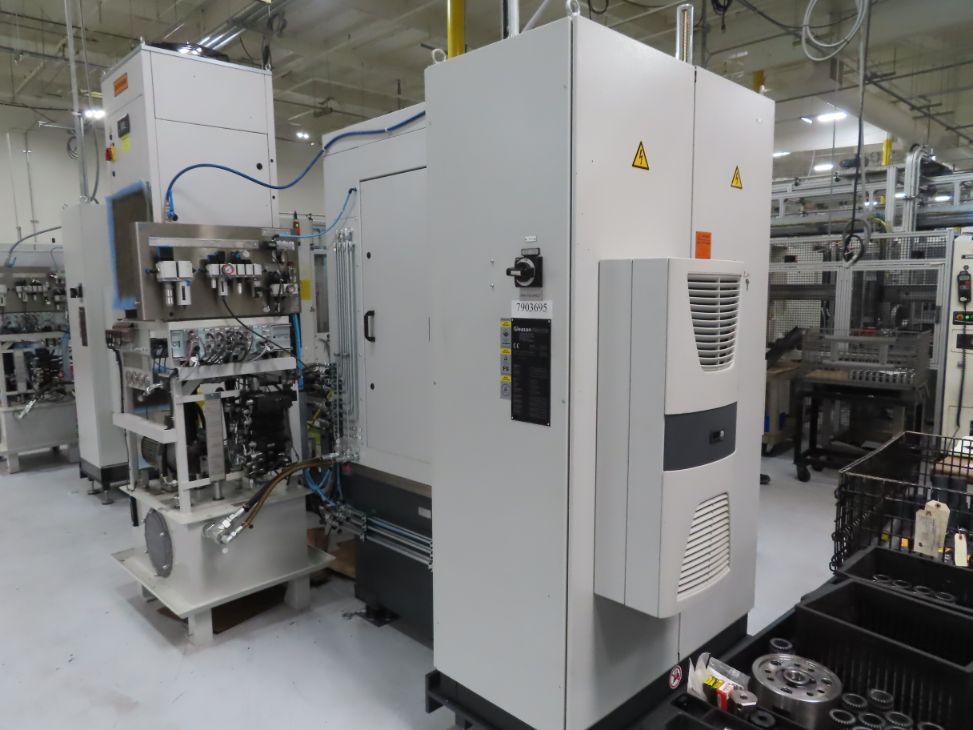

Rittal Panel Conditioners

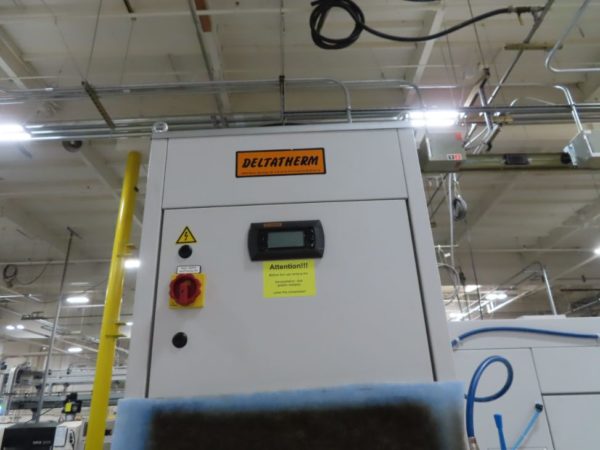

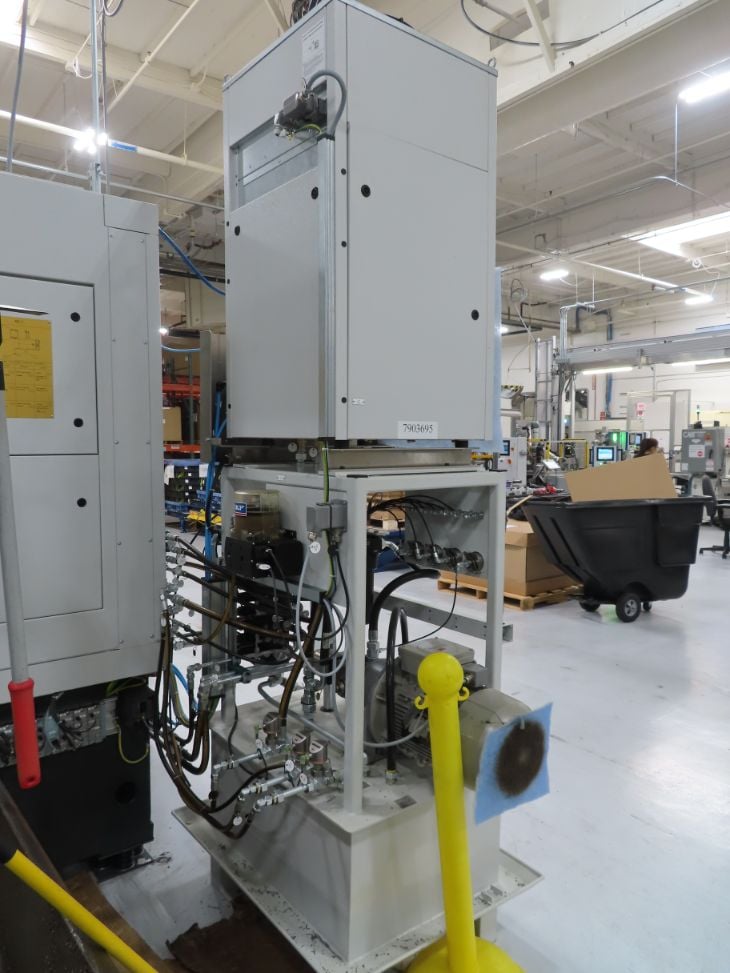

Chiller
480/3/60, 35 KvA Motor & Controls
SPECIFICATIONS:
Guide............................ Spur
Maximum External Gear Diameter... 100 mm
Maximum Internal Gear Diameter... 100 mm
Diametral Pitch.................. 8
Stroke........................... 30 mm
Cutter Spindle Diameter.......... 85 mm
Control Manufacturer............. Siemens
Control.......................... CNC (Sinumerik 840D SL)
Dimensions....................... 3,380 x 3,950 x 3,015 mm (LxWxH)
Weight........................... 7,800 kg
2018 GLEASON 100S
EQUIPPED WITH:
Siemens Sinumerik 840D SL Control
Hydraulic System
180 Degree Load System
HSK-63 Spindle
Auto Stroke Adjustment
Chip Conveyor
Chip Basket
Flexlink Automation
Festo Pneumatics
Rittal Panel Conditioners
Chiller
480/3/60, 35 KvA Motor & Controls
SPECIFICATIONS:
Guide............................ Spur
Maximum External Gear Diameter... 100 mm
Maximum Internal Gear Diameter... 100 mm
Diametral Pitch.................. 8
Stroke........................... 30 mm
Cutter Spindle Diameter.......... 85 mm
Control Manufacturer............. Siemens
Control.......................... CNC (Sinumerik 840D SL)
Dimensions....................... 3,380 x 3,950 x 3,015 mm (LxWxH)
Weight........................... 7,800 kg
Get Your Price from Gibbs Machinery Co!
