Gleason #300GMS, CNC gear tester, well equipped with many probes & tooling, charting, software, new 2019/2020

Description
Gleason model 300 GMS CNC gear tester , well equipped with many probes and tooling , charting , software etc, new 2019/2020, Inspect under power in plant!!
Specifications

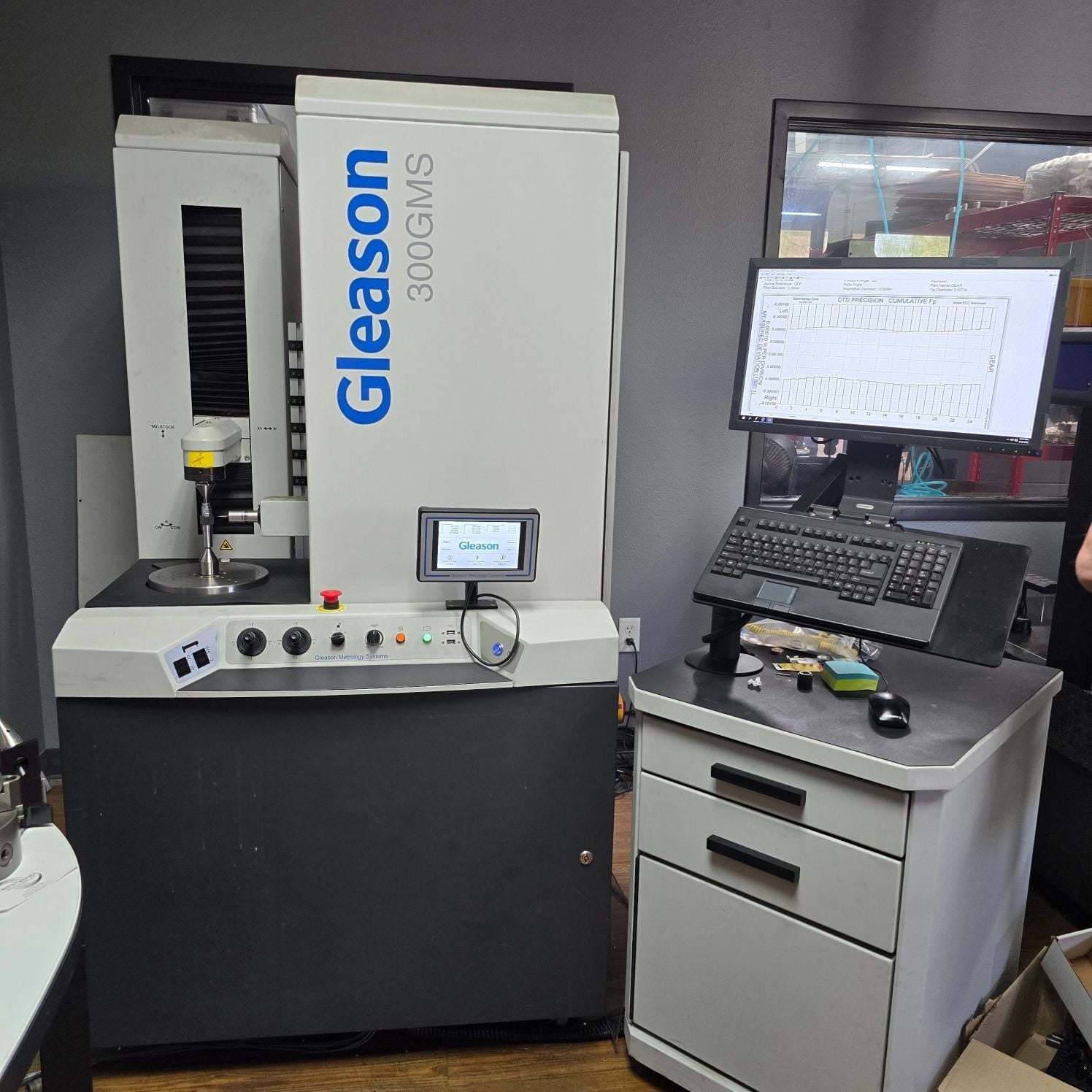

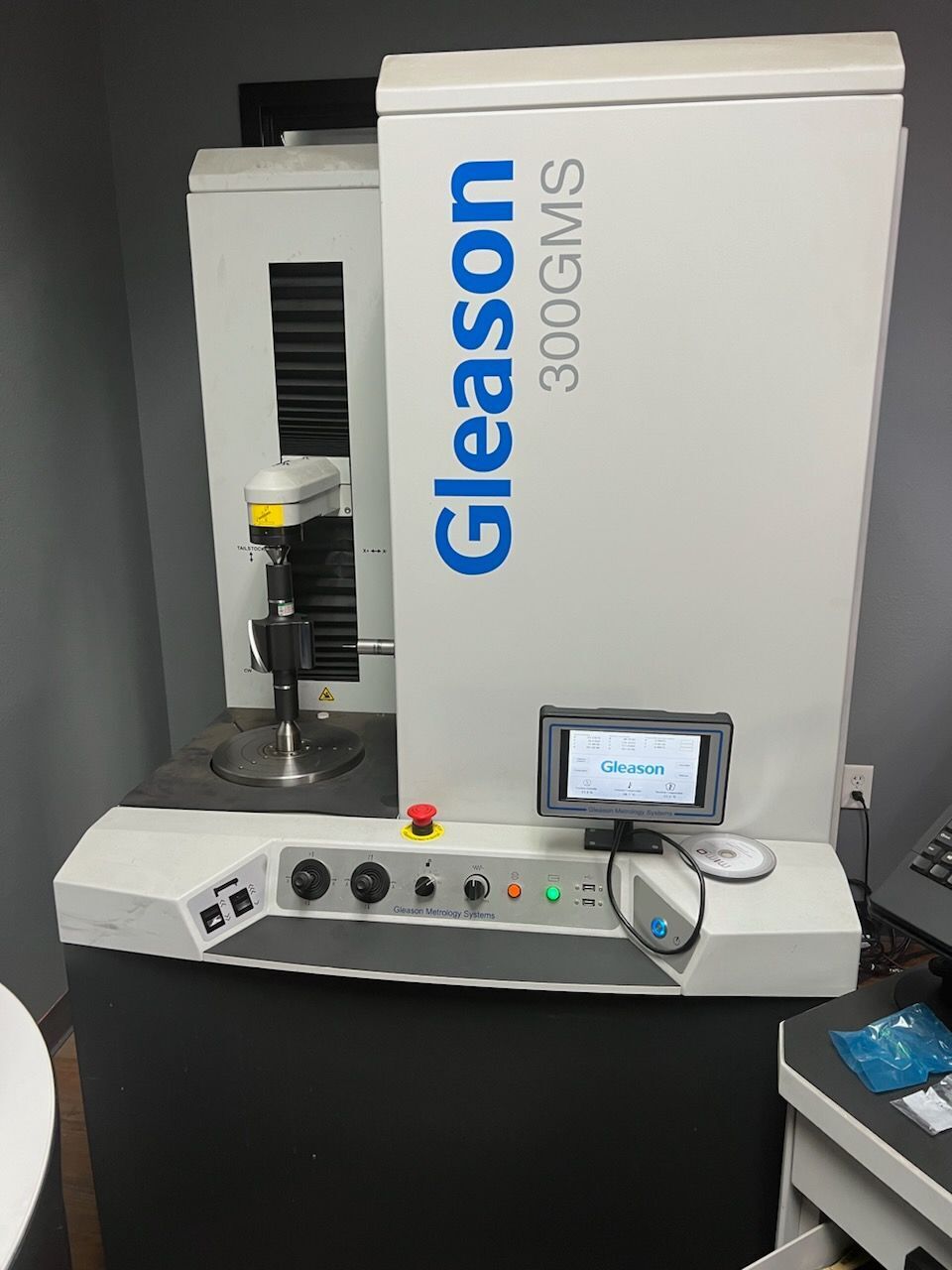

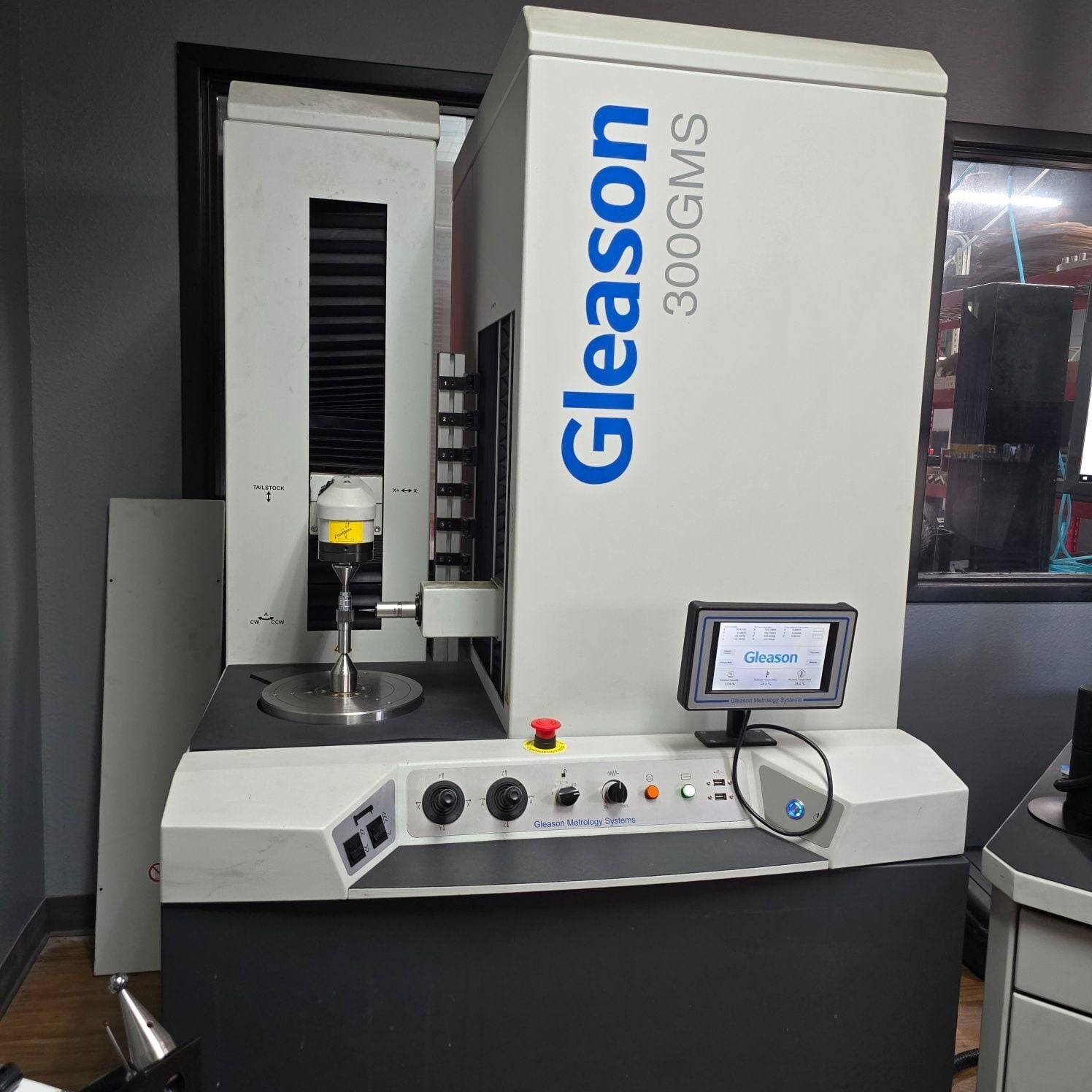

Gleason CNC Gear Testing machine
Model 300 GMS
condition Excellent / Hardly used
New 2019 /2020
this machine was purchased from customer and installed only a short
time ago . the machine is basically new and well equipped . the machine
can be inspected under power as photos are recent and taken only last
week before preparing the quote.
still waiting for for specs and details on software
we know the 350 GMS model but not fully the 300 GMS but feel it is
similar in controls and speeds of the 350 GMS.
measuring capacity
x 185mm/ 7.3"
Y 250mm/ 10"
z 450mm/ 17.7"
overall machine dims
width 1900mm/ 75"
Length 1880mm/ 74"
height 2135mm/ 84"
table height 937mm/ 37"
Helix angle 0-90 degrees
modul & DP Range 0.3-18mm/85-1.4"
Max workpiece diam. 300mm/12"+
max workpiece length 650mm/ 25.6"
Max workpiece weight 100kg/ 220 lbs (TBD)
machine weight 3250 kg/ 7,165 Lbs
full software package and tooling included with machine purchase
can be supplied upon request, Inquire!!
please note that these capacities have not been verified and have come
from sources deemed reliable and similar specification. please confirm
all capacities for verification before purchasing as well as actual
software with machine presently.
machine is not sold with a Gleason software license. If that is
something you require for future upgrades then that is something
you may need to work out with the OEM down the road!
we appreciate your interest and would be happy to get you a running
video or set up an under power inspection with proper notice and PO.
visit our website for more information and photos at WWW.Pisellient.com
and request a formal quote on line. You can see our other testers offered
as well .
sincerely
Richard Piselli
president
Piselli Ent Inc
