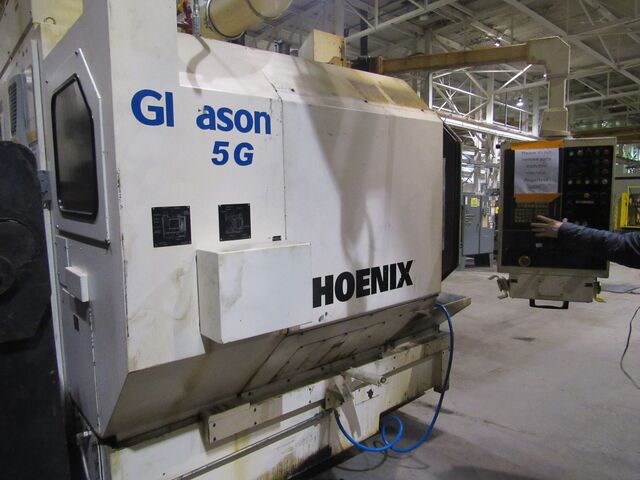

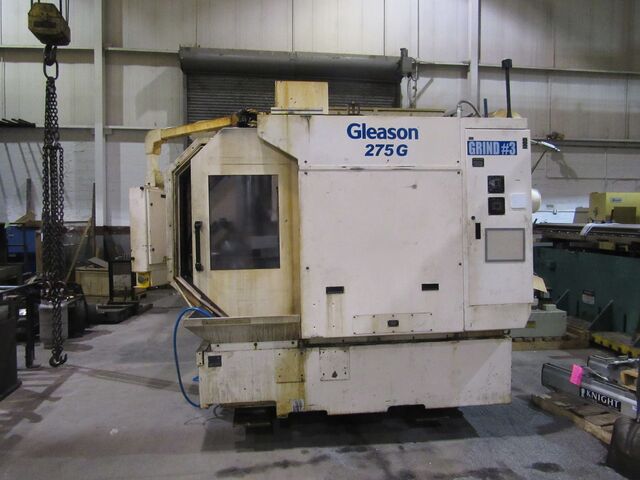

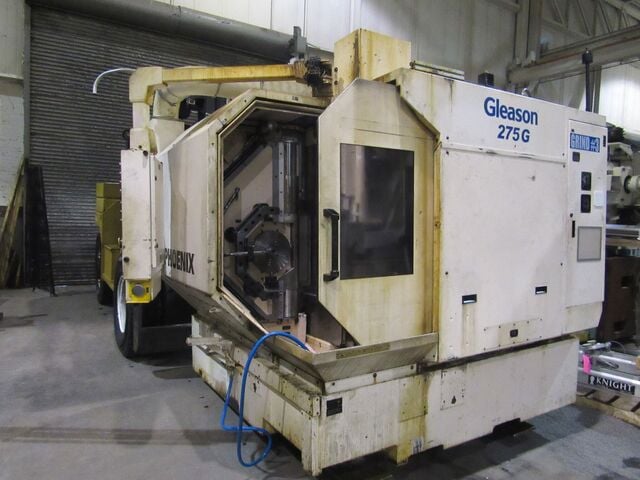

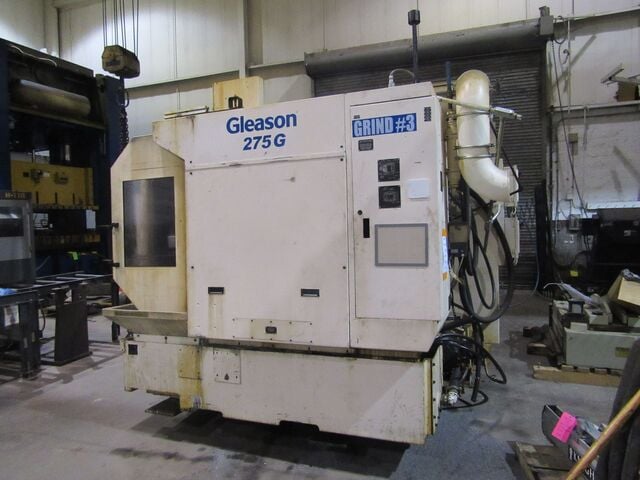

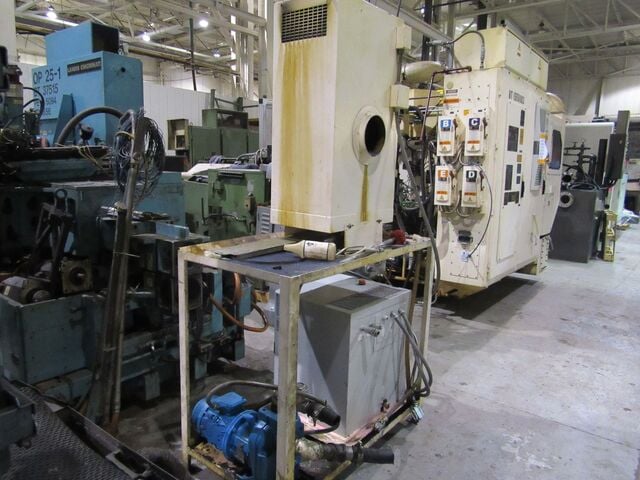

Gleason #275G Phoenix II, CNC straight & spiral bevel gear grinder, Fanuc 160i-MB, Hoffman HSF 200-SE coolant filtration unit, 2011

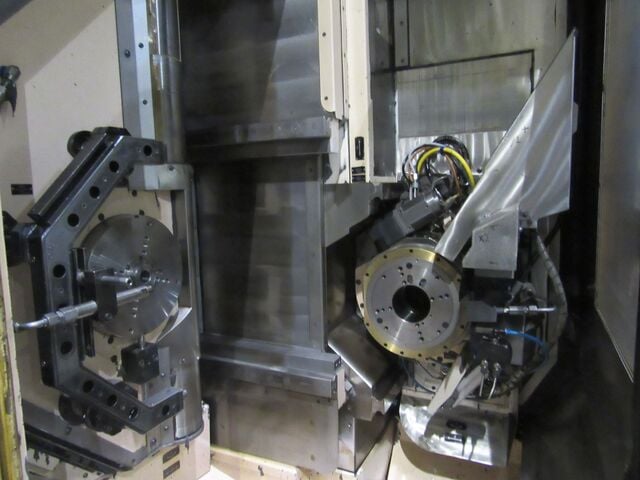

Gleason 275G Phoenix II CNC Straight & Spiral Bevel Gear Grinder (2010) with the capability of grinding a gear from a solid blank. Equipped with Fanuc 160i-MB CNC Controls, 10:1 Gear Ratio, 1" Range tooth size, and 2" Max Tooth Width

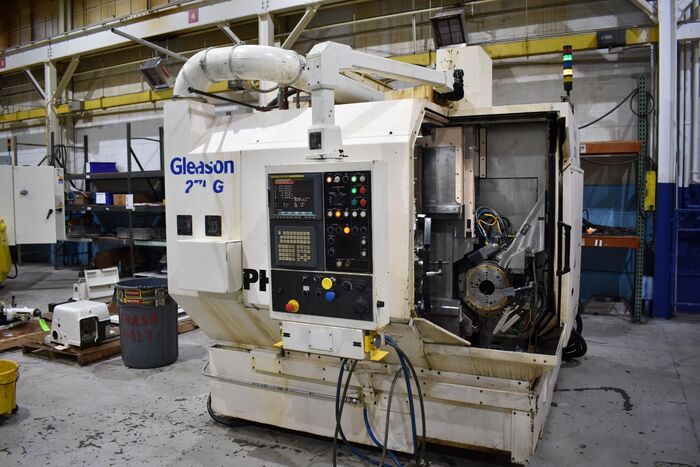

Gleason Phoenix II CNC Straight & Spiral Bevel Gear grinder
Model 275-G
S/N 991709 YEAR: 2010
Specifications
Ratio transmission................................10:1
Minimum number of teeth....................3
Maximum number of teeth....................200
Range of tooth size................................0.79”(20mm)
Tooth width maximum...........................2.28”(58mm)
Spindle speed.........................................6000U/min
Work piece spindle speed......................1200U/min
Diameter of tools maximum..................9.06”(230mm)
Diameter of tools minimum...................2.72-3.35”(69-85mm)
X-axis.......................................................12.80”(325mm)
Y-axis.......................................................13.78”(350mm)
Z-axis.......................................................18.50”(470mm)
B-axis.......................................................+ 90,1 / - 1 °
Work piece table - Ø :..............................8.35,2.80”(212,71mm)
Total power requirement........................75 kW
Weight of the machine...........................10 ton
Dimensions of the machine..................8' x 12'
Equipped With:

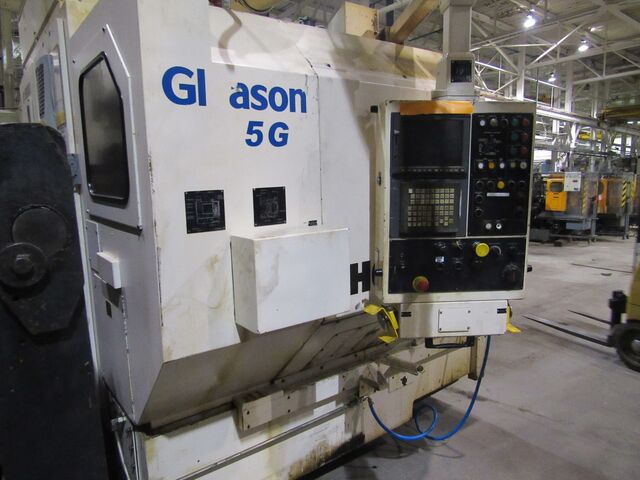

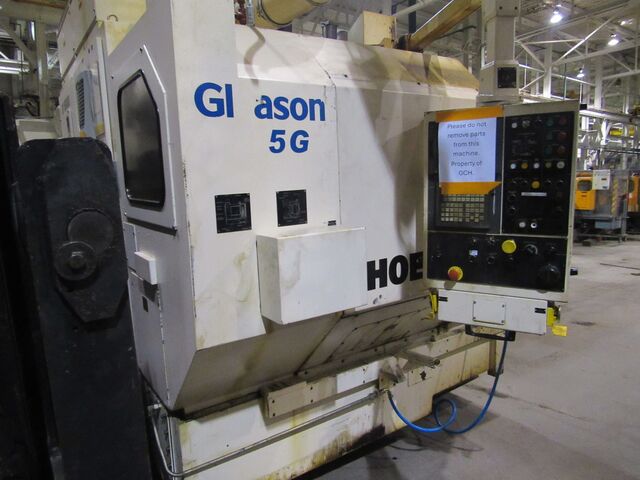

Fanuc model 160i-MB CNC controls.
Books and manuals
1-Draw bar set.
1-Wheel mount.
All necessary items to run machine.
Specifications are deemed accurate, however, subject to verification or prior sale.
