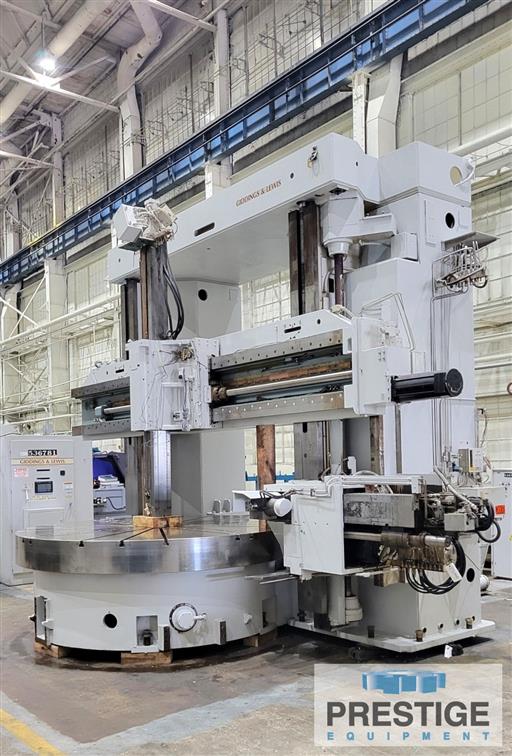

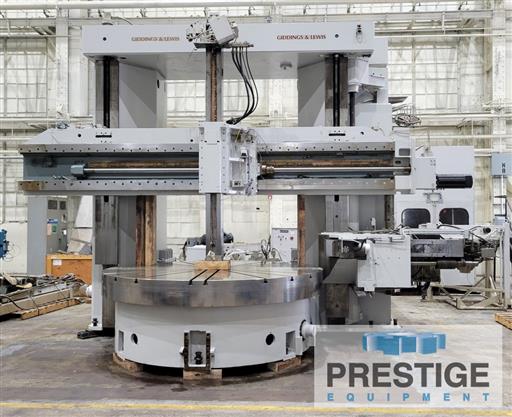

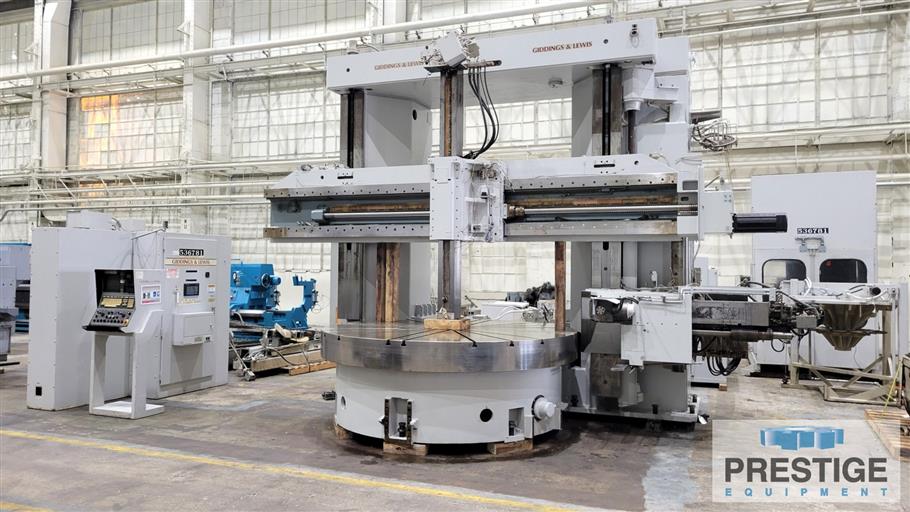

Giddings & Lewis #VTC-2500, CNC vertical boring mill with ram & side head, G &L 8000 Control, 30 ATC, 100 HP, 1990

SPECIFICATIONS:

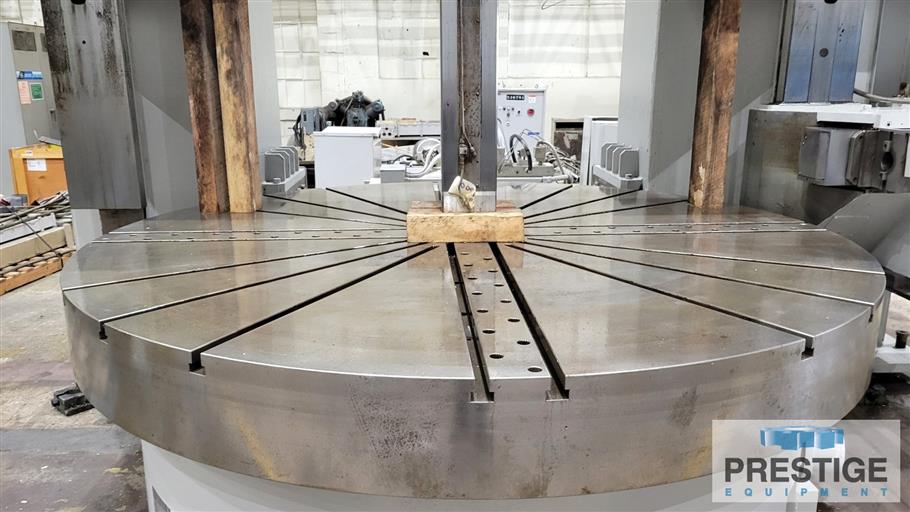

Table Diameter, T-Slotted: 108"
Maximum Swing: 120"
Maximum Height Under Cross Rail: 84"

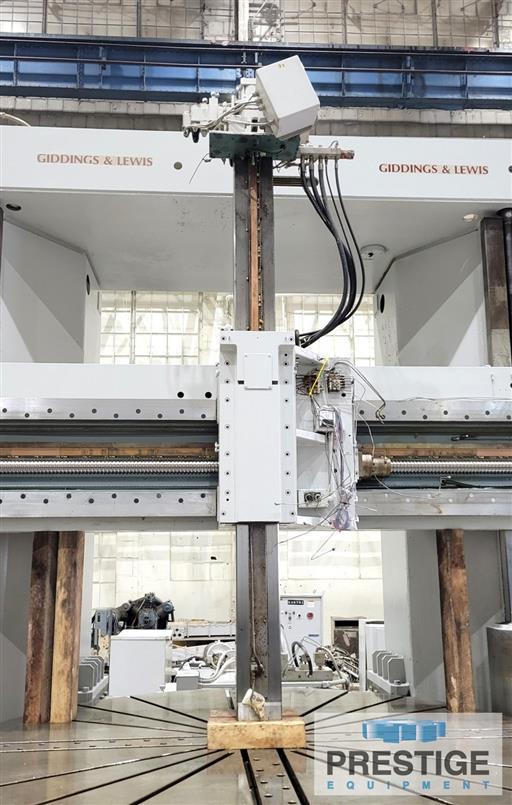

Ram Stroke, 12" Extended Travel: 62"
Ram Taper: #60 ANSI
Ram Cross Section: 7.875" x 7.875"

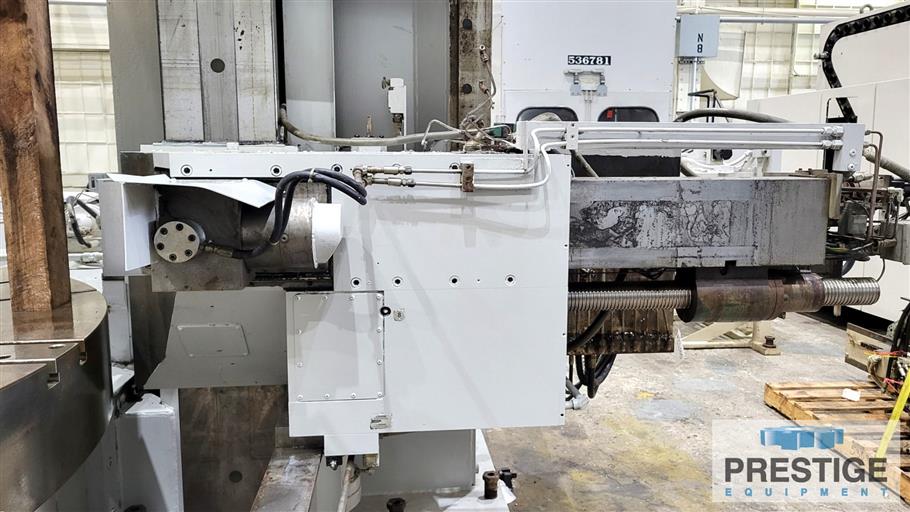

Side Head Horizontal Ram Travel: 32"
Side Head Ram Taper: #50 ANSI
Side Head Ram Cross Section: 7.25" x 8.50"
Table Speeds, 2-Ranges: 2.5-150 RPM
Table Drive Motor: 100 HP
Table Load Capacity At Maximum RPM: 250,000 Lbs
Rapid Traverse Rate: 150 IPM
Feed Range: .10-150 IPM

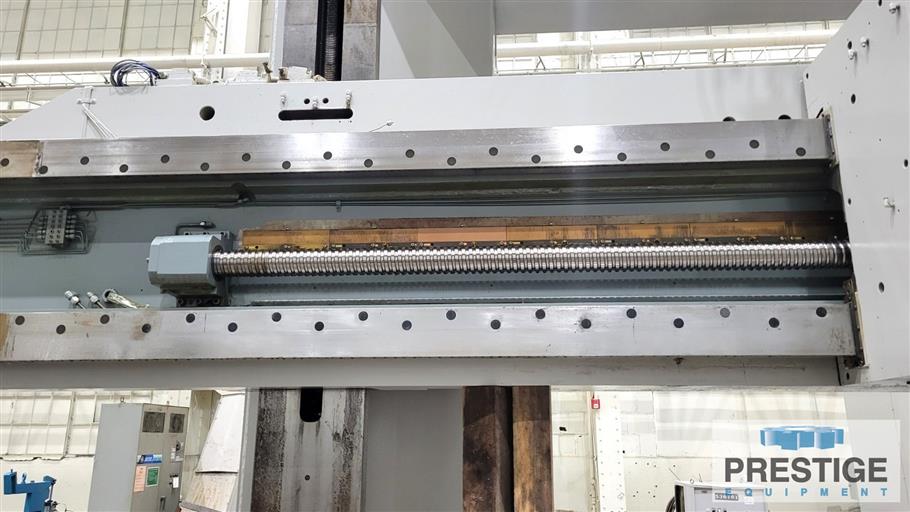

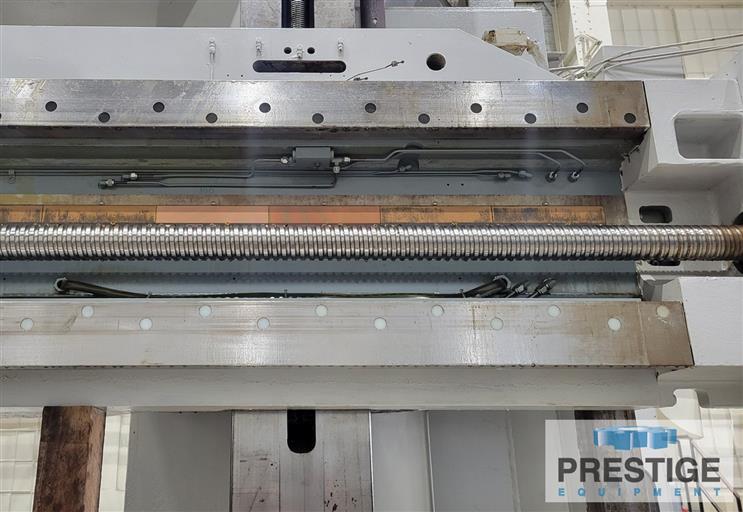

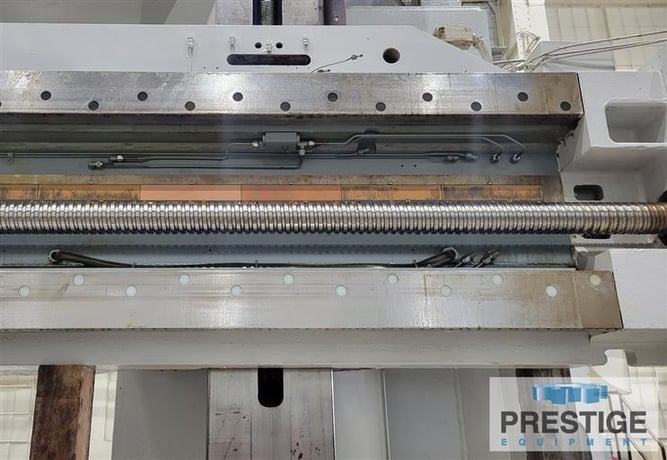

Ball Screw Diameter: 3"
Positioning Uni-Direction Accuracy: +/- .0008" In 36"
Positioning Uni-Direction Repeatability +/- .00025":
Approximate Machine Weight: 150,000 Lbs
Equipped With:
Giddings & Lewis 8000 4-Axis CNC Control

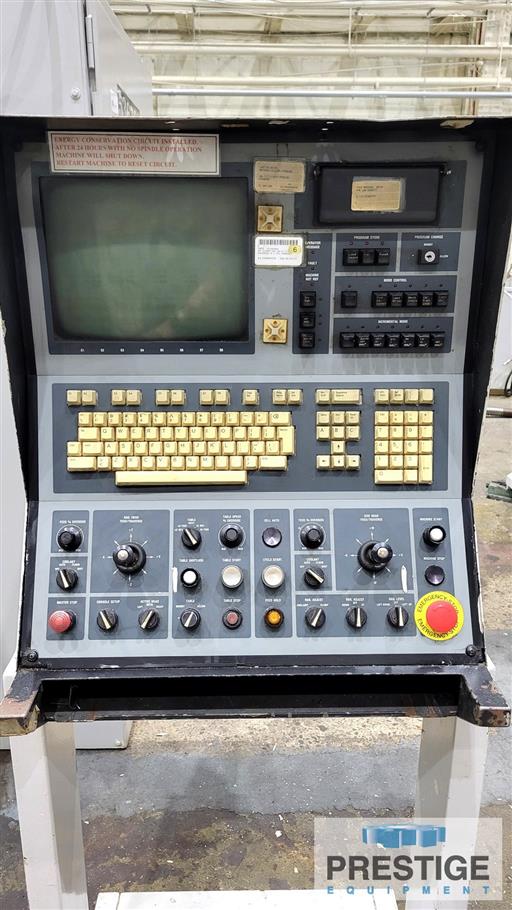

Pedestal Mounted Operators Station
30 Station ATC, Right Hand for Vertical Ram
12 Station ATC, Right Hand for Side Head
Rams Built with Steel Forged Material
Hardened Ways
Inductosyn Feedback System
Thread Cutting
Programable Rail Travel
Rail Leveling Device
Kennemetal Tool Condition Sensor
Numeriprobe Part Probe System
Numeriprobe Tool Probe System
Cross Rail Power Elevation and Clamping
Way Covers on Cross Rail
High Volume Flood Coolant
Coolant Thru Center of Ram
Temperature Controlled Coolant System
Hardened Ways
Chip Conveyor, 18" Wide with 54" Discharge Ht.
100 HP Table Drive 460/3/60 Cycle
NOTES:
Rare Opportunity to Purchase Legacy Machine
Inspect In Our Philadelphia PA Warehouse
Features:
Giddings & Lewis 8000 CNC Control
30-Station Automatic Tool Changer
Vertical Ram Head
Right Hand Side Head
250,000 Lb Table Weight Capacity
