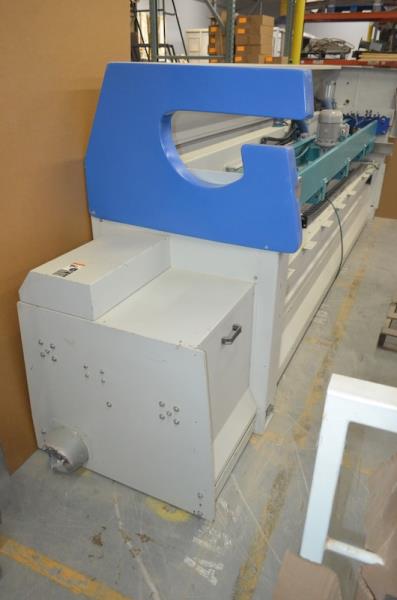

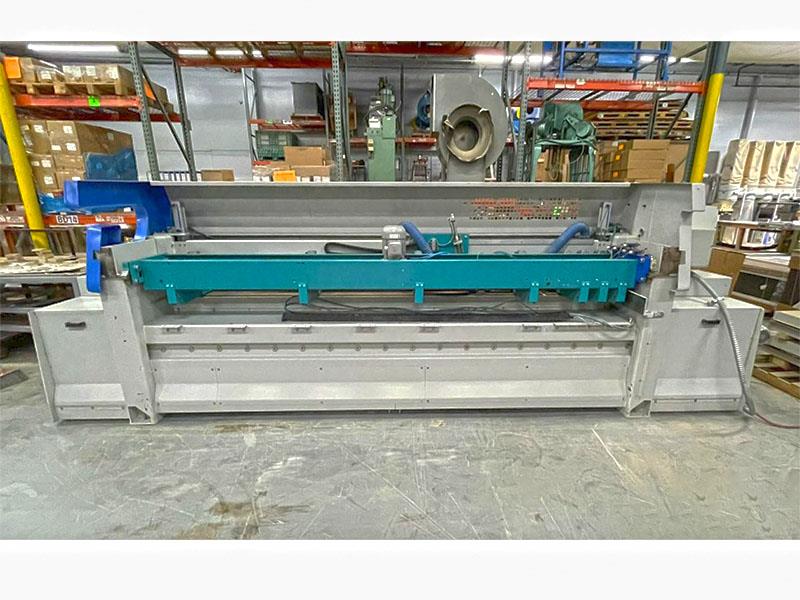

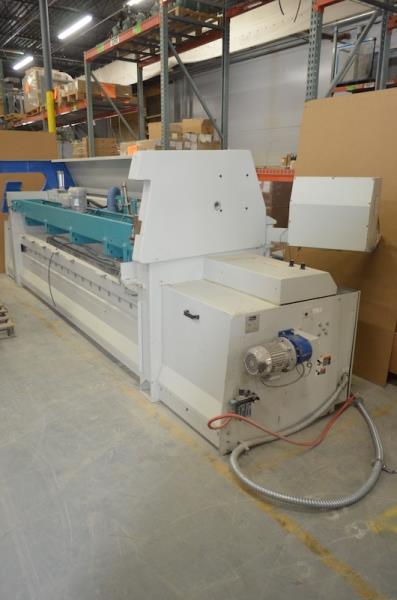

Giben #Smart-75-SP, Front-Load Automatic Panel Saw, 149" cutting length, 131.8" pull back, 2.95" max. blade projection, 15 HP, 6000 RPM, 2.56" max. clamp opening, 230 Volts, 2004

$5,600 USD

Request Formal Quote

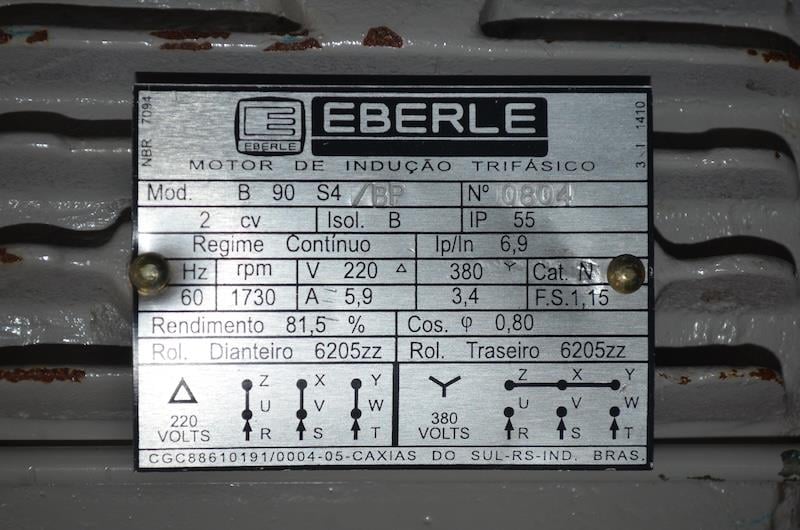

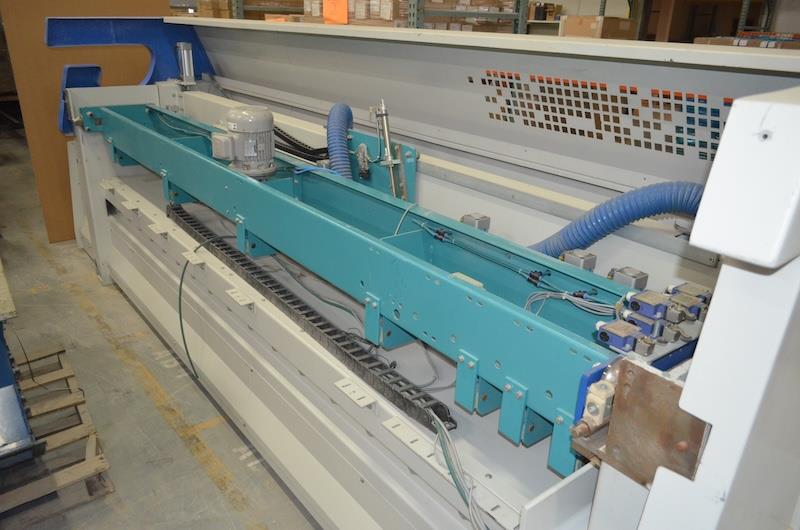

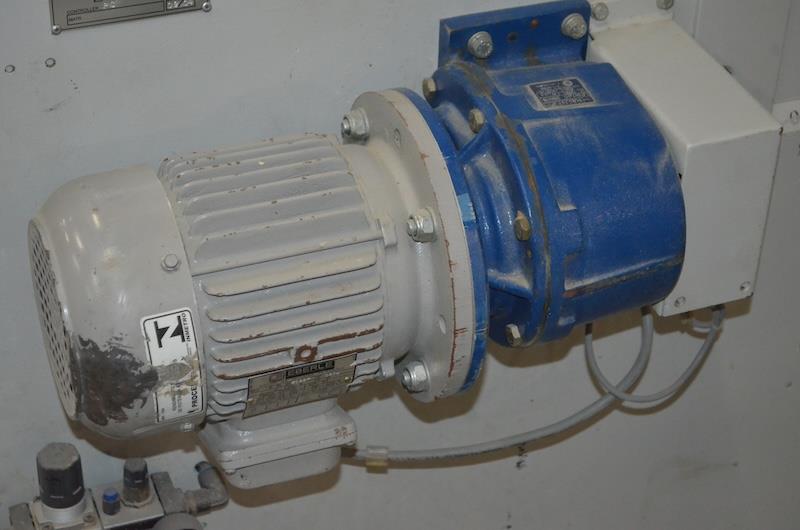

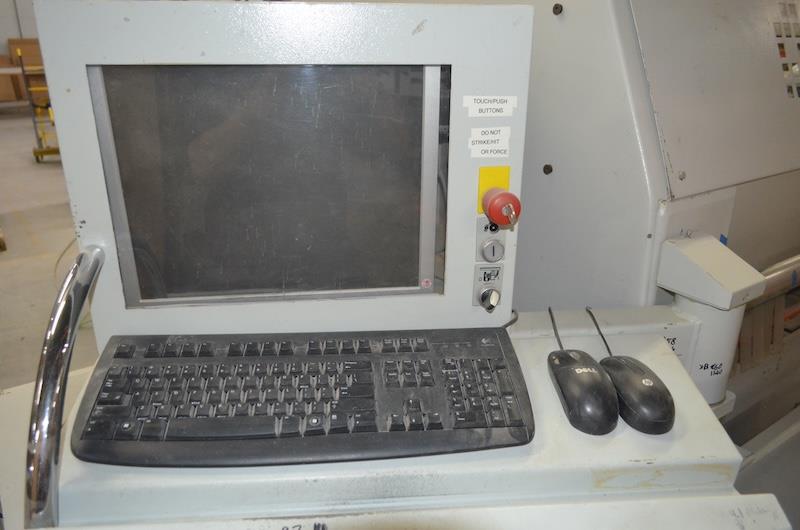

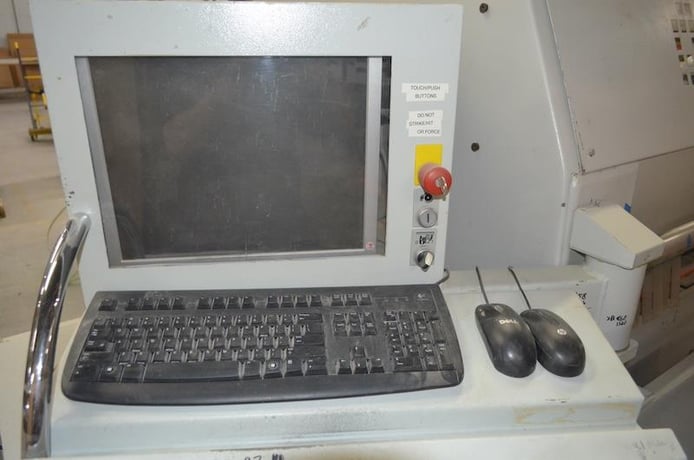

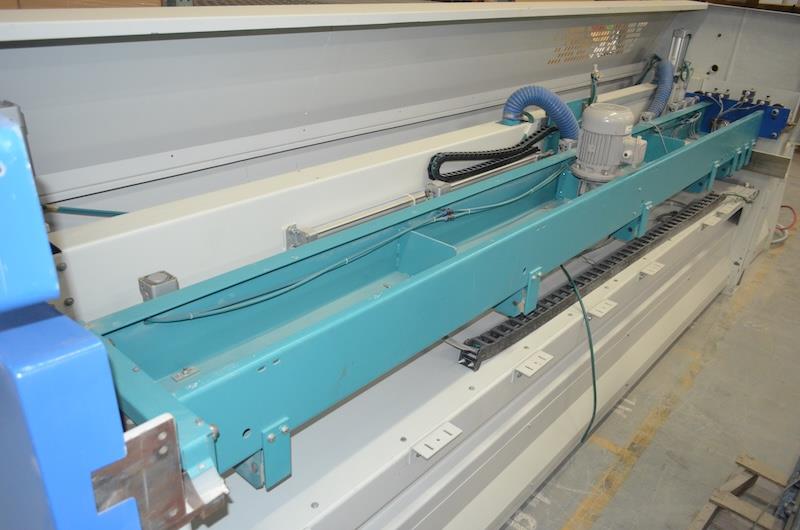

GIBEN - SMART 75 SP: Front-Load, Automatic Panel Saw: -- Specifications149" (3,800 mm) Overall cutting length; 131.8" (3,350 mm) pull back 2.95" (75 mm) max. blade projection.15 HP (11 kW) Main & 1.5 HP (1.1 kW) scoring motor; 3,800 RPM main saw blade; 6,000 RPM scoring blade with external adjustment. -- Saw CarriageVariable saw carriage forward speed: 16 - 164 FPM (5 - 50 MPM); return speed: 197 FPM (60 MPM).Rack & pinion drive; driven by AC brushless Servo motors. -- Pusher FenceElectronically controlled overhead program fence with: (7) Pneumatic gripper clamps; max. clamp opening: 2.56" (65 mm).Variable forward pusher speed: 2-1/2 - 82 FPM (0.8 - 25 MPM); return speed: 131 FPM (40 MPM).Pusher driven on round bar-ways by AC brushless Servo motors. -- Operator & Machine ControlPC Front-End with: Windows "XP" + "Pentium" processor Operating System with: Multitasking & easy programming of very complex cutting patterns.15" CRT Monitor displays: REAL TIME Graphics of cutting dimensions & patterns; program cutting list; manual cuts; diagnostic & online help.Data input by adjustable keypad pendant; standard industrial: Keyboard, mouse & CD-ROM drive; direct downloading from office PC is possible."MOELLER" PLC Guarantees full management of all machine movements (pressure beam; saw carriage; side aligner pusher positioning, etc.).The numerical control: Adjusts the optimum saw blade projection for the stack of panels being cut; sets the most appropriate cutting speed in relation to the stack itself (when necessary to the width of trim cut, too.) -- Rear of Machine(9) Rear support rails with: 80 mm Dia. roller modules; rear of machine enclosed for safety. -- Front of MachineAutomatic side/crosscut aligning device with: 2.4" - 48" (60 - 1,220 mm) stroke; 90" (2,300 mm) long crosscut fence (front-to-back).(1) Front-mounted air floatation table: 20" x 78" (510 x 2,377 mm) & (3) front-mounted air floatation tables: 20" x 60" (510 x 1,524 mm). -- Complete with:G-Lock "Quick Change" saw blade system. -- Actual Model: GIBEN SMART 75 SP.
