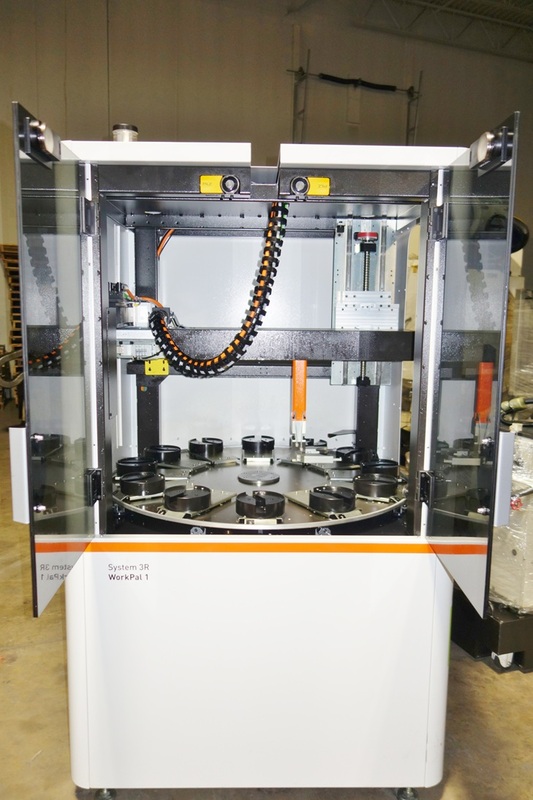

+GF+ System 3R Work Pal 1, Pallet Pool, 12 Station, 2022

Here is a very nice running +GF+ System 3 R Work Pal 1, 12 Station Pallet Pool. This pallet pool can be inspected in our facility in Minneapolis Mn. To set up an inspection, please contact us.

This 3R Pallet Pool can support Milling Machines, Wire EDM Machines, Laser Machines and Grinding Machines.

General Specifications:

Make: System 3R

Model: Work Pal 1

SN: 2201—V00-110

Year: 2022

NO Stations……………………..12

Transfer Weight…………….. 111 lbs. (Pallet with work Piece

Max Total Weight in Magazine………………667 Lbs.

MR, X and Z Axis…………………AC Servo Motor

Max Horizontal Stroke and Speed X Axis………………32.6” - 1200 mm/s

Max Vertical Stroke and Speed Z Axis……………….15.7” – 650 MM/s

Maximum MR Axis Stroke and Speed……………….360 degree - 90 degree/s

Electrical required……………………………………….230/3/PH

Air Pressure Required………………………………6 = 1 Bar

Floor Space Required………………………………. 48” x 48”

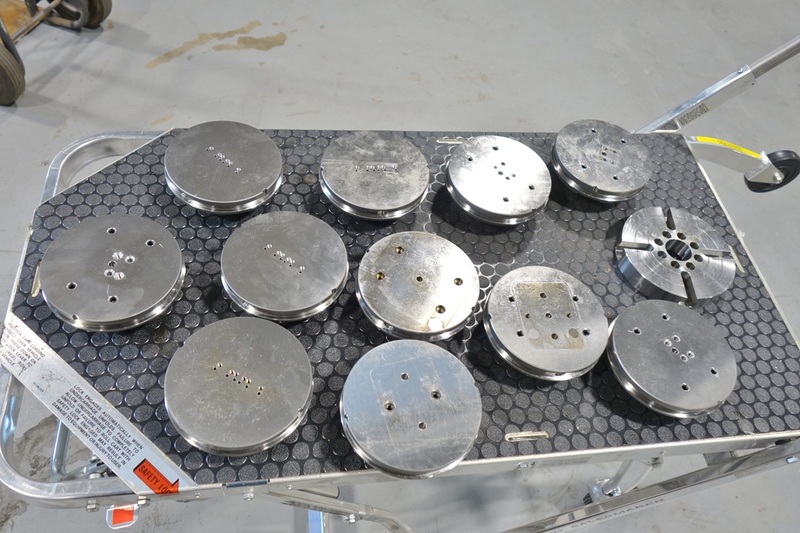

Equipped with: 11 Work Holding Pallets

Price………………………..$49,500.00 sold as is as inspected
