General Electric Molded Case Circuit Breaker TED113020 277 VAC / 125 VDC m00344

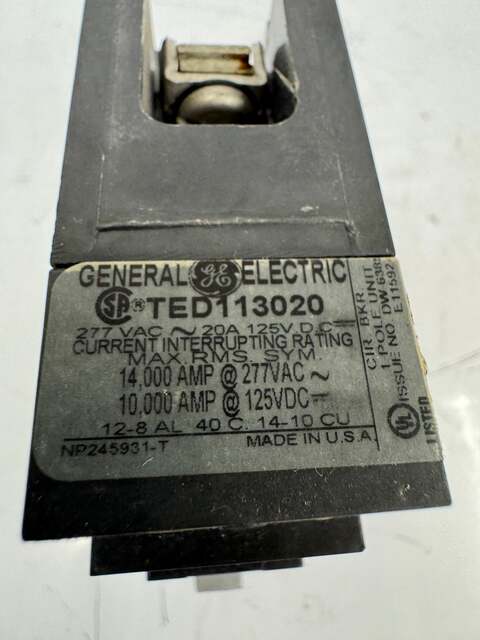

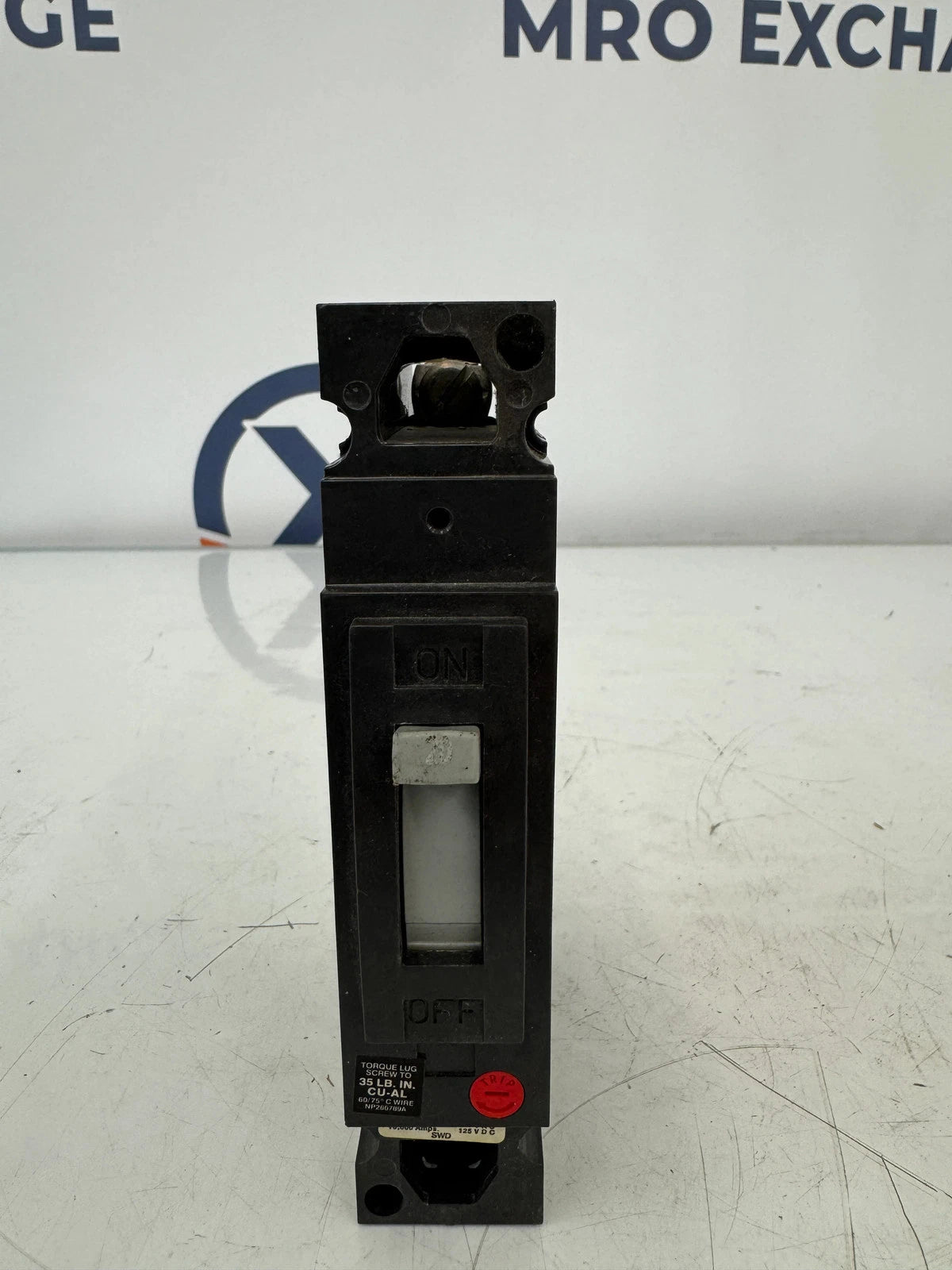

This listing is for a used General Electric TED113020 molded case circuit breaker. The unit is a 1-pole, 20-amp, thermal magnetic breaker rated at 277 VAC and 125 VDC. Maximum RMS symmetrical current interrupting ratings are 14,000 amps at 277 VAC and 10,000 amps at 125 VDC. Wire range is 12 to 8 AWG aluminum or 14 to 10 AWG copper, rated at 40 degrees C. Part number NP245931-T. Made in the USA. The TED series is part of GE's E150 product line and is a widely recognized thermal magnetic molded case breaker used in industrial panel boards, motor control centers, and machine tool electrical enclosures. The breaker is in the ON position in photos and shows a red indicator sticker on the front face. The unit shows minor cosmetic wear consistent with prior installation. No testing or performance claims are made. All specifications are sourced directly from the visible nameplate label.

Stock # 0226-344
