1200 Amps, General Electric, am-13.8- 500-6h, Magne-Blast Circuit Breaker 15kV ML-13

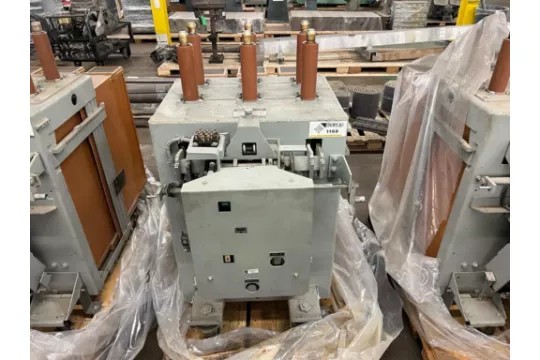

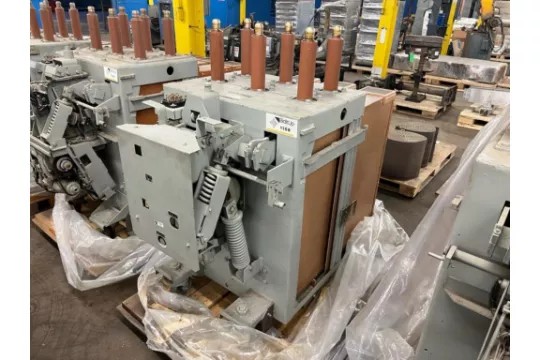

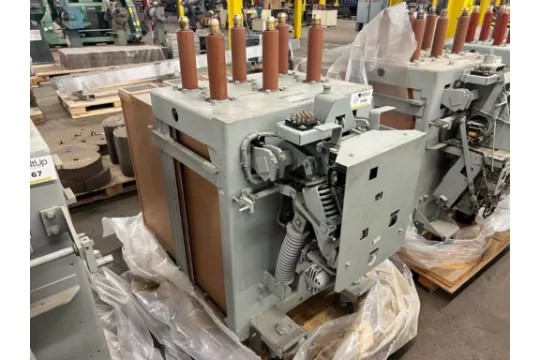

General Electric Magne-Blast Circuit Breaker Type AM-13 8-500-6H 1200A 15kV ML-13; General Electric Magne-Blast circuit breaker mounted on pallet, designed for medium-voltage power distribution and switchgear applications. Unit features multi-bushing top configuration, spring-operated mechanism, and front-mounted control assembly with auxiliary components. Type AM-13 8-500-6H with ML-13 mechanism, rated for 15kV class service and 1200 amps, built for high interrupting capacity industrial environments. Nameplate Details: • Manufacturer: General Electric • Type: AM-13, 8-500-6H • Mechanism: ML-13 • Rated Voltage: 15,000V • Rated Current: 1200A • Frequency: 60 CY • Interrupting Rating: 18,000 Amps • Impulse Withstand: 95 kV • Range Factor: 1.30 • Closing Coil: 48V DC (6.5 Amps, Range 36–52V) • Trip Coil: 48V DC (6.5 Amps, Range 28–60V) • Serial Number: N00224A2587-001 • Connection Diagram: 0161A5866P041 • Weight: 1650 lbs • Date MFG: 7/69 • Made in USA Features: • Multi-bushing insulated terminals • Spring-charged operating mechanism • Mechanical linkage and trip assembly • Front access control panel and auxiliary relay components • Mounted on pallet
