1200 Amps, General Electric, am-13.8- 500-3ml, Magne-Blast Circuit Breaker 13.8kV ML-11B

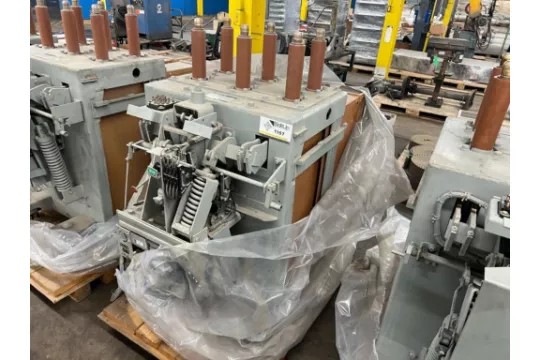

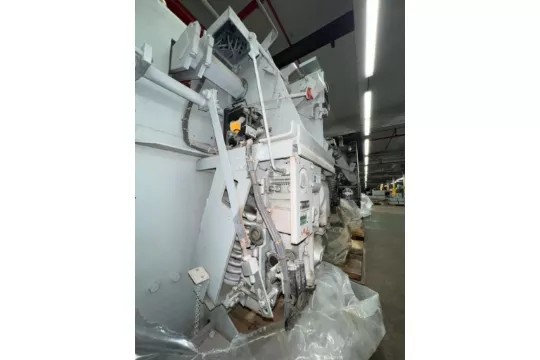

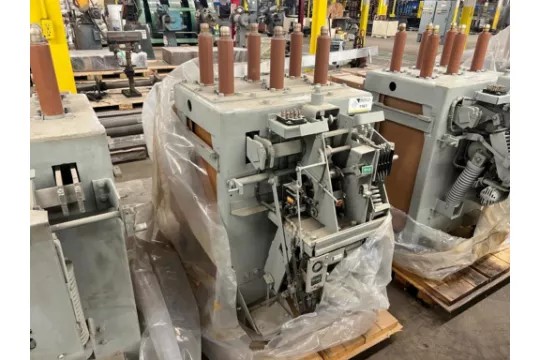

General Electric Magne-Blast Circuit Breaker Type AM-13 8-500-3ML 1200A 13.8kV ML-11B; General Electric Magne-Blast circuit breaker mounted on pallet, configured for medium-voltage industrial power distribution applications. Unit features multi-bushing top configuration, spring-charged operating mechanism, and front-mounted control assembly. Nameplate confirms Type AM-13 8-500-3ML with ML-11B mechanism, rated for 13.8kV class service and 1200 amps, designed for high interrupting capacity and heavy-duty switching. Nameplate Details: • Manufacturer: General Electric • Type: AM-13, 8-500-3ML • Mechanism: ML-11B • Rated Voltage: 13,800V • Rated Current: 1200A • Frequency: 60 CY • Maximum Design Voltage: 15,000V • Impulse Withstand: 95 kV • Interrupting Rating: 500 MVA • Max Interrupting Current: 25,000 Amps • Momentary Current: 40,000 Amps • Closing Coil: 48V DC • Trip Coil: 48V DC • Serial Number: 137A3881-1 • Mod No.: 181L896AEP • Weight: 1800 lbs • Date MFG: 7/61 • Made in USA Features: • Multi-bushing insulated top terminals • Spring-operated charging mechanism • Chain-driven mechanical assembly • Front access control panel with indicators • Mounted on pallet
