General Electric Fanuc CNC Operator Panel Series 18i-T

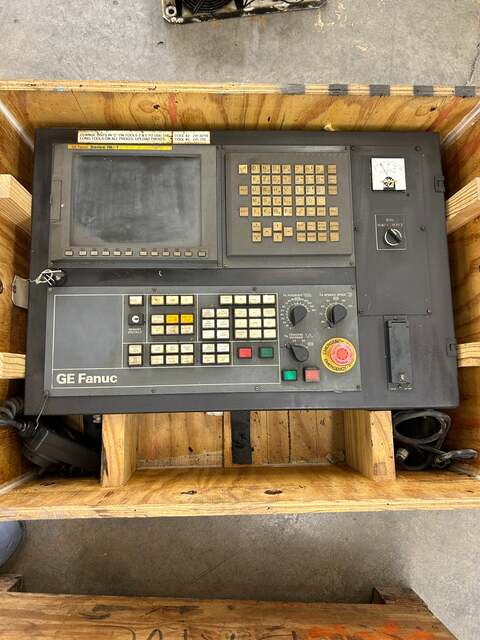

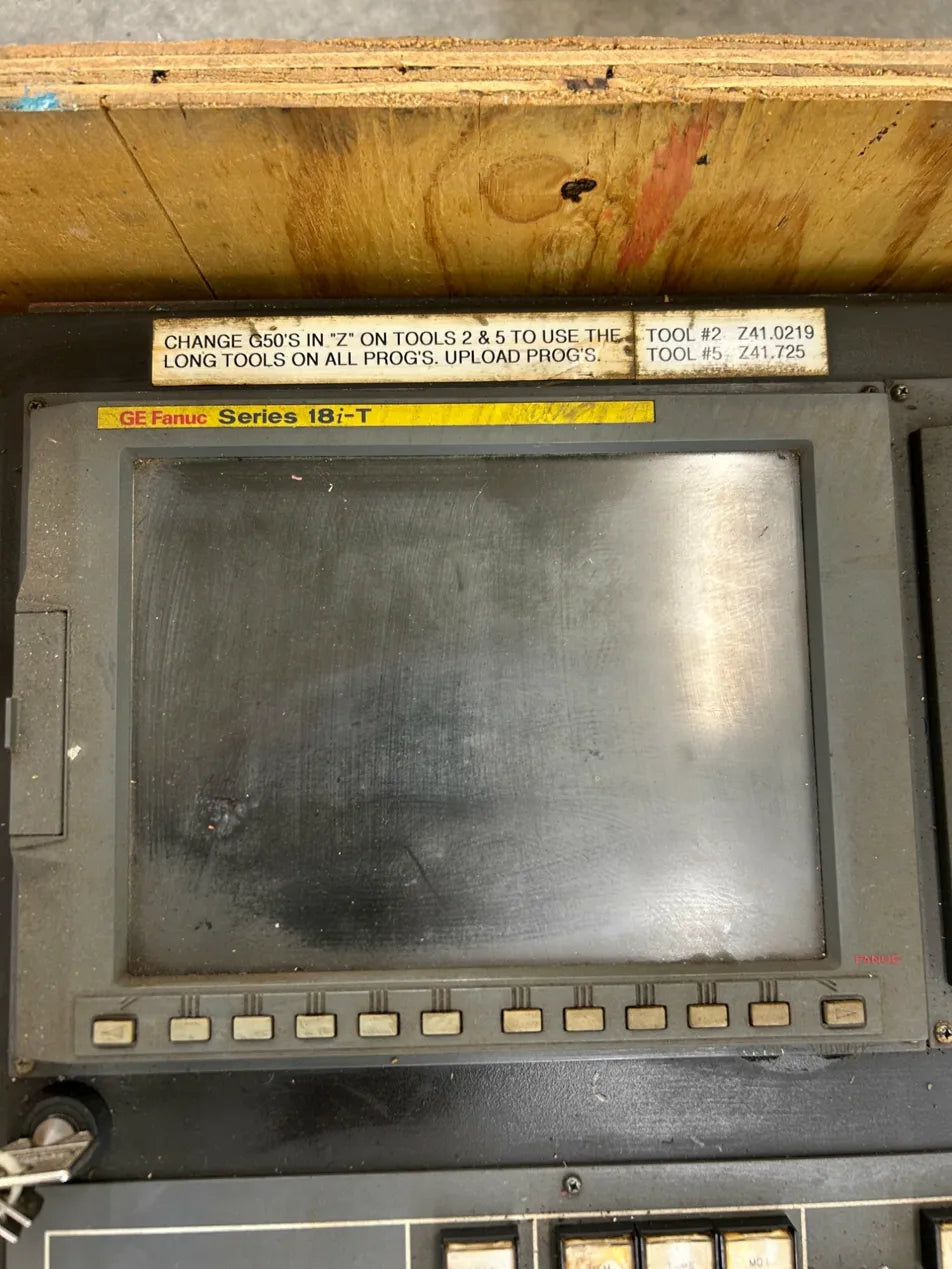

Used in CNC turning and rotating part applications, the GE Fanuc Series 18i-T is a mid-range lathe CNC control console covering a wide range of high-production and job shop environments. The unit is a complete operator panel assembly featuring an integrated CRT display, full MDI keyboard with alphanumeric and function keys, machine operator panel with cycle start, feed hold, emergency stop, and mode selector controls, as well as feedrate override and spindle speed override rotary switches. A yellow label on the display bezel confirms the Series 18i-T designation. The assembly is crated in a wood shipping enclosure visible in the photos. The Series 18i-T supports up to two-path turning control, high-speed PMC, and synchronous spindle functions. It is compatible with CNC lathes and turning centers originally equipped with GE Fanuc 18i-T controls. The panel includes an emergency stop mushroom button and separate green cycle-start and red feed-hold buttons. A dual-head selector switch labeled "Head 1 / Head 2" is visible at the upper right of the console, consistent with two-spindle lathe configurations. This assembly is sold as removed from a machine and is not represented as tested or verified operational.

Stock # 0226-621
