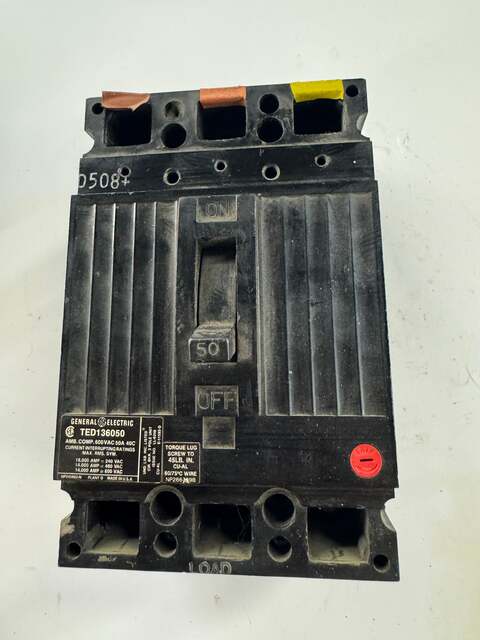

General Electric Circuit Breaker TED136050 600 VAC

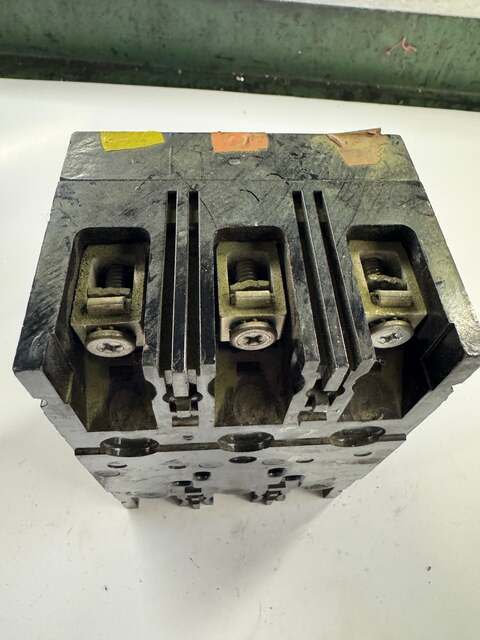

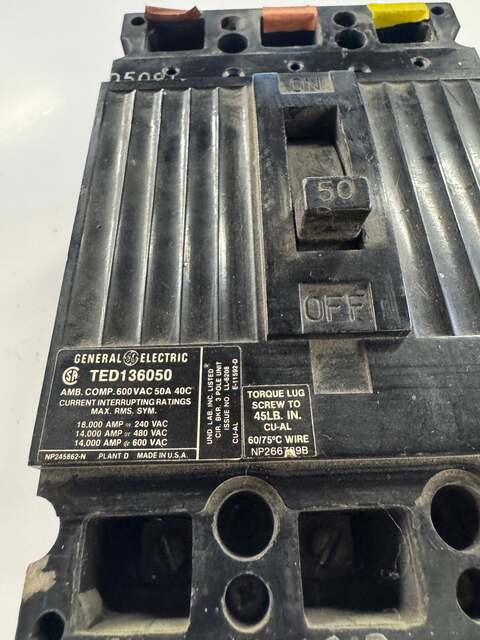

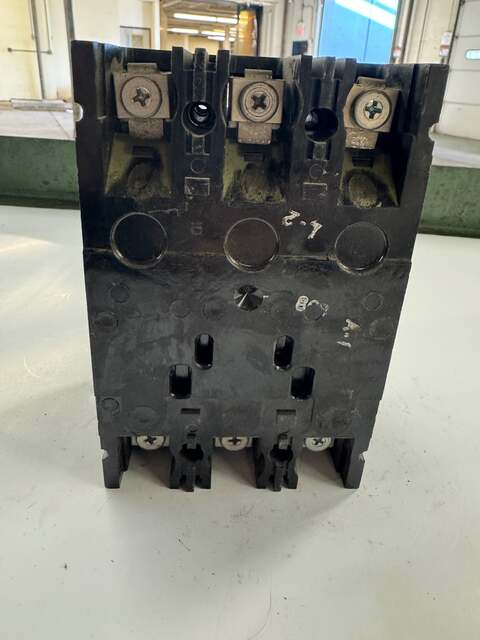

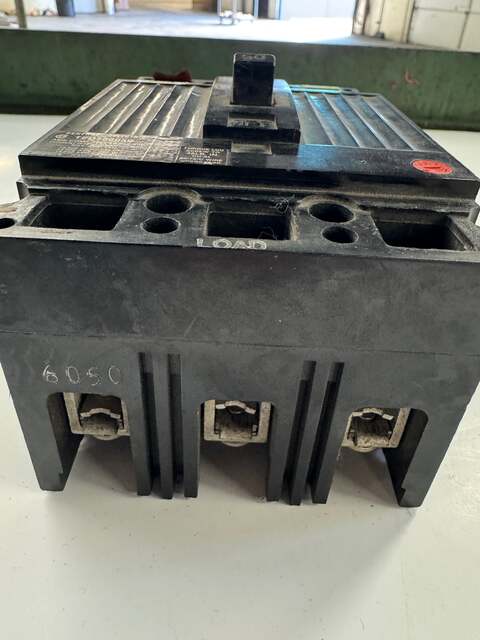

The General Electric TED136050 is a molded case circuit breaker rated at 50 amps, 600 VAC, in a 3-pole configuration. Part of the GE E150 line, it carries a standard interrupting capacity of 18,000 amps at 240 VAC, 14,000 amps at 480 VAC, and 14,000 amps at 600 VAC, all expressed as maximum RMS symmetrical values. The ambient compensation rating is 40 degrees C. Lug terminals are included on both line and load sides, rated for copper or aluminum conductors torqued to 45 lb-in, compatible with 60/75 degree C wire. The nameplate identifies this as Plant D manufacture, made in the USA, with catalog reference NP245862-N and lug reference NP266789B. UL listed as a 3-pole circuit breaker, issue number LL-6208. The breaker is offered as removed from service industrial surplus. The toggle handle is present and the unit shows evidence of prior installation. The item is listed as a single unit.

Stock # 0426-02050
