General Electric Circuit Breaker TED136030 600 VAC

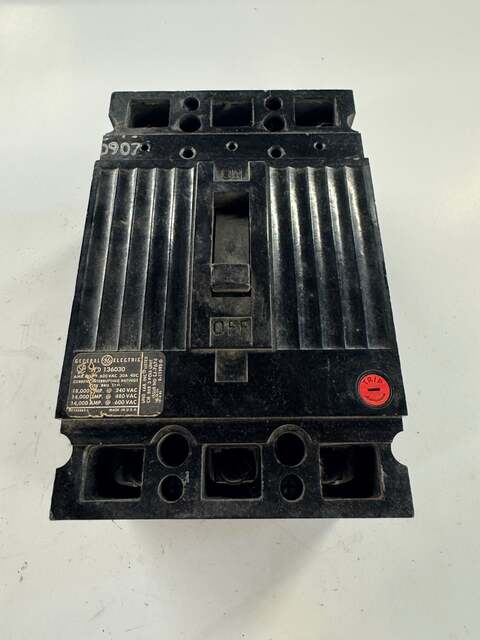

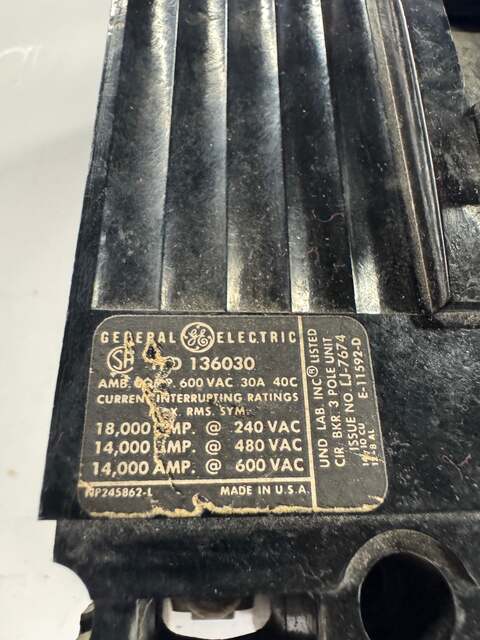

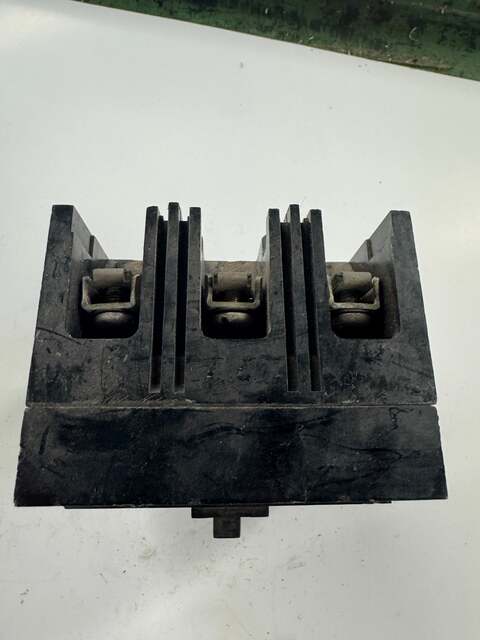

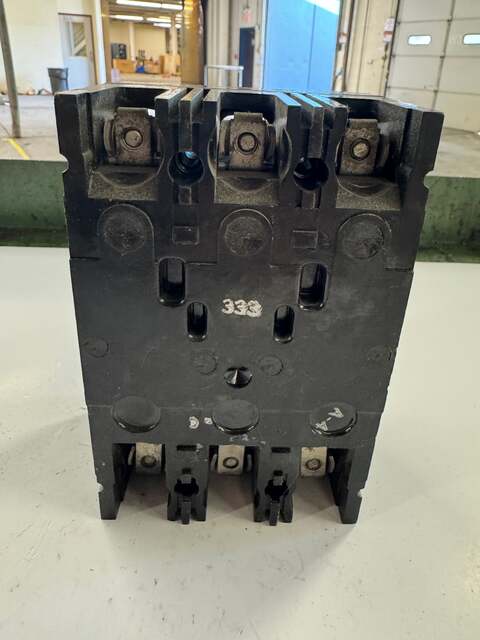

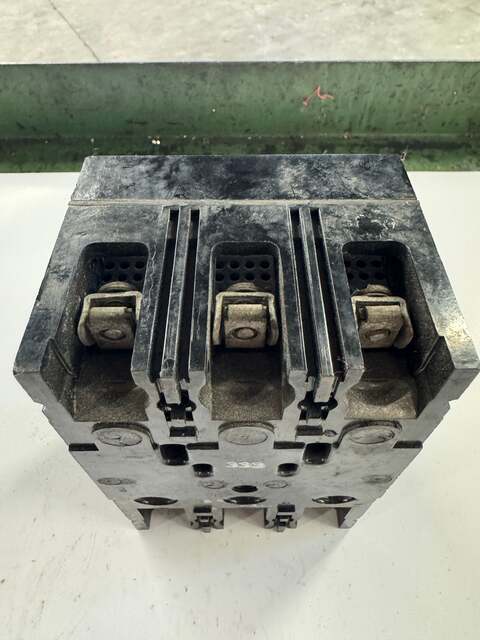

Used in industrial electrical distribution panels and motor control centers, the General Electric TED136030 is a 3-pole molded case circuit breaker rated at 30 amps and 600 VAC. This Type TED frame breaker provides thermal magnetic protection with long-time and instantaneous trip functions. Interrupting ratings per the nameplate are 18,000 amps RMS symmetrical at 240 VAC, 14,000 amps at 480 VAC, and 14,000 amps at 600 VAC. The breaker is UL Listed as a 3-pole circuit breaker unit, issue number LJ-7674. It mounts via bolt-on installation and is compatible with GE A-Series and Spectra Series panelboards. The MPN TED136030 is the standard-interrupting-capacity variant within the GE TED frame family, rated for 40 degrees C ambient operation. Nameplate label part reference MP245862-L is visible. The unit is marked Made in U.S.A. Three pole lugs are present on both line and load sides. A trip indicator button is visible on the front face. Suitable as a replacement or spare for 30-amp 3-pole 600V applications in manufacturing, commercial, or industrial facilities using GE panelboard infrastructure.

Stock # 0426-02051
