Manufacturer: Geminis
Model: GT5-G2
Year: 2013
Swing: 576.0
Chuck: 40
Bar Capacity: 4.0
Stock # 33699
Click to zoom in
For Sale by Premier Equipment Inc
Surplus Record Dealer Since 2023
Location: Altamonte Springs, FL
Contact Tom Kohm
Phone Number: 407...> Show Phone Number 407-759-4569
Let the seller know you found their listing on Surplus Record!
Description

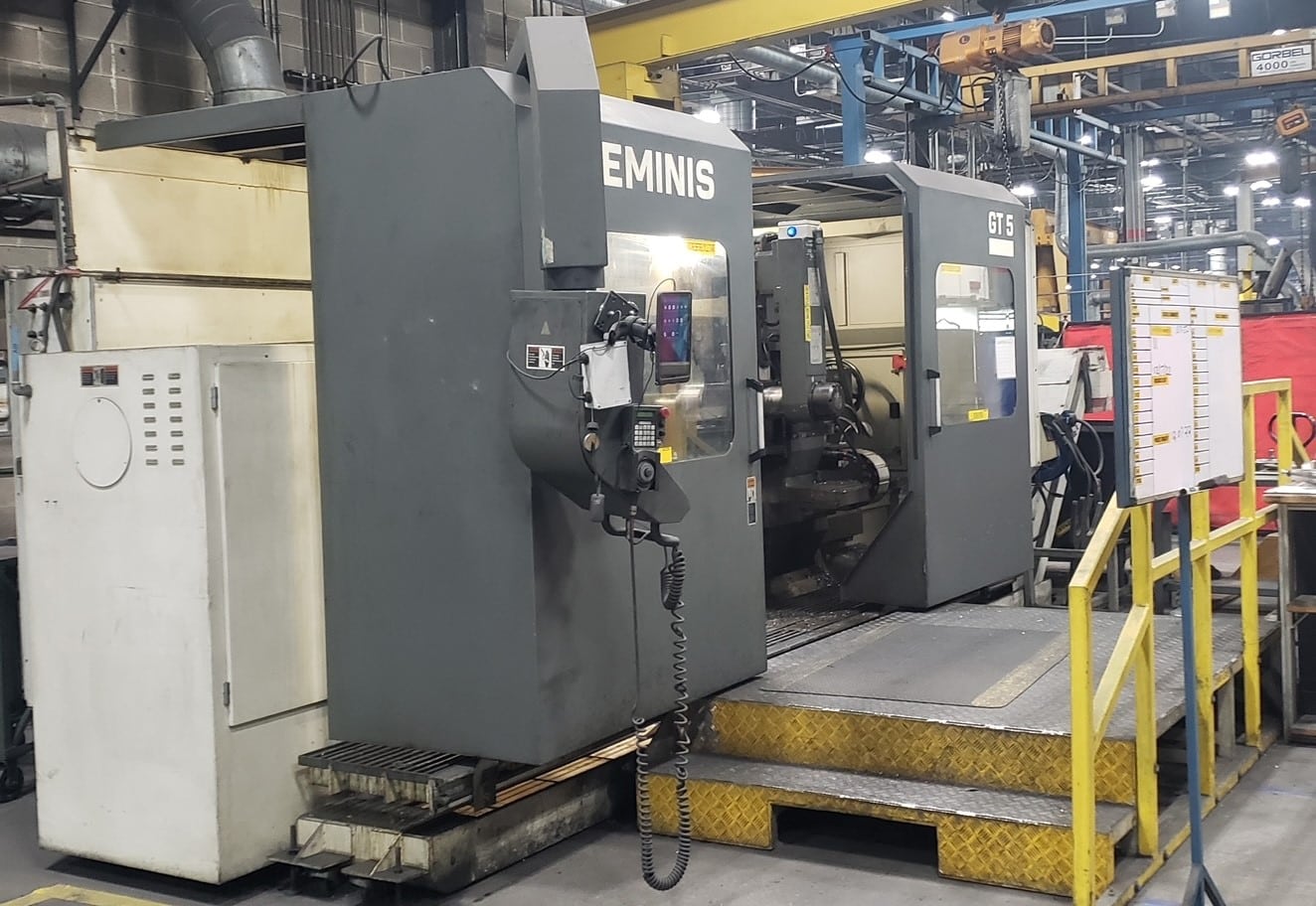

Geminis GT5G2 48″ x 78″ Flat Bed CNC Lathe with Y Axis
Specifications
CNC Control yes
Type of CNC Control FANUC
Chuck Size 40 inches
Swing 48 inches
Center Distance 78 inches
Bar Capacity 4 inches
Main Motor 50 HP
Turret Capacity 4
Tailstock yes
Y Axis yes
Power 10 horsepower
# Axis 4
SWING OVER BED: 48″
SWING OVER CROSS SLIDE: 33.5
DISTANCE BETWEEN CENTERS: 78″
MAX WEIGHT BETWEEN CENTERS: 10,000 LBS.
SPINDLE POWER: 50 HP
MAX MAIN SPINDLE RPM: 1,400
LIVE SPINDLE POWER: 10 HP
LIVE SPINDLE TAPER: NO. 50
EQUIPPED WITH:
40″ 4 JAW CHUCK
4 POSITION TURRET
C AXIS POSITIONING
REMOVEABLE Y AXIS LIVE MILLING ATTACHMENT
CHIP CONVEYOR
COOLANT WITH FILTRATION SYSTEM
Get Your Price from Premier Equipment Inc!
