Geka #Gamma-Roller-160-3P/ALPS, CNC solutions for punching, marking & cutting ngles, flat bars & U-channels, new

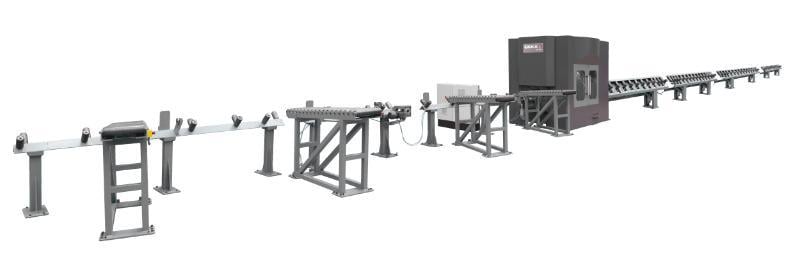

Gamma Roller 160 – 3P / ALPS, CNC Solution for punching, marking and cutting angles, flat bars and U profiles

The Gamma Roller 160-3P / ALPS is a CNC line in Geka’s Gamma Roller Series for industrial drilling, punching, marking, and shearing angles, flat bars, and U channels. Its punching station has a punching force of 82 US tons and 6 punches in total (3 per wing), while its shear station tonnage is of 286 US tons. The machine adheres to very high standards of precision.

Additionally, Geka also offers a wide variety of optional peripherals for the Gamma Roller 160 – 39 / ALPS. This allows customers to configure the CNC line to their particular manufacturing and industrial drilling needs.

Features	GR 160 – 3P
Minimum L	1-1/2″ x 1-1/2″ x 3/16″
Maximum L	6″ x 6″ x 5/8″
Minimum Flat Bar	3-1/4″ x 5/16″
Maximum Flat Bar	6″ x 5/8″
Minimum U	3″ x 4.1lb
Maximum U	5″ x 6.7lb
Marking	Cassette
Characters	3/8 x 1/4″ size typeface
Nº Punches	6 (3/wing)
Maximum Diameter	1-1/4″
Punching Force	82 US Tons
Shear station tonnage	286 US Tons
Feeder Speed	Programmable Up to 1,417 Ft/min

• Capacities based on a material resistance of 65,000 tensile.
• The manufacturer reserves the right to make modifications without prior notice.

Main Features of the Gamma Roller 160 – 3P / ALPS CNC LINE

PULL TYPE FEEDING.

Servomotor-driven tracking unit with independent encoder units at both ends of the machine.

PUNCHING UNIT.

Three different punches per wing. For diameters of up to 1-1/4″. Hydraulic hold down. CNC-controlled gauges.

SHEARING UNIT.

Performs clean cuts without wasting material. Blades are quickly and easily accessible.

MARKING UNIT.

Five references. Ten characters per reference 3/8″ x 1/4″. PC-controlled selection by reference.

USER-INTERFACE.

PC on Windows 10 platform. Network Connectivity. USB ports. Graphic interfaces. Remote Assistance via internet.
