Description

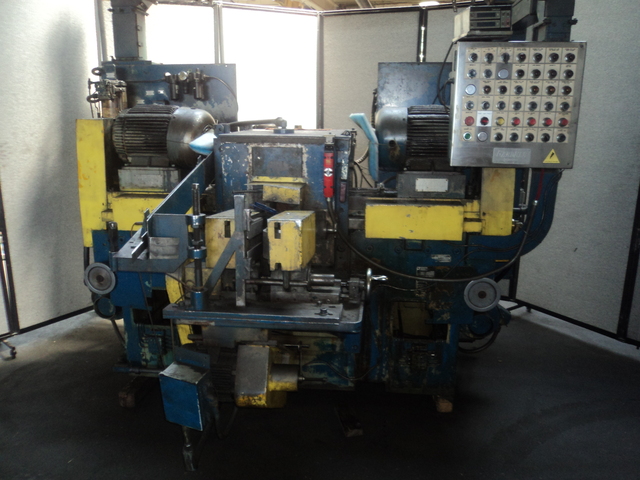

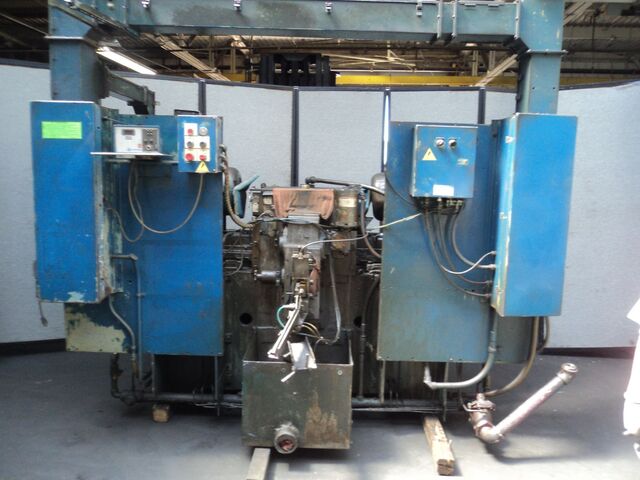

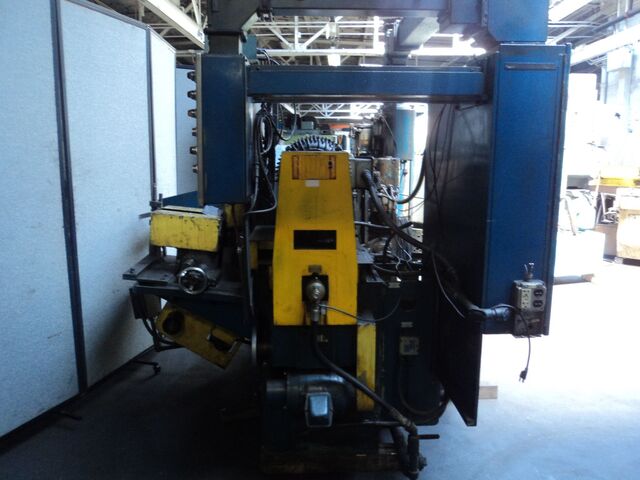

Gardner SDG2-23 Disc Grinder, 23" OD Grinding Wheel, Belt Thrufeed, 20 HP Spindle Motors
SDG2-23 GARDNER MODEL PRECISION DOUBLE DISC GRINDER
S/N 893-42 Year: 1991
STANDARD SPECIFICATIONS
Abrasive wheel O.D………………………..……………………… up to 23”
Abrasive thickness……………………………..………………….. 3”
Opening between wheels…………………………………………. 12 1/8”
Wheel mounting flange O.D……………………………………… 14 7/8”
Wheel mounting flange thickness………………………………… 1 3/8”
Wheel increment feed rate………………………………………… 0.000050”
ELECTRICAL CONTROLS
(2) 20 HP, 1755 RPM, AC, 3 Phase, 60 Cycle Spindle Motors
¼ HP, AC, 3 Phase, 60 Cycle Dresser Arm Motor
1.5 HP, AC, 3 Phase, 60 Cycle Coolant Motor
EQUIPPED WITH
Belt thrufeed set up
Carrier Start and Stop
Motorized Swing Up Dresser
Mechanical Abrasive Slide Infeed
Digital Counter Wheelhead Positioning
Automatic/Manual Cycles
Contour Wheelhead Positioning
Forward Reverse
Auto Cycle
Rapid Feed
In and Out for L.H. and R.H. Heads
Increment Feed L.H.
R.H. Alternate
Normal and Repeat
Coolant system
Control Gauge Auto Size Gauging System
Specifications are deemed accurate, however, subject to verification or prior sale.
All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.
If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
SDG2-23 GARDNER MODEL PRECISION DOUBLE DISC GRINDER
S/N 893-42 Year: 1991
STANDARD SPECIFICATIONS
Abrasive wheel O.D………………………..……………………… up to 23”
Abrasive thickness……………………………..………………….. 3”
Opening between wheels…………………………………………. 12 1/8”
Wheel mounting flange O.D……………………………………… 14 7/8”
Wheel mounting flange thickness………………………………… 1 3/8”
Wheel increment feed rate………………………………………… 0.000050”
ELECTRICAL CONTROLS
(2) 20 HP, 1755 RPM, AC, 3 Phase, 60 Cycle Spindle Motors
¼ HP, AC, 3 Phase, 60 Cycle Dresser Arm Motor
1.5 HP, AC, 3 Phase, 60 Cycle Coolant Motor
EQUIPPED WITH
Belt thrufeed set up
Carrier Start and Stop
Motorized Swing Up Dresser
Mechanical Abrasive Slide Infeed
Digital Counter Wheelhead Positioning
Automatic/Manual Cycles
Contour Wheelhead Positioning
Forward Reverse
Auto Cycle
Rapid Feed
In and Out for L.H. and R.H. Heads
Increment Feed L.H.
R.H. Alternate
Normal and Repeat
Coolant system
Control Gauge Auto Size Gauging System
Specifications are deemed accurate, however, subject to verification or prior sale.
All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs.
If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
