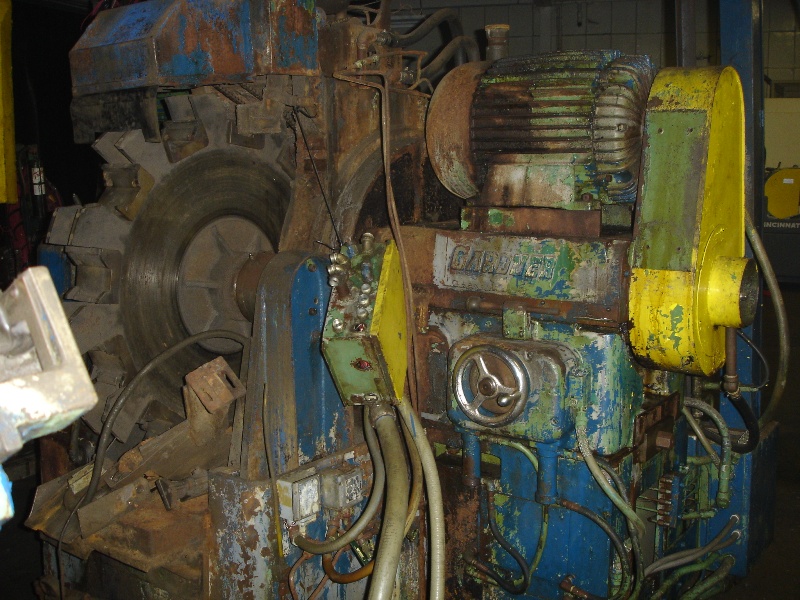

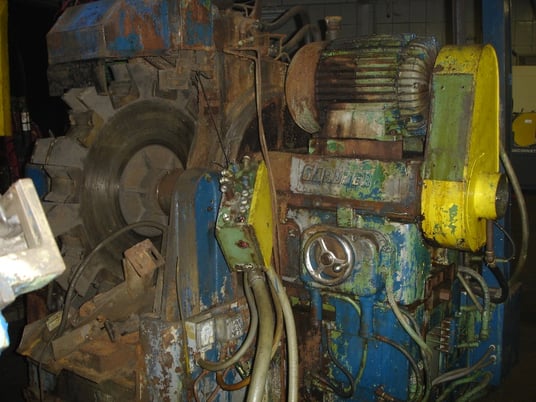

Gardner #2H30-30, double opposed disc grinder, 30" diameter wheels, 2400 PPH, (2) 30 HP, 1080 RPM, 208/220/440 V

2H30-30 Gardner Double Opposed Disc Grinder. This horizontal double disc grinder features 30" diameter wheels, dual 30 HP motors, and a rotary carrier feed. Equipped with coolant systems and push-button controls.
2H30-30 GARDNER DOUBLE OPPOSED DISC GRINDER
S/N 716-3
STANDARD CATALOG SPECIFICATIONS
30" Diameter wheels.
(2) 30 HP Motors 1080 RPM.
208/220/440 Volts, 3 Phase, 60 Cycle.
Rotary carrier feed.
Coolant thru spindle.
Single point diamond dressers.
Coolant tank and pump in base.
Separate push button control station & electrical panel.
PRODUCTION DATA
Rate............................... 2400 complete parts per hour
(9,600 ground surfaces per hour at 100% efficiency)
Stock removal...................... .015" maximum overall
Uniformity......................... .001"
Tolerances........................ .001" center dimension
EQUIPMENT & FEATURES
36" Carrier - forward & reverse.
Behind the wheel hydraulic swing arm dresser.
Incremental feed - left/right hand heads.
Free standing electrical panel.
Manual lube.
Spindles - forward & reversing.
Specifications are deemed accurate, however, subject to verification or prior sale.
