Description

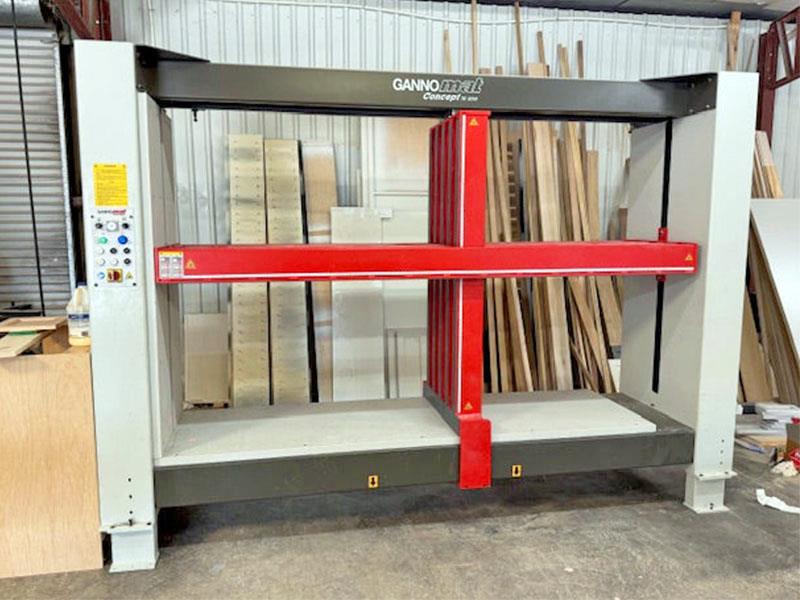

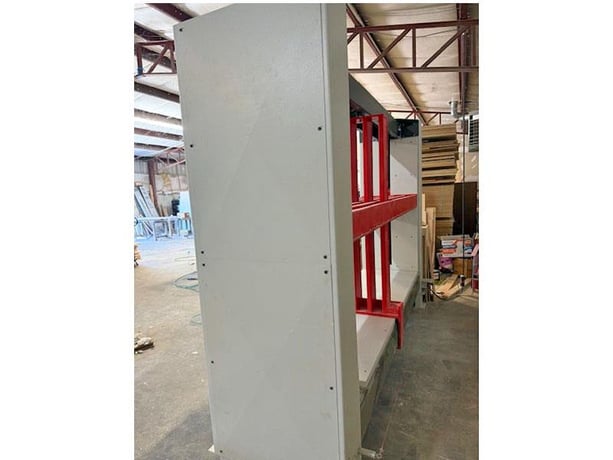

GANNOMAT - CONCEPT 70 ECO PLUS: Case Clamp (Semi-Automatic): -- SpecificationsMultipurpose Case Clamp with: Interlocking vertical & horizontal pressure beams specially designed to save time & labor. -- Clamping pressure is applied across the entire vertical & horizontal beams for clamping of case goods, drawers, etc. -- Working CapacityLength: Min. 6" (150 mm); max. 98.4" (2,500 mm); height: Min.: 6" (150 mm); height max.: 51" (1,300 mm); depth max.: 27-1/2" (700 mm). (2) Potentiometer for stepless adjustable pressing force; adjustable clamping cycle time with automatic opening.Minimum pressing force: 300/500 kG; max. pressing force: 2,200 kG.(4) Pressing velocities & adjustment rates: 5 /10 / 25 / 50 mm per Sec (with fine positioning/creep feed). -- Operator InterfaceElectronic controller with Keypad for the following functions: Manual operation; (6) individual push buttons for: (8) Motion sequences; pressure regulation; workpiece count; clamping dwell time. -- Actual model: GANNOMAT CONCEPT 70 ECO PLUS.
Get Your Price from Ex-Factory!
Buyers Who Viewed This Listing Also Viewed …
JUST ADDED!
Gannomat #Concept-70-EASY-170, Case Clamp, 51-3/16" x 66-59/64" x 27-35/64"
Category: Clamp - Case & Feed Thru
Seller: Carolina Machinery Sales
Location: Monroe, NC
Mfr: Gannomat
Model: CONCEPT-70-EASY-170
- Sturdy stress-free steel frame construction, - Steel bar side pressure beam construction with solid platen surface, - Continuous left-side counter pressure surface and solid floor, - Motorized adjustment of the pressure beam by precision trapezoidal-threaded spindles (for optimal lead and concentric accuracy), heavy ...more

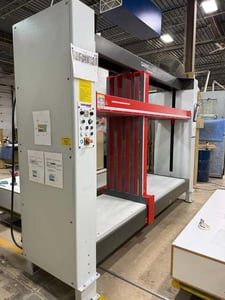

Gannomat #Concept-70-Eco-Plus, Interlocking Lamellar Case clamp, 220 V., 3ph, 2023
