For Sale by Southern Fabricating Mchy Sales
Description

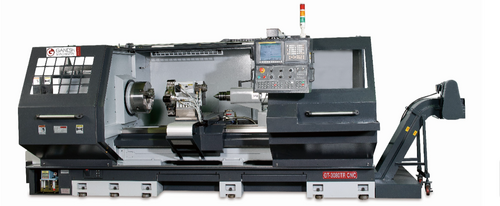

22” X 60” CNC Lathe with Fanuc 0i-TF Control with Fanuc Axis & Spindle Drives, 8 - Station Tool Turret, 2 - Gear Range for Increased Cutting Torque and A2-11 Spindle w/ 6-” Bore.
GENERAL SPECIFICATIONS
Swing Over Bed: 30”
Turning Diameter: 22”
Swing Over Cross Slide: 19”
Center Height: 15”
Bed Width Ways: 18”
Bed Casting Height: 15.75”
Spindle Motor: 30 HP
Spindle Speed: 10 - 1,000 RPM
Spindle Torque Low / High Gear: 1180 / 346 Ft. Lbs.
X - Axis Travels: 19-”
Z - Axis Travels: 59”

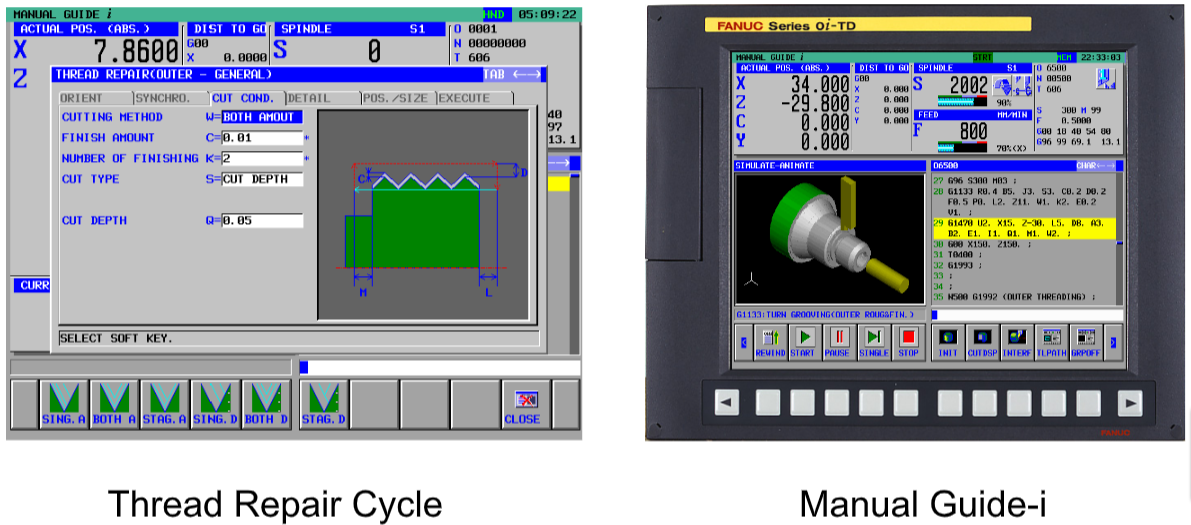

INCLUDES: Fanuc 0i-TF Control with Fanuc Axis & Spindle Drives, 8 - Station Tool Turret, 2 - Gear Range for Increased Cutting Torque and A2-11 Spindle w/ 6-” Bore.
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
Get Your Price from Southern Fabricating Mchy Sales!
