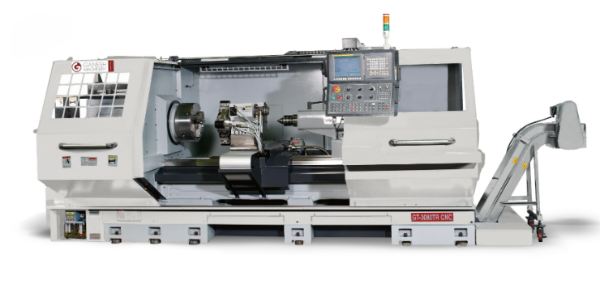

Ganesh #GTW-30160, CNC Lathe, 30" swing, 22" diameter x 146" L max, 19" swing over cross slide, 8 turret, 30 HP, 1000 RPM, 6.7" bore, Fanuc 0i-TF, New

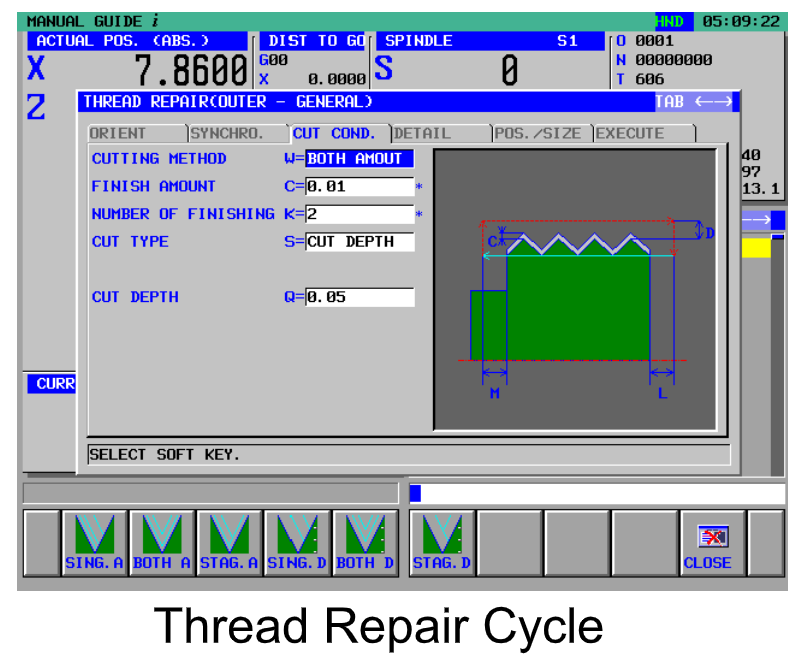

30” X 160” CNC Lathe with Fanuc 0i-TF Digital Control, 8 - Position Hydraulic Vertical Turret, Front & Rear A2-11 Spindle Nose for Mounting Chucks on Front & Rear of Spindle, Inch / Metric Left or Right - Hand Threading, Air Conditioner for Electrical Enclosure and Instruction Manual.
GENERAL SPECIFICATIONS
Swing Over Bed: 30”
Turning Diameter: 22”
Swing Over Cross - Slide: 19”
Turning Length: 146”
Center Height: 15”
Bed Width of Ways: 18”
Bed Casting Height: 15.75”
Spindle
Spindle Motor Horsepower: 30 HP
Spindle Speed: 30 - 1,000 RPM
RPM Spindle Bore: 6.69”
Spindle Nose (Front & Rear) / Bearing: A2-11 / Taper Roller Bearing
Spindle Torque - Low / High Gear: 18 - 186 RPM / 60 - 600 RPM
Axis
Rapid Traverse Feedrate X & Z: 394 IPM
X - Axis Cross Slide Travel: 19-”
Z - Axis Travel: 157”
X - Axis Ballscrew Diameter / Servo Motor Power: 1.25” / 2.0 HP
Z - Axis Ballscrew Diameter / Servo Motor Power: 2” / 4.0 HP
X - Axis Thrust: 2020 Lbs
Z - Axis Thrust: 3020 Lbs
Cross Slide Dimensions: 39” X 10”
Minimum Input Unit: 0.0001”
Tool Turret
Tool Stations: 4.92”
Quill Stroke: 7.87”
Quill Taper: MT-6
Electrical / Hydraulic / Coolant Systems
Fanuc Control, Motors & Drives: 30 kVA, 220 VAC
Hydraulic Pressure: 435 PSI
Coolant Pump: ¾ HP
Machine Dimensions: 324” X 85” X 80” / 20,944 Lbs
INCLUDES: Fanuc 0i-TF Digital Control, 8 - Position Hydraulic Vertical Turret, Front & Rear A2-11 Spindle Nose for Mounting Chucks on Front & Rear of Spindle, Inch / Metric Left or Right - Hand Threading, Air Conditioner for Electrical Enclosure and Instruction Manual.

***All Price, Location and Specifications Subject to Change without Notice***
