Description

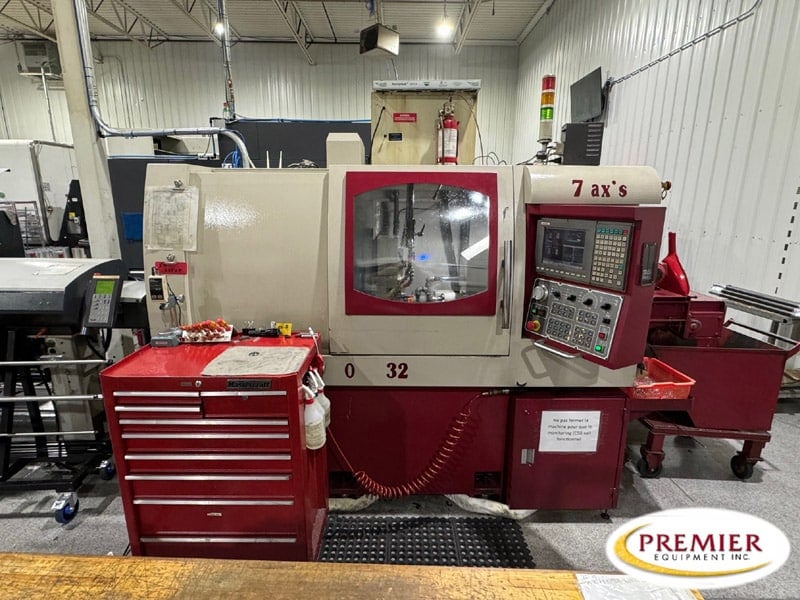

Ganesh Cyclone-32CS 7 Axis Dual Spindle Turn/Mill Center with Y-Axis on Main Spindle CNC Swiss Machine
Specifications (subject to buyer verification):
Main Spindle:
Maximum RPM / spindle bearing 6,000 RPM / 5-bearing spindle, 3-front, 2-rear ø110mm
Spindle Motor: 10-HP 3,000 rpm spindle motor, 2:1 pulley ratio
Spindle Bore 1.456” (37mm)
Maximum Barstock Diameter: 1.25” (32mm) standard
X-axis Travel: 7.28” (185mm)
Y-axis Travel: (true Y-axis, not compound Y) 19.29” (490mm)
Z-axis Travel: 6.50” 165mm)
Rapid Travel Speed: X, Y, Z 1,181 IPM (30m /minute)
Minimum input unit: 40 millionths (0.00004”) (0.01mm)
OD Turning Tool Positions: 6 OD Tools (½” or 12mm) (5-5/8” tool plate available)
ID Turning Tool Positions: 5 ID Tools
OD Turning Tool size ½” or 12mm (5/8” or 16mm Optional)
ID Turning Tool Bore Size 25 mm
Spindle Center Height 40” (1015mm)
Sub Spindle:
Sub spindle RPM / spindle bearing 6,000 RPM / 4-bearing Quad-Duplex pair configuration
Sub spindle Motor: 5-HP 3,000 rpm spindle motor, 2:1 pulley ratio
Maximum Barstock Diameter: 1.250” in collet chuck (1.080” (27.5mm) pass thru)
X-axis Travel: 11.53” (293mm)
Z-axis Travel: 11.61” (295mm)
Minimum input unit 0.0001” (0.001mm = 40 millionths inch)
ID Turning Tool Bore Size: 25mm
Live Tooling: All live tools are gear driven w/ ø42mm bearings – no belts!
Cross slide live tools: 4-ER-20 cross slide live tools, 4,000 rpm, 2.0 HP (1.5kw)
Front slide live tools: 3-ER-20 front slide live tools, 4,000 rpm, 1.0 HP (0.75kw)
Subspindle axial live tools: 4-ER-20 axial live tools, 4,000 rpm, 1.0 HP (0.75kw)
(1 radial live tool can be substituted on subspindle tool block)
Live tool collet size: ER-20 collet, ½” (0.5-13mm) tool shank capacity
Max RPM for live tools: 4,000 RPM
Machine Dimensions:
Machine Length 101” * (2420mm) (* +36” for chip conveyor)
Machine Depth 68” (1500mm)
Machine Height 80” (1985mm)
Machine Weight 8,000lbs (3,628kgs)
Machine Power Requirements 220vac ±5%, 63-amps, 3-phase, 60Hz
All specifications and accessories are assumed to be correct but must be confirmed by the purchasing entity.
Equipped With (subject to buyer verification):
Mitsubhsi Syntec CNC Control
7-Axis
Main Spindle A32 Collet Chuck
Sub Spindle A32 Collet Chuck
LNS Hydrobar Express 332 Barfeed
