Gallmeyer & Livingston #373, surface grinder

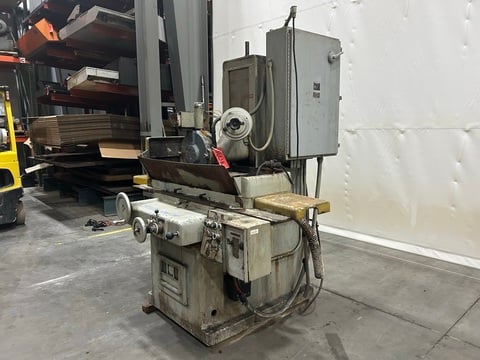

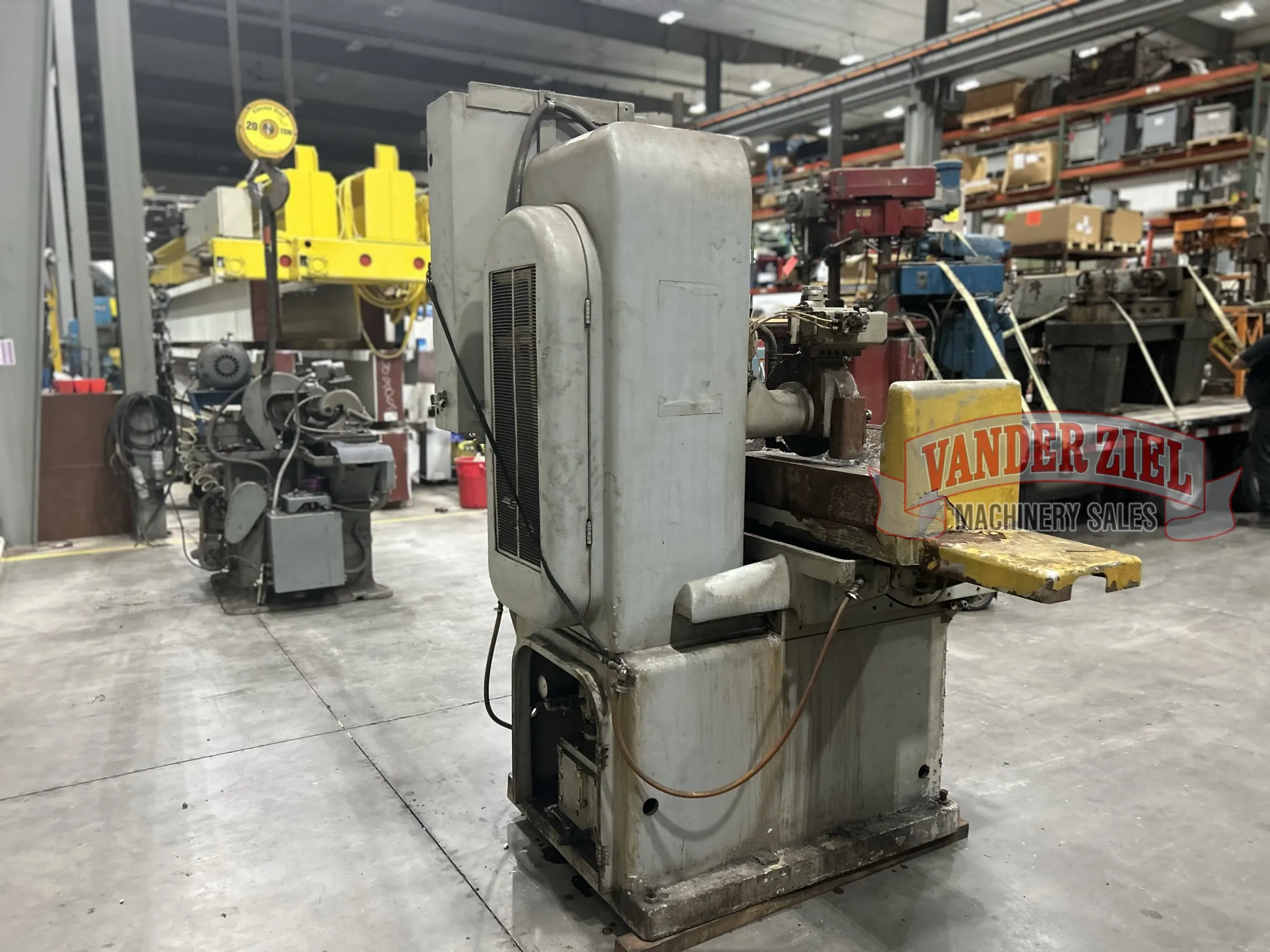

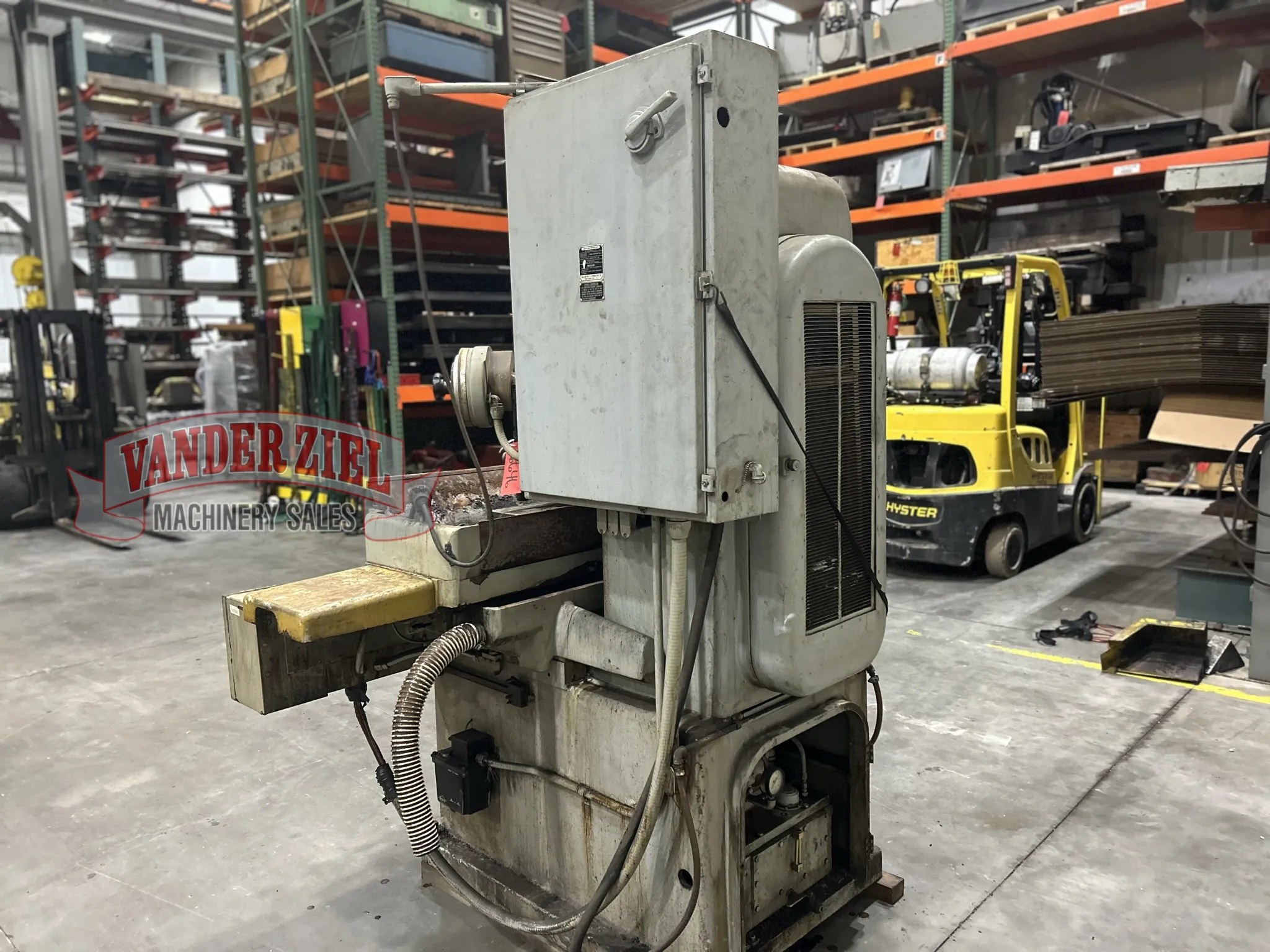

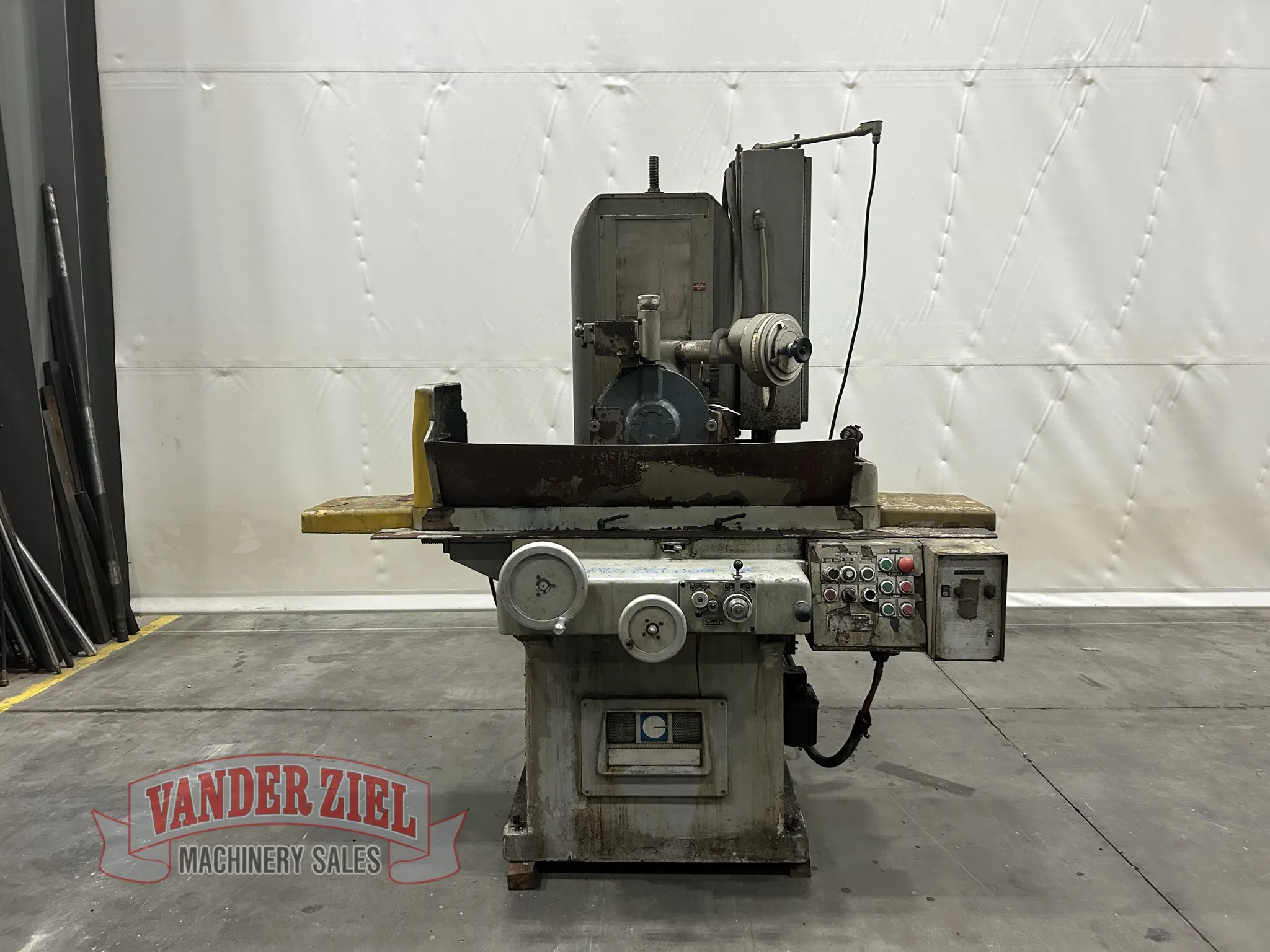

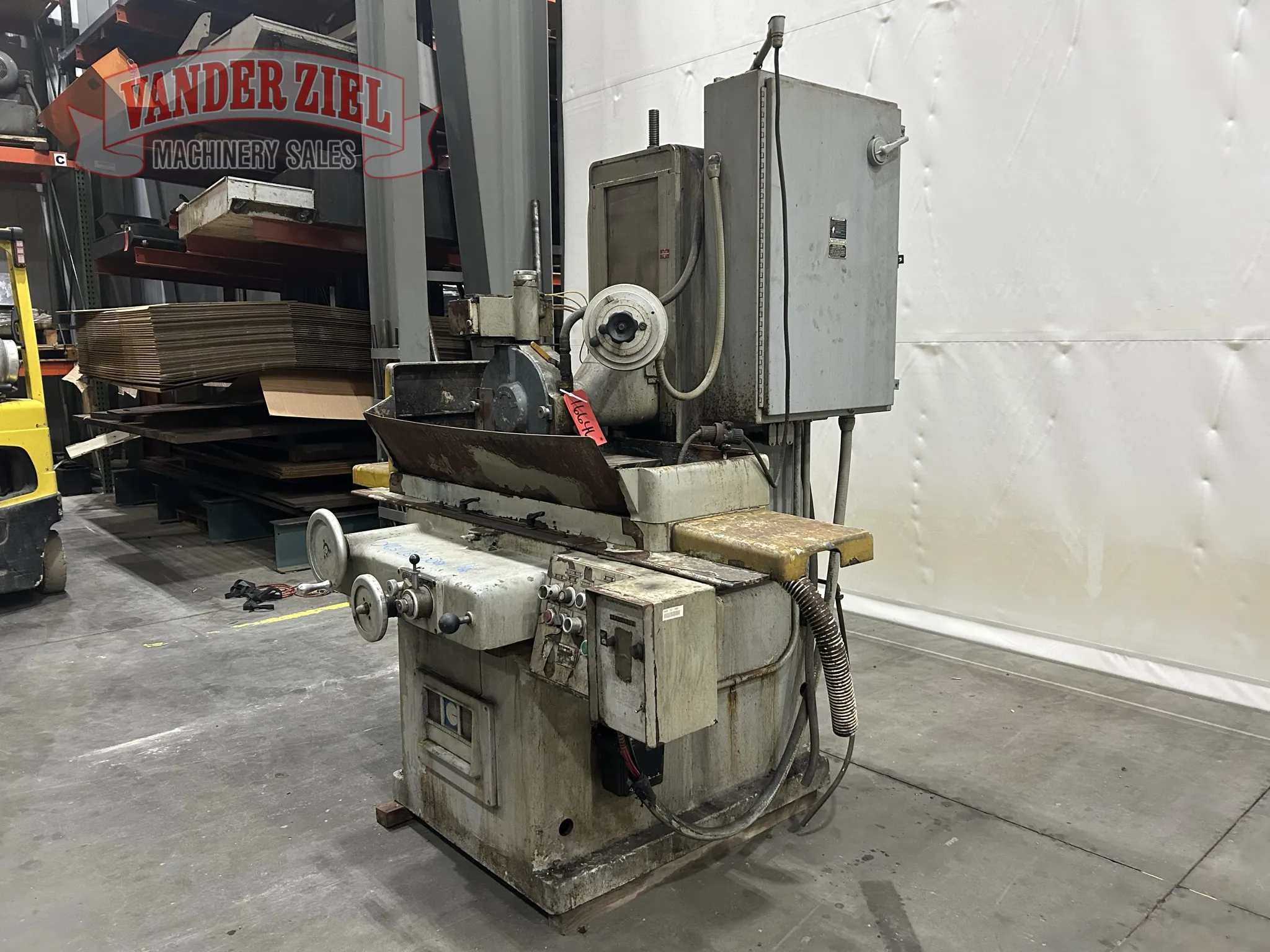

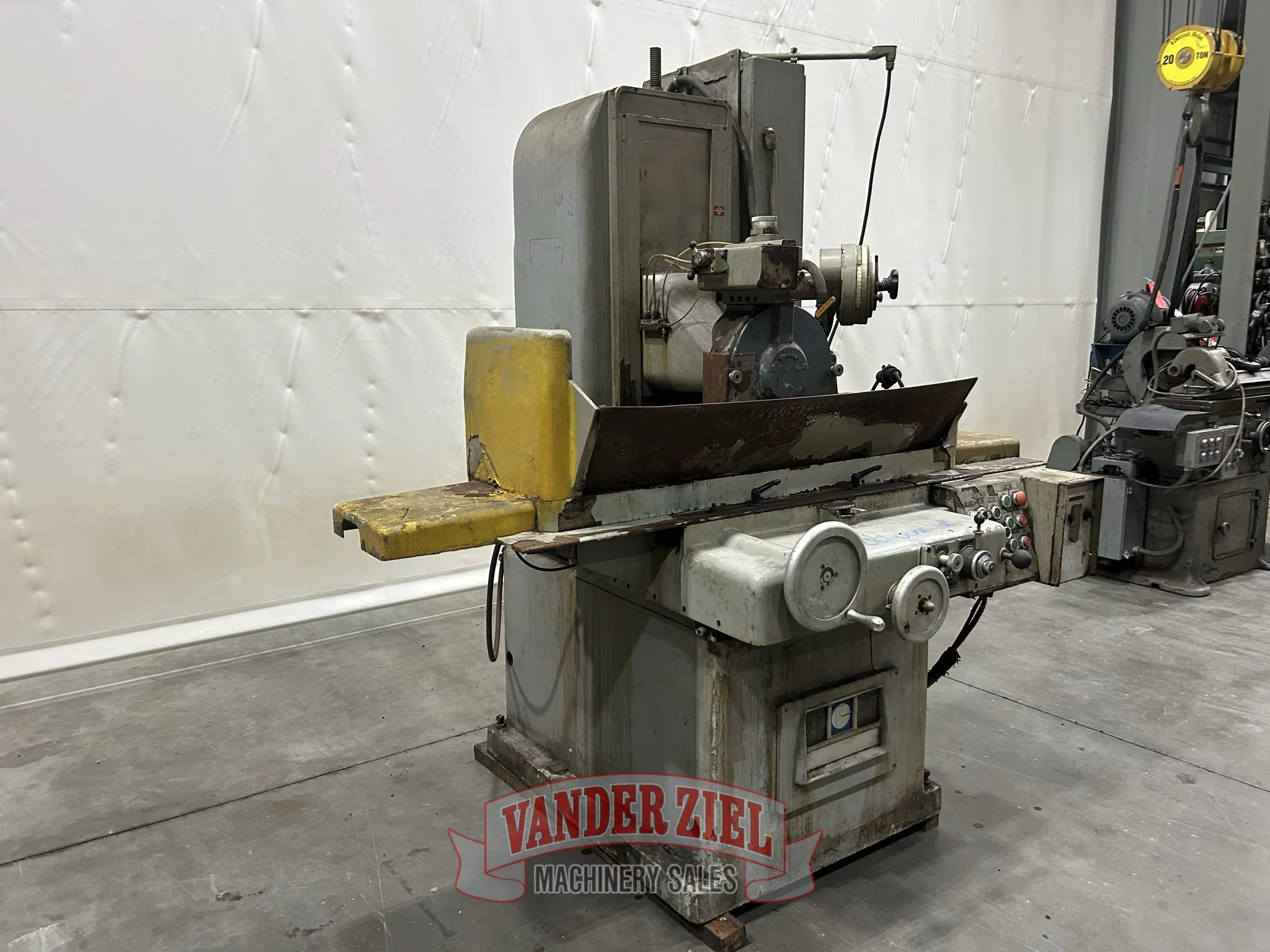

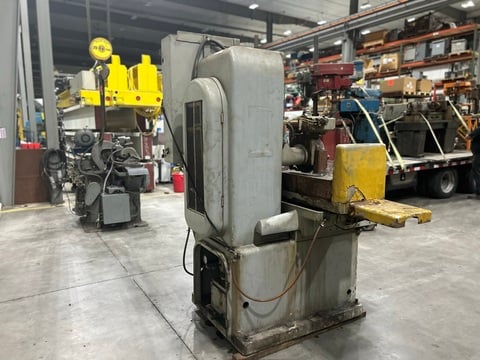

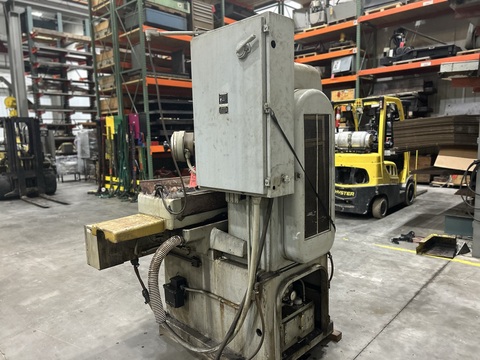

Gallmeyer & Livingston 12" x 24" Hydraulic Surface Grinder, Model 373

Serial # 373416

Asset # 16646

Specifications:

Working surface of table 12"x24"

Longitude table speed 3" to 150 FPM

Longitude-hydraulic table travel-max 29 1/2"

Transverse hydraulic table-max 13 1/4"

Standard wheel size 12"x1"x3"

Vertical movement of wheel head 19"

Max distance wheel to table 15"

Distance center of spindle to bottom of housing 2 1/2"

Standard spindle speeds 2000-2400 RPM

Standard spindle motor (1750 RPM) 3 Hp

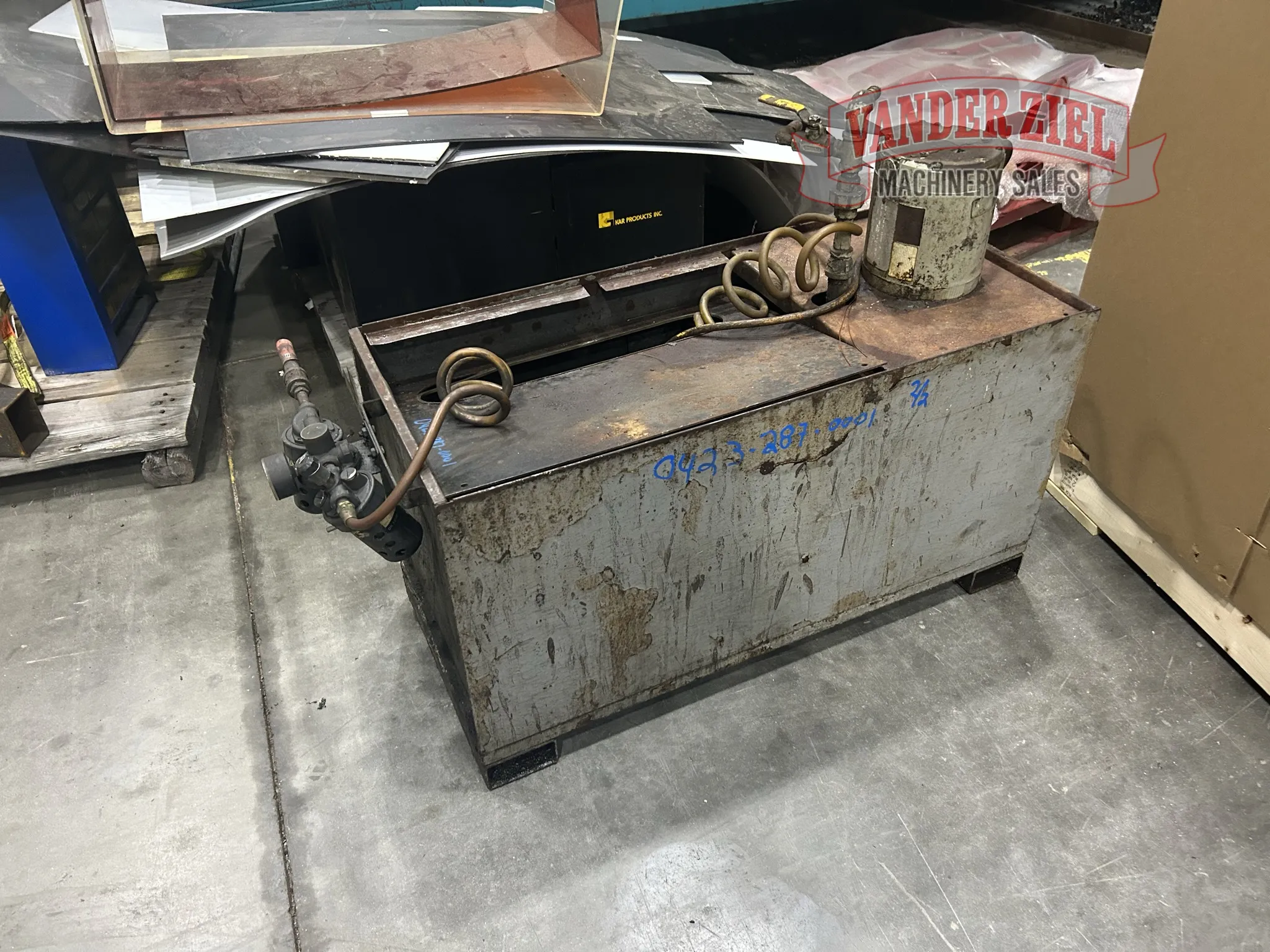

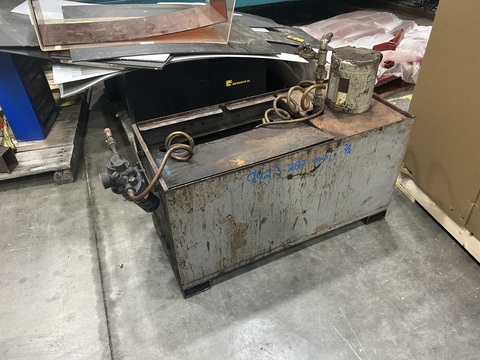

Standard hydraulic pump motor (1200 RPM) 1 1/2 Hp

Approx floor space 73"x110"

Approx weight 5200 lbs

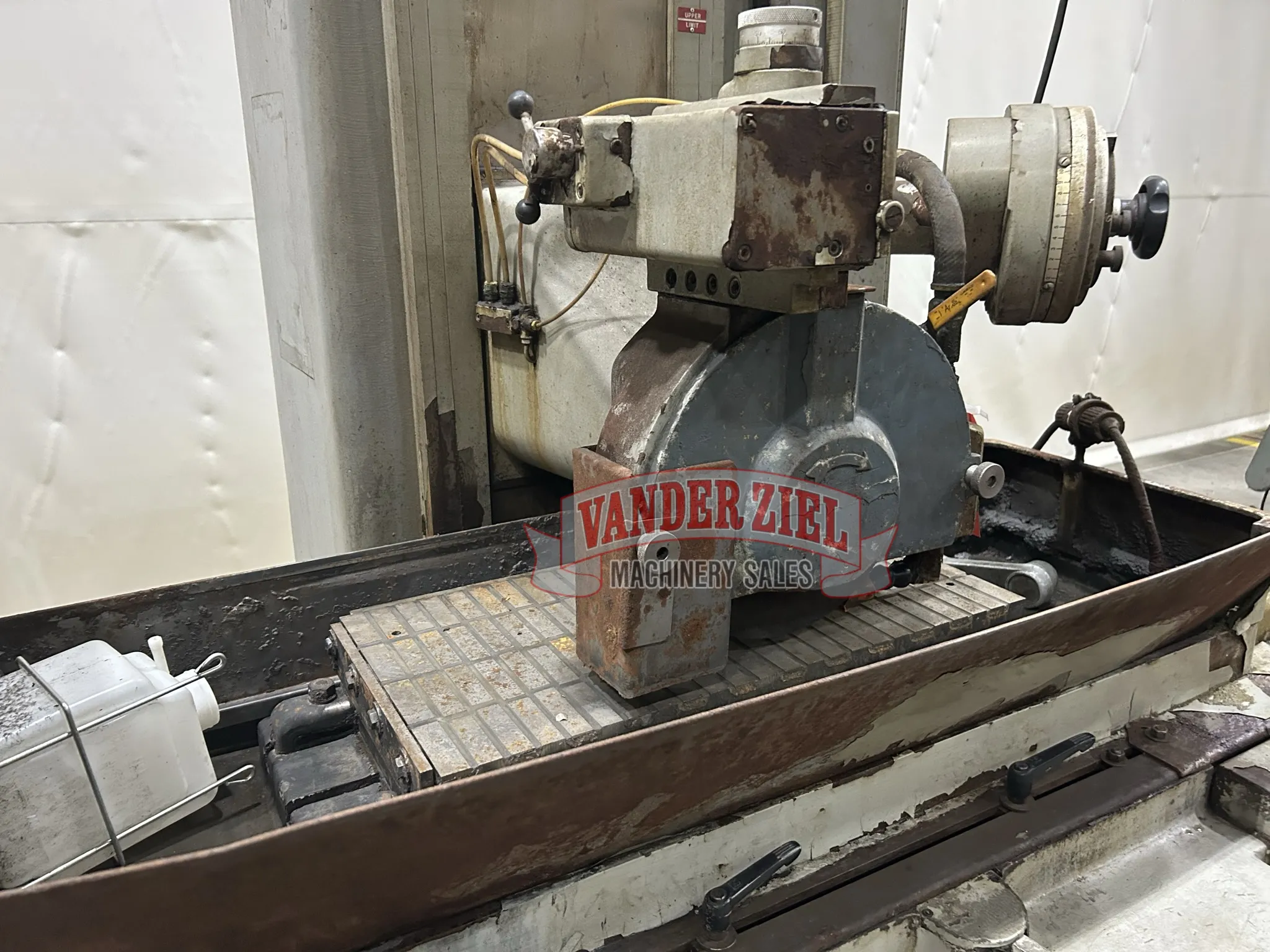

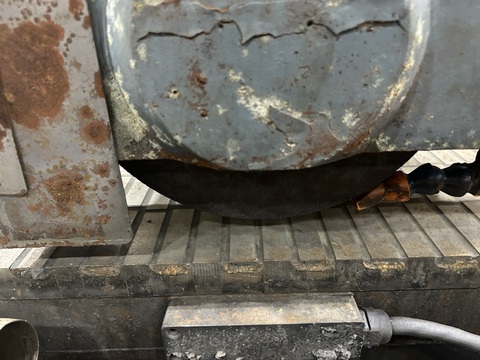

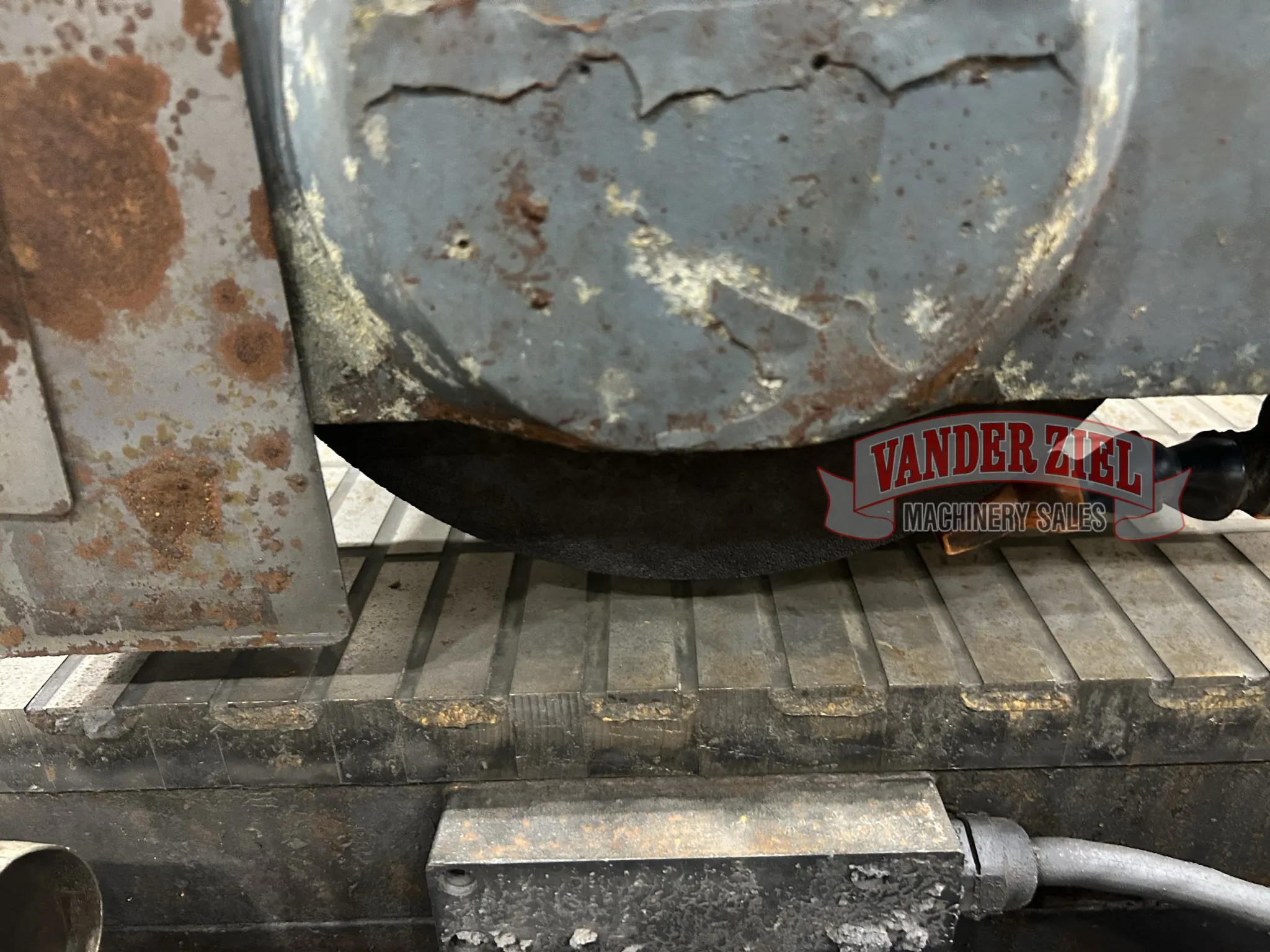

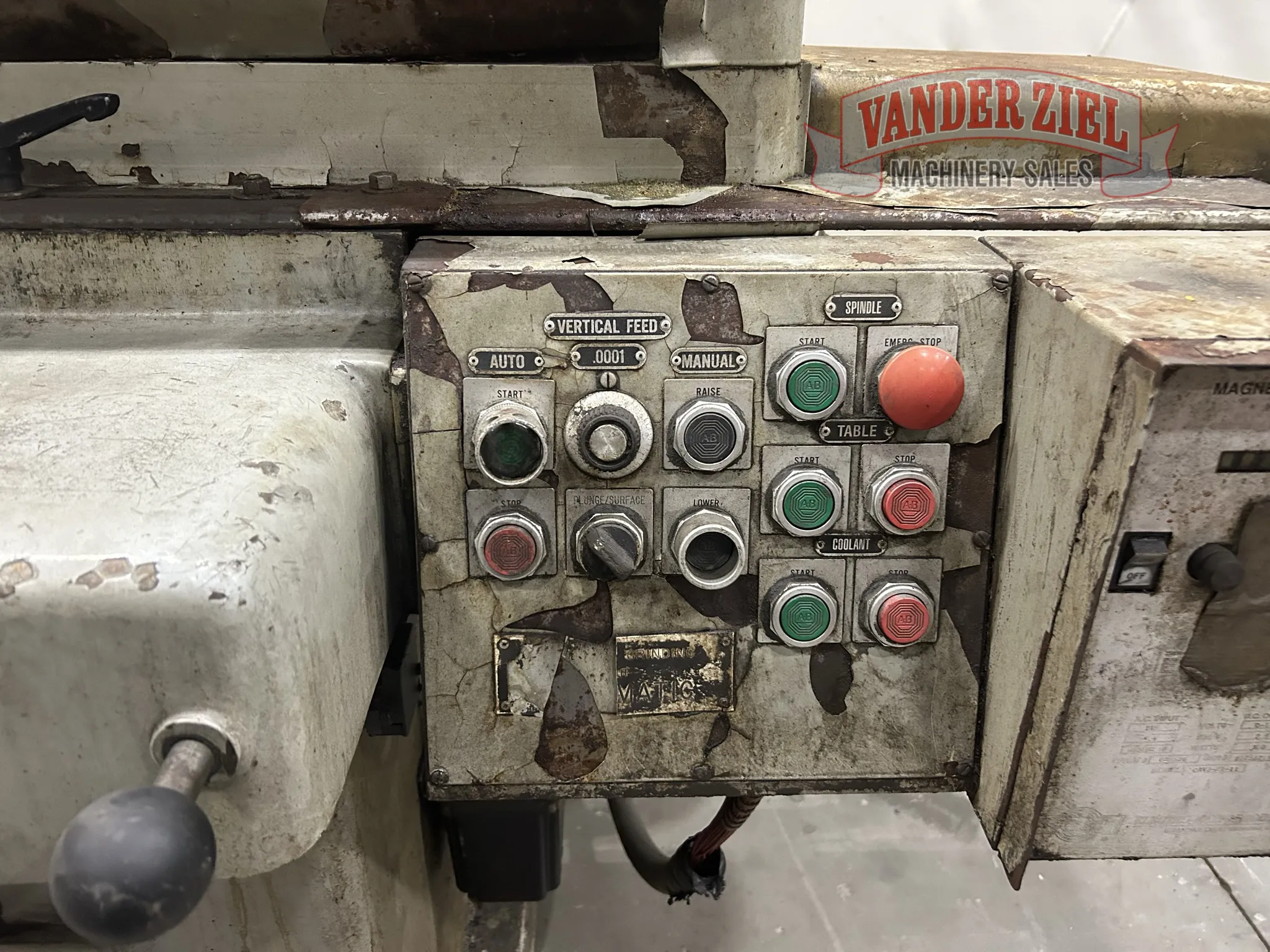

Grinder is equipped with incremental downfeed and Electromagnetic chuck control.

Preliminary Specifications - Subject to Verification
