Description

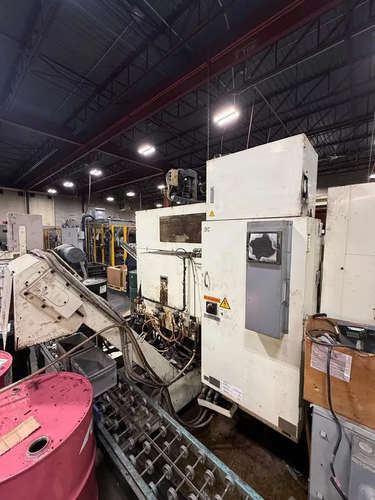

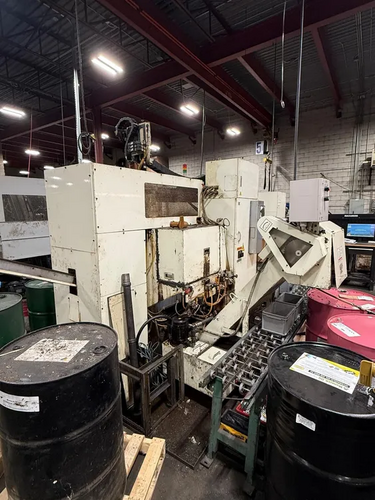

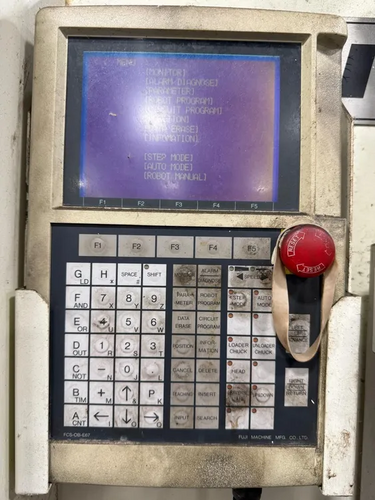

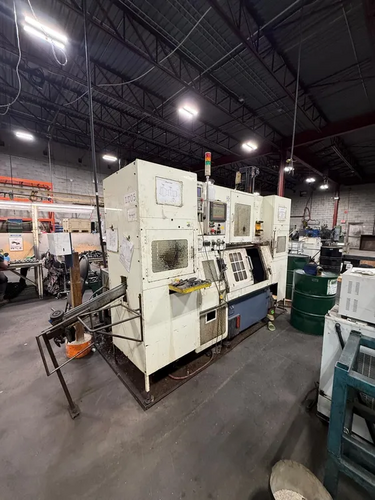

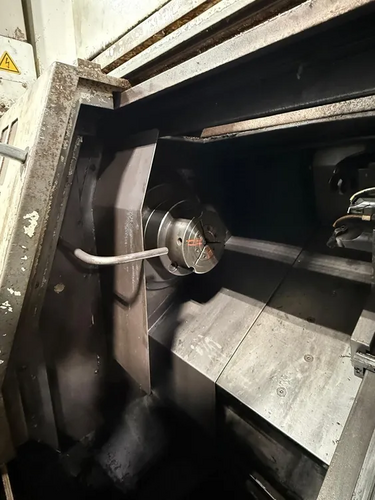

THE FUJI FS4/FS4-3100 CNC LATHE IS A COMPACT, HIGH-PRODUCTIVITY NC SINGLE-PURPOSE MACHINE DESIGNED FOR MASS PRODUCTION OF RING-SHAPED WORKPIECES. THIS GANG-STYLE CNC LATHE FEATURES A HIGH-POWER SPINDLE MOTOR, GANG-TOOL TOOLING TO REDUCE NON-CUTTING TIME AND INCREASE RIGIDITY, AND A HIGH-SPEED L35-08H ROBOT LOADER WHICH ALLOWS FOR NON-STOP LOADING AND UNLOADING IN APPROXIMATELY 2.5 SECONDS. KEY SPECIFICATIONS INCLUDE A RECOMMENDED WORK SIZE OF Ø100 X 60 MM (Ø4 X 2.3 INCH), A MAXIMUM SPINDLE SPEED OF 4000 RPM, AND A SPINDLE MOTOR OUTPUT OF 7.5/11 KW (10/15 HP). IT HAS AN 8-INCH CHUCK SIZE, A2-6 SPINDLE NOSE, AND A SPINDLE BORE OF Ø56 MM (2.2 INCH). THE MACHINE UTILIZES A FANUC 21I-TB CNC CONTROL. SLIDE STROKES ARE 300 MM (11.81 INCHES) FOR THE X-AXIS AND 270 MM (10.63 INCHES) FOR THE Z-AXIS. THE TOTAL MACHINE SIZE IS APPROXIMATELY 1100 MM X 1675 MM (3'7" X 5'6") AND THE MACHINE WEIGHT IS AROUND 2500 KG (5500 LBS).
CNC Lathe, used, featuring a 20 max swing, 16 turning diameter, and 30 distance between centers. Includes 8 chuck, 10 HP spindle, and 4-position tool holder with low hours., Max Swing: 20, Turning Diameter: 16, Distance Between Centers: 30, Chuck Size:8, Spindle HP: 10 HP.
THE MAZAK DUAL TURN 20 IS A 1995 CNC LATHE CONTROLLED BY A MAZATROL T-PLUS SYSTEM. IT S A MAXIMUM TURNING DIAMETER OF 12.6 INCHES AND A MACHINING LENGTH OF 49.21 INCHES. THE MACHINE IS AN 8-INCH CHUCK AND CAPABLE OF HANDLING BAR STOCK UP TO 2 INCHES IN DIAMETER. THE MAIN SPINDLE IS DRIVEN BY A 20 HORSEPOWER MOTOR ...more
Lightly Used. Boway Build. Edge Barfeed., The Samsung SL20 CNC Lathe (2013) with Fanuc Series Oi-TD control is a reliable heavy-duty industrial turning machine designed for high-precision cylindrical part production. It efficiently machines steel, aluminum, and alloy materials for automotive, aerospace, and ...more
2022 DMG Mori NLX2500SY/700, machine, Swing over Bed: 36.2″, Swing over cross slide: 29.2″, Max Turning Diameter: 14.4″, Max Turning Length: 27.7″, Bar Capacity: 3.15″, Main Spindle Speed: 4,000 RPM, Main Spindle Nose: A2-8, Main Spindle Bore: 3.58″, Sub Spindle Speed: 5,000 RPM ...more
