Fristam #20-53, 316 Stainless Steel, in-line, integrated mixing system, 15 HP, conical dry product hopper with safety grid & lift off cover

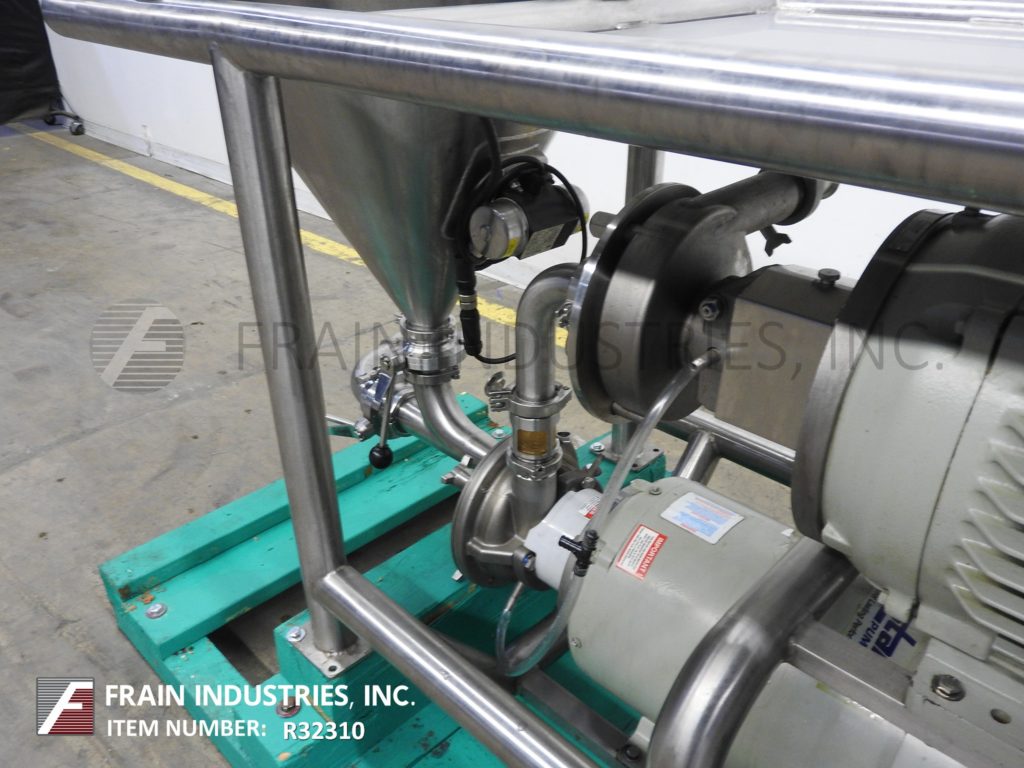

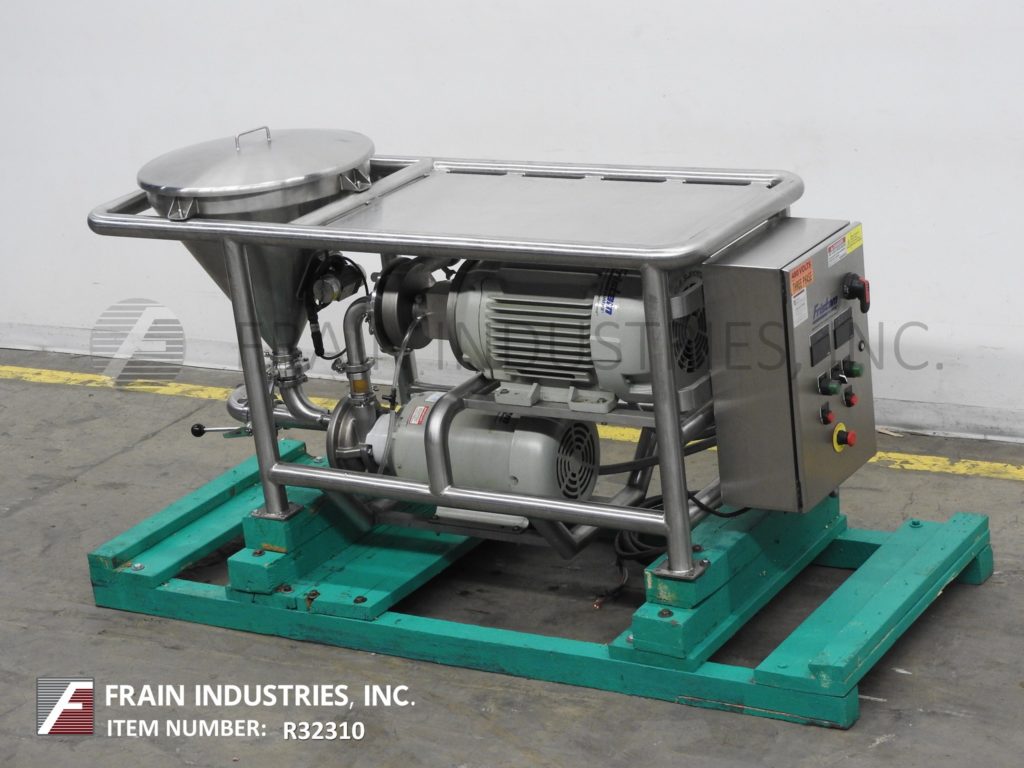

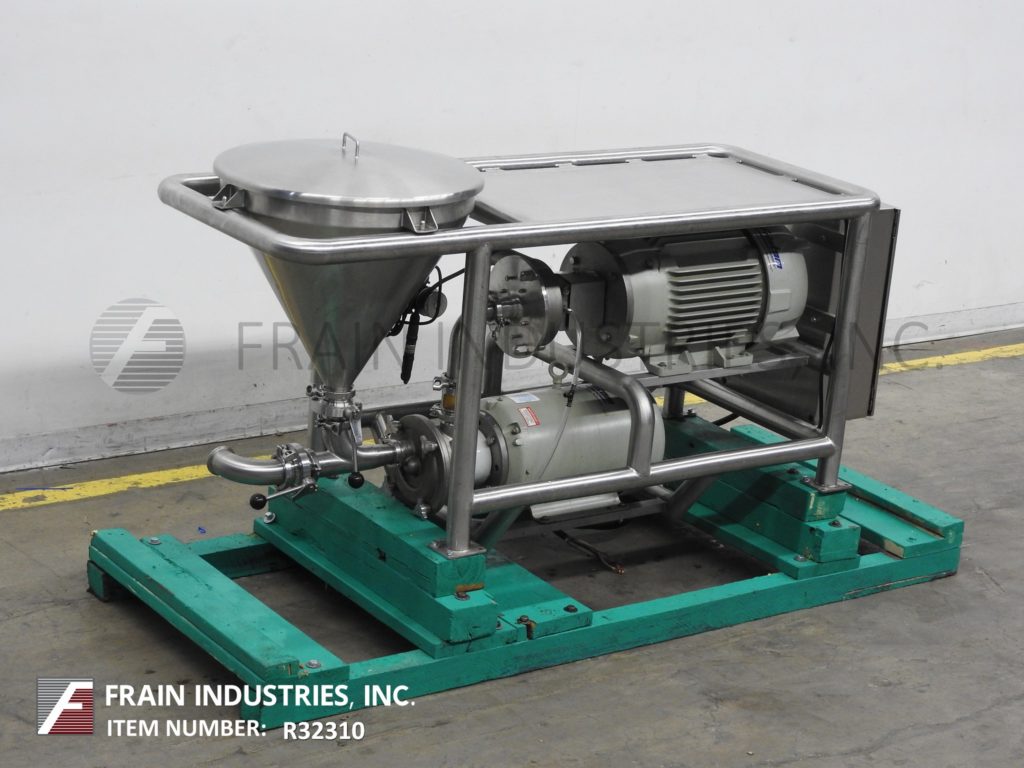

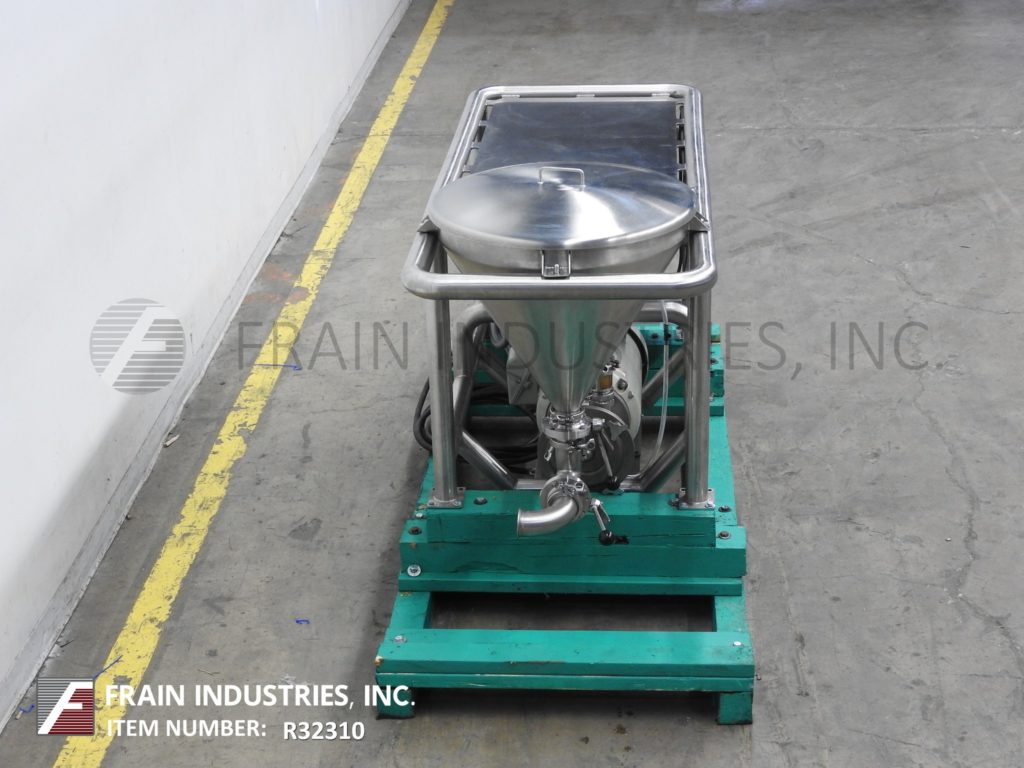

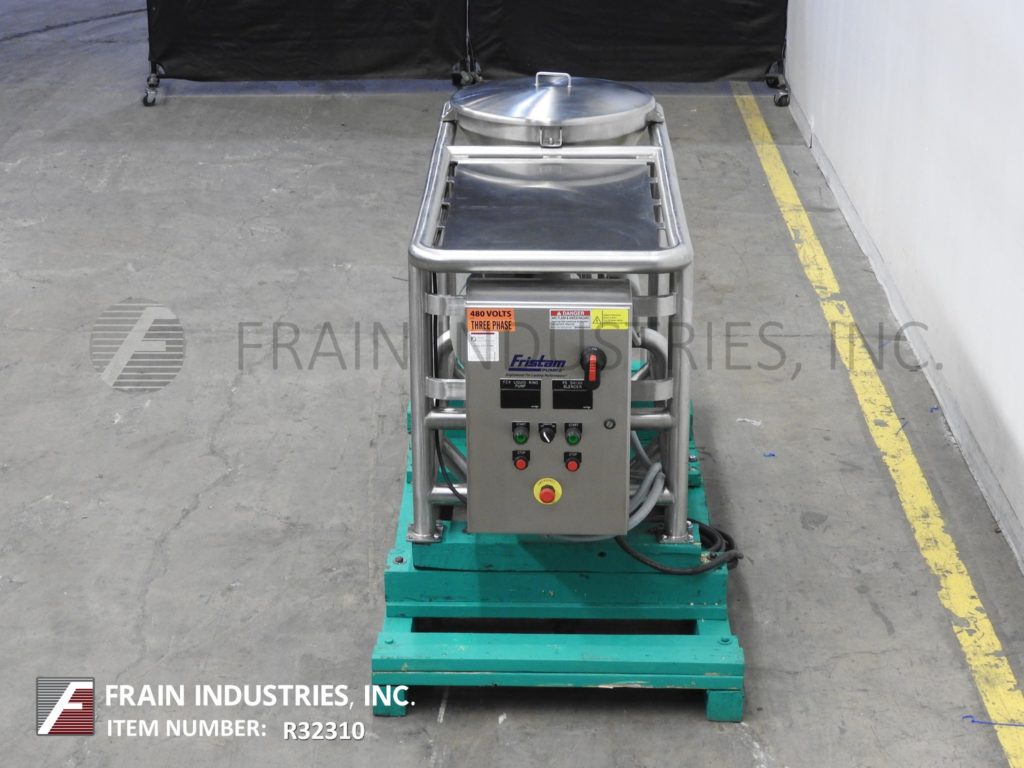

Fristam Model 20-53, 316 stainless steel, in-line, integrated mixing system, incorporates Model FZX-2200 liquid ring pump with Model FS-3532 high shear mixer / emulsifier. Equipped with 23-1/2" OD x 24" long stainless steel conical dry product hopper with safety grid and lift off cover. Fristam Model FZX-2200 liquid ring pump has 10" OD / 8" ID front plate with 8" OD impeller and front 2-1/2" OD liquid product in feed port with 15 Hp motor drive. Model FS-3532 high shear mixer has 7" OD rotor / stator mixing head with 25 Hp motor drive, both and sanitary 2-1/2" OD sanitary ports. Control panel has FZX / FS pump and blender start, stop, e-stop push buttons, main machine / vibrator on / off switches. Mounted on (4) leg stainless steel frame. Rated from 55 to 120 liquid gallons and 23 to 225 pounds of dry product per minute – depending on materials and application

OAD: 78" L x 31" W x 46" H
