Frank Bacon #ITS-10000H-ST, Vibration Test System, 22000 lbf (100 kN)

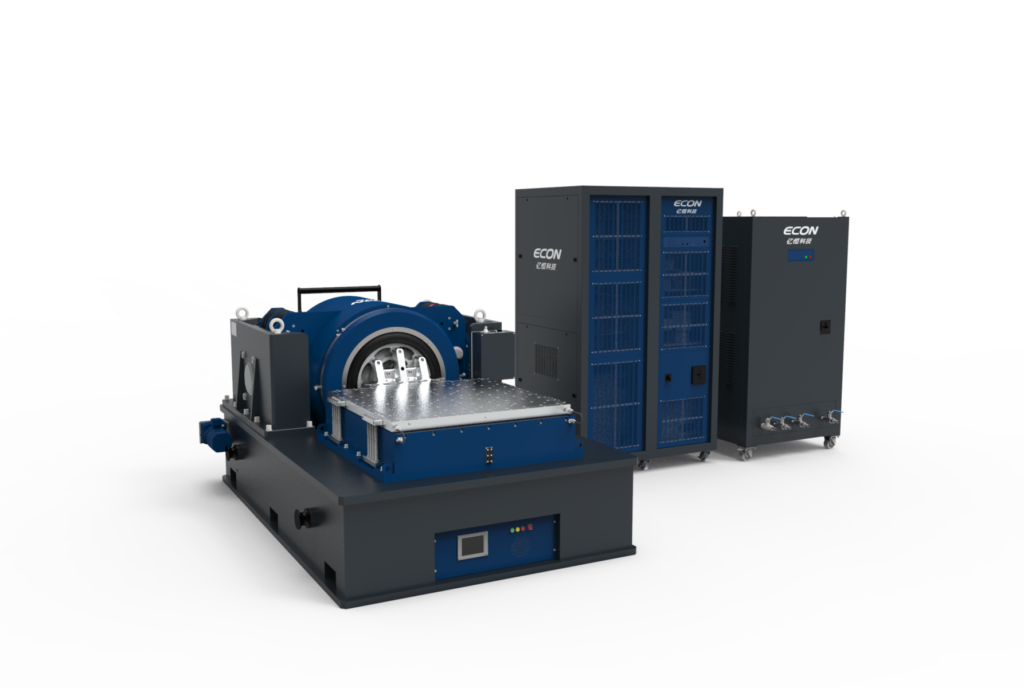

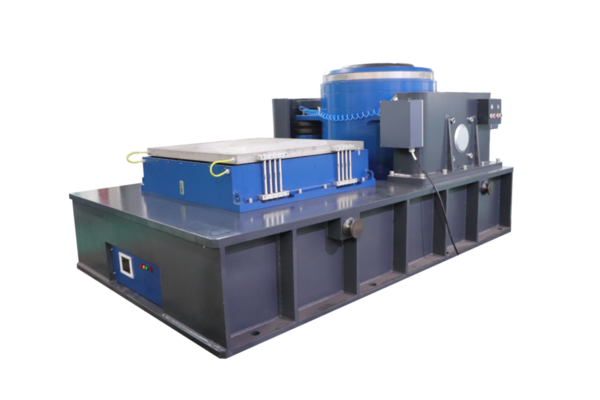

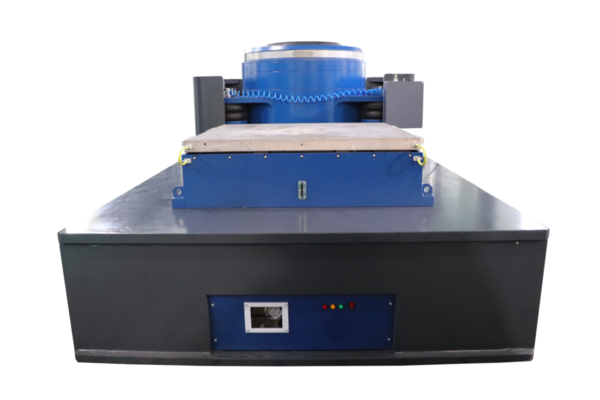

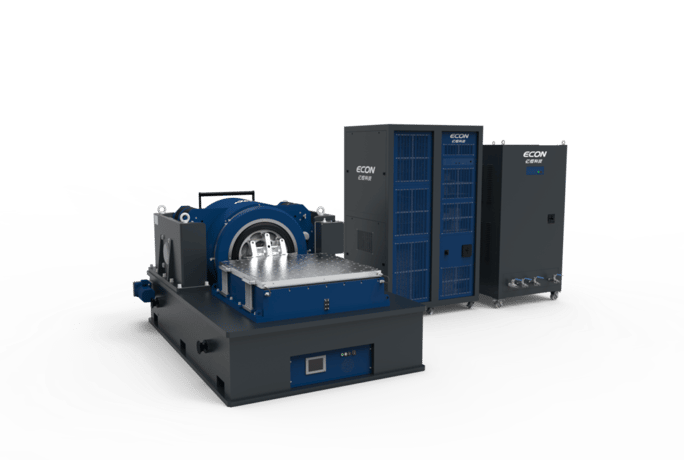

New ITS-10000H-ST Vibration System with Slip Table

SPECIFICATIONS:

Sine Force Rating: 22,000 lbf (100 kN)
Random Force Rating: 22,000 lbf (100 kN)
Shock Peak Force Rating: 44,000 lbf (200 kN)
Peak to Peak Displacement: 76 mm (3.00”)
Frequency Range (Hz): 5 – 2,000 Max
Armature Diameter: 480 mm (18.89”)
Armature Mass (lbs.): 85 kg (187.4 lbs.)
Sine Peak Acceleration (Bare Table): 981 m/s^2 (100 g) Max Payload: 1200 kg (2,645 lbs.)
Voltage Requirements (V, Hz, Ph): 480, 60, 3
Utility Requirements: 87 PSI Compressed Air, Water Supply Weight (Unpacked): 17,196 lbs.
Dimensions (Unpacked): 102.4 "L x 63"W x 52.4"H

EQUIPPED WITH:

• ST-1500SM: 1500 mm x 1500 mm Magnesium Slip Table System with Base (Weight: 704 lbs) Frequency Limit: 2,000 Hz Sine

• HE-1200SM: 1200 mm x 1200 mm Magnesium Head Expander (Weight: 475 lbs) Frequency Limit: 1,000 Hz Sine

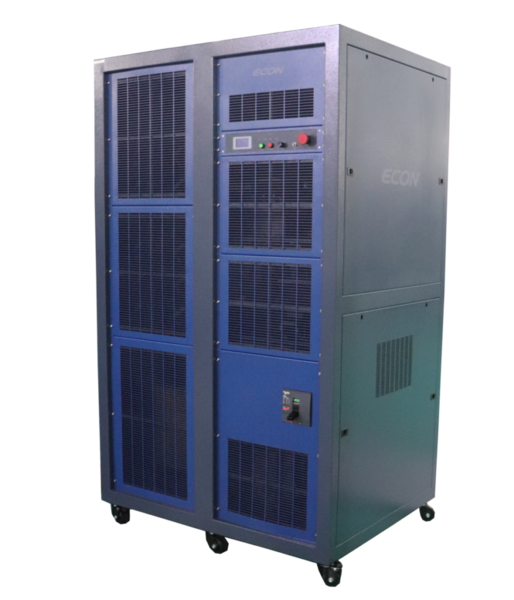

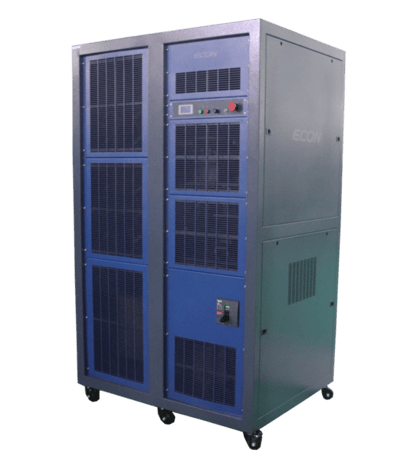

• VSA-H124A: 120 kVA Air Cooled Power Amplifier

• CU-1 Water Cooling Unit: 300L/min, Pressure .25 to .4MPa Power Supply Requirements 8kVA

• Water Re-Circulating Chiller (Facility Water Required: Chiller or Cooling Tower)

• Signal Input for Closed-Loop Control (Vibration Controller Required)
