Forsberg #16HA, belt driven industrial fan, 16" inlet & outlet, 15 HP Baldor, 230/460 V., 3 PH

Forsberg 16 HA Industrial Fan / Blower

Manufacturer: Forsberg / Forsbergs Inc.
Model: 16 HA
Equipment Type: Industrial Fan / Blower
Inlet Size: 16"
Outlet Size: 16"
Fan Wheel Diameter: Approx. 29-5/8"
Drive Type: Belt Driven
Maximum Fan Speed: 2,000 RPM

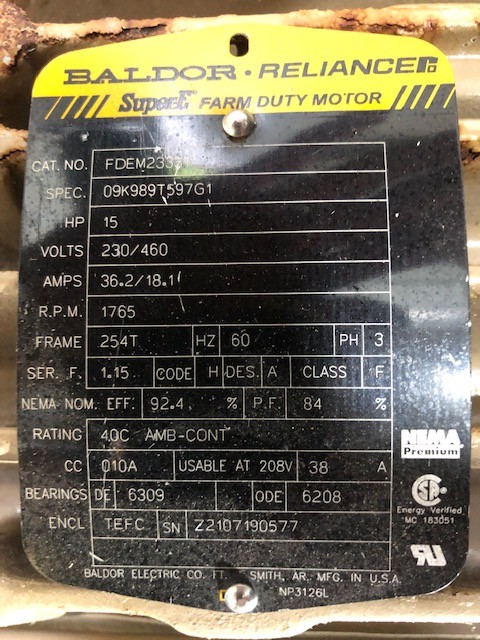

Motor Manufacturer: Baldor Reliance
Motor Series: Super-E Farm Duty
Motor Horsepower: 15 HP
Motor Voltage: 230/460 V
Motor Phase: 3 Phase
Frequency: 60 Hz
Motor Speed: 1765 RPM
Motor Frame: 254T
Motor Enclosure: TEFC
Motor Amps: 36.2 / 18.1 A
Service Factor: 1.15
Insulation Class: F
NEMA Nominal Efficiency: 92.4%
Power Factor: 84%
Equipment Location: Somerset, Wisconsin
Condition: Additional condition information available upon request

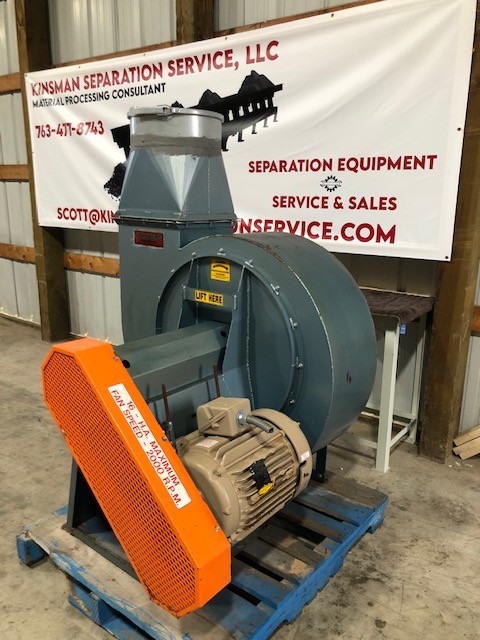

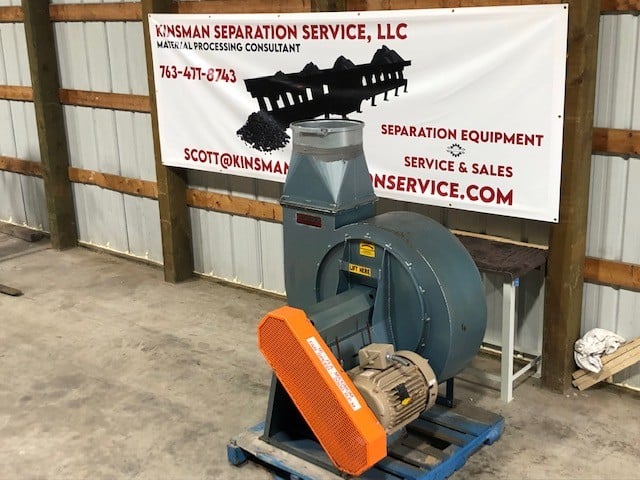

Forsberg 16 HA belt-driven industrial fan available from Kinsman Separation Service. Unit features a 16" inlet and 16" outlet and is powered by a 15 HP Baldor Reliance Super-E Farm Duty motor rated for 230/460V, 3 phase, 60 Hz power.

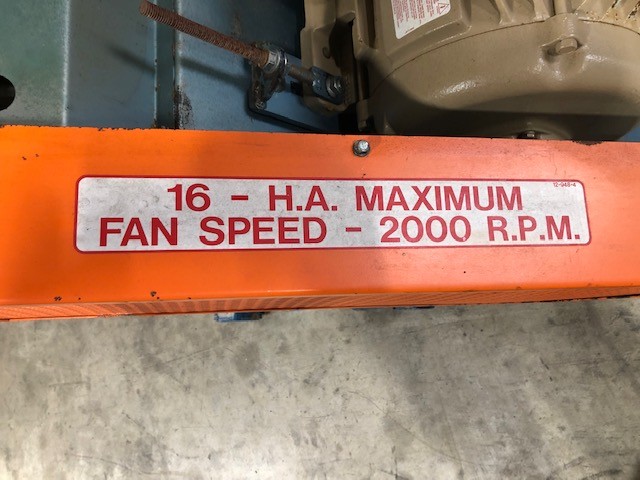

The motor is rated at 1765 RPM. The Forsberg fan guard identifies a maximum fan speed of 2,000 RPM. Because this is a belt-driven unit, motor speed should not be interpreted as actual fan-wheel speed.

Airflow and static-pressure performance depend on fan speed, pulley configuration, system resistance and the specific application. Contact Kinsman Separation Service to discuss application requirements or for additional technical information.

Current operating status, previous application, fan rotation, overall dimensions, shipping weight and any available airflow documentation can be provided or added as verified.
