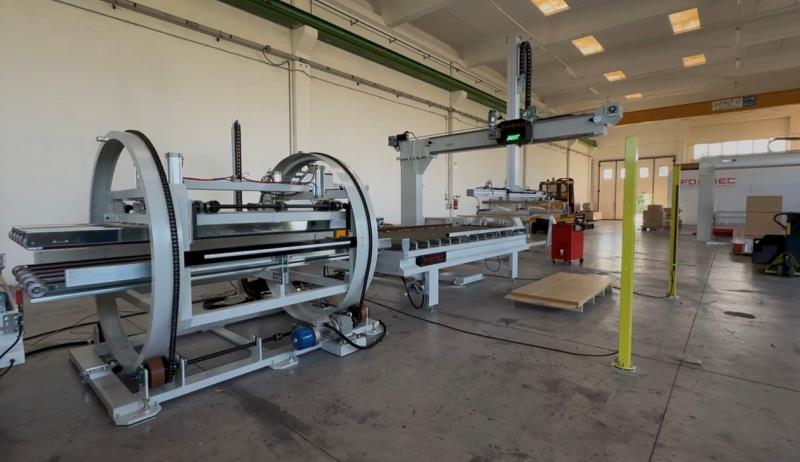

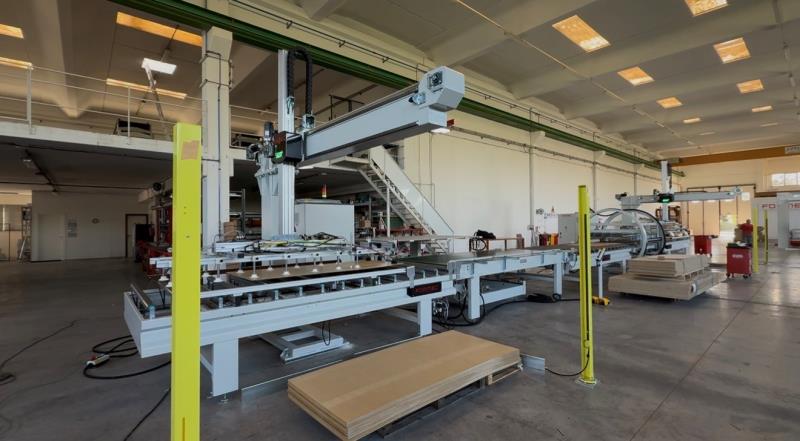

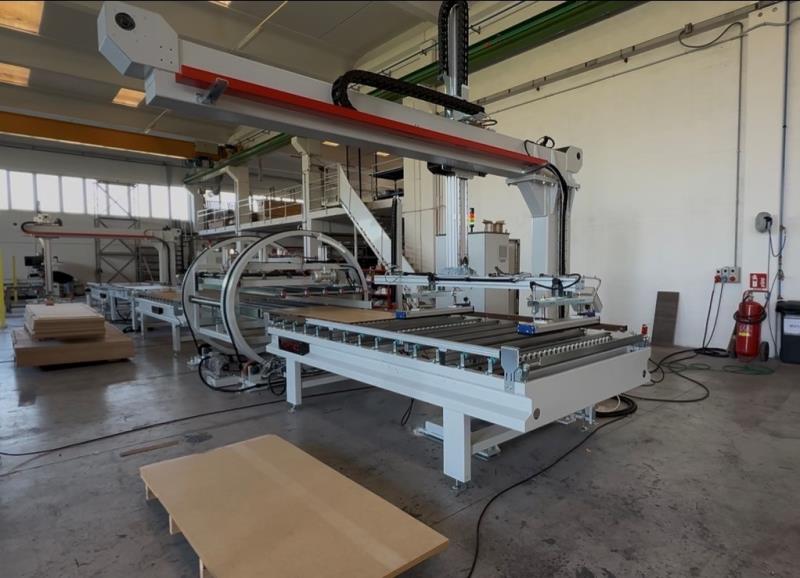

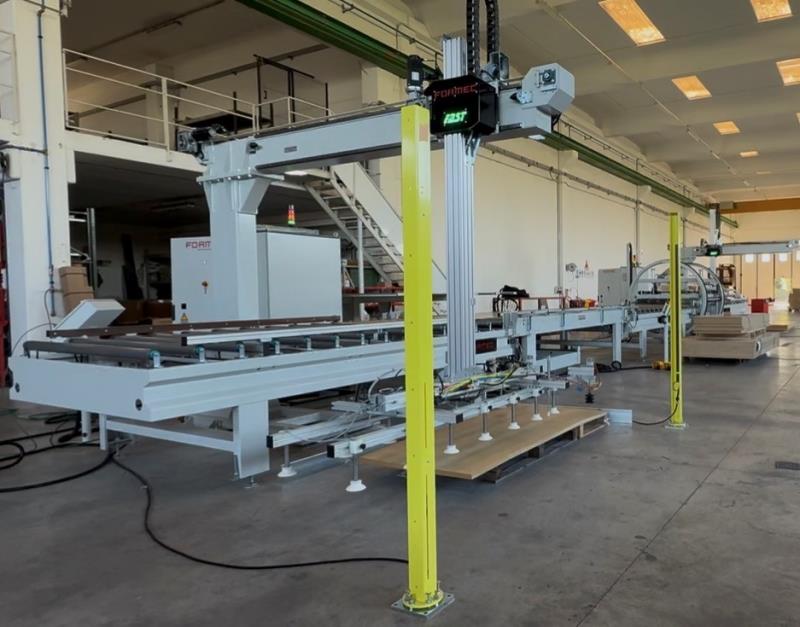

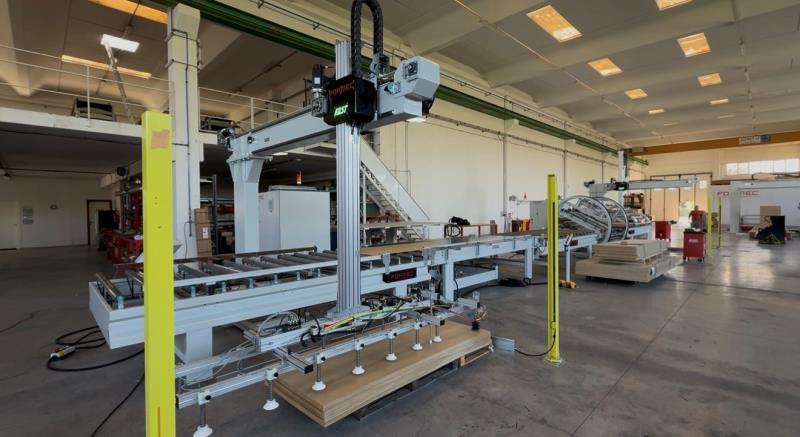

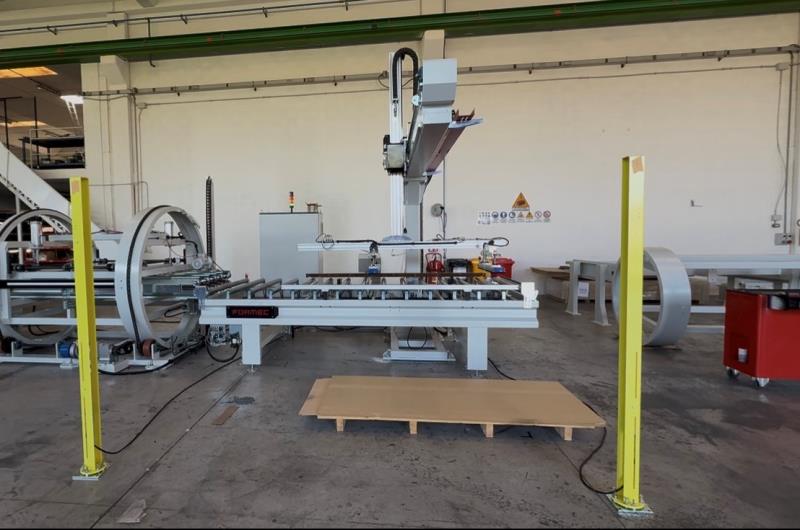

Formec #Fast, panel feeder / stacker, 118" x 51" x 2" max. panel, 47-1/4" stack height, 65 FPM, 157" roller conveyor, 2026, new

Estimated monthly payment valid upon approved credit.

Request Formal Quote

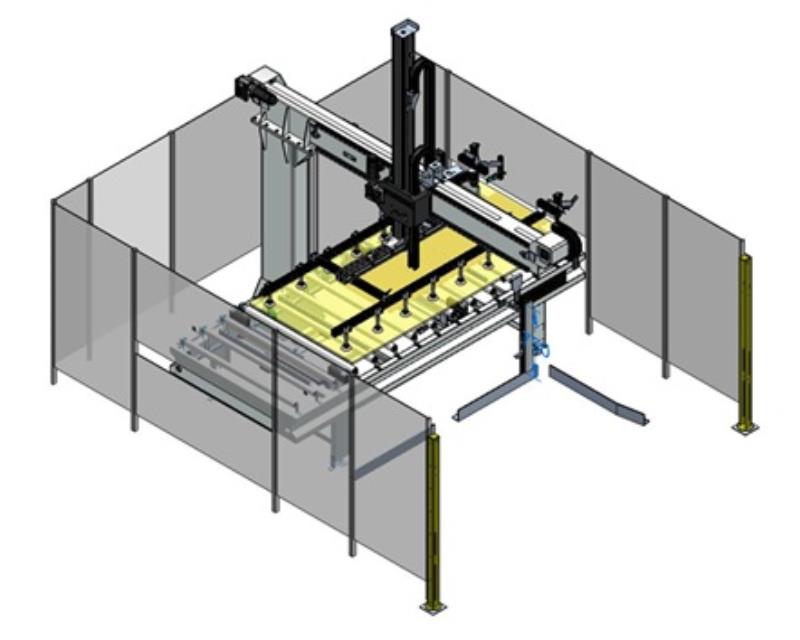

LOADING / UNLOADING SYSTEM WITH MONO-COLUMN LOADER The machine structure consists of a vertical column on which a horizontal beam is fixed. The carriage that carries the gripping devices slides on ball recirculation guides, driven by a toothed belt powered by a brushless motor. The vertical axis of the carriage is equipped with an aluminum column with a pair of ball recirculation guides; the movement is provided by a brushless motor.The gripping device consists of a double row of suction cups whose vacuum is generated using coax® technology, an advanced solution for creating a vacuum using compressed air, capable of providing a suction flow three times higher than conventional systems, allowing higher speed with high reliability while reducing energy consumption. “Self-excluding"; suction cups to grip only upon contact with the material to be lifted. Panel separating system with vibrating vacuum cups, holding bar pneumatically operated. Panel separating system with (2) independent vacuum cups operated by (2) pneumatic cylinders to lift the board on one side, manual frame opening adjustment according to the different panel widthsThe loader deposits the panel onto the transfer at the entrance of the machine to be fed. The running is achieved through inclined motorized rollers coated with PVC that "push" the panel toward a lateral stop, ensuring the panel is positioned at the zero point of the processing machine. The structure is made of press-bent and electro-welded sheet metal, equipped with height-adjustable telescopic legs for greater stability and adaptability.The roller's speed is controlled by an inverter. The machine includes a light curtain for safety as well as fencing around the machine. --A Separated Electrical Cabinet with a 10" touch screen control panel as well as tele-service through an internet connection.Technical SpecificationsLine Speed 10-20 MPM (33- 65 FPM)Maximum Cycles Per Minute 4-5Maximum Panel SizeLength: 3000 mm (118") Width: 1300 mm (51")Thickness: 50 mm (2")Minimum Panel SizeLength: 300 mm (11.8")Width: 250 mm (9.8")Thickness: 10 mm (0.39")Stack HeightMaximum Height 1200 mm (47 1/4") + PalletRoller ConveyorLength 4,000 mm (157")Working Width 1300 (51")Roller Conveyor Speed 10 -40 MPM (33 - 131 FPM)
