Flottweg #Z23-3/441, Solid Bowl Tricanter Centrifuge, 6000 RPM, Three-Phase Separator, Siemens Control, 2004

Overview

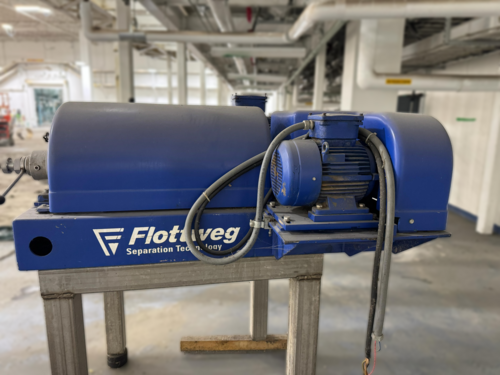

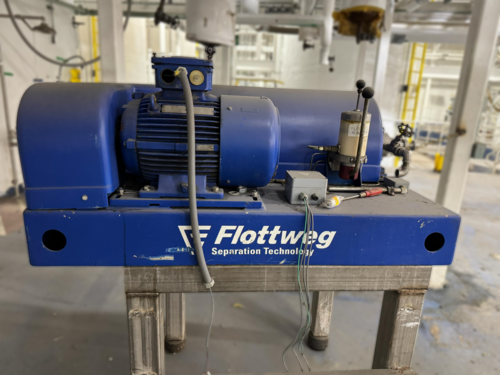

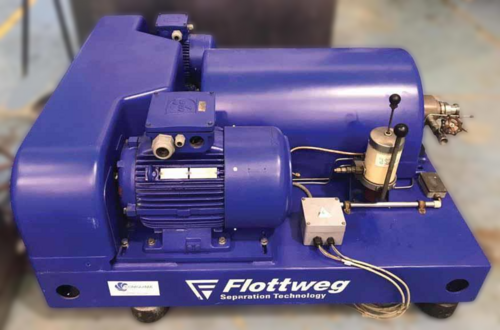

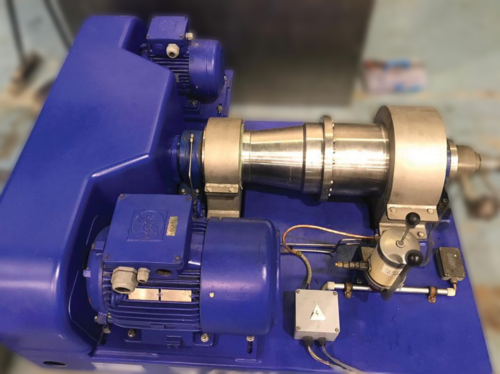

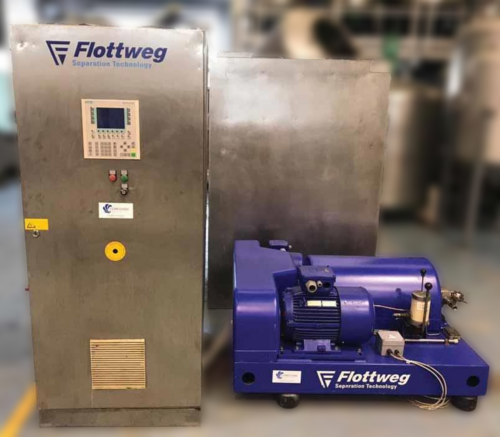

This Flottweg Z23-3/441 industrial solid bowl tricanter centrifuge was manufactured in Germany in 2004. This high-speed three-phase separation system features a horizontal design with stainless steel construction on product contact areas, maximum bowl speed of 6000 RPM, and sediment density capacity of 2.4 kg/dm³. The complete system includes an 11 kW main drive motor, 2 kW back drive motor, adjustable skimmer assembly, gearbox, grease pump, and Siemens digital control panel, all mounted on a stainless steel frame.
Design and Performance
Model Specifications:
- Type: Z23-3/441 (Three-Phase Solid Bowl Tricanter)

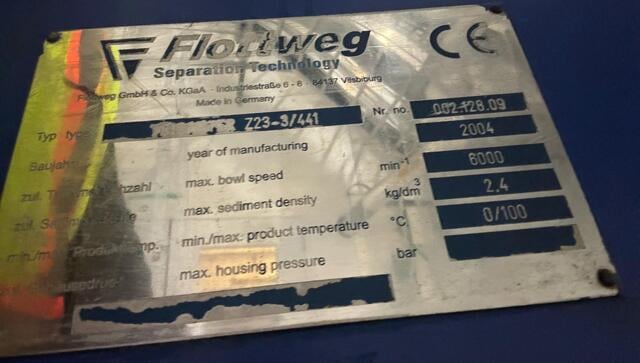

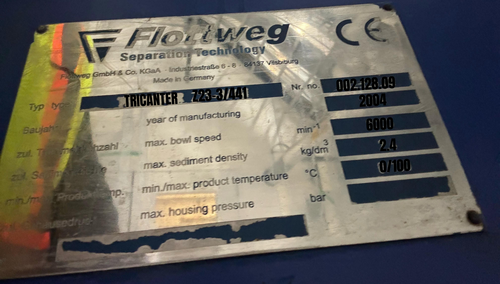

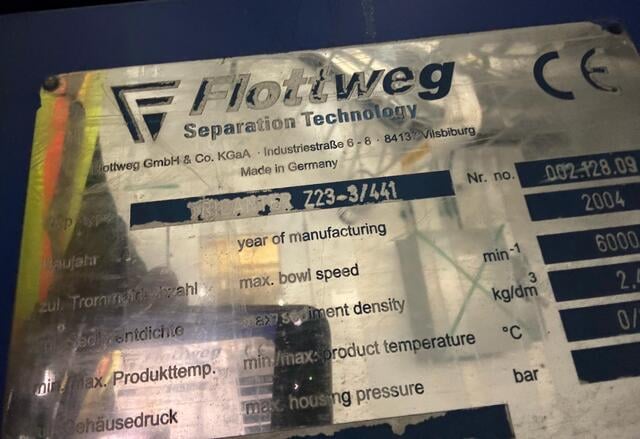

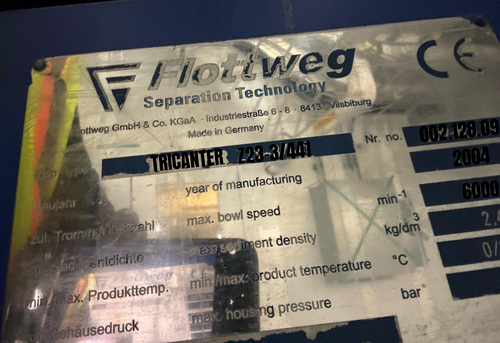

- Nr. no.: 062.428.09
- Year of Manufacturing: 2004
- Manufacturer: Flottweg GmbH & Co. KGaA
- Location: Industriestrae 6-8, 84137 Vilsbiburg, Germany
- Made in Germany
- CE Certified
Performance Specifications:
- Max. Bowl Speed: 6000 RPM (min¹)
- Max. Sediment Density: 2.4 kg/dm³
- Min./Max. Product Temperature: 0/100 °C
- Separation Type: Three-phase (two liquids + one solid)
Construction:
- Stainless steel construction (product contact areas)
- Blue painted steel housing
- Horizontal solid bowl tricanter configuration

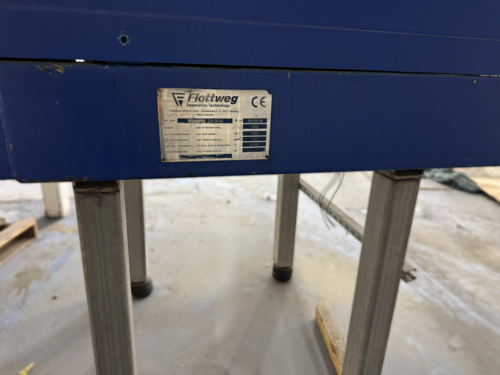

- Stainless steel support frame with adjustable legs
- Integrated electric motors
- Enclosed bowl design
- Multiple discharge ports for three-phase separation
- Access panels
System Components:
- Flottweg Z23-3/441 tricanter centrifuge unit
- 11 kW main drive motor
- 2 kW back drive motor
- Gearbox
- Adjustable skimmer assembly
- Grease pump
- Base and casing
- Siemens control panel with digital display
- Control buttons (red stop, green start, key switch)
- Stainless steel mounting frame with legs
- Process piping connections
- Electrical conduit connections
Control Features:
- Siemens digital control panel
- LCD display screen
- Red emergency stop button
- Green start button
- Key switch selector
- Control interface panel
- Flottweg Separation Technology branding
- Complete electrical controls
Safety Features:
- CE certified design
- Emergency stop functionality
- Enclosed operating components
- Temperature limitations (0-100°C)
- Maximum pressure specifications
Key Specifications
- Condition: Used - 2004 Build
- Brand: Flottweg
- Model: Z23-3/441 Solid Bowl Tricanter
- Serial Number: 062.428.09
- Year Built: 2004
- Equipment Type: Industrial Three-Phase Solid Bowl Tricanter Centrifuge
Operating Specifications:
- Maximum Bowl Speed: 6000 RPM (min¹)
- Maximum Sediment Density: 2.4 kg/dm³
- Operating Temperature Range: 0°C to 100°C
- Separation Capability: Three-phase (two liquids + solids)
- Main Drive Motor: 11 kW
- Back Drive Motor: 2 kW
Physical Dimensions:
- Overall Machine Dimensions: 700mm (H) x 1300mm (W) x 1500mm (D)
- Control Panel Dimensions: 2000mm (H) x 410mm (W) x 800mm (D)
Construction Materials:
- Product Contact Areas: Stainless steel
- External Housing: Blue painted steel
- Support Frame: Stainless steel
Mechanical Components:
- Gearbox: Included
- Adjustable Skimmer Assembly: Included
- Grease Pump: Included
- Base and Casing: Complete
Electrical Specifications:
- Main Drive Motor: 11 kW
- Back Drive Motor: 2 kW
- Control System: Siemens digital controller
- Control Panel: LCD display with pushbutton controls
- Emergency Stop: Red button
Ideal Applications
- Oil and Gas Processing (three-phase separation)
- Biodiesel Production
- Vegetable Oil Processing
- Fish Oil and Marine Oil Processing
- Wastewater Treatment (oil/water/solids)
- Food Processing (oil/water/solids separation)
- Chemical Processing
- Pharmaceutical Manufacturing
- Rendering Operations
- Industrial Sludge Processing with Oil Recovery
- Slaughterhouse Waste Processing
- Fat and Grease Recovery
Benefits
- 2004 German manufacture
- Three-phase separation capability
- Solid bowl design
- Stainless steel product contact areas
- 6000 RPM maximum speed
- 11 kW main drive motor
- 2 kW back drive motor
- Adjustable skimmer assembly
- Complete gearbox and grease pump
- Continuous operation design
- Siemens control system
- CE certified equipment
- Stainless steel frame
- Proven Flottweg technology
- Industrial-grade construction
- Temperature range 0-100°C
- Compact footprint
- Ready for installation
Additional Information
- Condition: Used - 2004 Manufacture
- Manufacturer: Flottweg GmbH & Co. KGaA
- Location: Vilsbiburg, Germany
- Model: Z23-3/441 Solid Bowl Tricanter
- Serial Number: 062.428.09
- Year Built: 2004
- Separation Type: Three-phase (two liquids + one solid)
- Bowl Type: Solid bowl
- Max Bowl Speed: 6000 RPM (min¹)
- Max Sediment Density: 2.4 kg/dm³
- Temperature Range: 0°C to 100°C
- Main Drive Motor: 11 kW
- Back Drive Motor: 2 kW
- Overall Dimensions: 700mm (H) x 1300mm (W) x 1500mm (D)
- Panel Dimensions: 2000mm (H) x 410mm (W) x 800mm (D)
- Product Contact Material: Stainless steel
- Configuration: Horizontal tricanter centrifuge
- Includes: Base, casing, adjustable skimmer assembly, gearbox, grease pump
- Control System: Siemens digital panel
- Finish: Blue painted steel (external)
- Frame: Stainless steel with adjustable legs
- Certification: CE marked
- Made In: Germany
Location: Ohio
