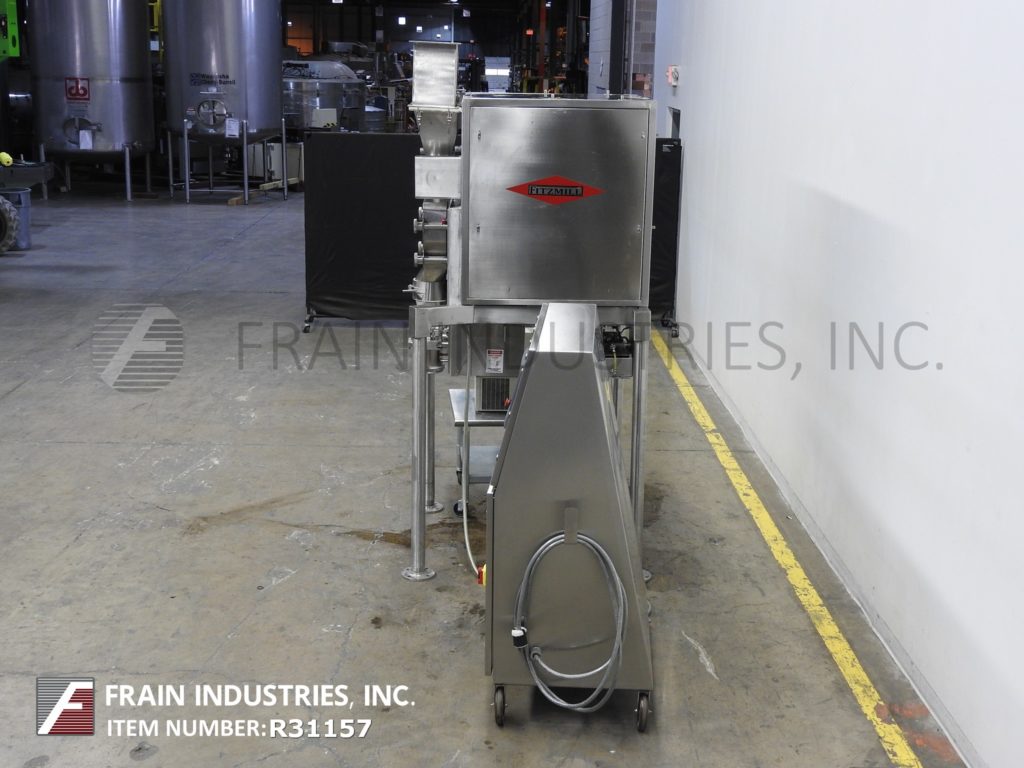

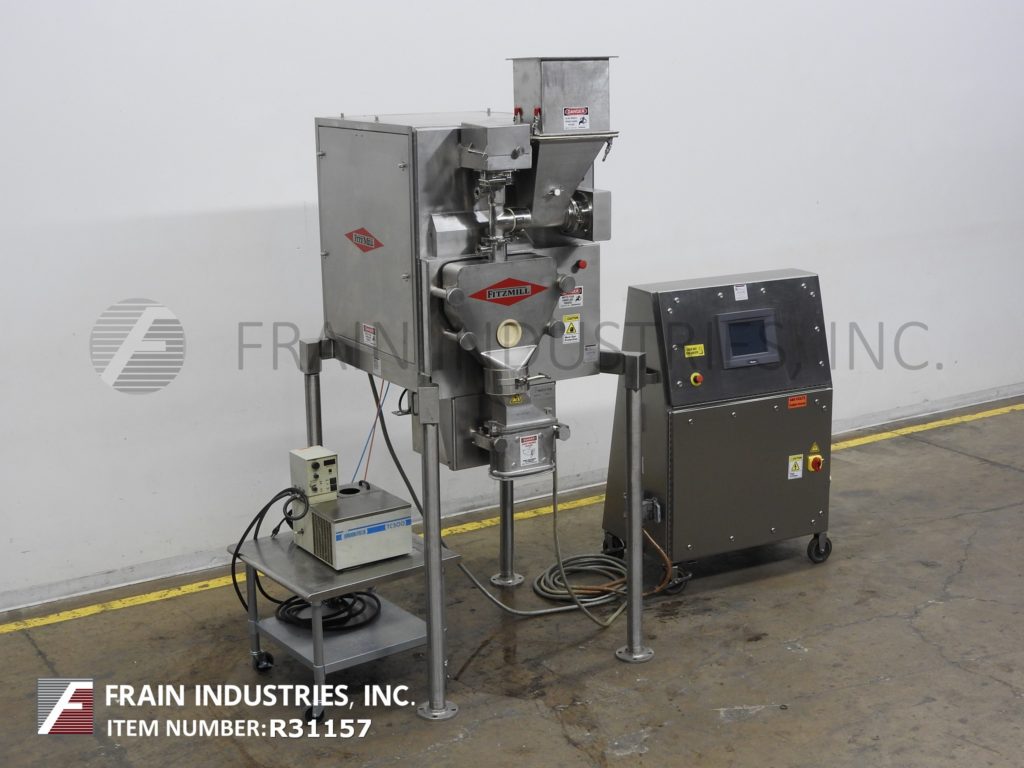

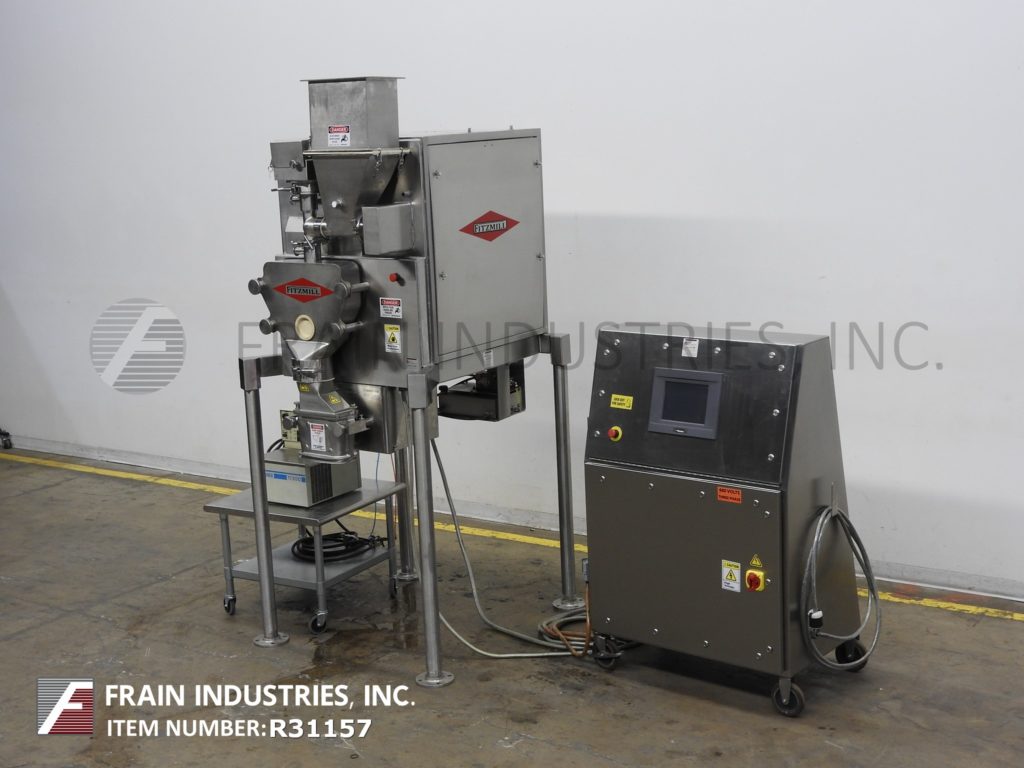

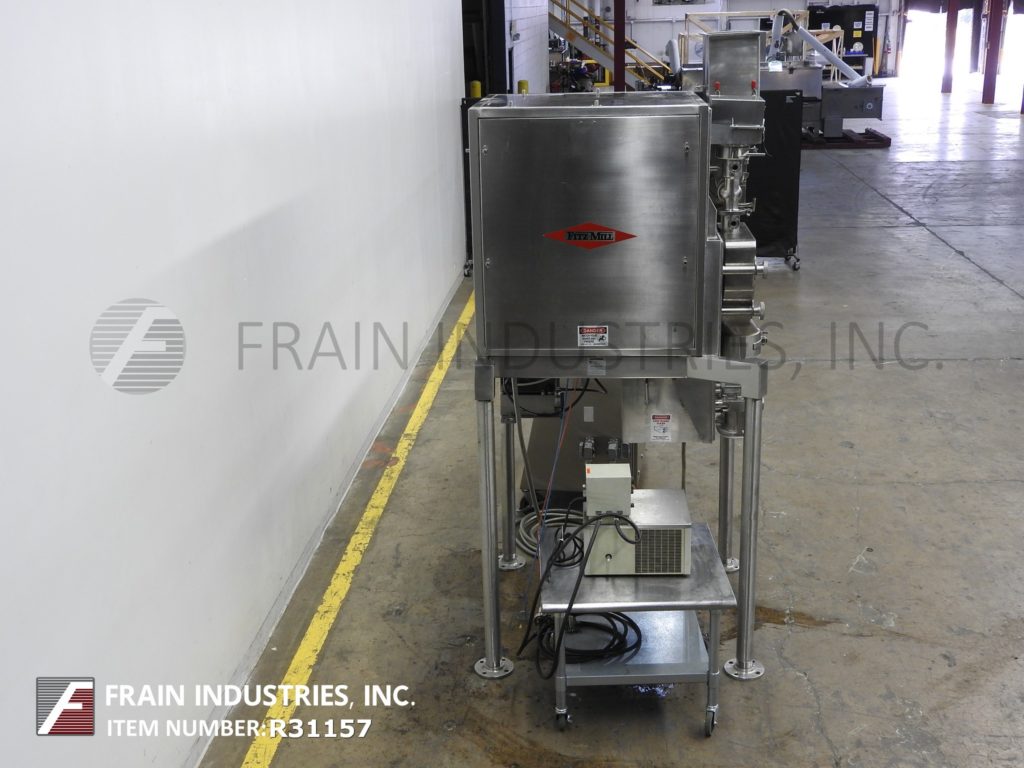

Fitzpatrick #IR520, 316 Stainless Steel, compact roller compactor chilsonator with onboard Stainless Steel Fitzmill M5A hammermill

Manufacturer Fitzpatrick
Model IR520
Stock # R31157

For Sale by Frain Industries

Platinum Level Dealer
Surplus Record Dealer Since 1991

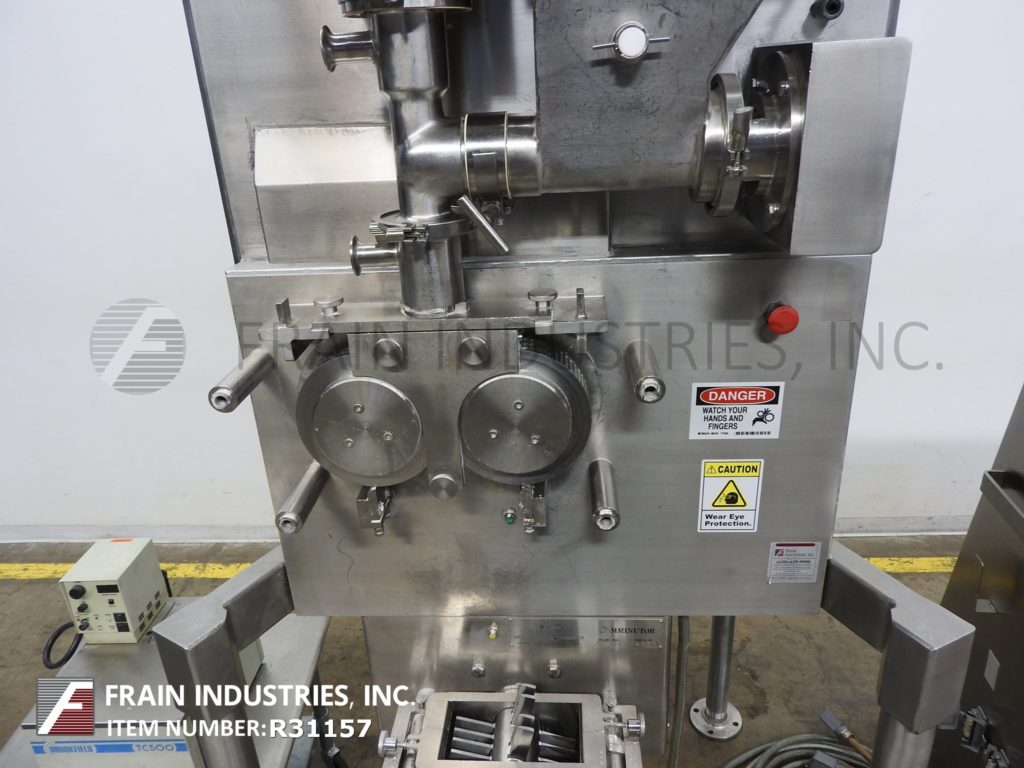

Fitzpatrick Model IR520, 316 stainless steel, roller compactor, chilsonator with onboard stainless steel Fitzmill Model M5A hammer mill rated up to 220 lbs of product per hour – depending on materials, application, machine configuration and environment. Equipped with (2) screw feed design and has 13" long x 8" wide x 12" deep ID stainless steel product hopper with rotary product feeder, 3" OD horizontal screw that eliminates vacuum dearation to 2" vertical pre-compression screw that compresses product for more uniformity prior to feeding into the 2" x 8" groved product compaction rollers with roller force of 26.3 KN/CM and roller gaps of 1mm to 6mm, powered by 5 Hp motor drive with onboard stainless steel Fitzmill Model M5A hammer mill with (16) fixed stainless steel blades and 6" OD product discharge with 49” floor clearance. Remote control panel has A/B PLC with Parker panelview touch pad controller and Brookfield TC-500 refrigerated circulating bath both with casters. Chilsonator mounted on (4) stainless steel legs.

OAD: 55" L x 48" W x 107" H Chilsonator
42" L x 28" W x 63" H Control Panel
