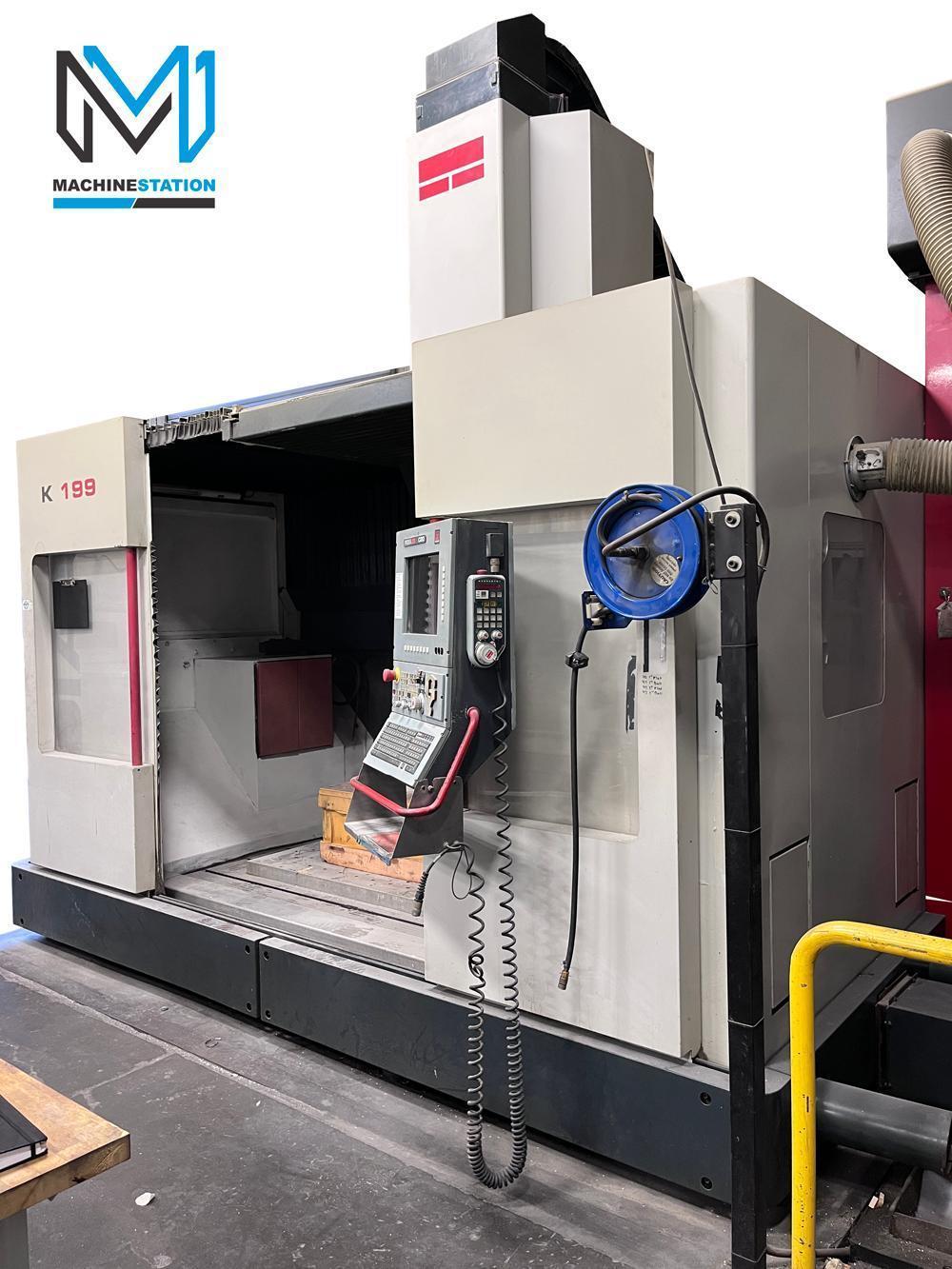

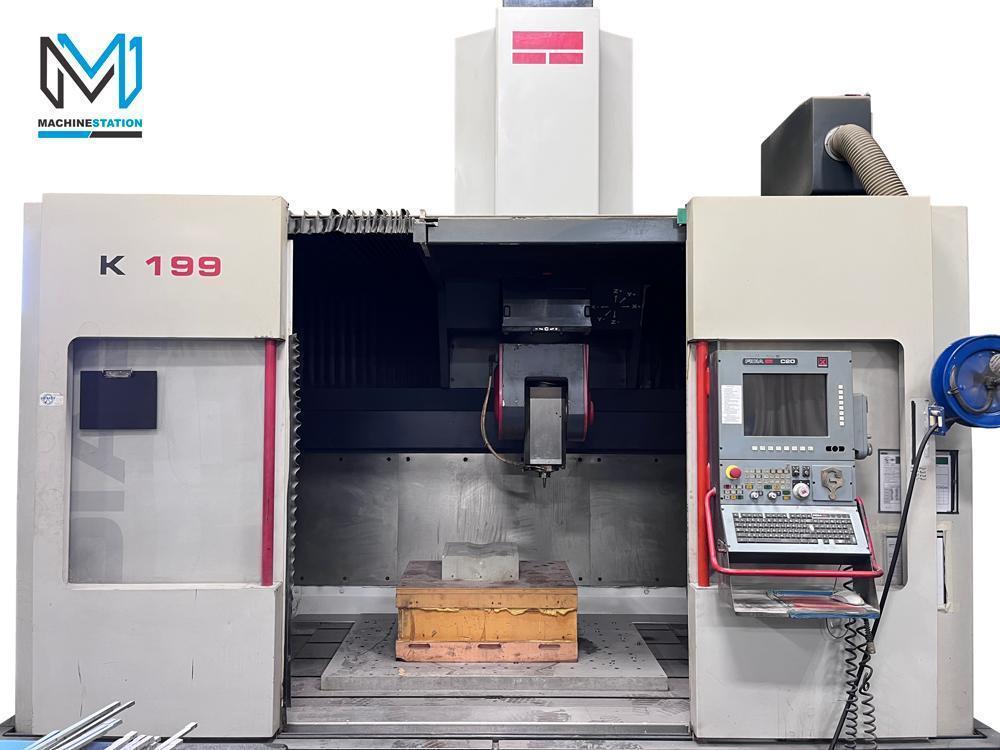

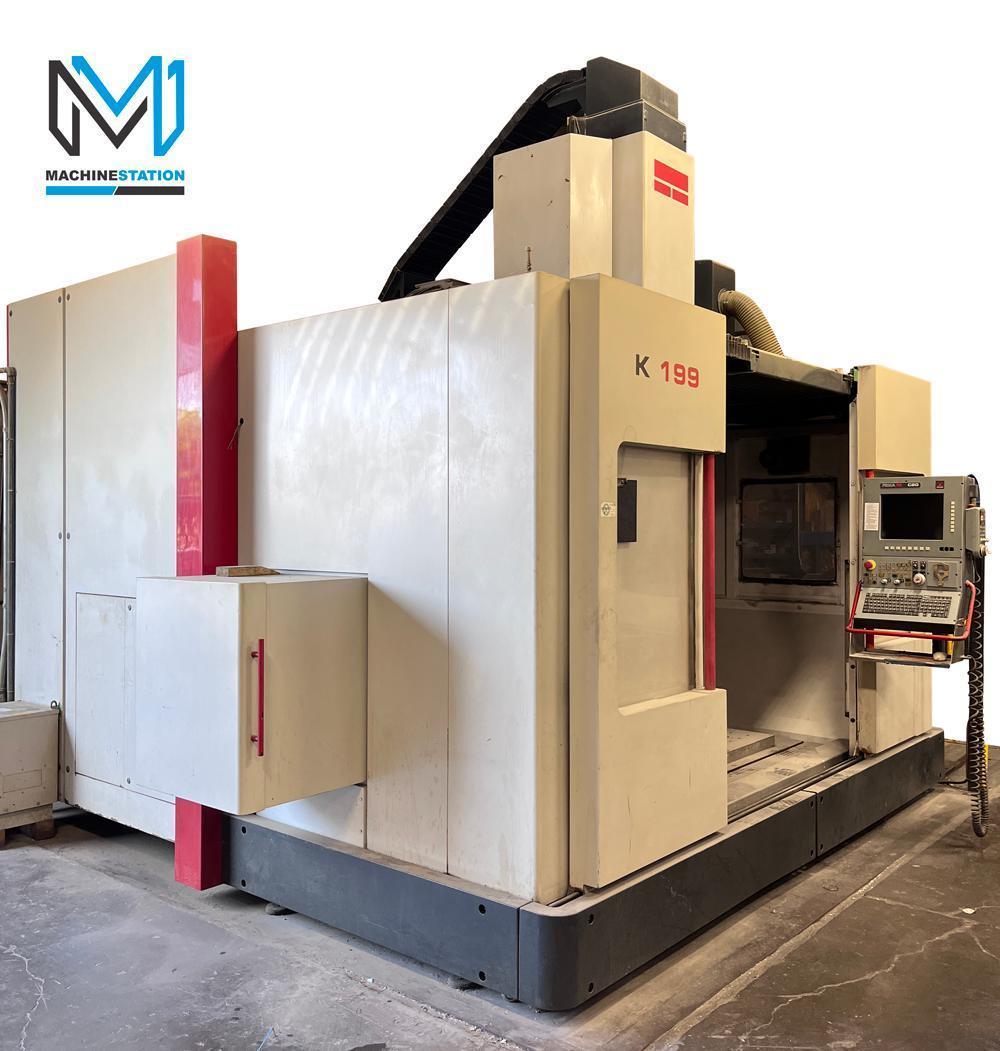

Fidia #K199-5, CNC vertical machining center, 24 automatic tool changer, 71" X, 36" Y, 33" Z, 24000 RPM, HSK 63A, 46 HP, C-20, 79" x49" tbl., thru spindle coolant, 2006

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

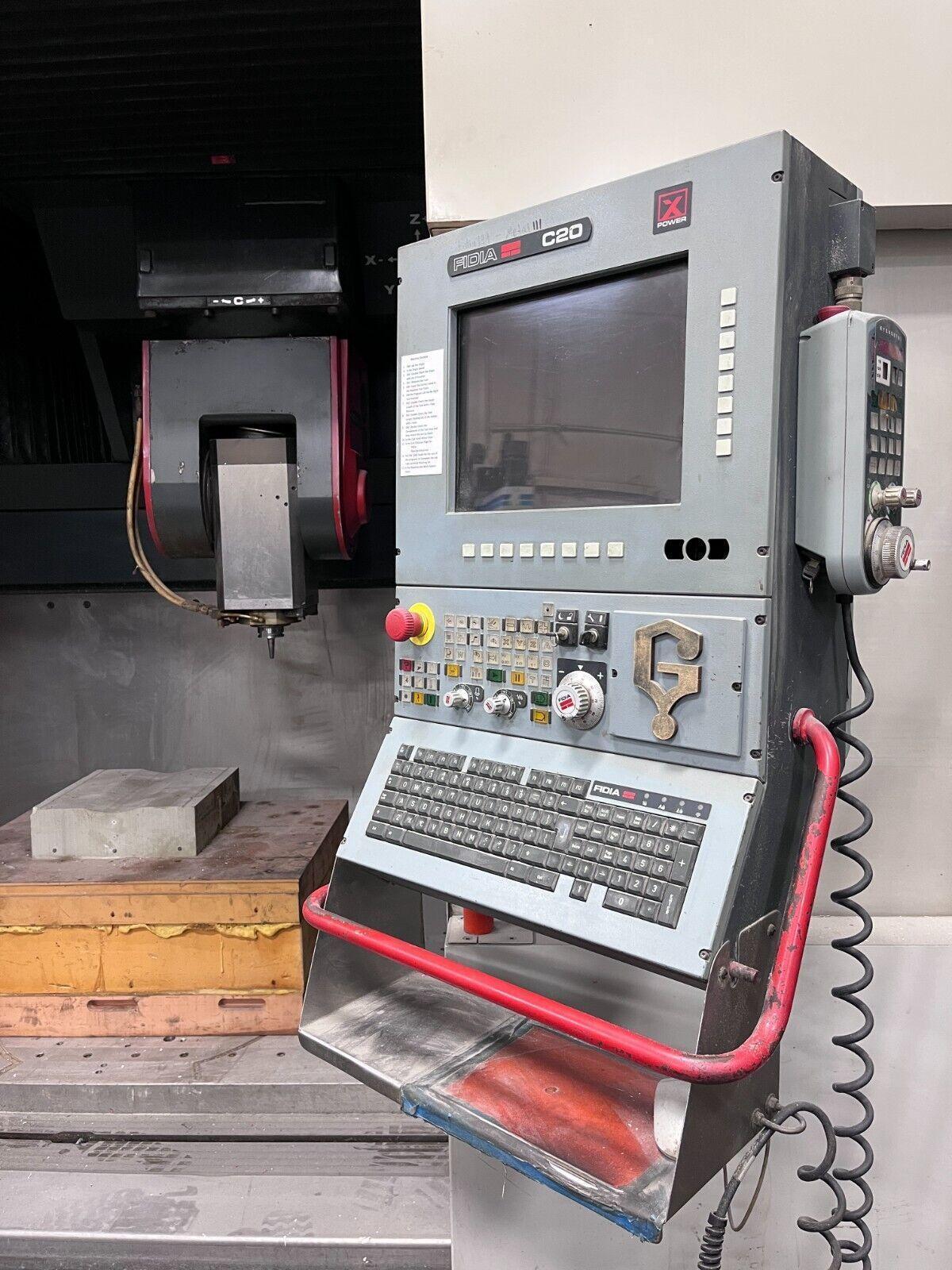

FIDIA C-20 Series CNC Control
Simultaneous 5 Axis Cutting
Gantry/Bridge Column Movement
Three-Dimensional Milling on High Speed
Scanning of Models With Storing of Tool Path
Three-Dimensional Measuring System
Spindle Orientation
Helical Interpolation
Rigid Tapping
Absolute Incremental Programming
Travels:
X Axis: 71"
Y Axis: 36"
Z Axis: 33"

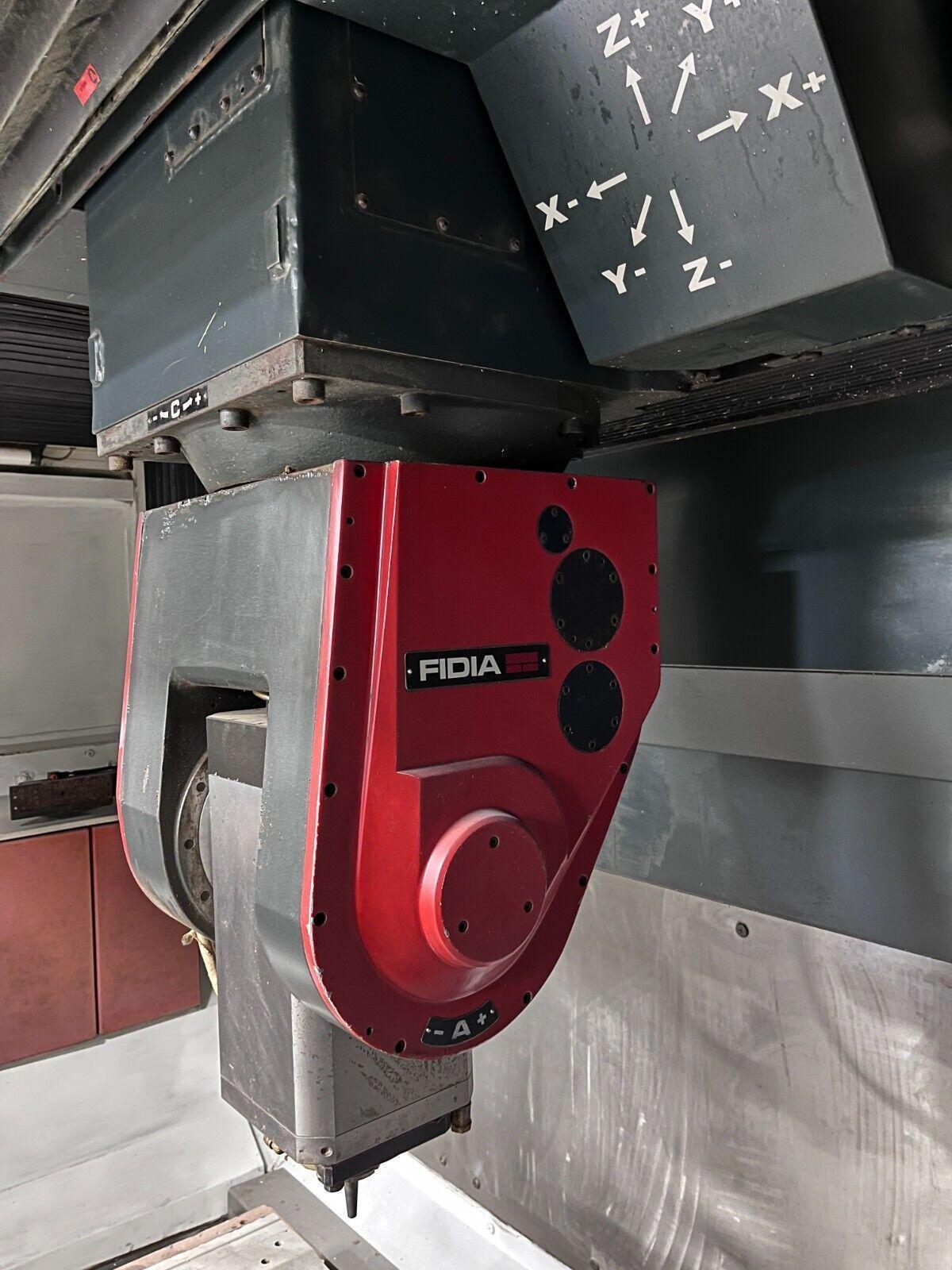

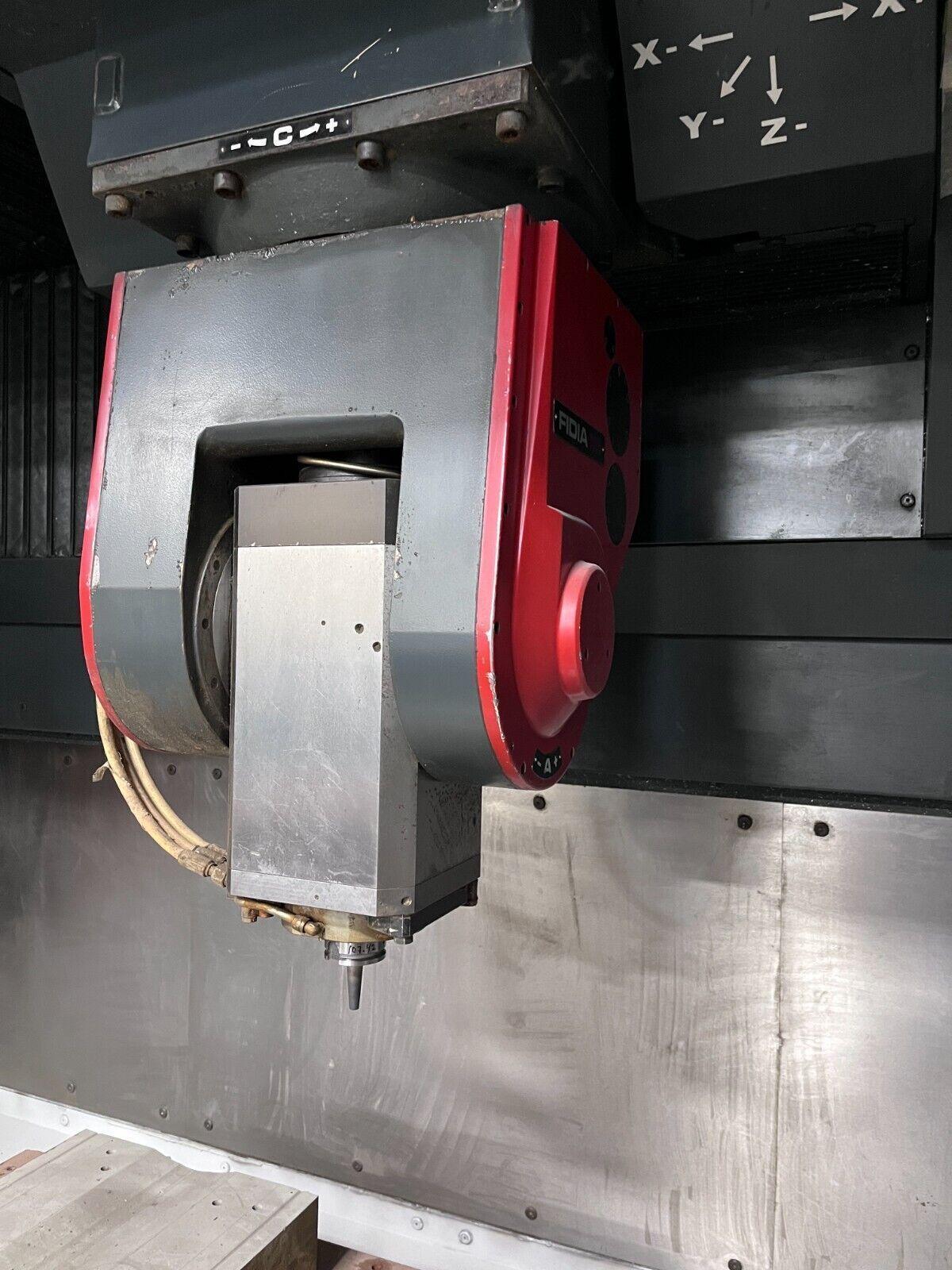

A Axis: +95/ -110 (Swivelable)
C Axis: +200° / 200° (Rotate)
Min. Increment: 0.001°
Table:
Length: 79"
Width: 49"
Number of Std T-Slots: 5
T-Slot Width: 0.70" x 10"
Max Weight on Table: 26455 lbs
Table to Spindle Nose: 3.9" 35.82"
Spindle:

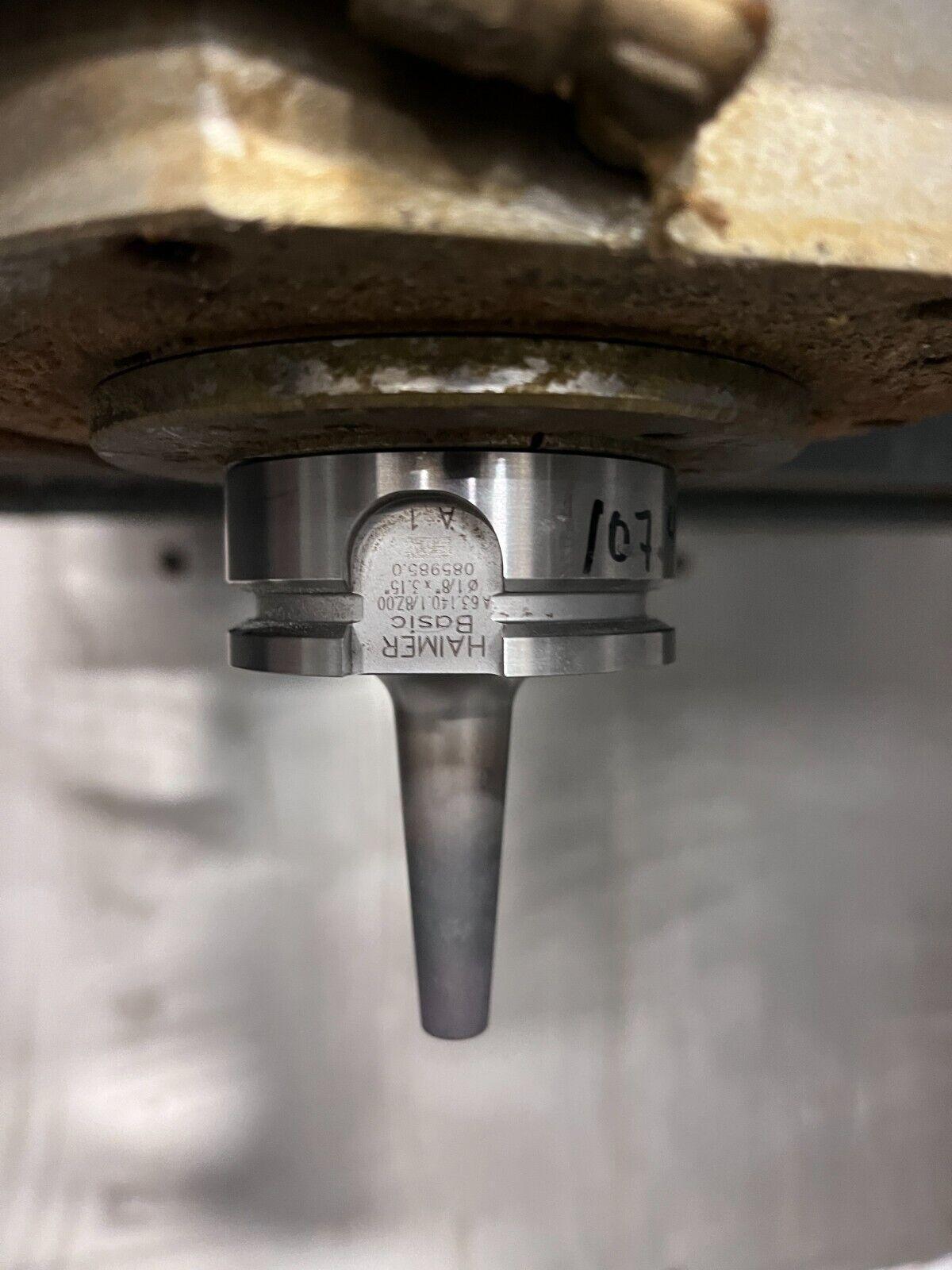

Taper Size: HSK 63A
Speed Range: 24000 RPM
Spindle Power: 46 HP
Feed Rates:
Rapid X Y Z Axis: 1181 IPM
Rapid A: 3.240 / min
Rapid C: 3.240 / min
Cutting Feed rate: 394 IPM
Tool Changer:
Capacity: 24 Tools
Taper: HSK 63A
Max Tool Size: 4.92" x 12"
Max Tool Weight: 17.63 lbs.
Tool Change Time: 5.5 Second
General:
Air Required: 80 psi 4 scfm

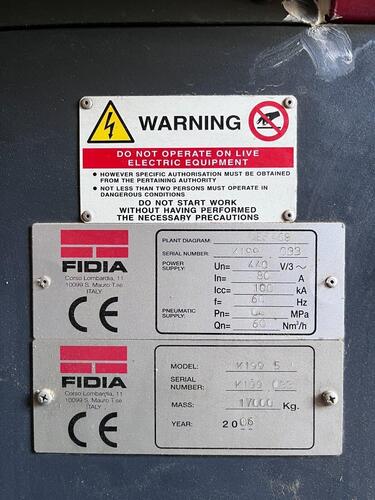

Power: 100 kva /440v / 3-Phase
Overall Dimensions: 236" x 197" x 177" High
Weight: 37478 lbs
